Winches
Carbon Winches
Heavy Duty Winches
ATV Winches
Carbon Offroad

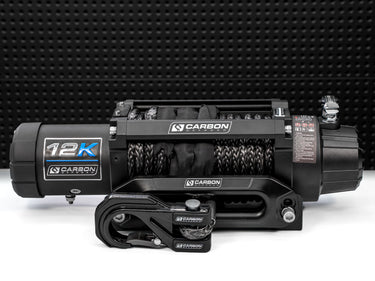

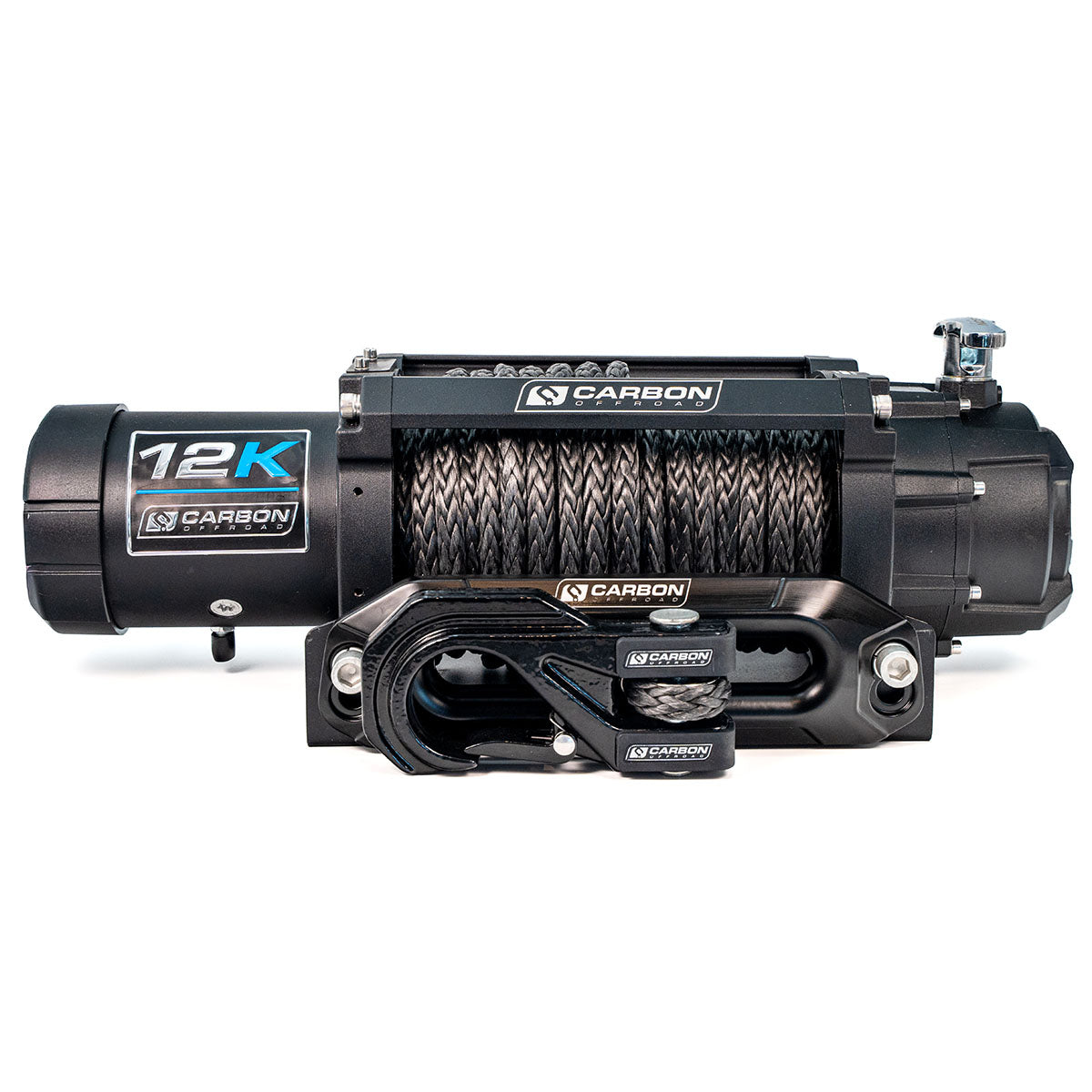

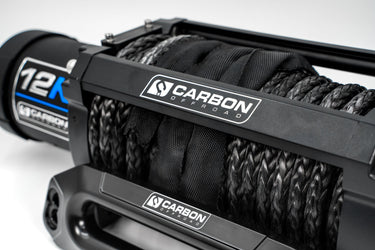

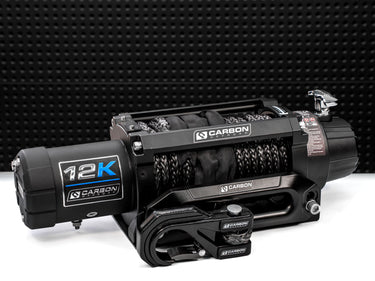

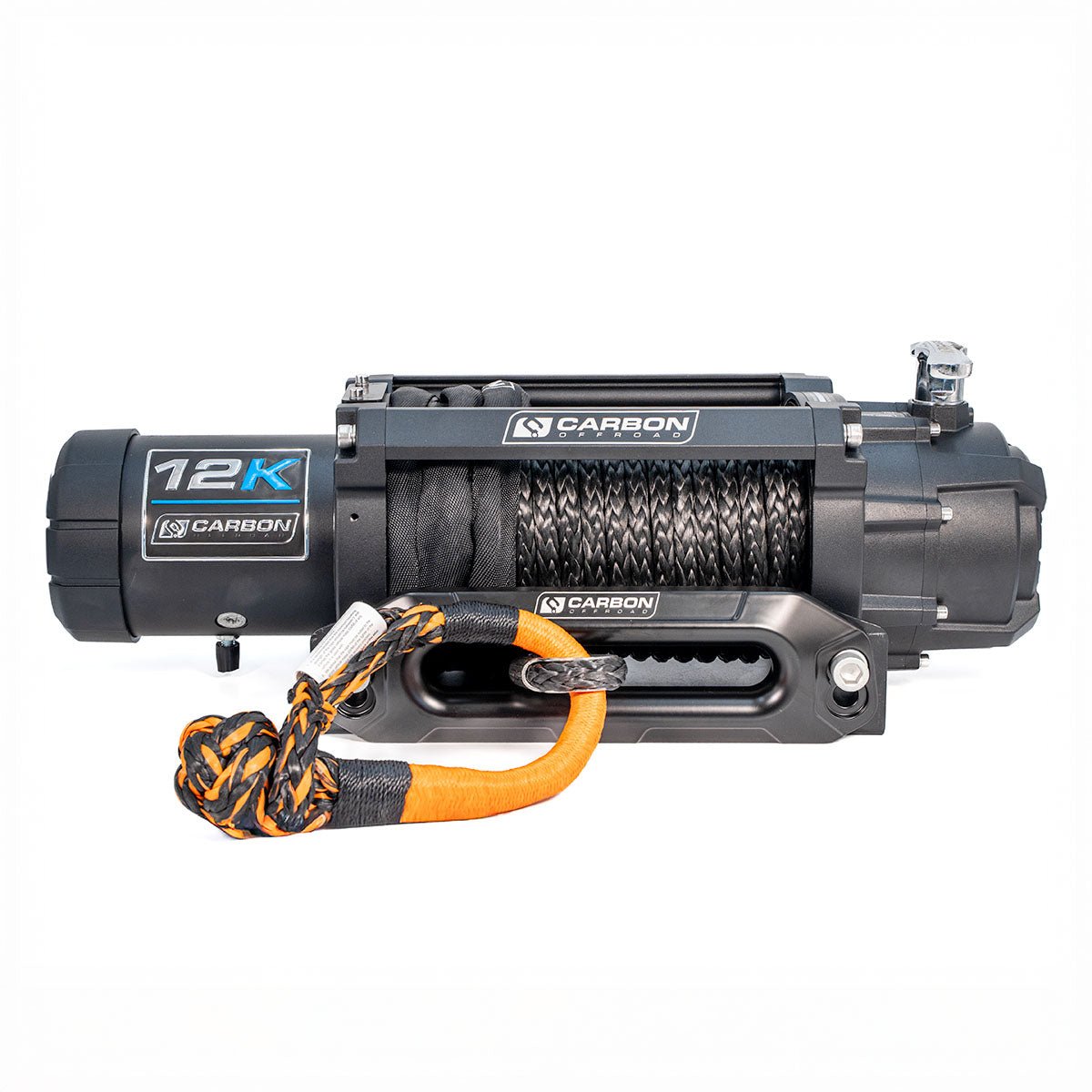

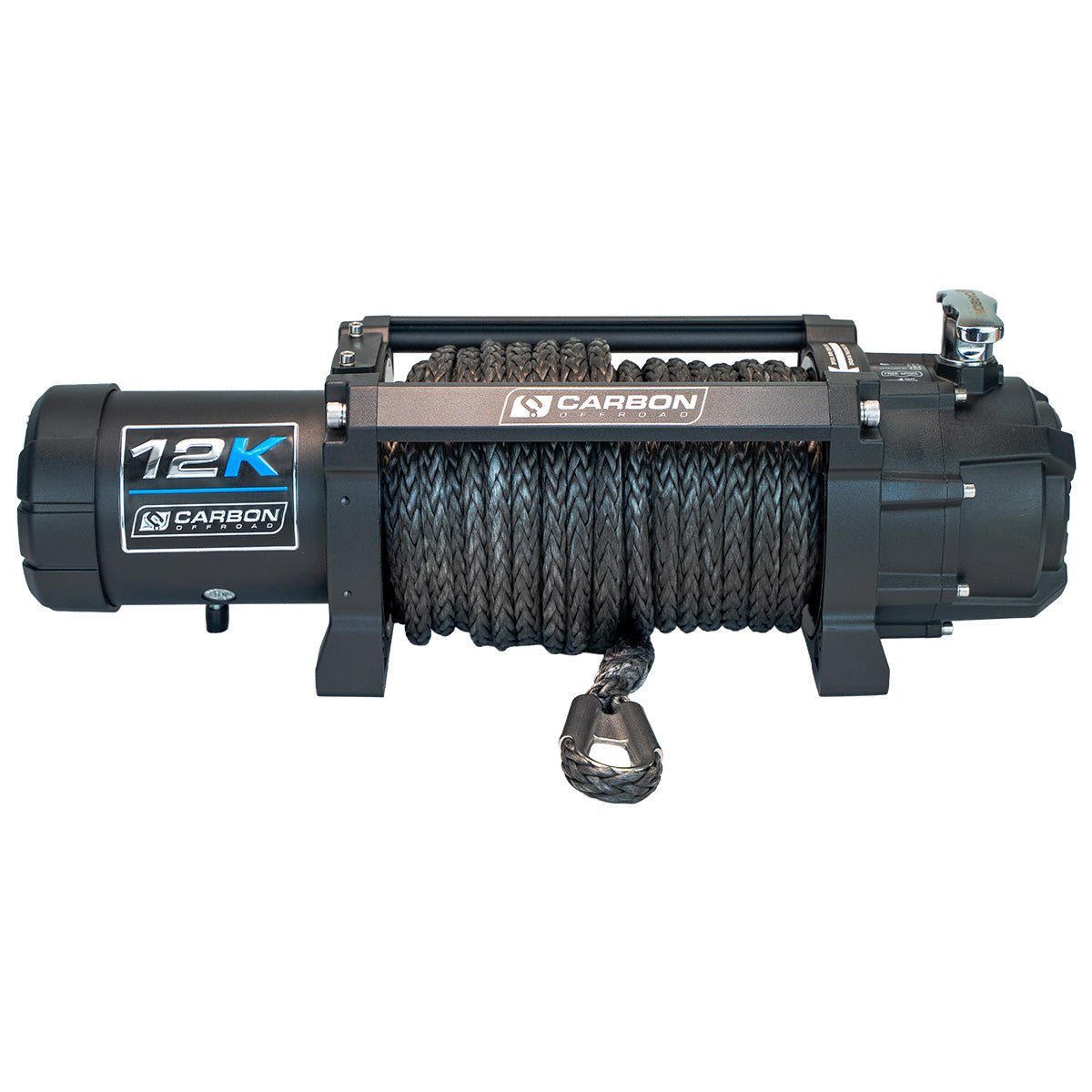

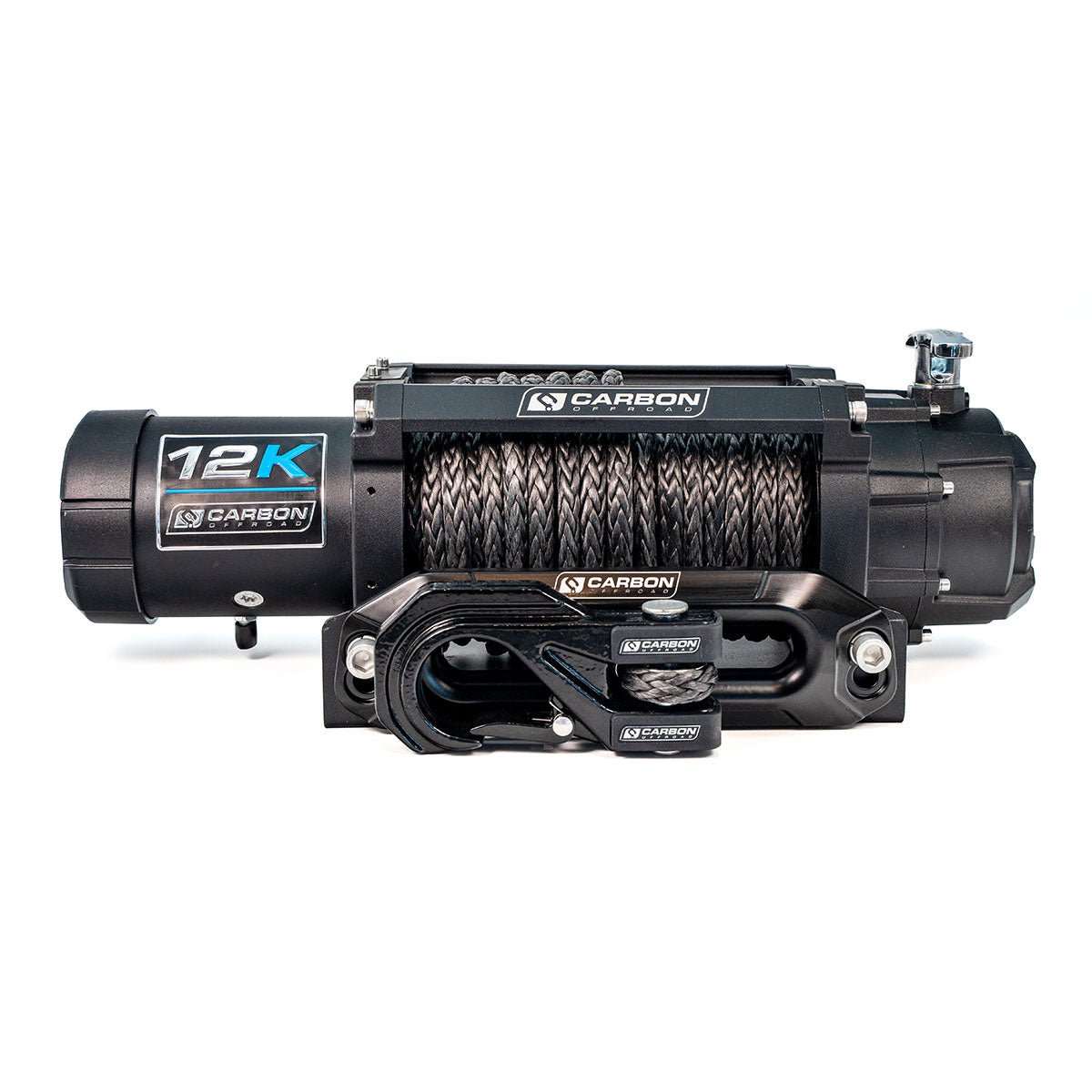

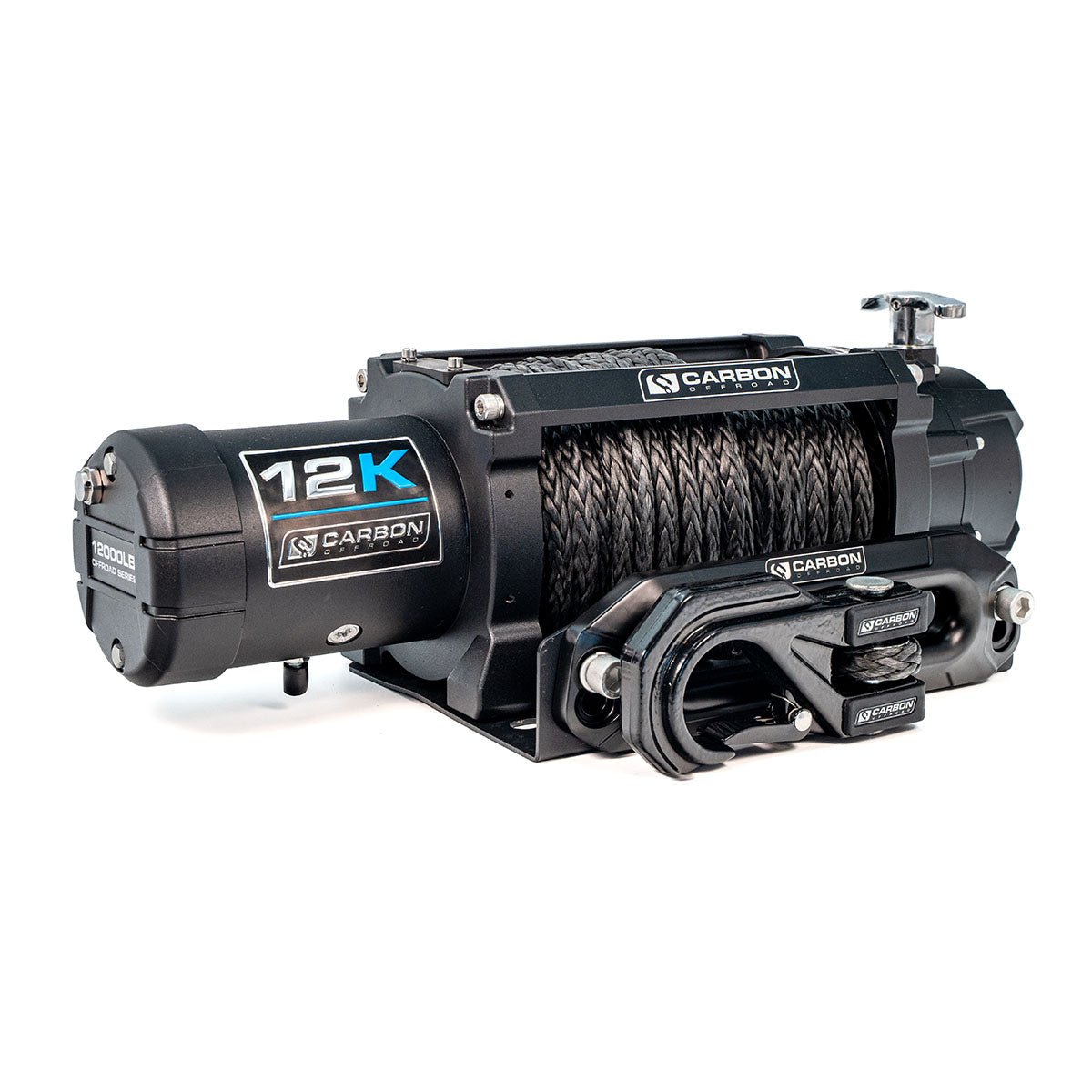

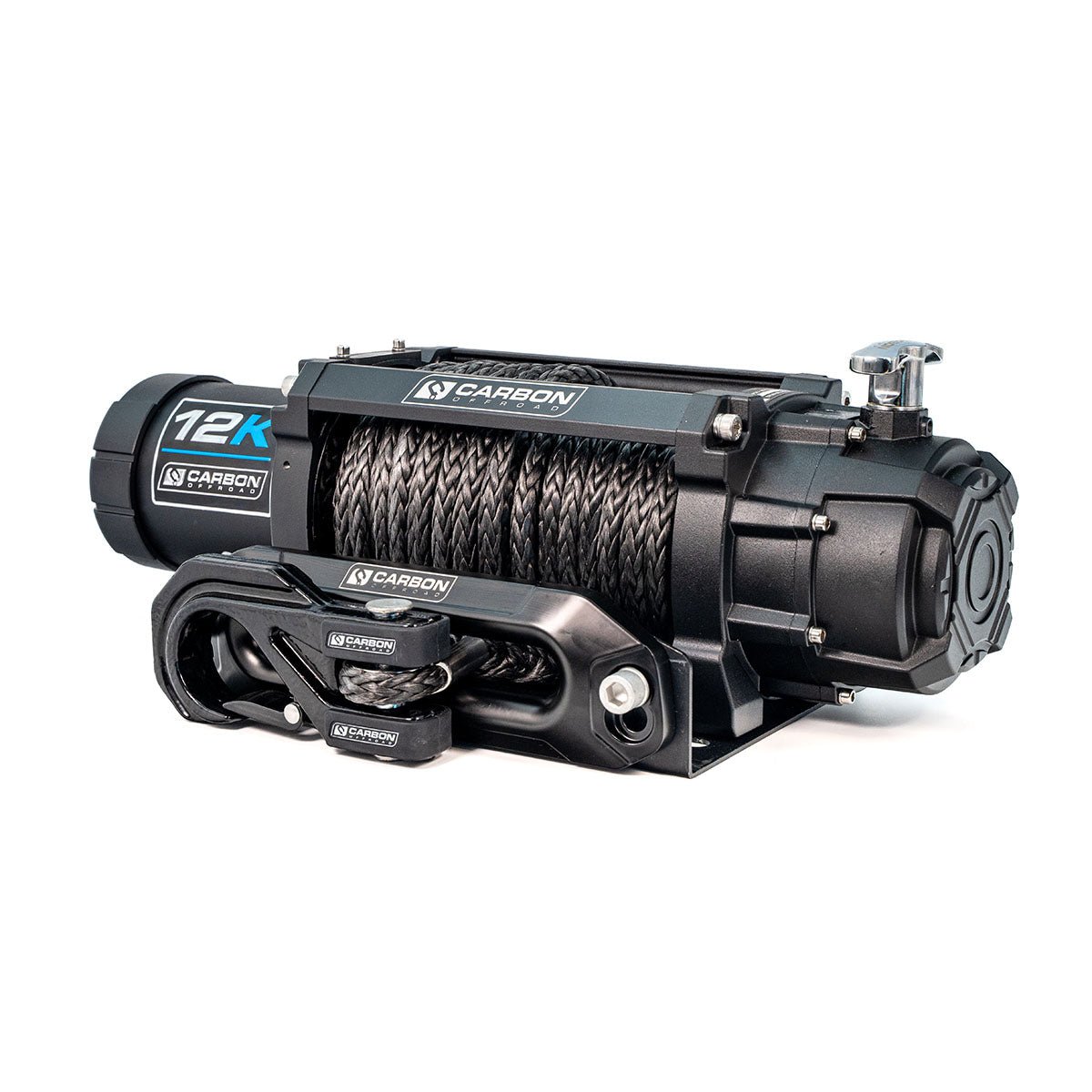

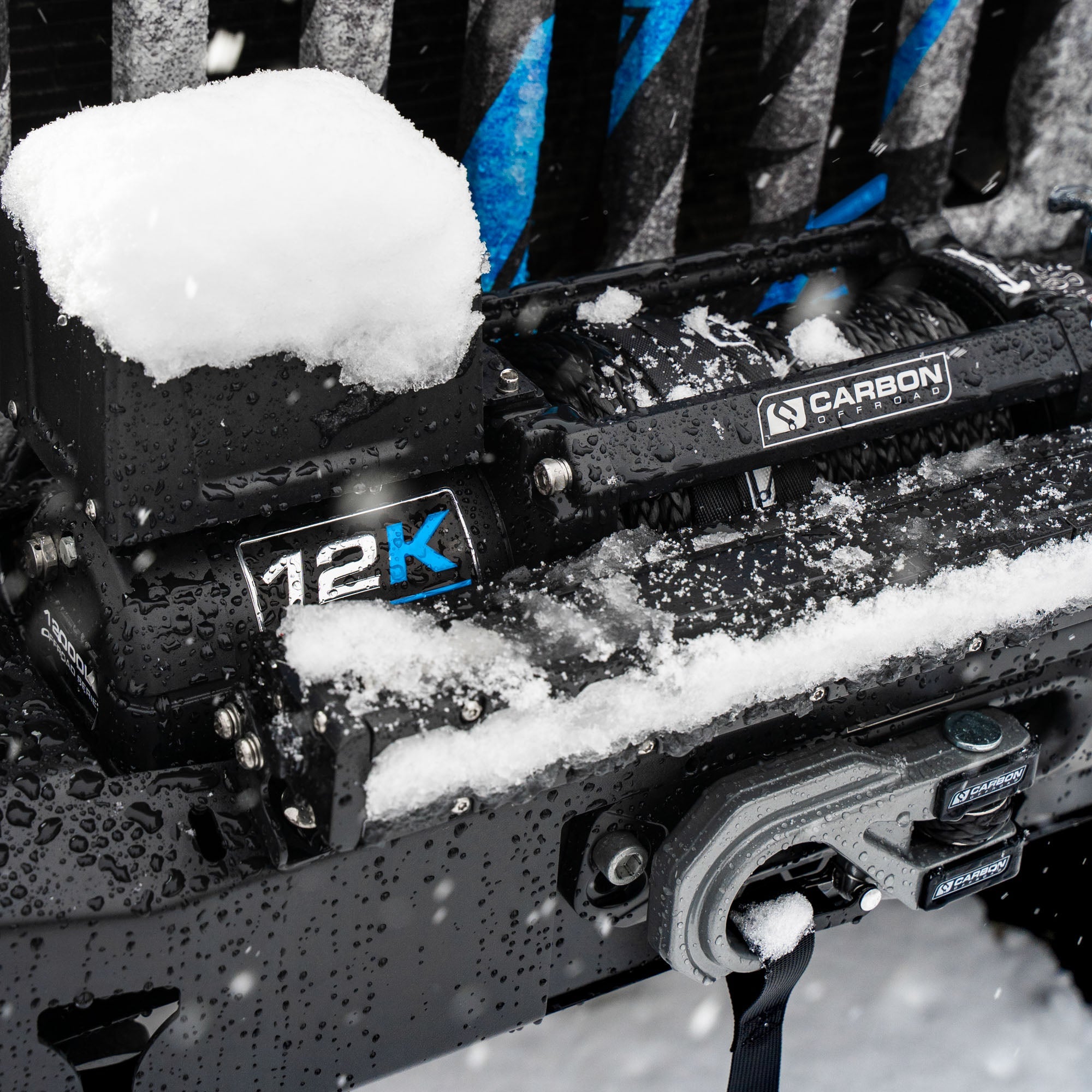

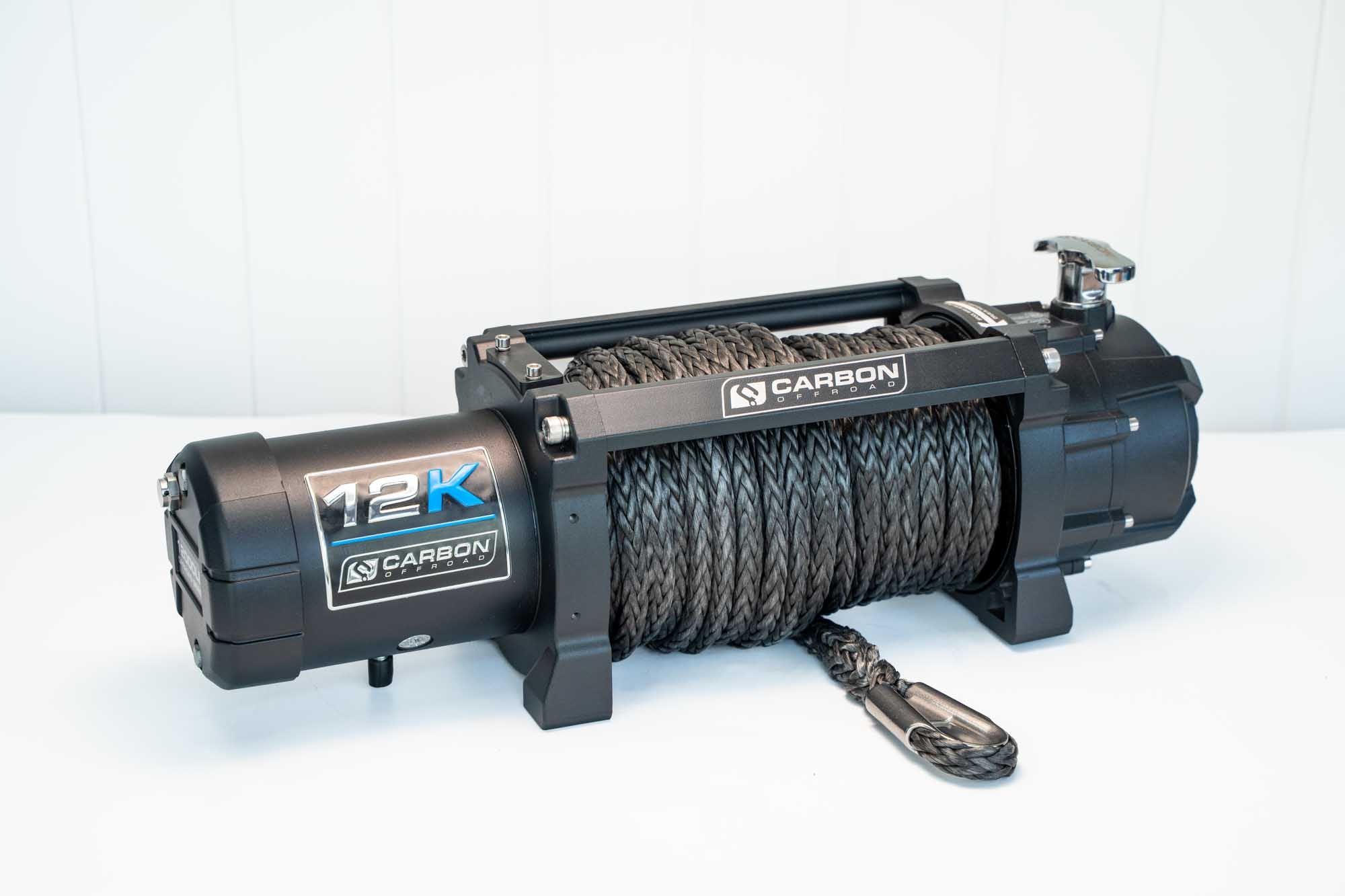

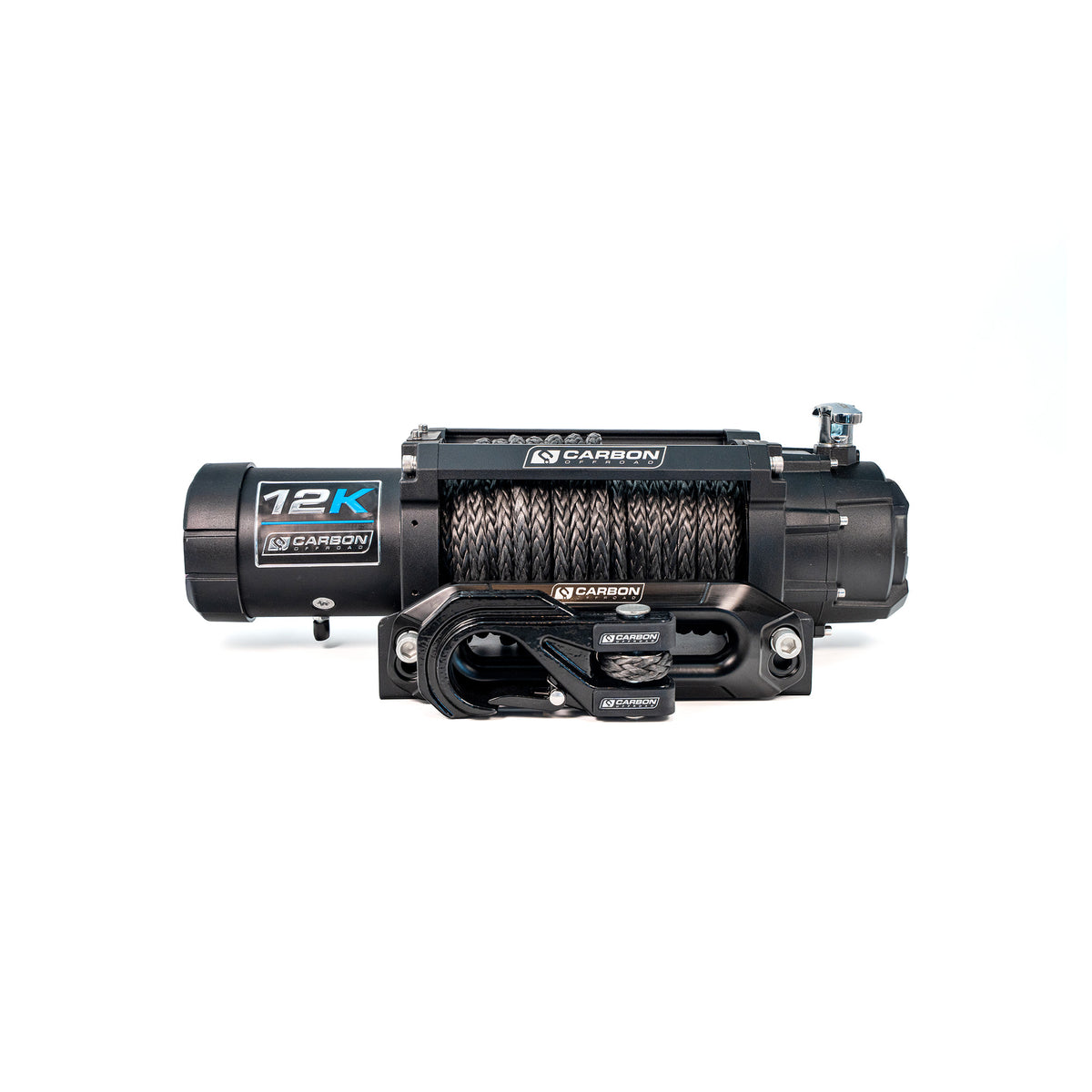

Carbon 12K 12000lb Electric Winch With Black Rope & Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.

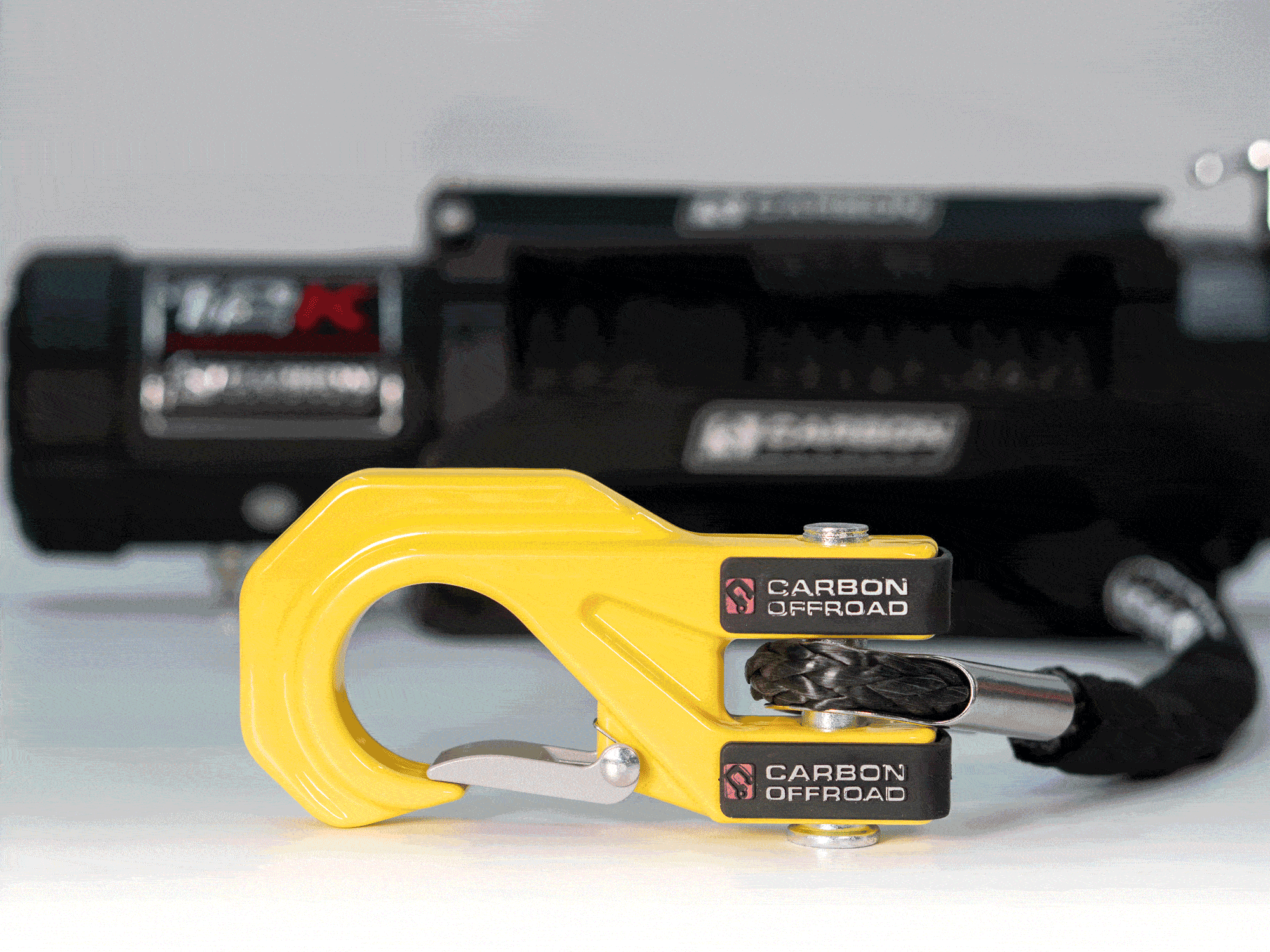

If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.

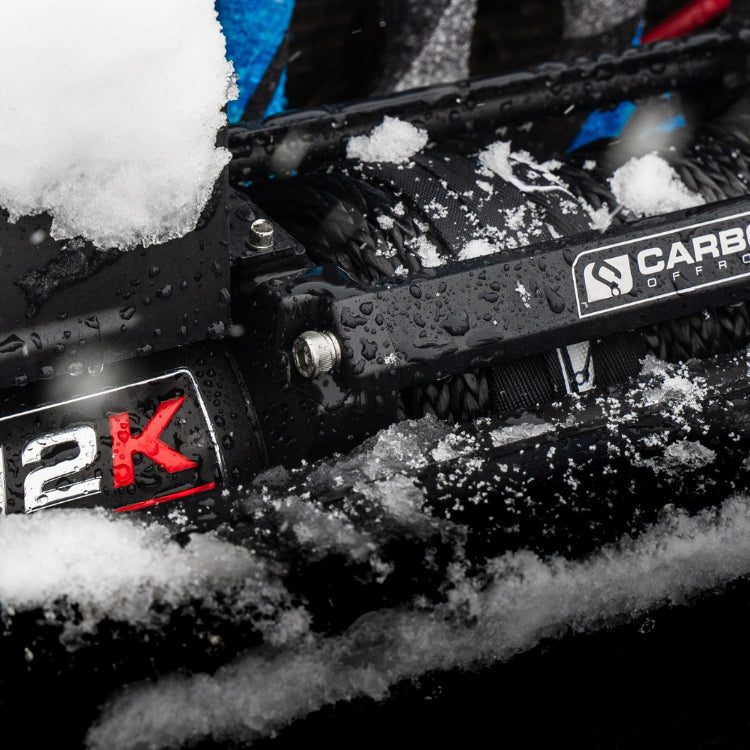

The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad

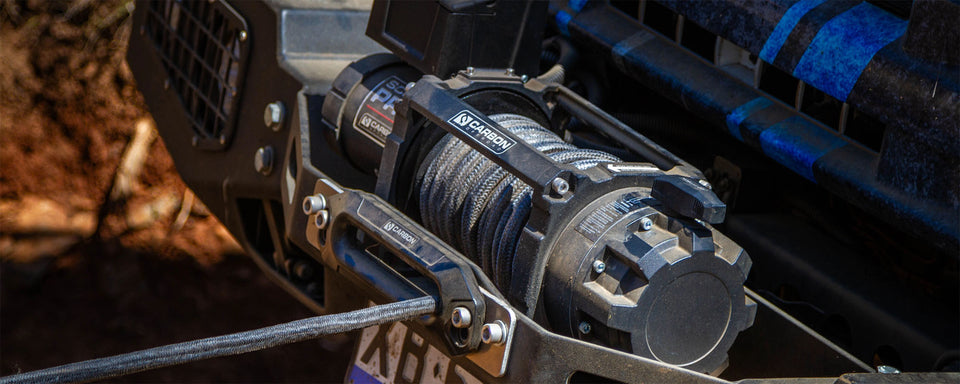

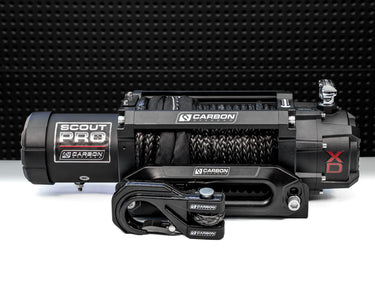

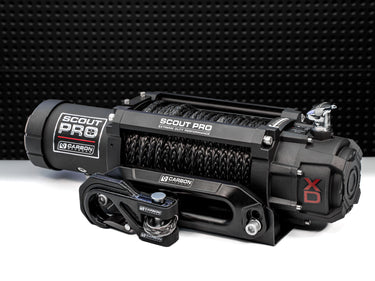

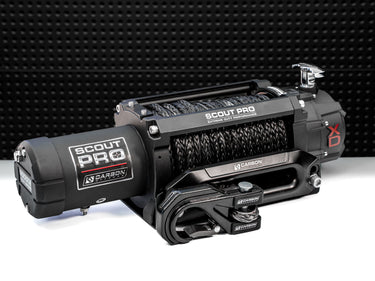

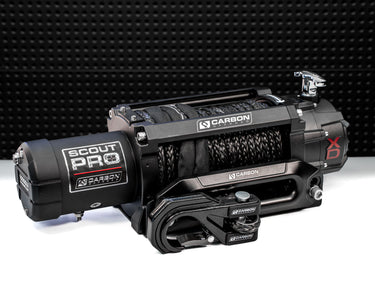

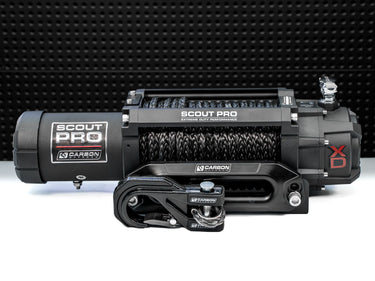

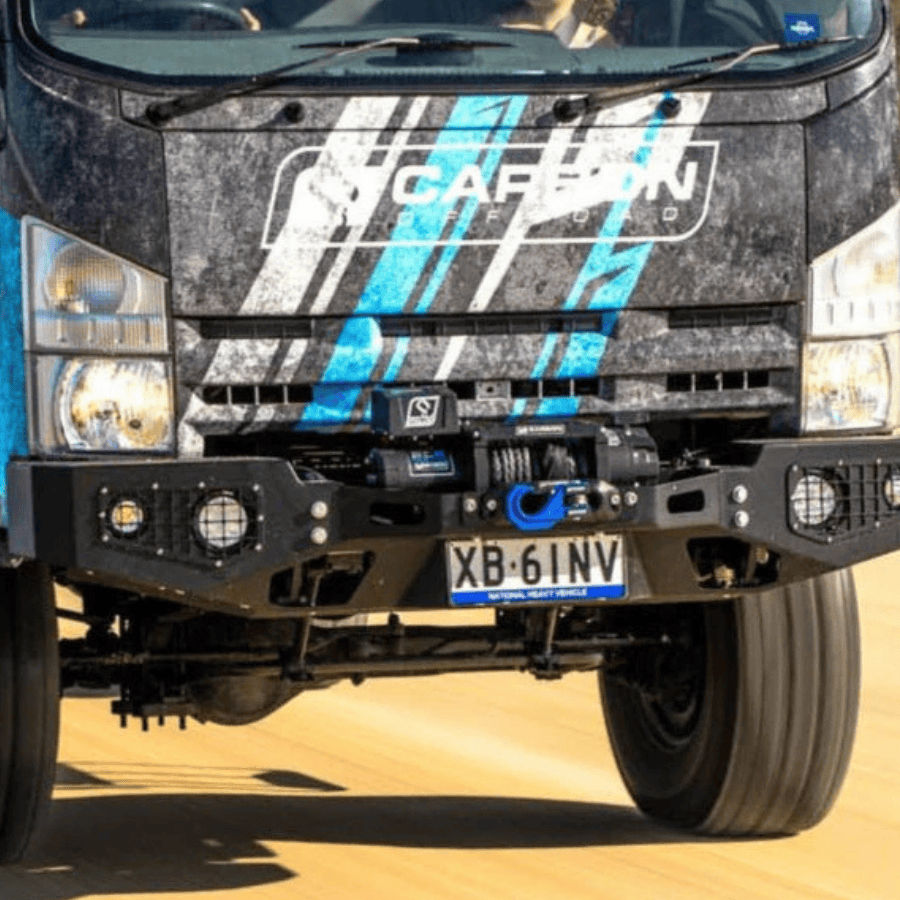

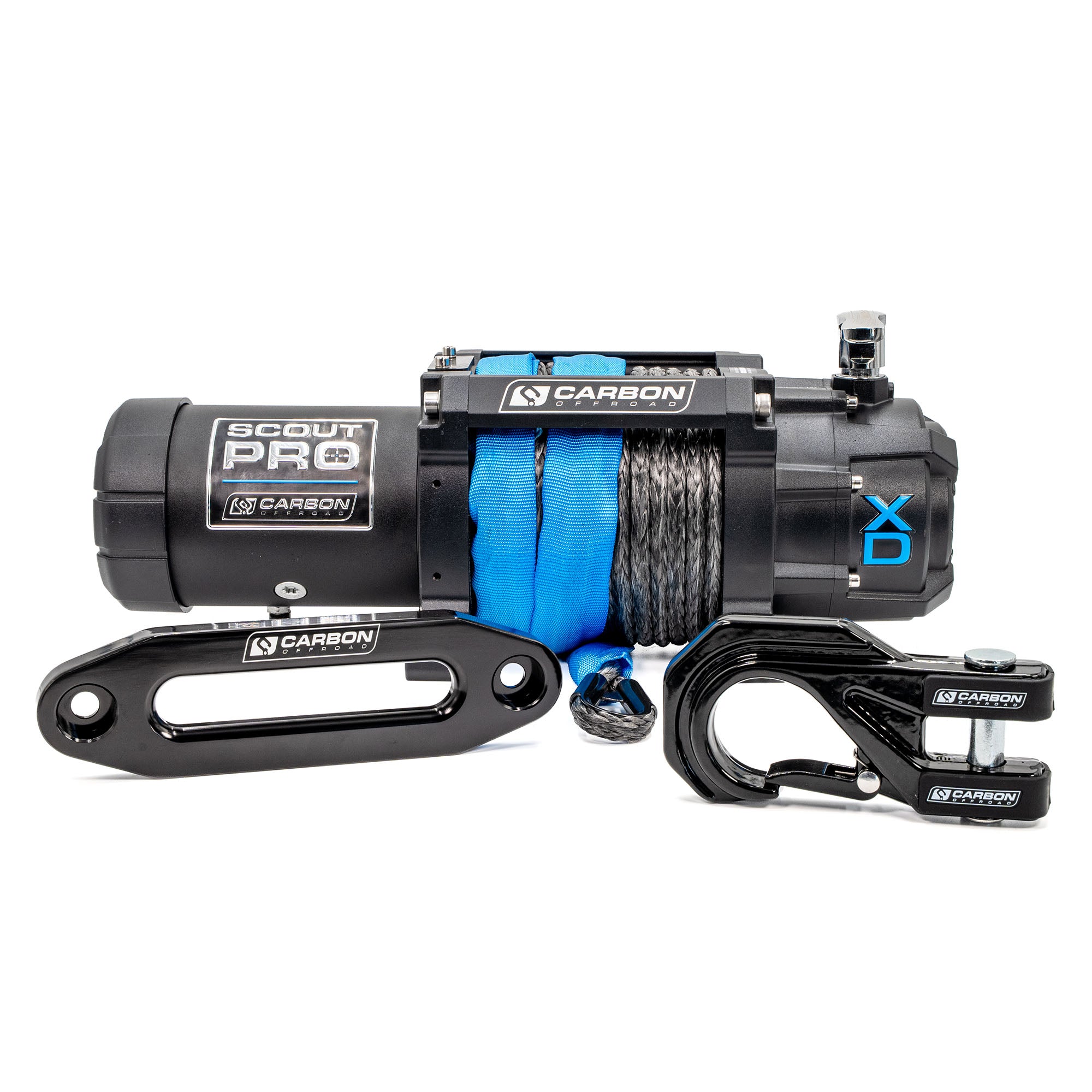

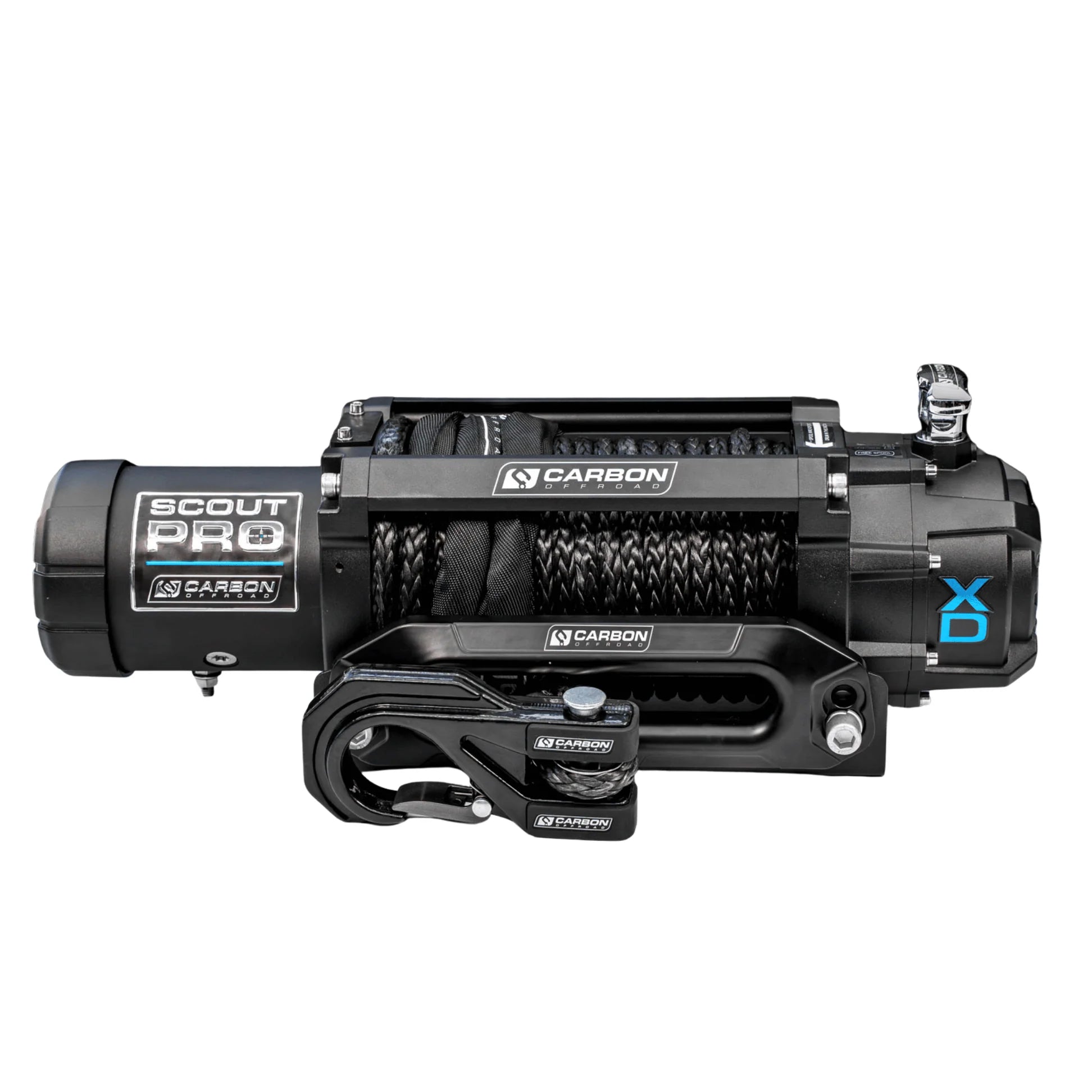

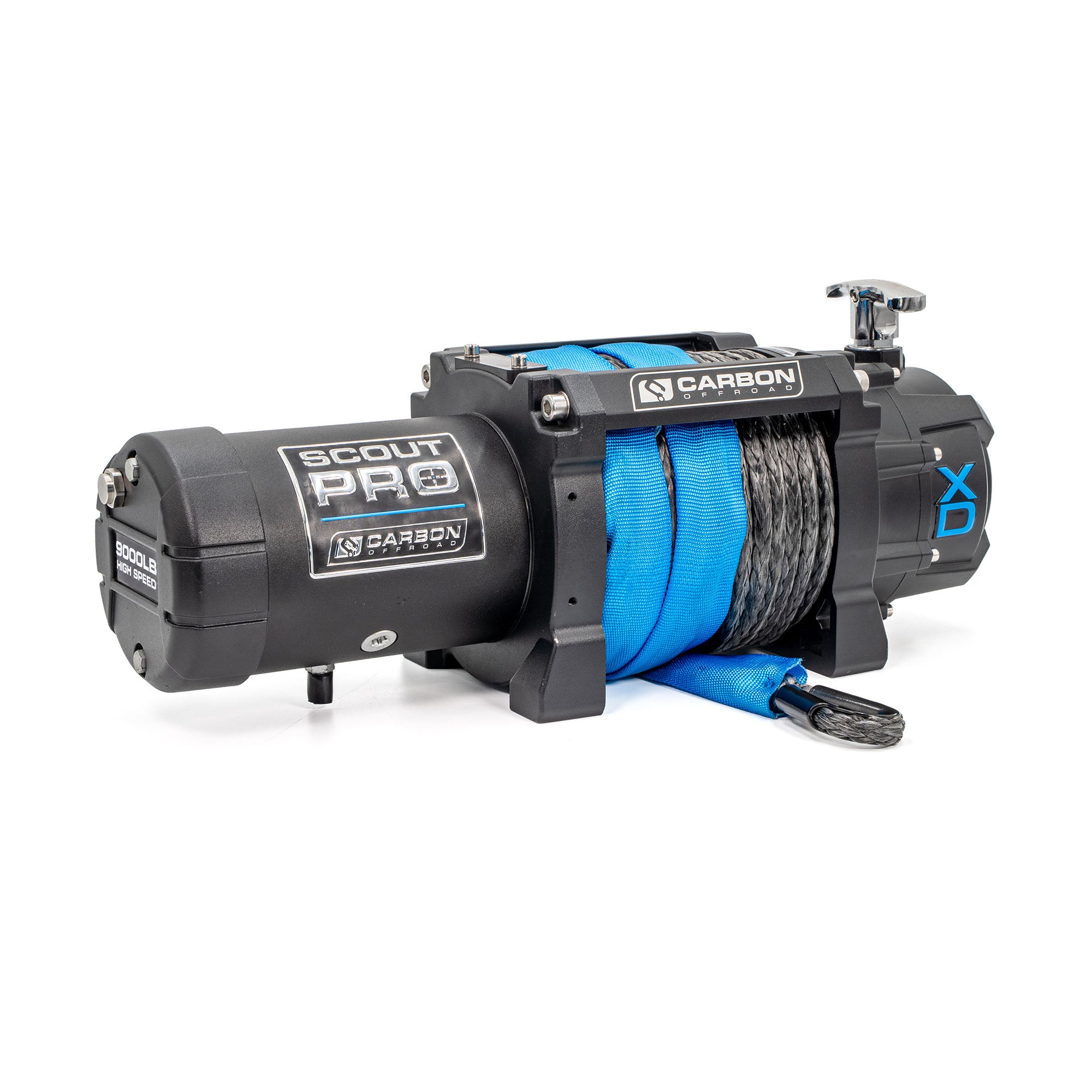

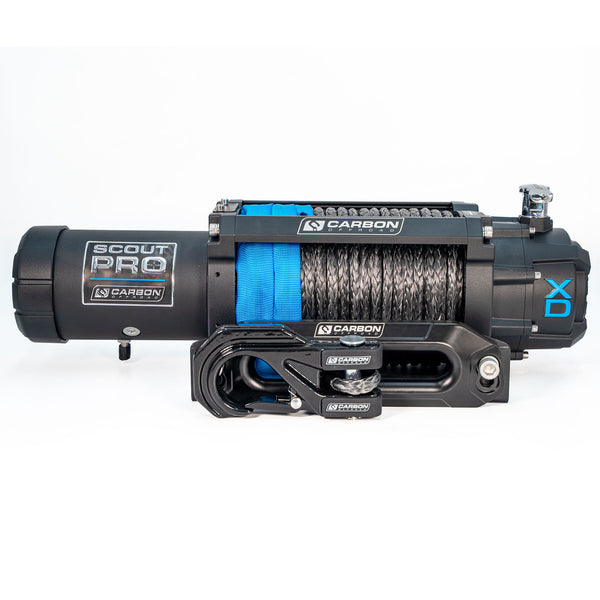

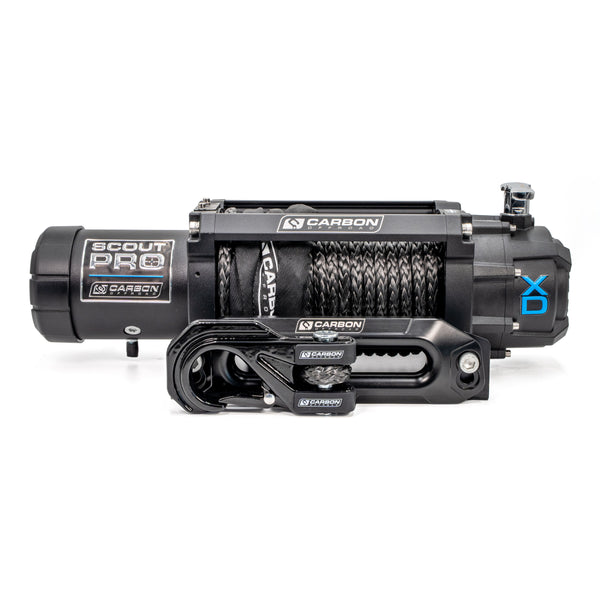

Carbon Scout Pro 15000lb Extreme Duty Electric Winch V3 IP68
$1,399.00
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 15000lb winch comes with 12mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
218:1 heavy duty performance gearbox
12mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
CW-XD15
12V DC performance specs (first layer of drum)
Line Pull
Line Speed
Motor
Pull by layer
Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)
0
27.9(8.5)
65 amps
1/15,000 (6810)
2000 (910)
11.8(3.6)
120 amps
2/12,700(5765)
6000 (2720)
9.5(2.9)
160 amps
3/10,770 (4890)
10000 (4540)
6.6 (2.0)
215 amps
4/9,130(4145)
13000 (5900)
4.6 (1.4)
265 amps
15000 (6818)
3.6 (1.1)
380 amps
Carbon Offroad
Carbon Tank 15000lb Large 4x4 Winch Kit IP68 12V
$1,599.00
The Carbon Offroad TANK 15000lb electric winch is a force to be reckoned with.
A new generation of winches joins the Carbon Offroad offer. TANK is synonymous for indestructible, bulletproof and powerful, which is just what this winch is. TANK is also associated with heavy, which is something this winch is not!
We understand that building the ultimate offroad rig often requires a lot of time, effort and additional parts once it comes off the factory floor, and this all adds weight. The capability to self recover a vehicle is generally high on the list of priorities for most overlanding and touring journey people, as most of the time, solo travel is the reality. In the past, this generally required a winch with steel cable and a heavy steel bullbar to carry it, but in todays market, there are smarter options and this includes the winches. Yes you can still buy a cheap heavy winch made from castings of solid steel if you like that sort of thing, but technology has improved, materials have improved and this has led to a winch being designed and built like the TANK. Billet alloys machined on CNC mills, Alloy castings make up the gearbox housings and main frames of the winch, critical components such as the winch drum are still made from steel, but this winch also features an aesthetic quality that is almost unmatched in the market. If you truly appreciate good design, the TANK will impress with it's sexy lines, solid cast alloy control box and solid alloy fairlead.
One of the most notable requirements of modern winches is that a winch must be waterproof. The TANK winch features a system unseen before in the winch market. The winch motor and drum frame mount are assembled as one unit at the factory, then it undergoes real life pressure leak testing to 20PSI on a custom made jig specially designed for this test, simulating the same pressure as a depth of 14 metres underwater! It must pass this test before moving further down the assembly line. We guarantee this winch will not see water out of the box.
Aside from the motor side, the gearbox housing also features a two stage mechanical and rubber o-ring sealing system which will ensure that part of the winch is also 100% sealed from water ingress to IP69K levels.
Other functions of the winch remain similar to our other winches, utilising a rotating ring gear free spool clutch assembly, 3 stage planetary gear train made from solid cut and hardened gear steel, with the gear train being oversize and similar to our Scout Pro Extreme Duty winches. It also features a gear train connected braking system which mitigates any heat build up on the drum which could cause damage to the winch rope.
The control box can be mounted over the drum directly into the threaded holes in the tie bars or over the motor with supplied mounting brackets, it can also be mounted remotely flush onto a bar or there is an optional remote mounting bracket available separately.
What is in the box:
1 x Tank winch with synthetic rope
1 x control box kit complete with cables
1 x battery earth cable
1 x 2 in 1 wireless remote control with plug in cable backup
1 x Alloy fairlead - standard offset
1 x Forged Alloy hook with mounting pin and split pin
1 x Mounting Bolt kit including separate fairlead mounting bolts
1 x control box "over motor" mounting bracket pair
1 x bolt kit for control box mounting
1 x rotary battery isolator switch
1 x battery isolator connecting cable 30cm
1 x battery isolator mounting bracket
1 x hook safety strap
1 x instruction manual
Specifications:
Rated Pulling Power: 15000lb (6804kg)
Power: 12V DC
Motor: 7.2HP Series Wound intermittent duty cycle
Cabling: 25mm2 conduited cable with terminated lugs
Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included)
IP Rating: IP68 - Motor unit pressure tested to 20psi
Hook: High strength forged alloy wide gate hook
Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.
Isolator: Heavy duty marine rotary style isolator with mounting bracket
Winch Housing: Cast and precision machined alloy
Gear Train: 234:1 Ratio 3 stage planetary gearset
Clutch: Rotating ring gear clutch - easy engagement and disengagement
Synthetic rope: 26mm of 10mm diameter UHMWPE fibre
Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
Drum Diameter: 64mm
Battery: 650CCA minimum vehicle battery size for winching.
Weight:
Shipping Carton Weight: 29.5KG
As fitted to vehicle: 26.2kg
Rated Line Pull:
1st layer of drum: 15000lb (6804kg) / Between 20-25m rope out
2nd layer of drum: 12386lb (5618kg) / Between 9-20m rope out
3rd layer of drum: 9184lb (4166kg) / Between 1-9m rope out
Line pull 0kg
Speed: 16.4ft/min - 5m/min
Amp Draw: 85 amp
Line pull 3750lb / 1361kg
Speed: 10.5ft/min - 3.2m/min
Amp Draw: 152 amp
Line pull 7500lb / 2722kg
Speed: 8.2ft/min - 2.5m/min
Amp Draw: 239 amp
Line pull 11250lb / 4082kg
Speed: 5.24ft/min - 1.6m/min
Amp Draw: 249 amp
Line pull 15000lb / 5443kg
Speed: 3.93ft/min - 1.2m/min
Amp Draw: 422 amp
Warranty
Limited Lifetime Geartrain / 5 Year Electrical.
5 Year Water Ingress Protection Warranty
Carbon Offroad
Carbon 12K 12000lb Electric Winch With Black Rope & Red Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K 12000lb Electric Winch With Black Rope & Orange Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K 12000lb Electric Winch With Black Rope & Green Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K 12000lb Electric Winch With Black Rope & Blue Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K 12000lb Electric Winch With Black Rope & Yellow Hook VER. 3
$1,099.00
$1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad

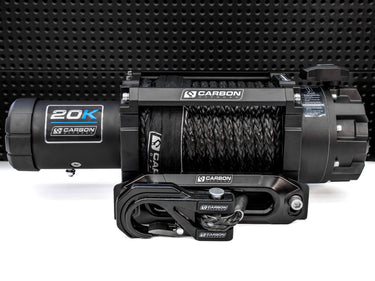

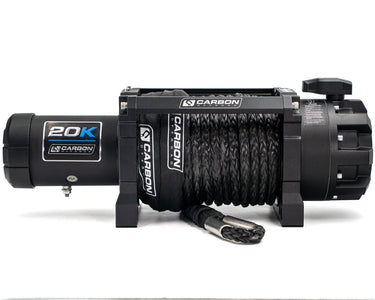

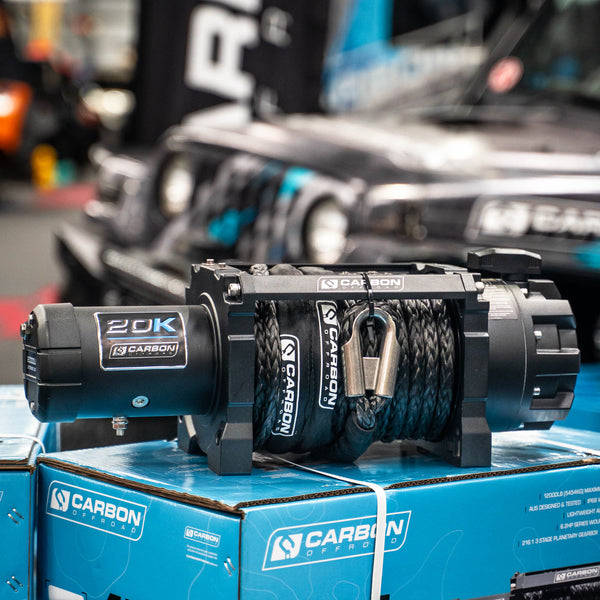

Carbon Tank 20000lb Truck Winch Kit IP68 12V
$2,399.00
The Carbon Offroad TANK 20000lb electric winch is a force to be reckoned with.
A new generation of winches joins the Carbon Offroad line up. TANK is synonymous for indestructible, bulletproof and powerful, which is just what this winch is. TANK is also associated with heavy, which is something this winch is not!
We understand that building the ultimate offroad rig often requires a lot of time, effort and additional parts once it comes off the factory floor, and this all adds weight. The capability to self recover a vehicle is generally high on the list of priorities for most overlanding and touring journey people, as most of the time, solo travel is the reality. In the past, this generally required a winch with steel cable and a heavy steel bullbar to carry it, but in todays market, there are smarter options and this includes the winches. Yes you can still buy a cheap heavy winch made from castings of solid steel if you like that sort of thing, but technology has improved, materials have improved and this has led to a winch being designed and built like the TANK. Billet alloys machined on CNC mills, alloy castings make up the gearbox housings and main frames of the winch, critical components such as the winch drum are still made from steel, but this winch also features an aesthetic quality that is almost unmatched in the market. If you truly appreciate good design, the TANK will impress with it's sexy lines, solid cast alloy control box and solid alloy fairlead.
One of the most notable requirements of modern winches is that a winch must be waterproof. The TANK winch features a system unseen before in the winch market. The winch motor and drum frame mount are assembled as one unit at the factory, then it undergoes real life pressure leak testing to 20PSI on a custom made jig specially designed for this test, simulating the same pressure as a depth of 14 metres underwater! It must pass this test before moving further down the assembly line. We guarantee this winch will not see water out of the box.
Aside from the motor side, the gearbox housing also features a two stage mechanical and rubber o-ring sealing system which will ensure that part of the winch is also 100% sealed from water ingress to IP69K levels.
Other functions of the winch remain similar to our other winches, utilising a rotating ring gear free spool clutch assembly, 4 stage planetary gear train made from solid cut and hardened gear steel, with the gear train being oversize and similar to our Scout Pro Extreme Duty winches. It also features a gear train connected braking system which mitigates any heat build up on the drum which could cause damage to the winch rope.
The control box can be mounted over the drum directly into the threaded holes in the tie bars or over the motor with supplied mounting brackets, it can also be mounted remotely flush onto a bar or there is an optional remote mounting bracket available separately.
The Tank 20000lb come in both 12 volt and 24 volt configurations allowing fitment on large 4x4s through to trucks running 24 volt systems. With a single line pull capacity over 9 tonne, you can be sure this winch will perform when no other option exists to extract your vehicle from a sticky situation.
What is in the box:
1 x Tank winch with synthetic rope
1 x control box kit complete with cables
1 x battery earth cable
1 x 2 in 1 wireless remote control with plug in cable backup
1 x Alloy fairlead - standard offset
1 x Forged Alloy hook with mounting pin and split pin
1 x Mounting Bolt kit including separate fairlead mounting bolts
1 x control box "over motor" mounting bracket pair
1 x bolt kit for control box mounting
1 x rotary battery isolator switch
1 x battery isolator connecting cable 30cm
1 x battery isolator mounting bracket
1 x hook safety strap
1 x instruction manual
Specifications:
Rated Pulling Power: 20,000lb (9072kg)
Power: 12V DC or 24V DC (separate website listings)
Motor: 7.8HP Series Wound intermittent duty cycle
Cabling: 25mm2 conduited cable with terminated lugs
Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included)
IP Rating: IP68 - Motor unit pressure tested to 20psi
Hook: High strength forged alloy wide gate hook
Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.
Isolator: Heavy duty marine rotary style isolator with mounting bracket
Winch Housing: Cast and precision machined alloy
Gear Train: 440:1 Ratio 4 stage planetary gearset
Clutch: Rotating ring gear clutch - easy engagement and disengagement
Synthetic rope: 21m of 14mm diameter UHMWPE fibre
Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
Drum Diameter: 88mm
Battery: 650CCA minimum vehicle battery size for winching.
Weight:
Shipping Carton Weight: 37KG
As fitted to vehicle: 33.4kg
Rated Line Pull:
1st layer of drum: 20000lb (9072kg) / Between 16-21m rope out
2nd layer of drum: 16216lb (7371kg) / Between 11-16m rope out
3rd layer of drum: 13636lb (6198kg) / Between 1-11m rope out
Line pull 0kg
Speed: 16.4ft/min - 5m/min
Amp Draw: 85 amp
Line pull 6000lb / 2721kg
Speed: 7.4ft/min - 2.25m/min
Amp Draw: 185 amp
Line pull 10000lb / 4563kg
Speed: 5.1ft/min - 1.55m/min
Amp Draw: 275 amp
Line pull 15000lb / 6803kg
Speed: 3.3ft/min - 1.0m/min
Amp Draw: 425 amp
Line pull 20000lb / 9072kg
Speed: 2.62ft/min - 0.8m/min
Amp Draw: 430 amp
Warranty is Limited Lifetime Geartrain / 5 Year Electrical. Designed for Australian and international conditions.
Carbon Offroad
Carbon Tank 20000lb Truck Winch Kit IP68 24V
$2,399.00
The Carbon Offroad TANK 20000lb electric winch is a force to be reckoned with.
A new generation of winches joins the Carbon Offroad line up. TANK is synonymous for indestructible, bulletproof and powerful, which is just what this winch is. TANK is also associated with heavy, which is something this winch is not!
We understand that building the ultimate offroad rig often requires a lot of time, effort and additional parts once it comes off the factory floor, and this all adds weight. The capability to self recover a vehicle is generally high on the list of priorities for most overlanding and touring journey people, as most of the time, solo travel is the reality. In the past, this generally required a winch with steel cable and a heavy steel bullbar to carry it, but in todays market, there are smarter options and this includes the winches. Yes you can still buy a cheap heavy winch made from castings of solid steel if you like that sort of thing, but technology has improved, materials have improved and this has led to a winch being designed and built like the TANK. Billet alloys machined on CNC mills, alloy castings make up the gearbox housings and main frames of the winch, critical components such as the winch drum are still made from steel, but this winch also features an aesthetic quality that is almost unmatched in the market. If you truly appreciate good design, the TANK will impress with it's sexy lines, solid cast alloy control box and solid alloy fairlead.
One of the most notable requirements of modern winches is that a winch must be waterproof. The TANK winch features a system unseen before in the winch market. The winch motor and drum frame mount are assembled as one unit at the factory, then it undergoes real life pressure leak testing to 20PSI on a custom made jig specially designed for this test, simulating the same pressure as a depth of 14 metres underwater! It must pass this test before moving further down the assembly line. We guarantee this winch will not see water out of the box.
Aside from the motor side, the gearbox housing also features a two stage mechanical and rubber o-ring sealing system which will ensure that part of the winch is also 100% sealed from water ingress to IP69K levels.
Other functions of the winch remain similar to our other winches, utilising a rotating ring gear free spool clutch assembly, 4 stage planetary gear train made from solid cut and hardened gear steel, with the gear train being oversize and similar to our Scout Pro Extreme Duty winches. It also features a gear train connected braking system which mitigates any heat build up on the drum which could cause damage to the winch rope.
The control box can be mounted over the drum directly into the threaded holes in the tie bars or over the motor with supplied mounting brackets, it can also be mounted remotely flush onto a bar or there is an optional remote mounting bracket available separately.
The Tank 20000lb come in both 12 volt and 24 volt configurations allowing fitment on large 4x4s through to trucks running 24 volt systems. With a single line pull capacity over 9 tonne, you can be sure this winch will perform when no other option exists to extract your vehicle from a sticky situation.
What is in the box:
1 x Tank winch with synthetic rope
1 x control box kit complete with cables
1 x battery earth cable
1 x 2 in 1 wireless remote control with plug in cable backup
1 x Alloy fairlead - standard offset
1 x Forged Alloy hook with mounting pin and split pin
1 x Mounting Bolt kit including separate fairlead mounting bolts
1 x control box "over motor" mounting bracket pair
1 x bolt kit for control box mounting
1 x rotary battery isolator switch
1 x battery isolator connecting cable 30cm
1 x battery isolator mounting bracket
1 x hook safety strap
1 x instruction manual
Specifications:
Rated Pulling Power: 20,000lb (9072kg)
Power: 12V DC or 24V DC (separate website listings)
Motor: 7.8HP Series Wound intermittent duty cycle
Cabling: 25mm2 conduited cable with terminated lugs
Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included)
IP Rating: IP68 - Motor unit pressure tested to 20psi
Hook: High strength forged alloy wide gate hook
Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.
Isolator: Heavy duty marine rotary style isolator with mounting bracket
Winch Housing: Cast and precision machined alloy
Gear Train: 440:1 Ratio 4 stage planetary gearset
Clutch: Rotating ring gear clutch - easy engagement and disengagement
Synthetic rope: 21m of 14mm diameter UHMWPE fibre
Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
Drum Diameter: 88mm
Battery: 650CCA minimum vehicle battery size for winching.
Weight:
Shipping Carton Weight: 37KG
As fitted to vehicle: 33.4kg
Rated Line Pull:
1st layer of drum: 20000lb (9072kg) / Between 16-21m rope out
2nd layer of drum: 16216lb (7371kg) / Between 11-16m rope out
3rd layer of drum: 13636lb (6198kg) / Between 1-11m rope out
Line pull 0kg
Speed: 16.4ft/min - 5m/min
Amp Draw: 85 amp
Line pull 6000lb / 2721kg
Speed: 7.4ft/min - 2.25m/min
Amp Draw: 185 amp
Line pull 10000lb / 4563kg
Speed: 5.1ft/min - 1.55m/min
Amp Draw: 275 amp
Line pull 15000lb / 6803kg
Speed: 3.3ft/min - 1.0m/min
Amp Draw: 425 amp
Line pull 20000lb / 9072kg
Speed: 2.62ft/min - 0.8m/min
Amp Draw: 430 amp
Warranty is Limited Lifetime Geartrain / 5 Year Electrical. Designed for Australian and international conditions.
5 Year Water Ingress Protection Warranty
Carbon Offroad

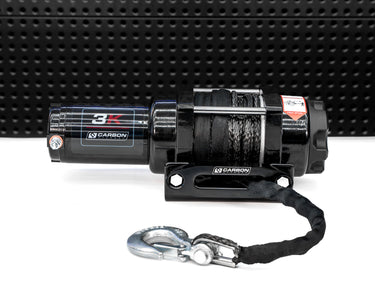

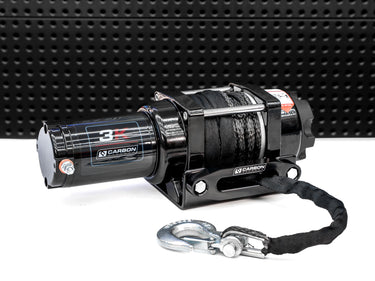

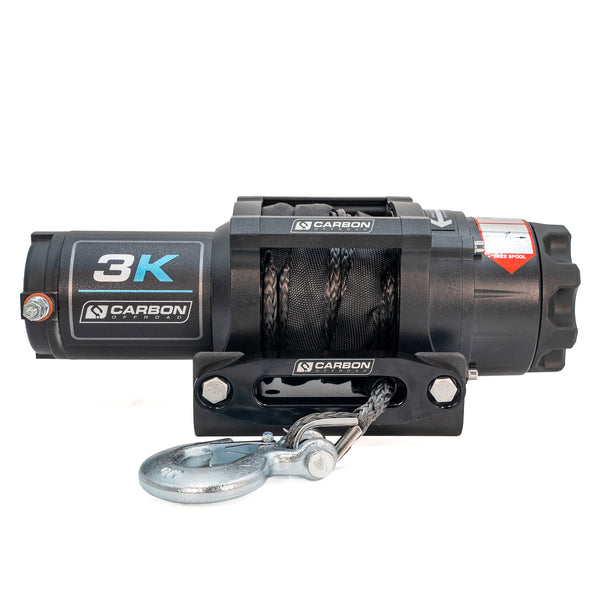

Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch
$249.95
The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch
The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you conside the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.
SPECIFICATION / PART NUMBERS CW-3U 3000lb
Part number: CW-3U
Rated line pull: 3000lbs, (1360kg) single-line
Motor: 12V DC 1.5HP Permanent Magnet motor
Remote Control: Remote Switch, 12� (3.7m) lead.
Wireless Remote Control: Included
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: Self-locking gear train ( Rated Load Holding
Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)
Synthetic Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )
Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )
Packing Dimensions( L x W x H ): 15.7��x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
Shipping Weight: 10kg ( 22lbs)
Warranty : 1 year
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull Lbs.(Kgs.)
Line Speed FT./min(M/min.)
Motor Current
Pull by layer layer/Lbs(Kgs.)
0
20.4(6.2)
10Amps
1/3000(1360)
1000(453)
14.2(4.3)
65Amps
3/2725(1235)
2000(907)
10.9(3.3)
96Amps
3/2480(1125)
3000(1360)
7.7(2.4)
Carbon Offroad

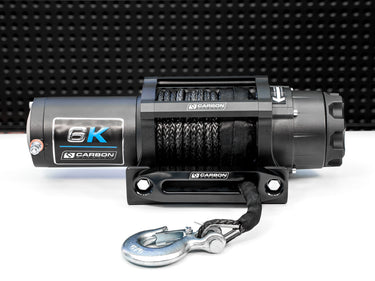

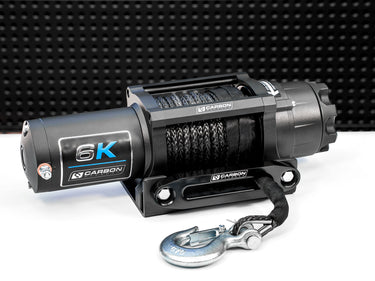

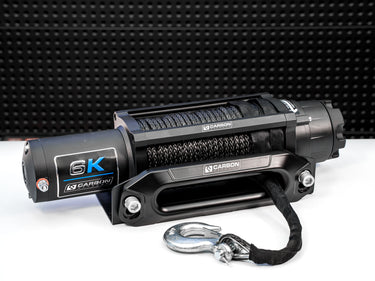

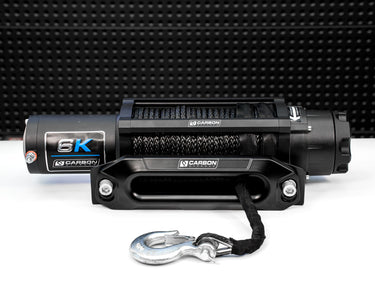

Carbon Offroad Tank 6000lb ATV UTV Small 4x4 Winch Kit IP66 12V
$599.00
The Carbon Offroad Tank 6000 lb Capacity winch for small 4wds, caravans, trailers, boats.
A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power
Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-TK6
Part number: CW-TK6
Rated line pull: 6,000 lbs, (2721kg) single-line
Motor: 12V DC 1.5HP motor
Geartrain: 3 Stage Planetary
Gear Ratio: 166:1
Clutch: Free spooling, Cam activated
Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
Fairlead: Aluminium Hawse
IP Rating: IP66 - Winch and Controls (Except remote switch)
Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor Current @12V
0 (0)
20.5 (6.2)
30 Amps
1000 (454)
16.1 (4.9)
83 Amps
2000 (907)
12.8 (3.9)
136 Amps
3000 (1361)
10.7 (3.3)
168 Amps
4000 (1814)
8.6 (2.6)
232 Amps
6000 (2721)
4.9 (1.5)
320 Amps
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
Carbon Offroad

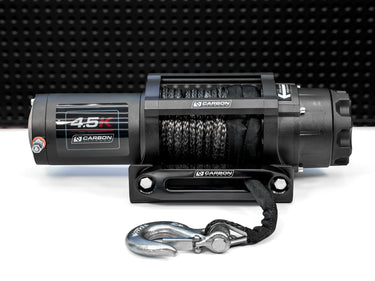

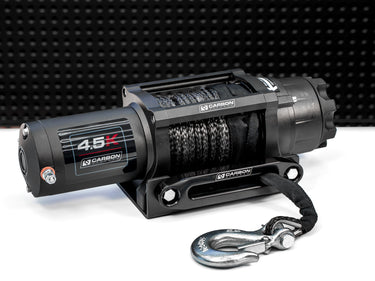

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control - Fully Sealed
$475.00
The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.
A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an ATV or Buggy.
With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.
Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.
A great small all rounder winch to make work easier or to get your buggy out of the bog.
FEATURES
4,500 lb (2,040 kg ) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance.
Mechanical load holding and dynamic brake for 100% braking.
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
Synthetic rope
SPECIFICATION / PART NUMBERS CW-45
Part number: CW-4.5
Rated line pull: 4,500 lbs, (2040kg) single-line
Motor: 12V DC 1.9HP motor
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: included
Geartrain: 3-Stage Planetary.
Gear Ratio: 176:1
Clutch (freespooling): Split Ring Gear
Brake: Dynamic and mechanical braking
Drum Diameter/Length: 2.5��/4.4�� (60.5mm/112mm)
Synthetic Rope: 43�, 1/4�� diameter ( 13m, 6.35 diameter)
Fairlead: Aluminium Hawse
Mounting Bolt Pattern: 3.0�� x 6.59�� ( 76mm x 167mm )
Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor Current
Pull by layer layer/Lbs(Kgs.)
0
20.4(6.2)
31 Amps
1/4500(2040)
1000
14.2(4.3)
65Amps
2/3750(1700)
2000
10.9(3.3)
96Amps
3/3510(1595)
3000
7.7(2.4)
125Amps
4/3300(1500)
4500
4.9(1.5)
175.Amps
Lift Kits
Holden
Jeep
Mitsubishi
Carbon Offroad
MT2.0 Holden Colorado 2012-2020 Strut Shock Kit 2-3 Inch
$1,256.50
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
MT2.0 Holden Colorado 2012-2020 Front Adjustable Struts 2-3 Inch
$874.30
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut .
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
MT2.0 Holden Trailblazer 2012-2020 Strut Shock Kit 2-3 Inch
$1,256.50
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
MT2.0 Holden Trailblazer 2012-2020 Front Adjustable Struts 2-3 Inch
$874.30
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut .
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
MT2.0 Jeep Wrangler JL Shock Kit 2-3 Inch
$906.50
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Lift Kit Jeep
Carbon Offroad
MT2.0 Jeep Wrangler TJ Shock Kit 2-3 Inch
$906.50
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Lift Kit Jeep
Carbon Offroad
MT2.0 Jeep Wrangler JK Shock Kit 2-3 Inch
$906.50
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Lift Kit Jeep
Carbon Offroad
MT2.0 Jeep Wrangler JK Shock Kit 3-4 Inch
$906.50
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Lift Kit Jeep
Carbon Offroad
MT 2.0 Mitsubishi Triton ML MN 06-2015 on Front Adjustable Struts 2-3 Inch
$874.30
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut .
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
MT 2.0 Mitsubishi Pajero Sport QE 2015 on Strut Shock Kit 2-3 Inch
$1,256.50
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Carbon Offroad
Carbon Offroad Mitsubishi Pajero Sport/ Triton ML-MN Ball Joint Spacer for 2+ inch lift
$117.00
These ball joint spacers work with factory upper control arms to space the balljoint down off the arm to help with achieving correct wheel alignments with lifts from 2 inches and above. The kit includes two spacers. You may need to souce longer bolts to use with these spacers.
Carbon Offroad
MT 2.0 Mitsubishi Triton ML MN 06-2015 on Strut Shock Kit 2-3 Inch
$1,256.50
SHOCKS WILL BE SETUP WITH COILS TO SUIT BAR AND WINCH AT APPROX 40MM LIFT. PLEASE MAKE CONTACT WITHIN 24 HOURS OF SALE TO REQUEST A DIFFERENT SETUP.
Carbon MT 2.0 Premium Monotube Performance Strut and Shock Absorbers.
If you want a smooth ride and improve your 4wd's handling for both on and off-road, get yourself a set of Carbon Premium MT2.0 Monotube Shocks for your 4wd.
We have spent many years developing a ride quality that will give you both comfort and control.
Don't put up with the harsh ride of your factory shocks, ride in comfort and upgrade to Carbon MT2.0.
Build Quality - Simply by looking at the Carbon MT2.0's you can tell that they are of high quality with quality construction and are fully rebuildable with full support with components off the shelf here in Australia.
Philosophy - Our philosophy is simple, Deliver good quality innovative 4wd products that we are proud to deliver to our Australian Market. Australian Warranty - Backed by a real 3 year/100,000 Km
You won't just know the difference that a Carbon Shock can bring to the ride of your 4wd.... You'll feel the difference. Get the Ultimate in Comfort & Control
Advanced Technology -The Carbon MT2.0 uses advanced technology to deliver a superior ride quality using a IFP - Internal Floating Piston that floats between the high pressure Nitrogen Gas and the shock fluid keeping them seperate to prevent cavitation and foaming.The IFP actively works as an internal air bumpstop to help smooth out the harsh bumps and actively senses the terrain and adjusts according to the driving conditions giving you the ultimate in ride quality and control.
What You Get -
2 x Front Carbon MT 2.0 Struts - Includes rubber boots,top hat, bushes,spanner & coil springs.
2 x Rear Carbon MT 2.0 Shock Absorbers - Includes rubber boots & bushes.
Carbon MT2.0 Monotube Front Struts - Comfort design valving
Front Struts are adjustable up to 4 inches of lift
The optimum ride quality is achieved at 2-3 inches of lift.
Please adjust your struts using the supplied C spanner
Ensuring you adjust the spring seat with no load on the Strut ( do not hammer spring seat)
Carbon MT2.0 Monotube Rear Shock Absorbers - Comfort design valving
Rear shocks are long travel and suit a 2-3 inch lift
Shock boots must be used to prevent damage to shock shaft
The shock absorber must be installed with the shaft facing downwards (Inverted design for improved performance)
Carbon MT2.0 Monotube Shock Specifications
Monotube Design- Maximum fluid volume and control
IFP -Internal floating piston for added comfort and control
H/D 3mm Brushed Steel Nickel Plated Body - Maximum strength durability and protection
52mm Outer Body - Increased fluid volume to prevent fade and improve control
20mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
46mm Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - HIgh quality pure rubber bushes
Multi-Stage Velocity Sensitive Piston Valve - For the Ultimate in Comfort & Control
Seals 5 levels of sealing - 1 x Twin lipped external dust and oil seal 1 x high pressure twin lipped oil seal .1 x high pressure O ring oil seal
Internal fluid - High quality shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
High Pressure Nitrogen Gas Charged - To prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots
Process -The shock development hasn't been short, the Carbon MT 2.0 Shocks have been rigorously tested here in Australia for the past 3 years on a large selection of vehicles and applications - Landcruiser 79 series, 200 series, Ford Ranger, VW Amarok, Toyota Hilux, Nissan Patrols and Mitsubishi Tritons, with critical feedback from owners of these vehicles to fine tune the dampers to ensure longevity and improve ride control characteristics. These were tested on heavily laden outback tourers, towing vehicles and offroaders wanting maximum flex.
Focus - Our number one goal was to bring to the market an improved ride quality better than what has been on offer to the Australian market. We have achieved this by listening to feedback from 4wd owners and making improvements with compression/rebound damping forces and ensuring ride control is at its optimum.
We understood that most 4wd vehicles currently are "the daily driver" and require a high level of on-road control and comfort but also need to take the abuse of high speed off-road applications like corrugations and out-back dirt driving while offering control in slow off camber situations.
Why Choose Carbon? With the Carbon MT 2.0 Shocks we are able to offer more fluid volume in the shock over an aftermarket 35mm big bore twin tube shock. With this greater oil volume we are able to keep the piston cooler and offer more stable ride control. While most twin tube shocks have an outer wall thickness of only 1.2mm-1.6mm, The Carbon Monotube shocks are built tough with a 3mm thick wall.
Subscribe to our newsletter
Keep up to date with the latest from the team at Carbon Offroad
