Lightest 4x4 Winch
The 12K winch, synthetic rope, control box, mounting bolts & fairlead weigh a total of 23.45kg

6.2HP Motor with 216:1 Gear Ratio
The reliable 6.2HP motor and tough 3 stage planetary gearbox will get you back on your journey.

carbon-12k-12000lb-electric-winch-with-black-rope-hook-ver-3-514884_f1325448-c2d1-4605-86d7-788908f9871b_1280x__PID:17b4e25e-6225-4224-9dcb-34a067502845

IP68 Waterproof
Stress free river crossings and mud runs due to a newly upgraded rating of IP68.

Carbon Winches Warranty
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty

-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Hook VER. 3 - Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Hook VER. 3
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Hook VE... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Red Hook VER. 3 - CW-12KV3R 1 Carbon 12K 12000lb Electric Winch With Black Rope & Red Hook VER. 3 - CW-12KV3R 2
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Red Hoo... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Orange Hook VER. 3 - CW-12KV3O 1 Carbon 12K 12000lb Electric Winch With Black Rope & Orange Hook VER. 3 - CW-12KV3O 2
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Orange ... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Green Hook VER. 3 - CW-12KV3G 1 Carbon 12K 12000lb Electric Winch With Black Rope & Green Hook VER. 3 - CW-12KV3G 2
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Green H... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Blue Hook VER. 3 - CW-12KV3B 1 Carbon 12K 12000lb Electric Winch With Black Rope & Blue Hook VER. 3 - CW-12KV3B 2
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Blue Ho... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
-9% sale
Carbon 12K 12000lb Electric Winch With Black Rope & Yellow Hook VER. 3 - CW-12KV3Y 1 Carbon 12K 12000lb Electric Winch With Black Rope & Yellow Hook VER. 3 - CW-12KV3Y 2
Carbon Offroad Carbon 12K 12000lb Electric Winch With Black Rope & Yellow ... $1,099.00 $1,198.95
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch Due to strong customer demand the Carbon Winch range has gone ALL BLACK.  If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.  The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. You want the reliability of a winch that will perform when you need it to, time after time. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust - Get a Carbon Winch
24 VOLT Carbon 12K 12000lb Electric winch with synthetic rope - CW-12K_24V 1 24 VOLT Carbon 12K 12000lb Electric winch with synthetic rope - CW-12K_24V 2
Carbon Offroad 24 VOLT Carbon 12K 12000lb Electric winch with synthetic rope $1,349.00
This is a listing for a 24 Volt Carbon Winch. Please confirm you need 24 volt before placing your order.  Carbon Winches was designed and engineered by an Australian Offroad Business KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability and toughness being tested in some of the harshest environments in Australia and overseas including Iceland and the Middle East. Many other products on the market simply didn't cut it in the Australian Outback including some very popular world renowned brands so we built our own. Now is the time to show the world the quality and reliability we have developed.   Designed by Australian offroad business for our harsh Aussie and international conditions  Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms.   12000lb fast line pull 216:1 planetary gearset ratio  6.2HP series wound electric motor  5 position solenoid box mounting bracket  Battery Isolator Switch  Wireless remote control unit with lanyard- FULLY SEALED RECIEVER UNIT built into the control box.   Rotating ring gear clutch for easy low drag freespool  Electroplated planetary gearsets for long life Breather kit pre-fitted to the electric motor Multi Fit Fairlead no need to worry about which suits you bullbar! Simply install as standard fitment or flip over to offset the rope outlet by 20mm.  All internals fully zinc electroplated for corrosion protection. High performance motor brushes with copper impregnated contacts and corrosion plated brush mount.  Bearing supported fully balanced armature for superior performance. Hoist style brake unit mounted to the drum endplate provides superior holding power by braking through the geartrain with no heat generated on drum. No contact to drum no damage to synthetic rope.  4 position mounting for the control box bracket over the motor or over the drum on top for flat mounting plates or on front of winch for top mounting control box when winch is mounted vertically. Alternatively 700mm cables allow remote mounting of the control box separately to the winch. NO FUSS WARRANTY - 5yr Water Ingress Warranty  5 year electrical warranty on motor / solenoid unit Limited lifetime gear train warranty  Supported worldwide from Australia.  All winches are tested for full function and load prior to packing. We guarantee your winch will be 100% fully operational upon arrival.    Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.   Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. The main features include: ? 6.2 HP Series Wound motor ? 216:1 ratio 3 stage planetary gearbox ? Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum ? (No heat build up on drum) ? Rotating ring gear freespool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues. ? Power in and power out via a plug in hand remote or a wireless remote controller. Remote controller has auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water. ? 500amp sealed solenoid unit and wired handle remote control and wireless remote control unit SPECIFICATIONS Part number: CW-12K_24V Rated line pull: 12000 lbs, (5450 kg) single-line Motor: 24V DC  series wound motor Remote Control: Remote Switch, 12? (3.7m) lead. Wireless Remote Control: Included Geartrain: 3-Stage Planetary. Gear Ratio: 216:1 Clutch (freespooling): Rotating Ring Gear Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum. Drum Diameter/Length: 2.5??/8.8?? (64mm/224mm) Synthetic Rope: 24m x 10mm diameter Fairlead: CNC billet alloy black anodised with laser etched logo Recommended Battery: 650 CCA minimum for winching Mounting Bolt Pattern: 10?? x 4.5?? ( 254mm x 114.3 ) Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm ) Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm ) Winch weight with synthetic rope attached: 19.5kg ? Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg  PLEASE NOTE: The product video shows a snatch block pulley. This product is an optional extra and is NOT included in the winch package.      Carbon Winch 12k ? Package contents included in purchase price Description Quantity Comment Carbon Winch CW-12K_24V 1 24x10mm Synthetic Dyneema Rope Control box 500amp 1 1pc 500A solenoid and battery cables + wireless remote 1 x long black battery cable Hand remote control & Wireless remote control   Plug in and wireless operation CNC Billet Black Plate Hawse Fairlead   Laser Etched Carbon Winches reversible Fairlead Hardware bag 6sets 4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Owners Manual 1pc  Included Carbon Winch Hook Kit 1pc  Included Red Hook strap 1pc  Included Electrical Cut out isolator switch Kit 1pc Included

Winch Features

  • Designed by an Australian offroad business for the harsh Aussie and international conditions
  • IP68 rated fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms
  • 12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
  • 6.2HP series wound 12 volt electric motor (24 volt option)

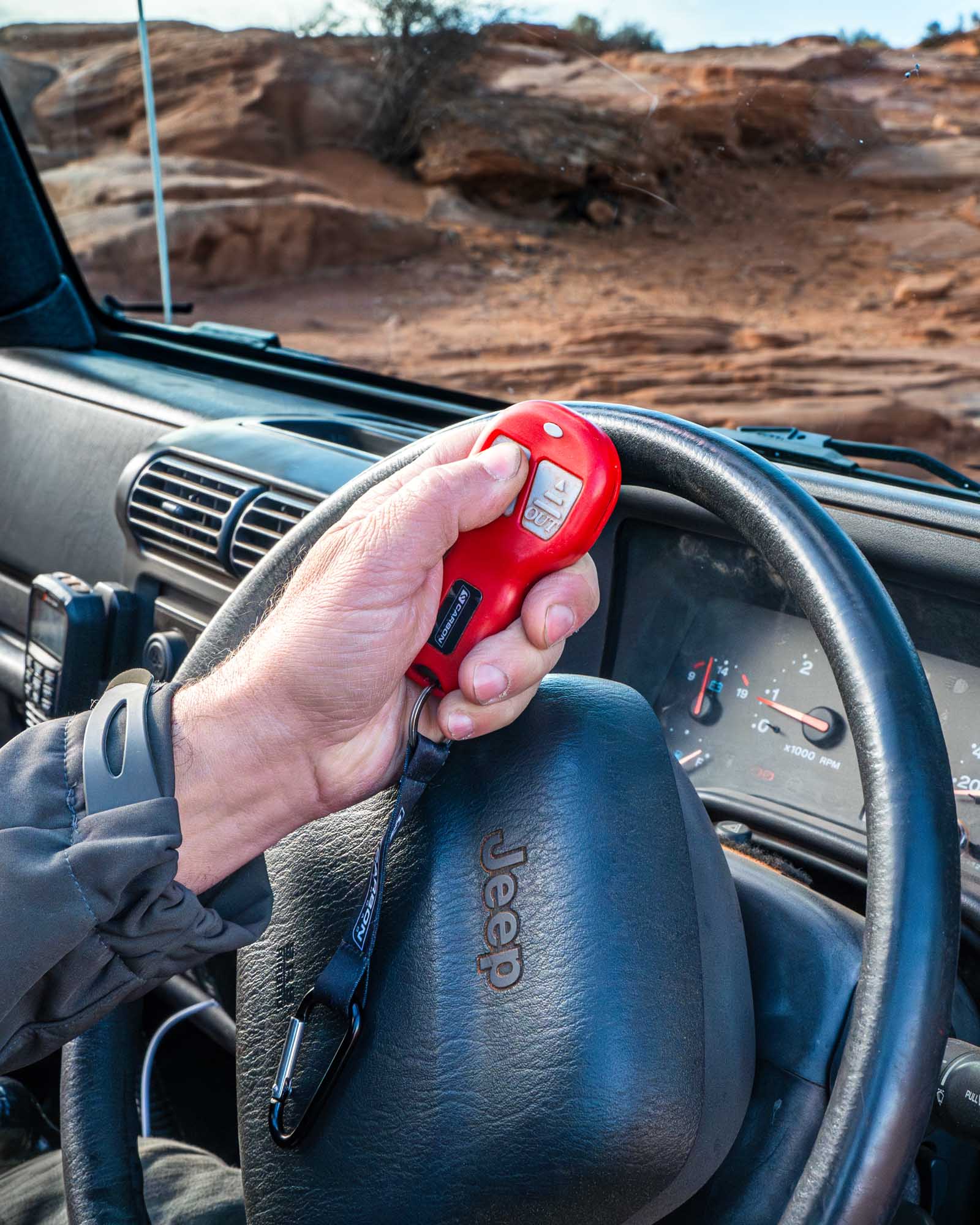

  • Wireless remote control unit with a lanyard - FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
  • The rotating ring gear clutch design minimises freespool drag and completely eliminates clutch engagement issues.
  • Electroplated planetary gear sets for long life
  • 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles
  • Multi Fit Fairlead - there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm
  • Fully zinc electroplated internals for corrosion protection
  • High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts
  • Smooth ball bearing motor operation with a fully balanced motor armature for superior performance
  • Superior holding power by utilising a hoist style brake unit mounted to the drum end plate which applies mechanical braking through the gear train with no heat generated in the drum. No contact to the drum means there is no risk of heat damage to the synthetic rope
  • 4 position mounting for the control box bracket over the motor; over the drum, on top for flat mounting plates or in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch

What's in the Box

carbon-12k-12000lb-electric-winch-with-black-rope-hook-ver-3-514884_f1325448-c2d1-4605-86d7-788908f9871b_1280x__PID:17b4e25e-6225-4224-9dcb-34a067502845
  • 1 x Carbon 12K winch
  • 24m x 10mm high strength synthetic winch rope
  • 1 x Carbon winch hook
  • 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
  • 1 x Long black battery cable
  • 1 x Wireless remote
  • 1 x Wired remote
  • 1 x Multifit CNC Alloy fairlead (offset and standard position)
  • 4 x Mounting bolts
  • 3 x Allen keys
  • 2 x Additional longer mounting bolts (fairlead mounting)
  • 2 x Additional nuts for remote mounting solenoid box
  • 1 x Hook hand saver strap
  • 1 x Carbon lanyard
  • 1 x Carbon stubby cooler
  • Installation manual
carbon-12k-12000lb-electric-winch-with-black-rope-hook-ver-3-514884_f1325448-c2d1-4605-86d7-788908f9871b_1280x__PID:17b4e25e-6225-4224-9dcb-34a067502845

Technical Features

  • Part number: CW-12k
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor (24v option available)
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate.
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 10mm diameter
  • Drum Diameter/Length: 64mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
  • Packing Dimensions (L x W x H): 24.2x 14.5' x 9.8' (615 x 370 x 250mm)
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg.
