Brackets, Breathers & Spacers

This local  1.6mm stainless steel battery isolator mounting bracket is designed to be used with the supplied battery isolator switch in the Carbon Offroad Winch kits. The switch can be mounted on the inside or outside faces of the bracket on both sides, giving you various setup options to suit the space available in your engine bay.  The mounting holes are 56mm hole centres and can be used for any similar type battery isolator switch on the market.

Carbon Offroad Stainless Steel Pull Up Number Plate Bracket The Carbon bolt on number plate bracket is compatible with both alloy hawse fairleads and roller fairlead mounting systems. It allows you to mount a number plate over the outlet of the fairlead and pull and it out of the way during a winch recovery.  Made from laser cut 1.5mm stainless steel with a semi gloss powdercoat in black. Easy to use and makes a recovery that much easier. Mounting hardware not included. 1.5mm stainless steel - black powdercoat finish Laser cut Pull up cantilever style with locking knob Number plate mounting surface - 441mm wide 144mm high Rear and bracket 340mm wide 88mm high Number plate mounting surface and can be cut down for a custom finish

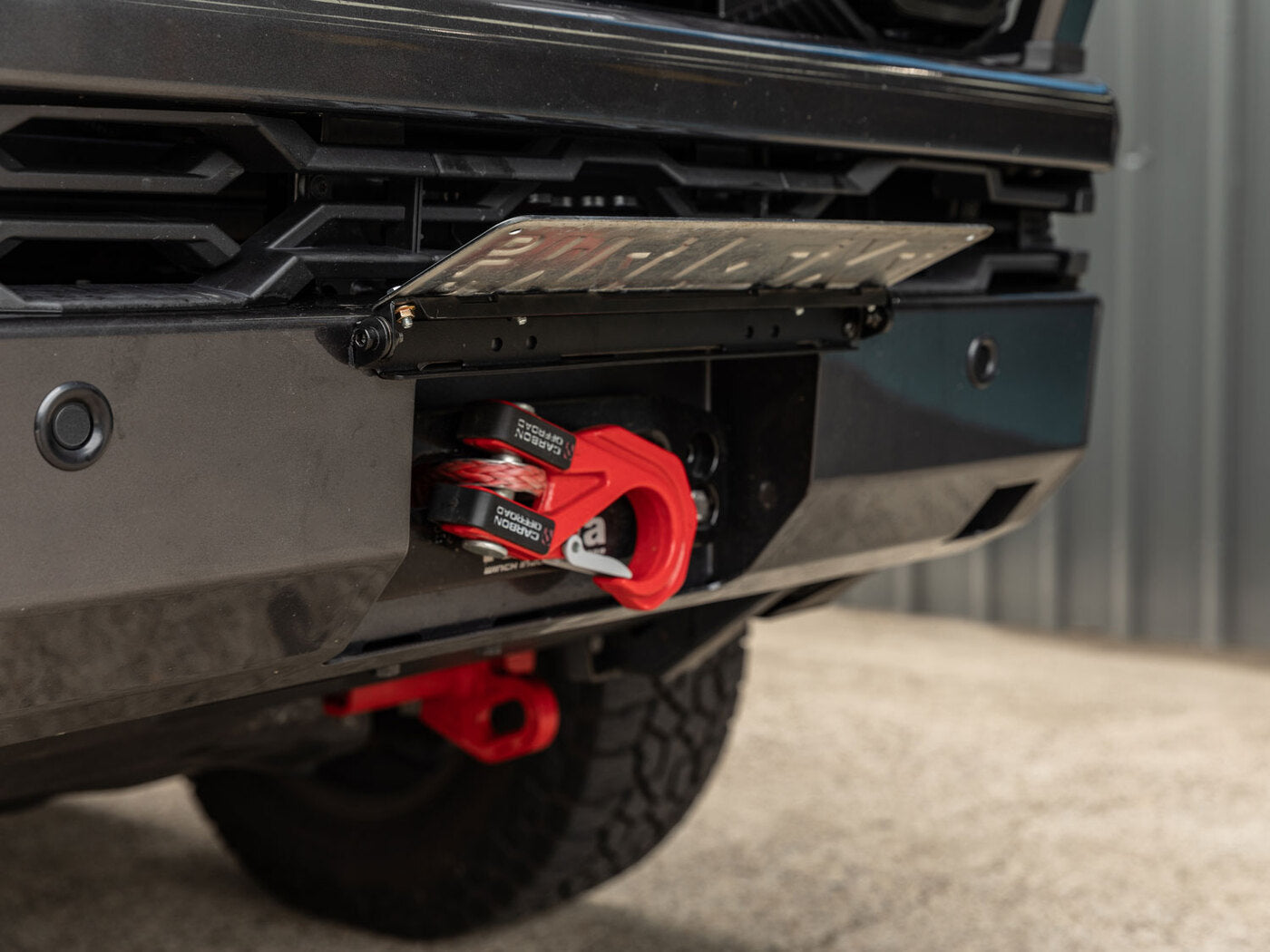

Flip up number plate holder. 165mm and 210mm hole spacing Stainless Steel Low profile design. 26mm offset Flips your number plate up to 120 degrees Great for access to the winch. Will prevent damage or loss of your number plate when doing water crossings. Made in Australia

This winch mounting spacer kit was requested by owners of winch bull bars that were specifically made to fit the narrow style Warn High Mount Winches. A lot of people simply want to run a low mount style winch like the Carbon Winch CW-12k winch. The main issue with these high mount winch bullbars is the centre cradle usually has wings that sweep back to the main part of the bar, meaning the wider low mount winch will hit on the electric motor side before it's able to reach the mounting cradle surface. and and Our 25mm thick spacers will provide sufficient clearance rearward to clear the motor on the bullbars. We slotted the holes to allow for tolerances on the bar and allow you to position the spacer to your desired mounting position. and and There are no bolts supplied with this kit, due to multiple applications and mounting situations it's hard to cater for every application. You can source Grade 8.8 high tensile mounting bolts in your required length from any hardware or bolt supplier. and Specs: and 6061 T6 Aluminium - Australian Made 25mm thick 38mm wide 4 x Spacers in kit. and

Carbon Winches winch motor breather parts kit - no hose included.  3 metre breather kit for any electric winch. Uses a 1/4NPT thread into the winch motor housing.    Included in the kit:  Right angle push to fit threaded breather to motor fitting right angled mounting bracket self drilling mounting screw with urethane washer brass porous breather fitting and push to fit fitting for the breather end

Carbon Winches winch motor breather parts kit - no hose included.  3 metre breather kit for any electric winch. Uses a 1/4NPT thread into the winch motor housing.    Included in the kit:  Right angle push to fit threaded breather to motor fitting right angled mounting bracket self drilling mounting screw with urethane washer brass porous breather fitting and push to fit fitting for the breather end
