CW-XD10BLK
$1,099.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Description
Extreme Duty Recovery Power

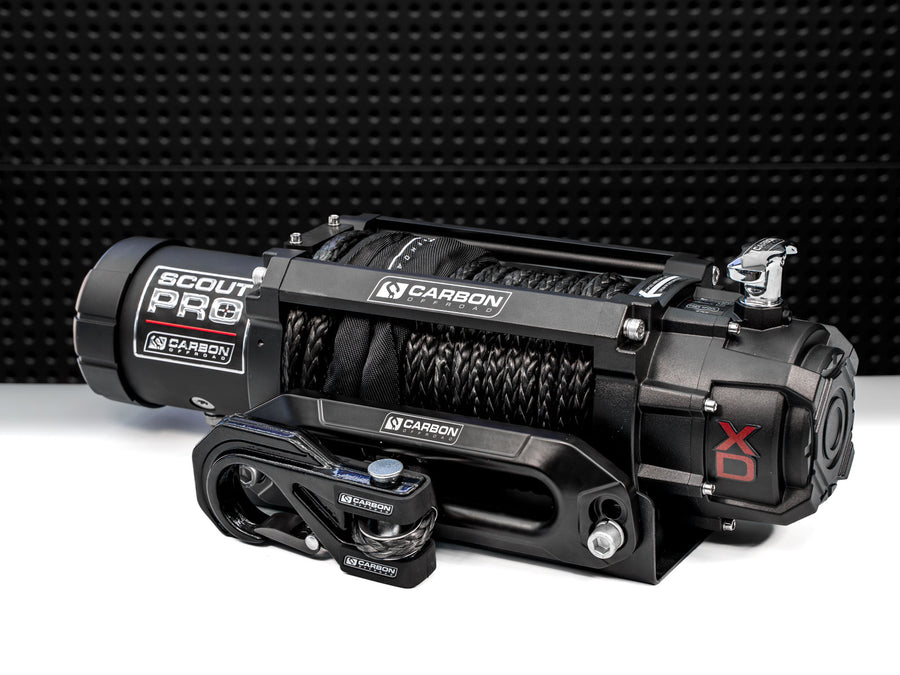

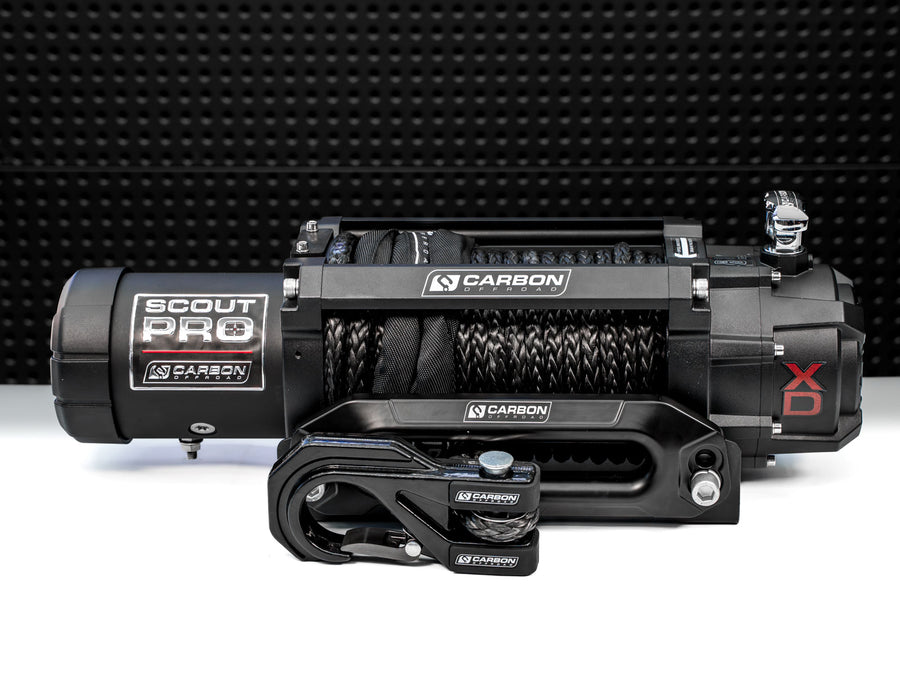

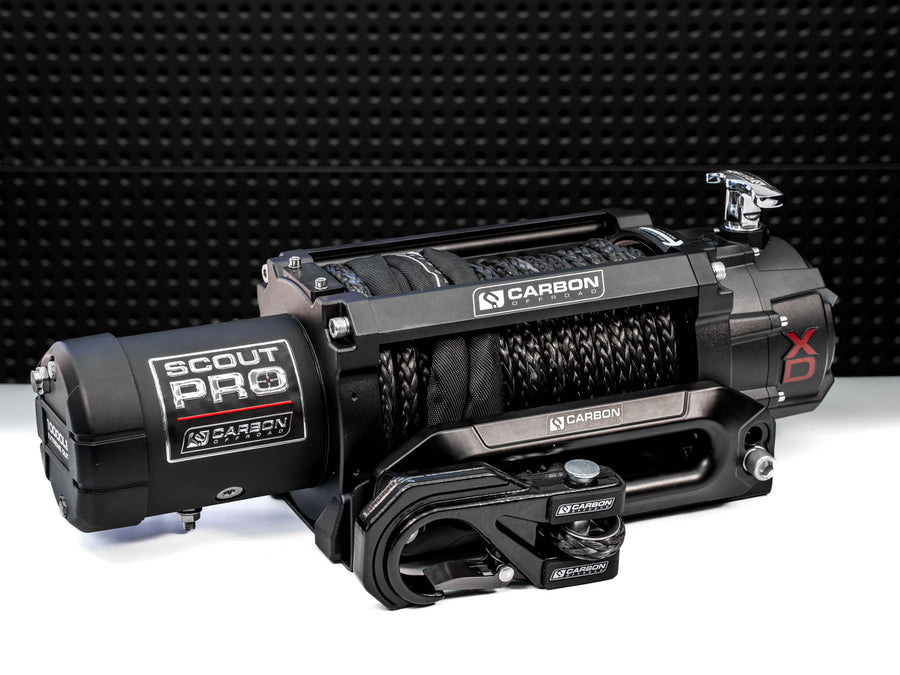

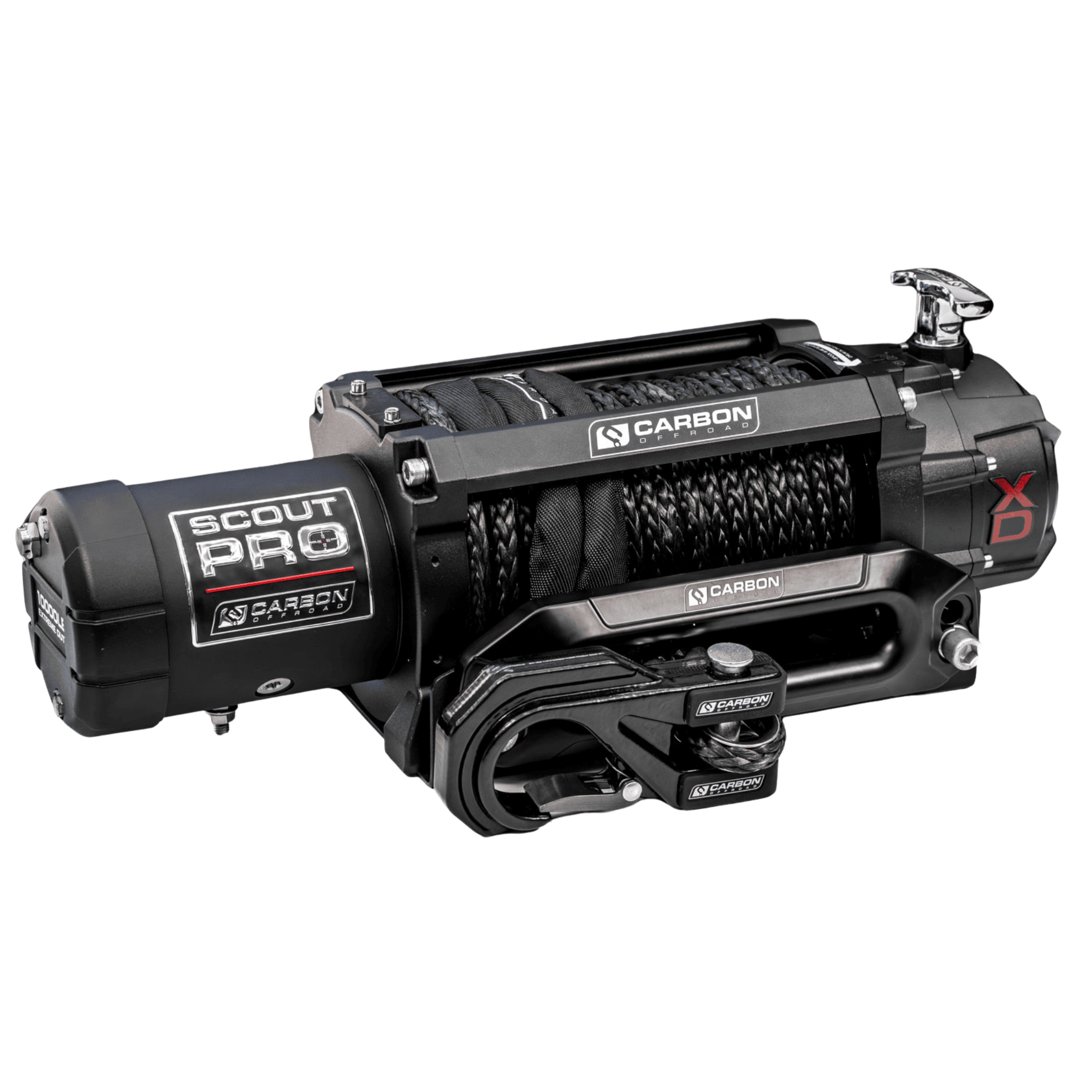

The Carbon Offroad Scout Pro XD10 is a 12V, 4536kg (10000lbs) electric recovery winch built to handle regular, heavy-duty offroad recovery work.
Overview
Engineered for the Outback. Got a bull bar rated to 10K? Stay within spec and retain your warranty with the Carbon XD10. As part of the Scout Pro Extreme Duty Performance Series, it is designed specifically to suit heavier vehicles operating in harsh Australian conditions.
You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.
Features
- Extreme Duty Construction: Built to the exacting standards of the Scout Pro Extreme Duty Performance Series for maximum reliability, featuring a matte black powder coat finish and 316 stainless steel hardware.
- Reliable Clutch System: Features a rotating ring gear clutch operated by a stylish chrome freespool clutch handle with an etched Carbon Offroad logo.
- Optimised Winch Drum: The checker-knurled winch drum provides superior grip for the synthetic rope under heavy loads.
- MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior rope protection.
- Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.
Contents
1 x Carbon Offroad Scout Pro XD10 10000lb Winch (CW-XD10)
1 x Synthetic Winch Rope (24m x 10mm, black)
1 x Winch Rope Thimble
1 x MegaPro CNC Aluminium Fairlead
1 x Carbon Offroad MegaPro Winch Hook
1 x Wired Remote Control (3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch
1 x Winch Mounting Bolt Kit (mounting bolts, nuts, washers, fairlead bolts)
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD10 |
| Rated Line Pull | 4536kg (10000lbs) single-line |
| Motor | 12V DC 6.0 HP series wound (24V option available) |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 180:1 |
| Clutch | Rotating ring gear clutch |
| Brake | Automatic brake in the motor bracket |
| Synthetic Rope | 24m x 10mm (78.7ft x 3/8") |
| Fairlead | MegaPro CNC billet type 3 hard anodised |
| Hardware | 316 stainless steel |

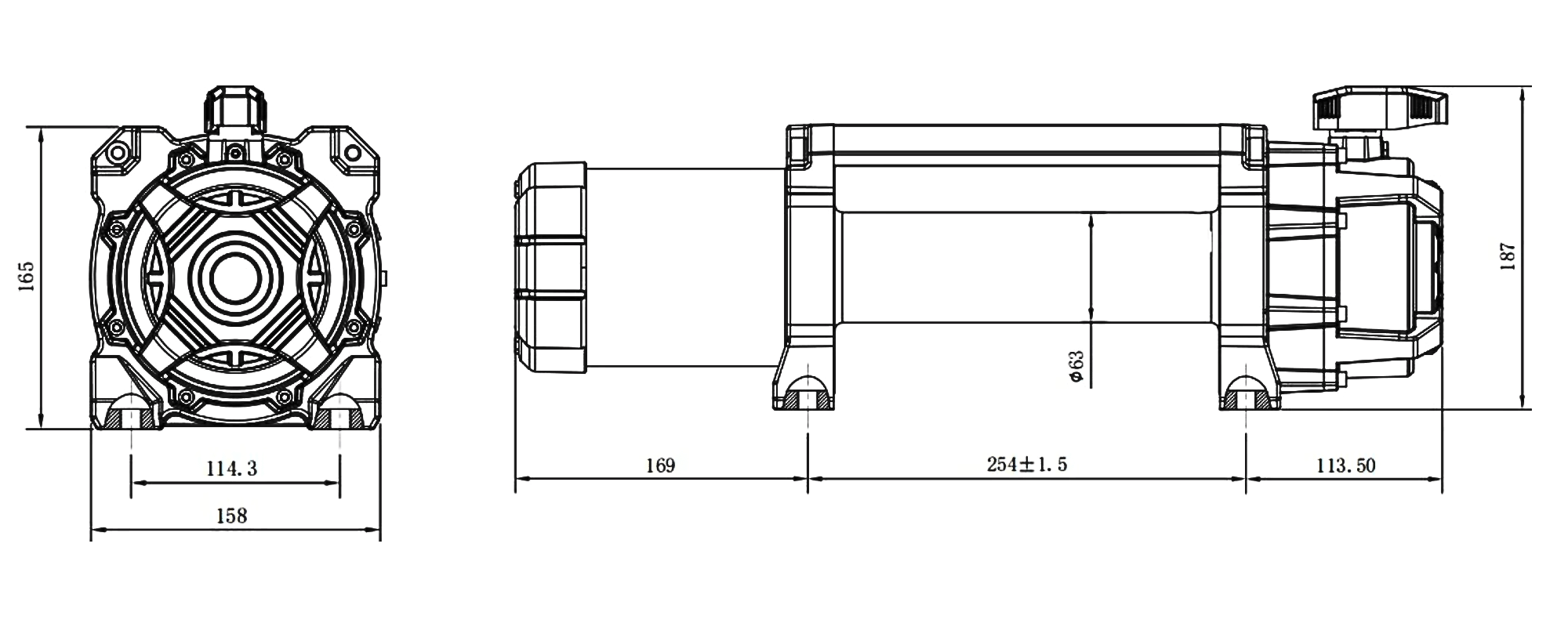

| Drum Dimensions | 63mm x 224mm (2.48" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10.0" x 4.5") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580 x 200 x 220mm (22.8" x 7.9" x 8.7") |
| Winch Weight (Bare) | 19.0kg (41.9 lbs) with synthetic rope attached |
| Total Kit Weight | 26.7kg (58.9 lbs) including control box, cables, bolts & fairlead |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.8 (10.6) | 60 | 1 / 10000 (4540) |
| 4000 (1814) | 10.8 (3.8) | 190 | 2 / 8200 (3720) |
| 6000 (2722) | 8.5 (3.2) | 250 | 3 / 6840 (3103) |
| 8000 (3630) | 6.2 (2.6) | - | 4 / 5820 (2640) |
| 10000 (4540) | 4.6 (2.1) | 370 | - |
Carbon Scout Pro - 10000lb Winch V3
BLACK
$1,099.00
Why Choose The Scout Pro 10K?
Built on our lighter, faster, stronger philosophy.
There is no point bolting a massive 15K winch to a 10,000lb rated bull bar. It just adds unnecessary dead weight to your front end and ruins your suspension dynamics.
The Scout Pro XD10 is engineered to perfectly match your setup.
It delivers 4536kg of raw pulling power from a heavy-duty 6.0 HP motor, giving you exactly the capacity your bar is rated for. It keeps your rig perfectly balanced and completely compliant.
Wireless and Wired Controls
Recover safely from a distance with the included wireless remote. A 3.7m wired lead is also in the box as a reliable physical backup.
10,000lb Pulling Capacity
Powered by a heavy-duty 6.0 HP motor and a 3-stage planetary geartrain with a 180:1 gear ratio. It delivers 4536kg of single-line pull. This is exactly what you need to max out a 10K rated bull bar without carrying dead weight.

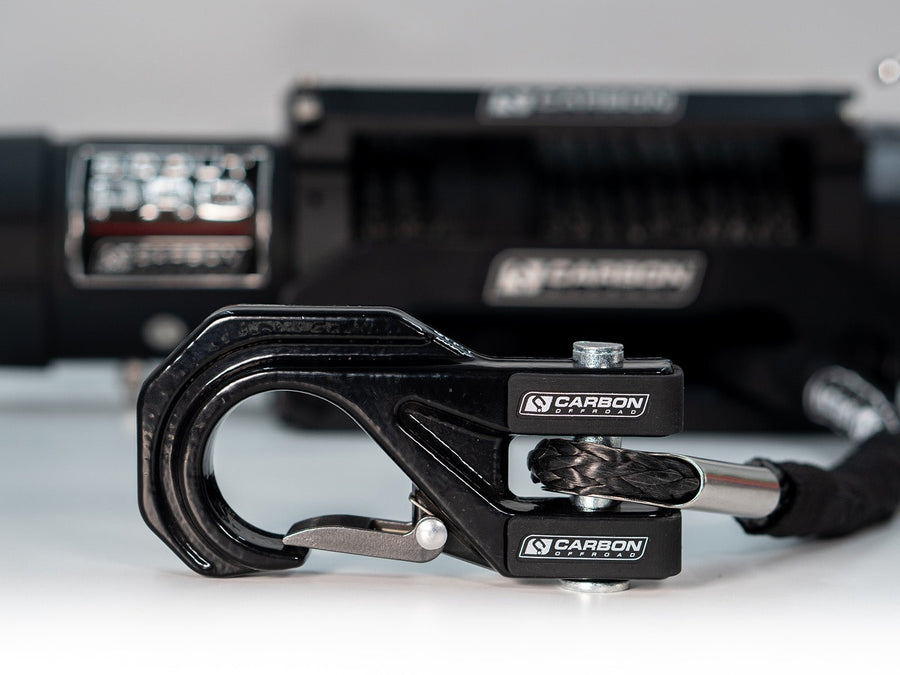

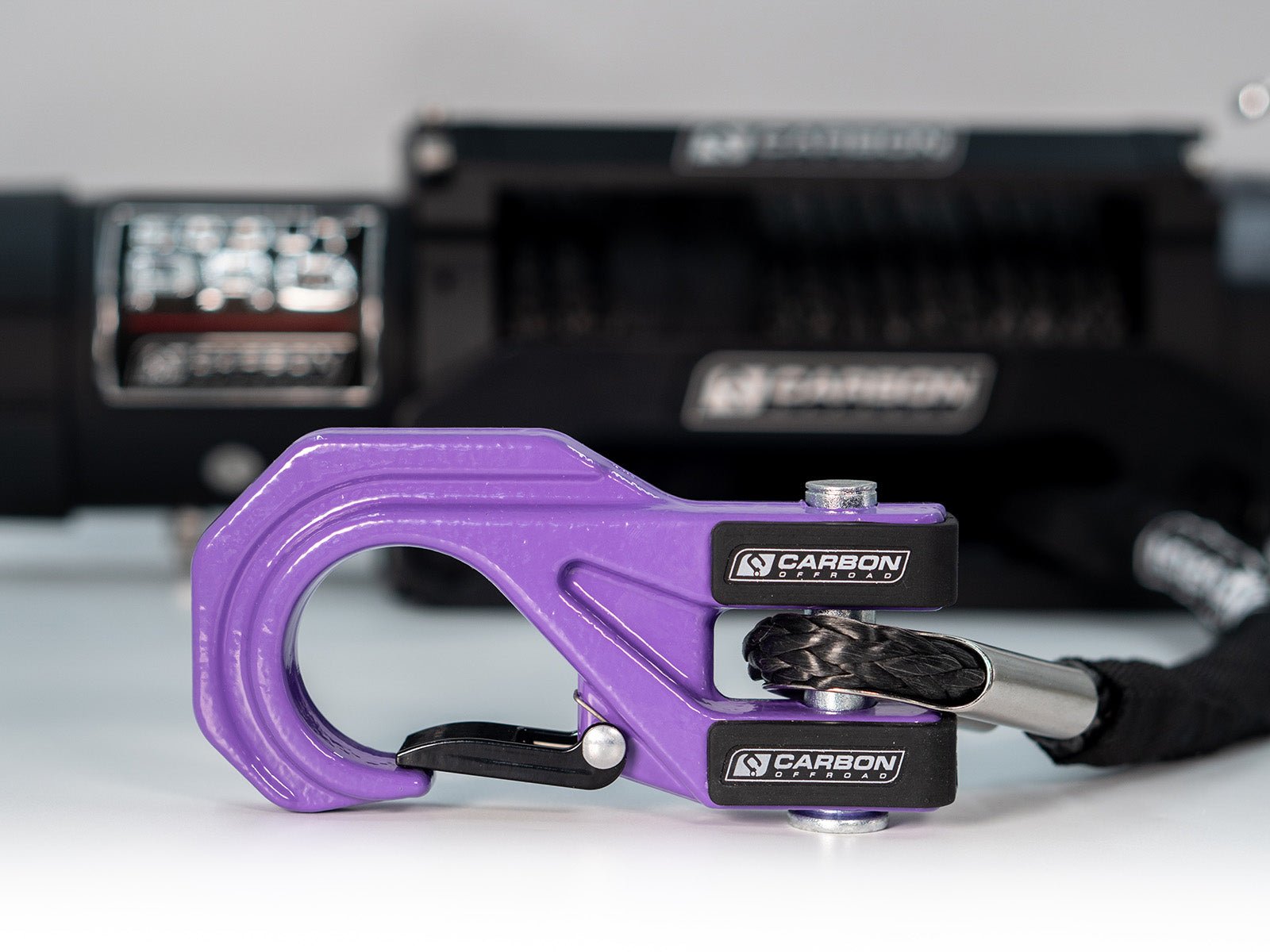

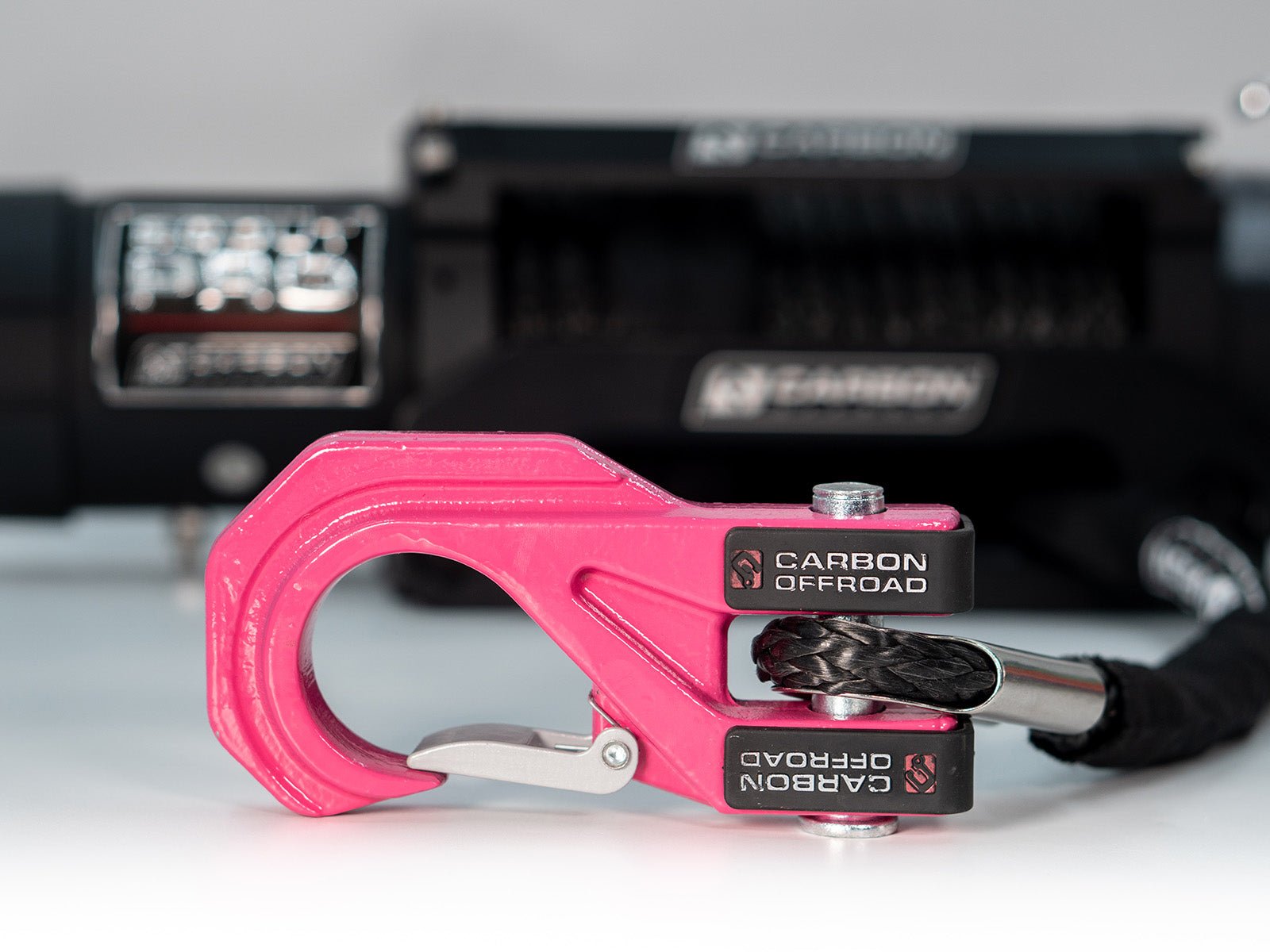

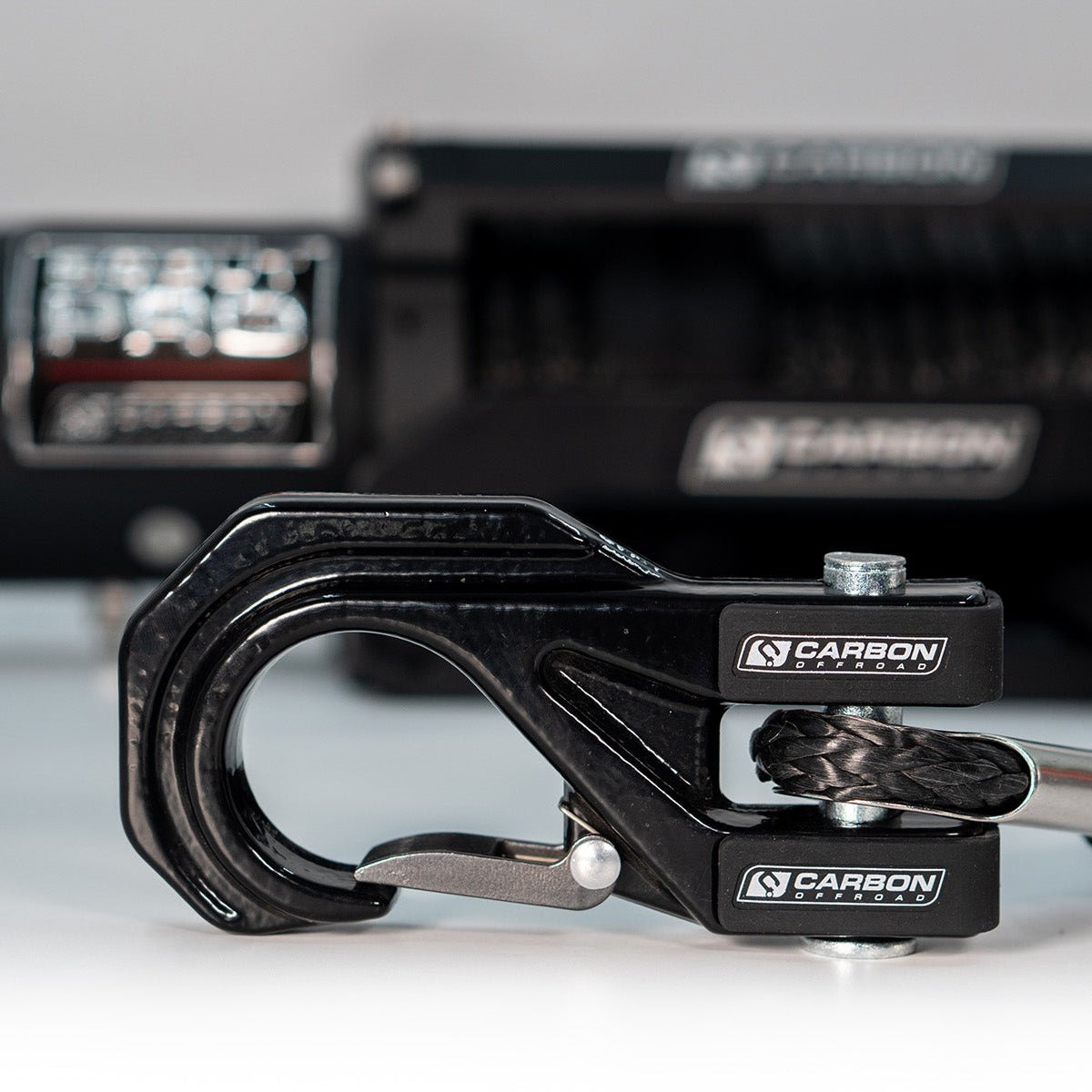

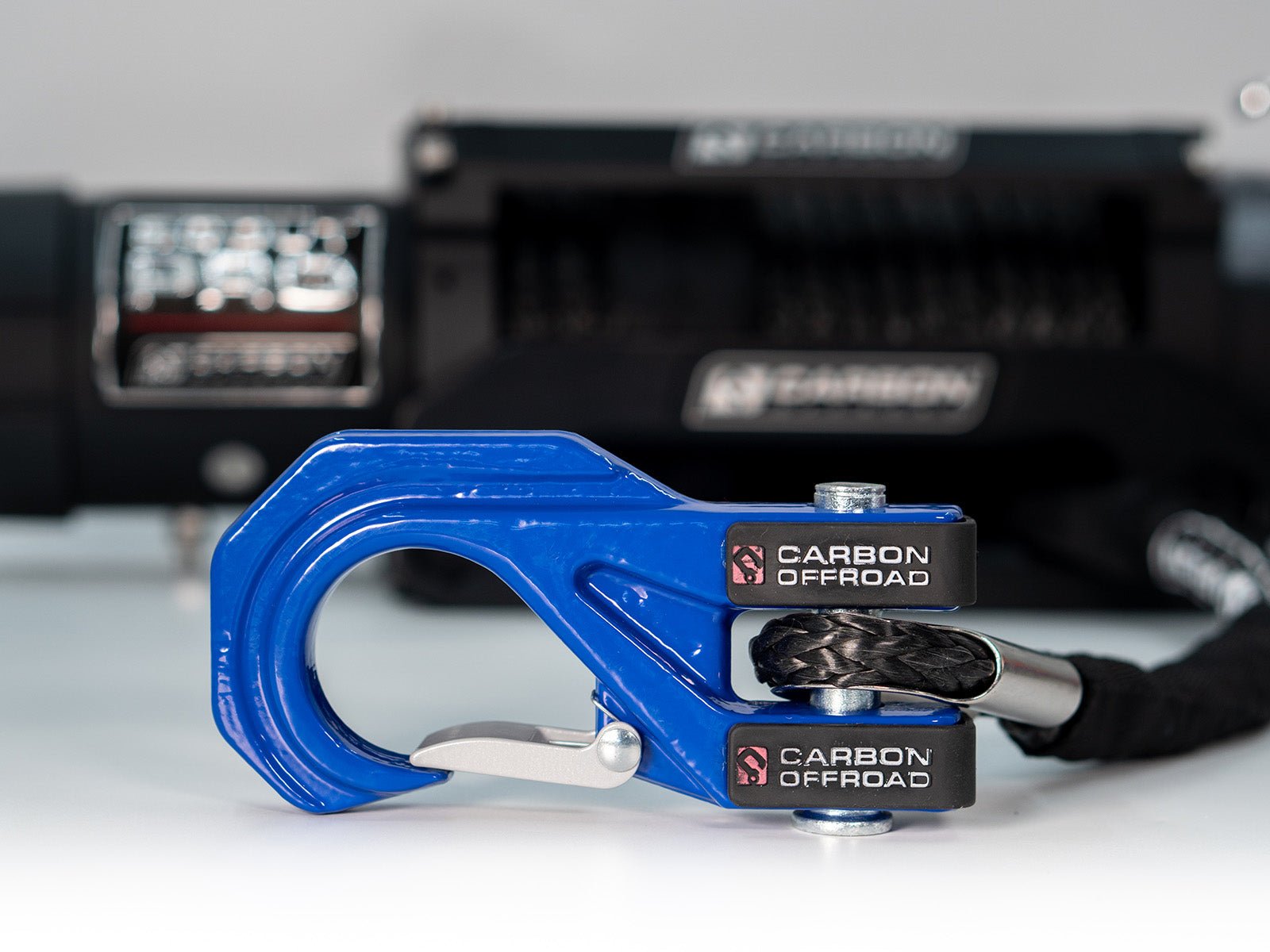

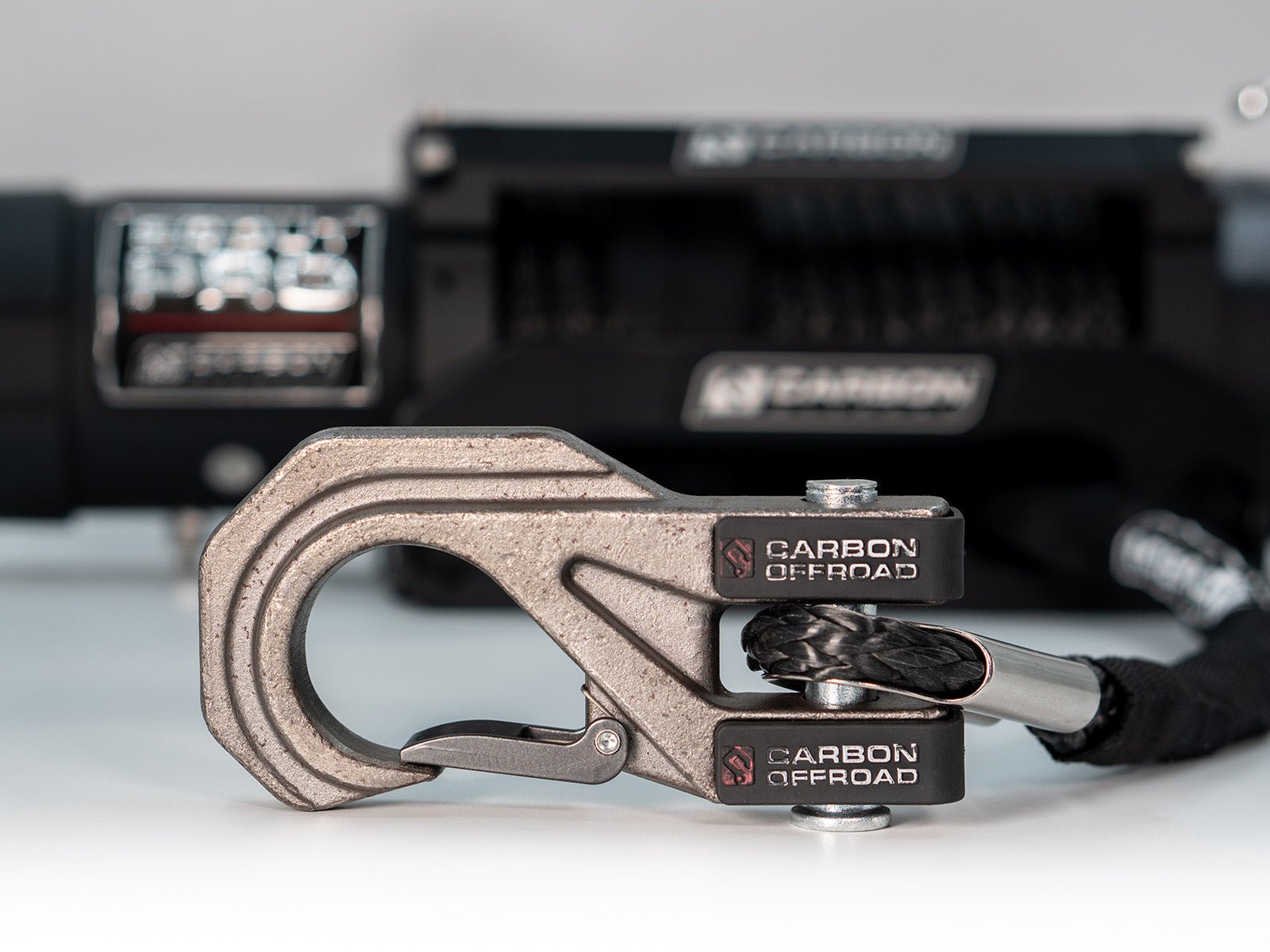

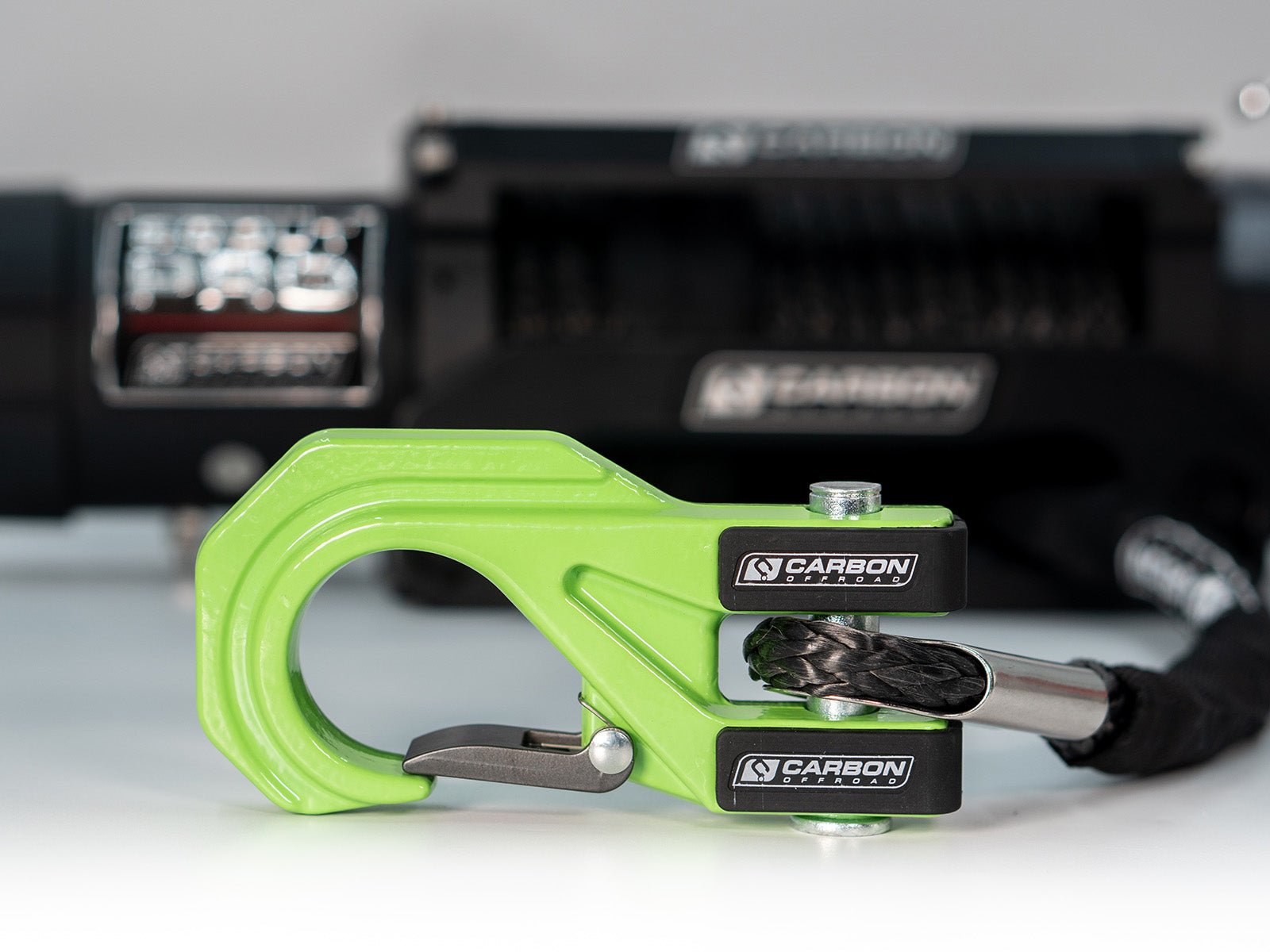

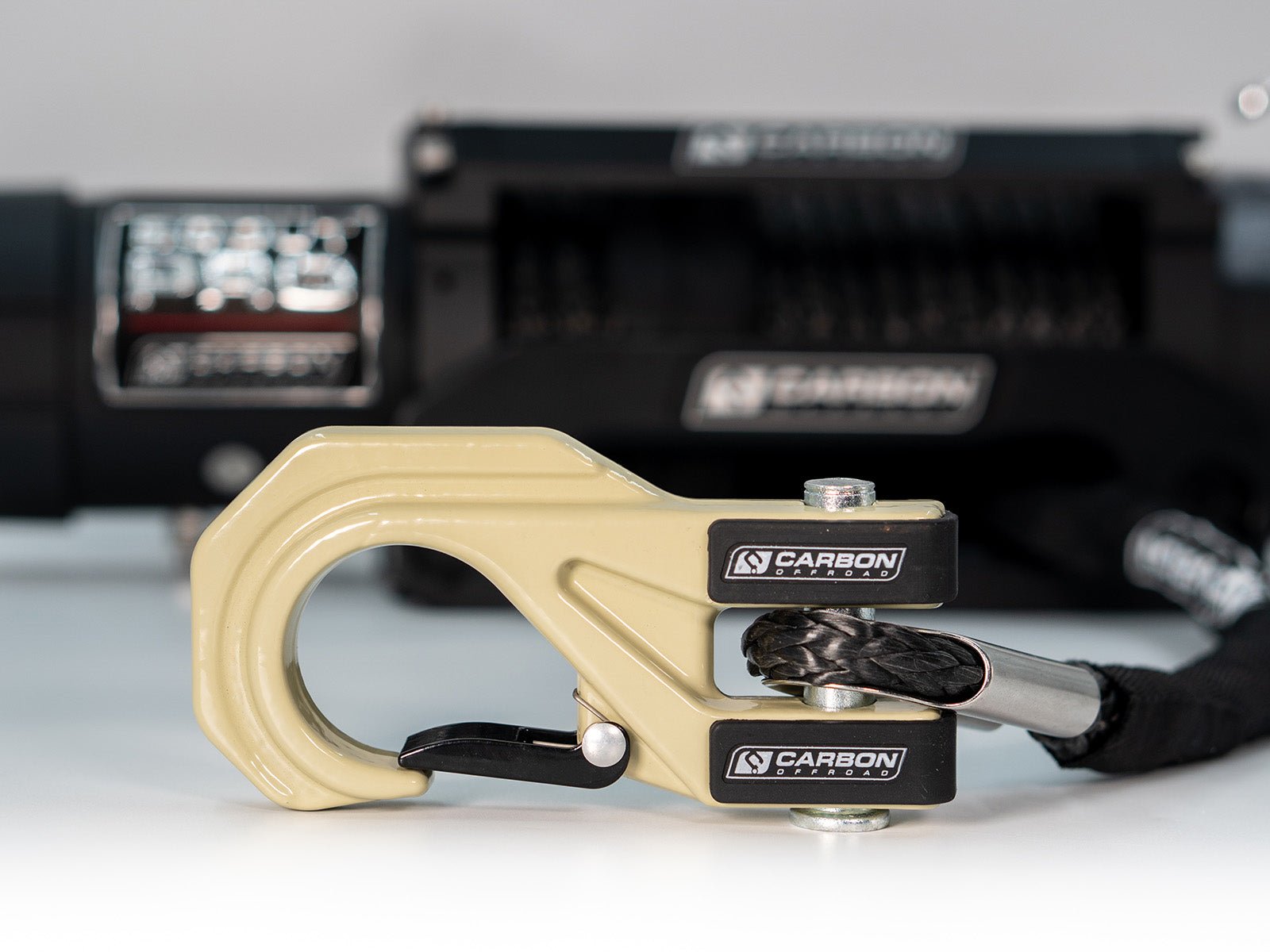

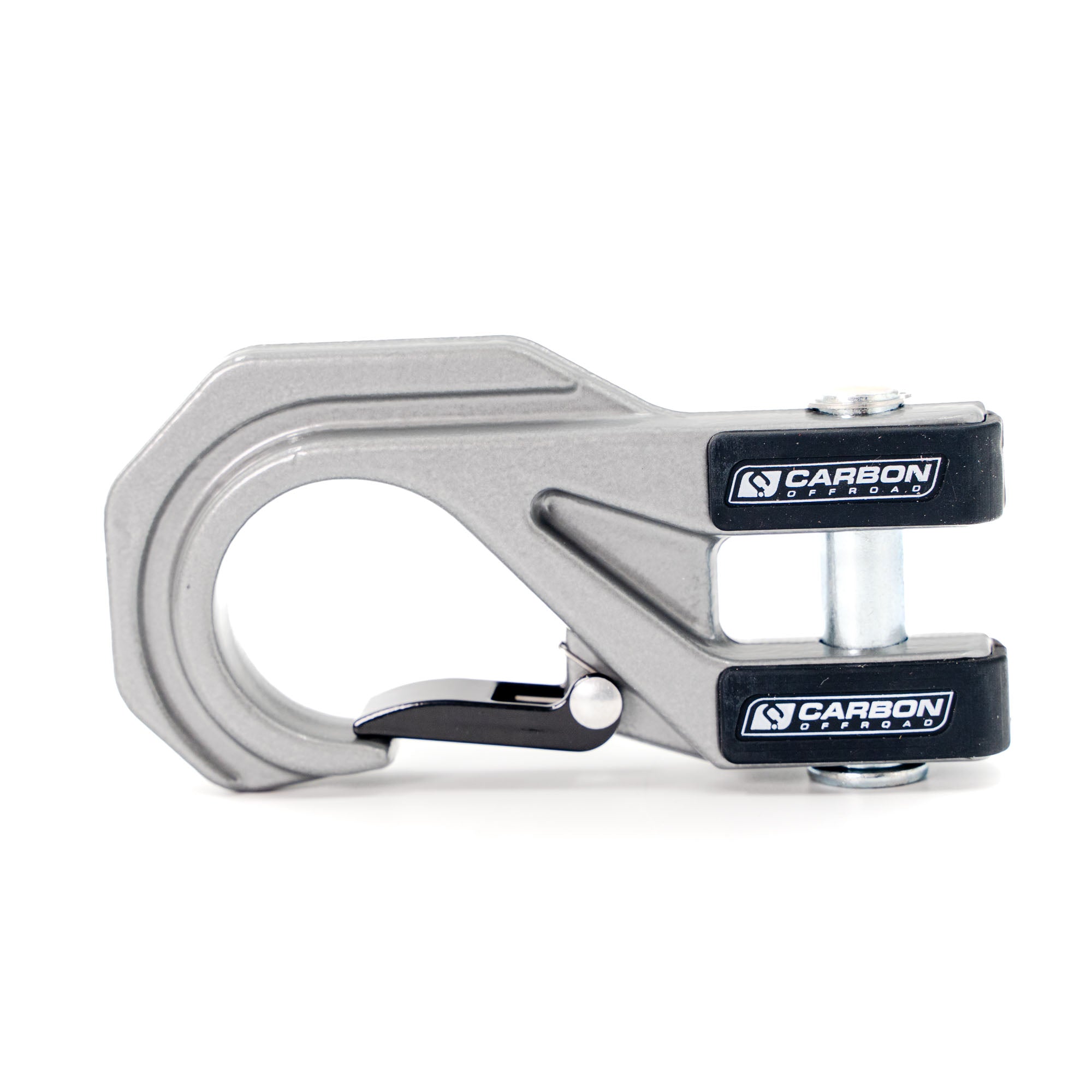

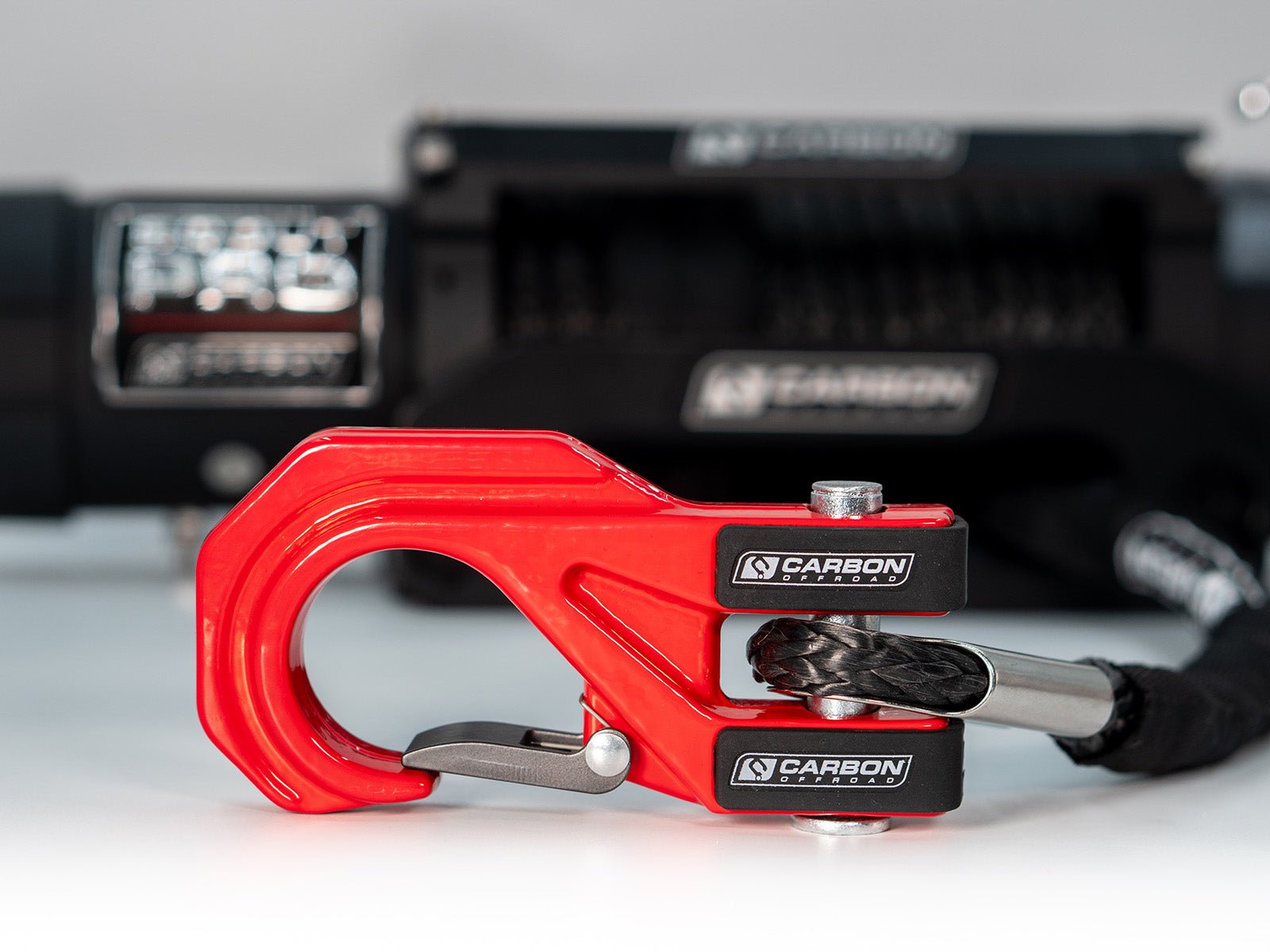

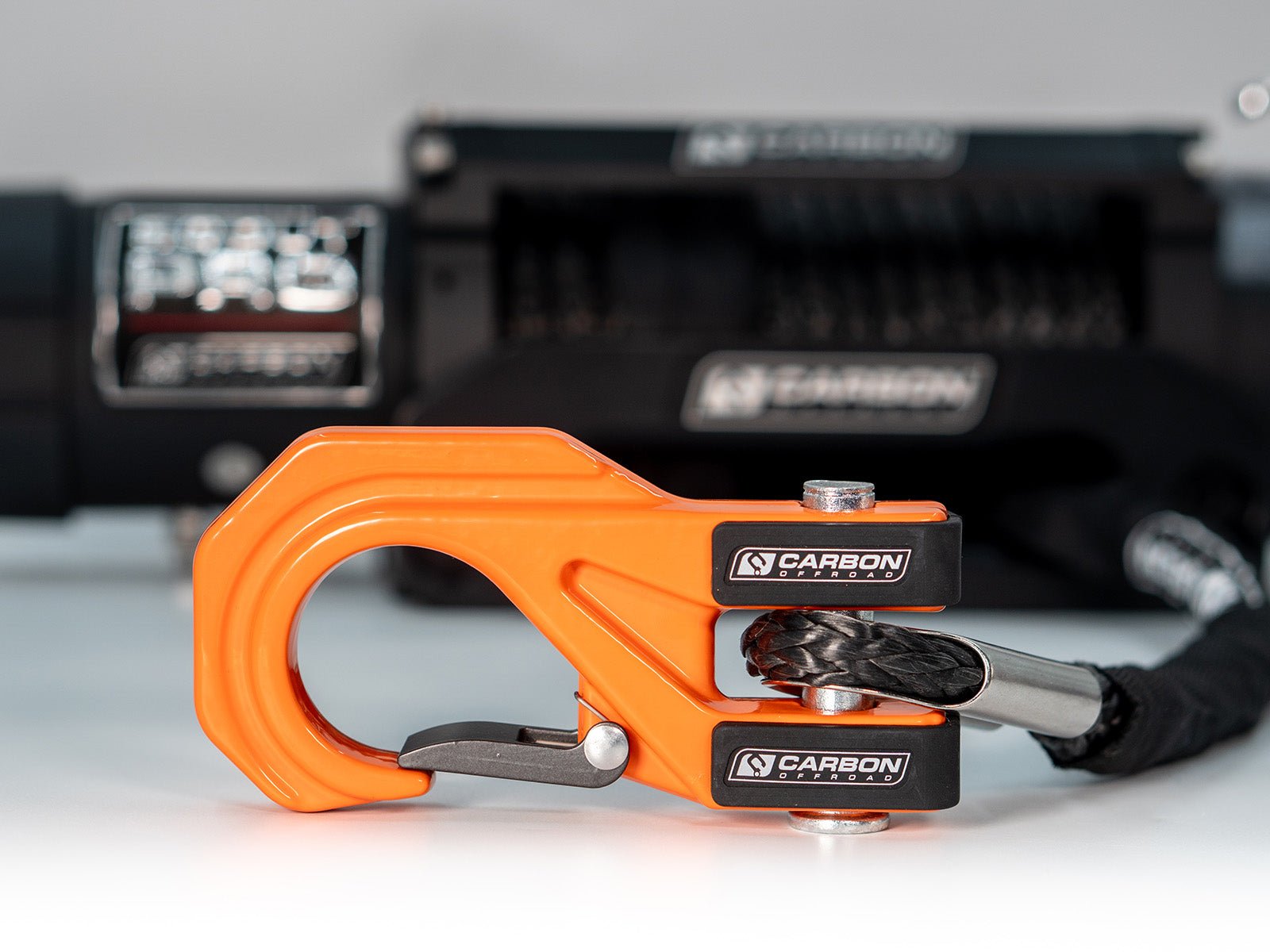

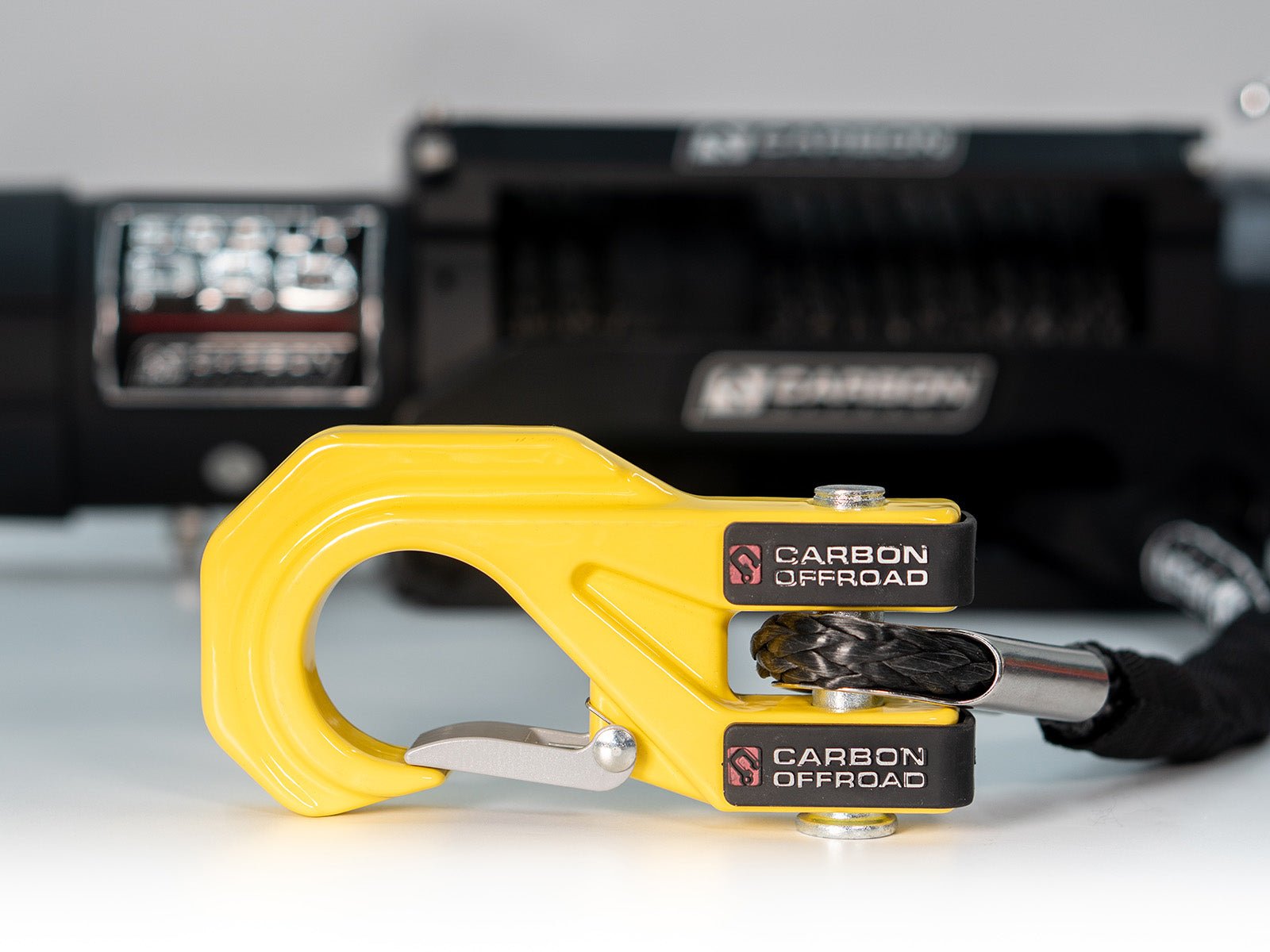

MegaPro Hook & Synthetic Rope

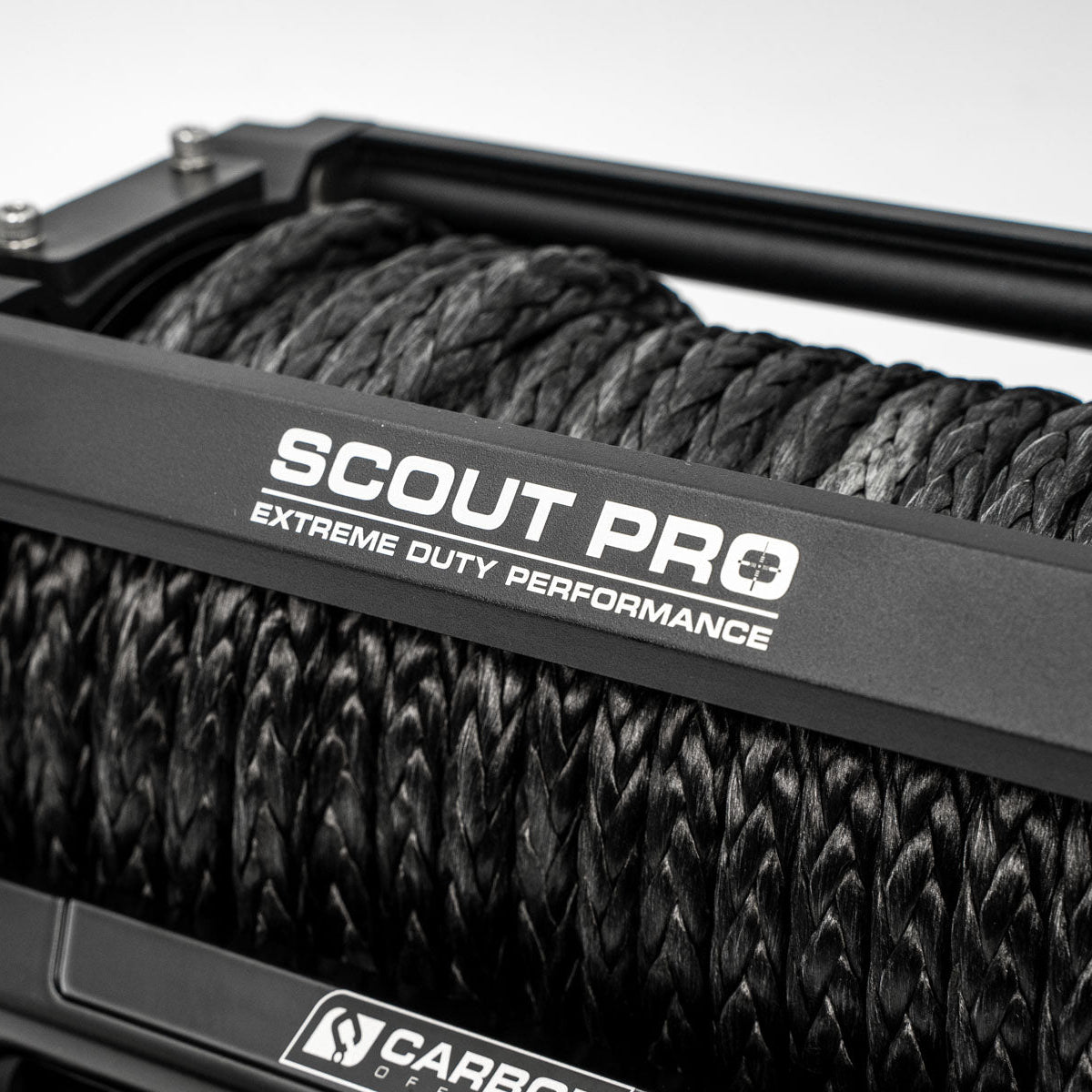

Ships with 24m of 10mm synthetic rope, a MegaPro winch hook, and our MegaPro CNC billet hard anodised fairlead. The checker-knurled winch drum locks the rope in place and stops slippage under extreme loads.
Carbon Warranty
Covered by a Limited Lifetime Mechanical Warranty, a 5-year Electrical Warranty, and a 5-year Water Ingress Protection Warranty.

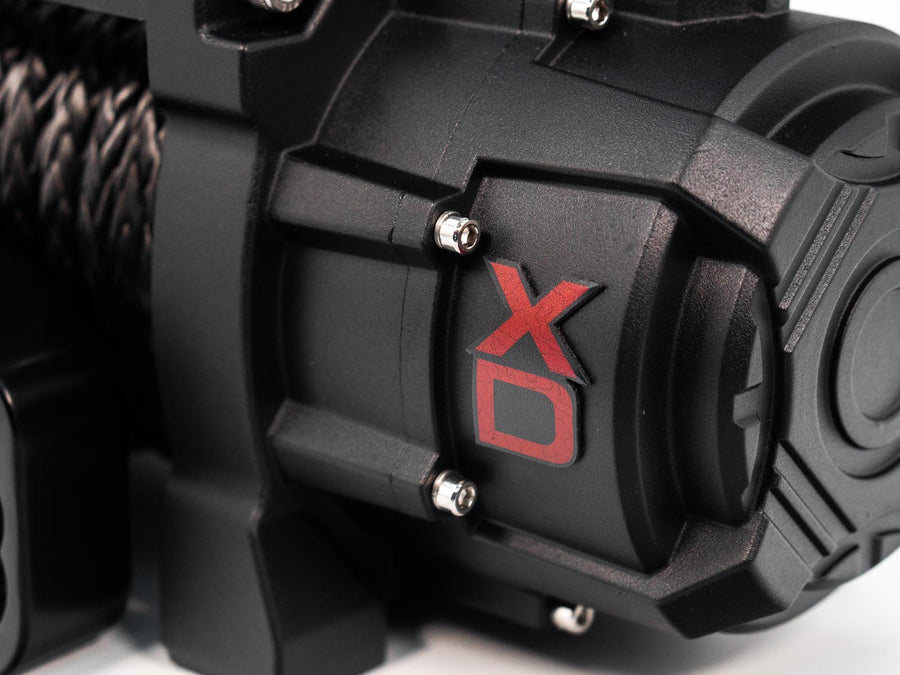

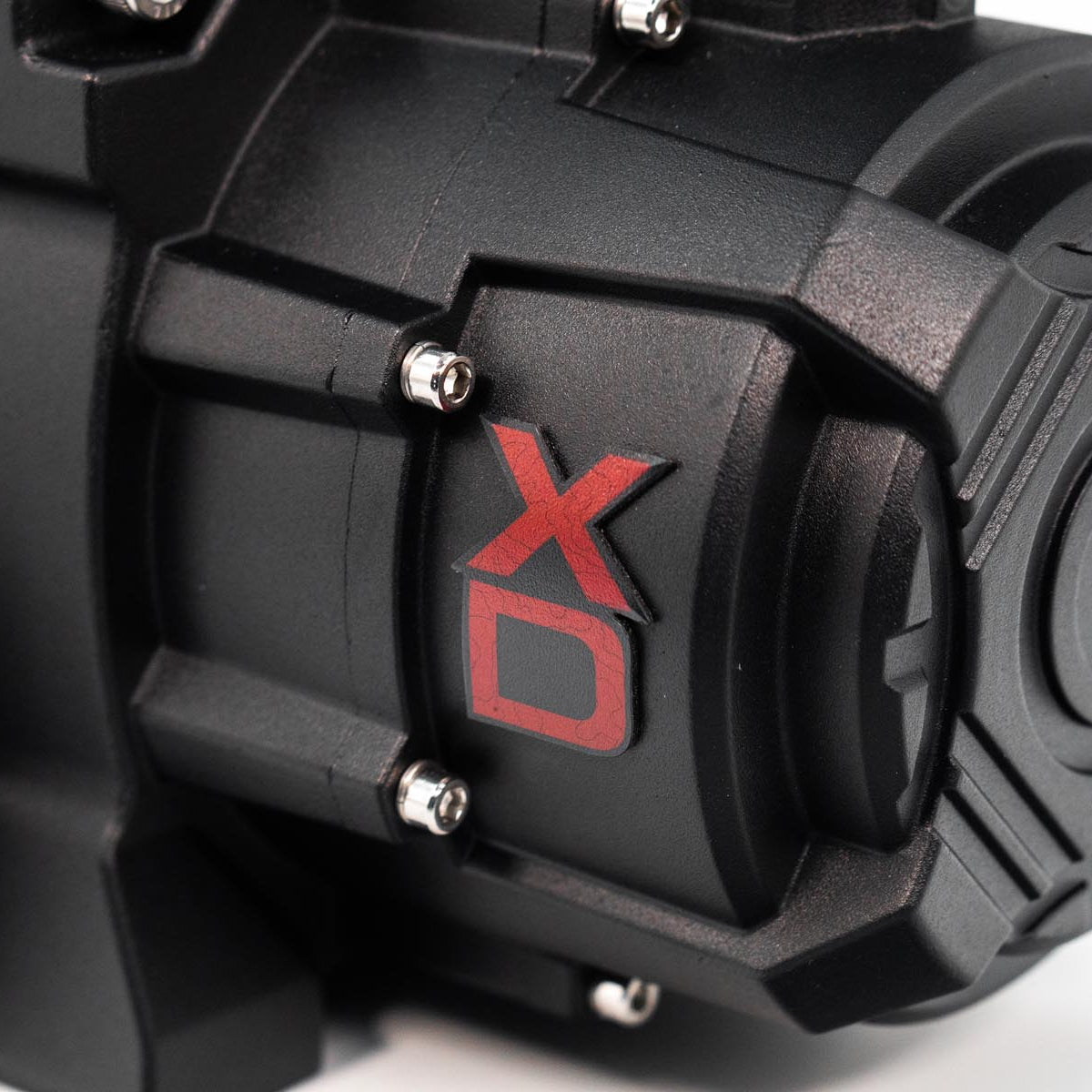

Extreme Duty Construction
Built for harsh Australian conditions. It features a matte black powder coat finish and 316 stainless steel hardware to stop rust in its tracks.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.8 (10.6) | 60 | 1 / 10000 (4540) |
| 4000 (1814) | 10.8 (3.8) | 190 | 2 / 8200 (3720) |
| 6000 (2722) | 8.5 (3.2) | 250 | 3 / 6840 (3103) |
| 8000 (3630) | 6.2 (2.6) | - | 4 / 5820 (2640) |
| 10000 (4540) | 4.6 (2.1) | 370 |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
This is a bundle with no reviews of its own. The merchant set it to show reviews from the products it includes.
M
Installed the new winch hook it looks fantastic and is a great colour
G

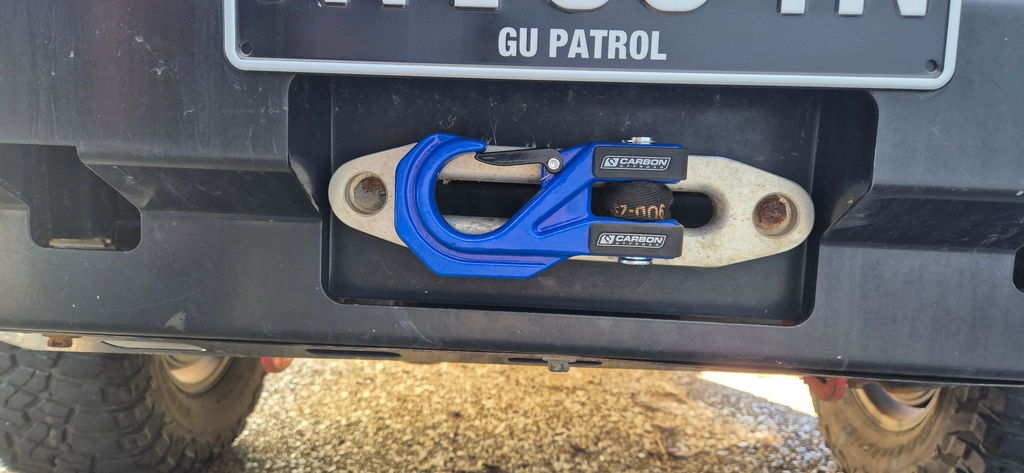

Took around 2 minutes to swap over and it's been brilliant. Sits snug against the fairlead and keeps the rope out of harm's way. Also, it fits easily behind my flip up reg plate.
I can get both loops of my tree trunk protector in and out of it easily which was a struggle with my stock hook.
Definitely recommend this to anyone looking to speed up and simplify using their winch, and to get their winch rope away from the bash plate if you currently have your hook connected to a recovery point 👍🏻

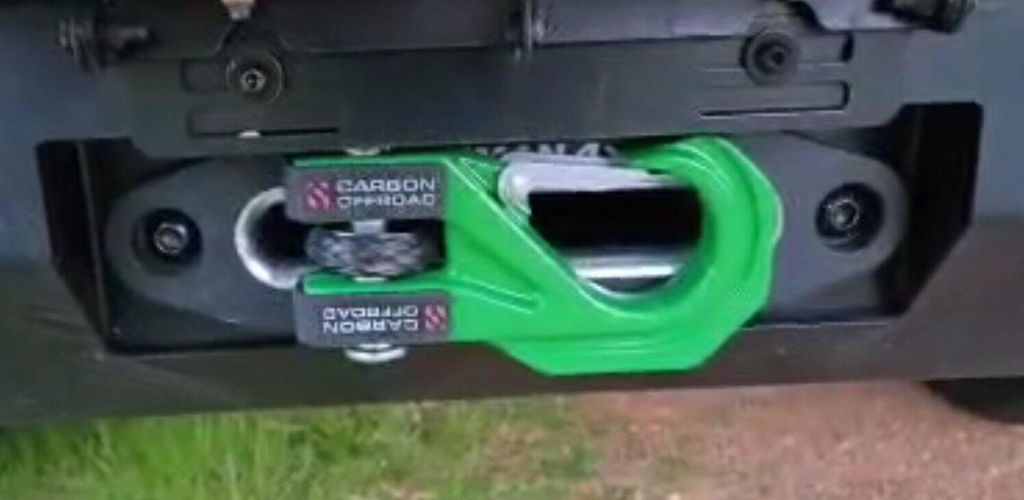

Finally ... My entire rig is now considered exotic because I chose the lamborghini-green coloured hook 🤣
J
I haven't had to use it yet, which is ideal. But the install was smooth, and it runs so quietly compared to my last one. I know it will get me out of my next situation with ease!
R
Installed into a pajero sport Piak front bar. Job has worked out good. Quality is high and the included winch bag is a bonus. Only small issue was the mounting washers collapsing under the correct torque, as the piak bar has large mounting holes. Upgraded them. The mounting bolts could be a bit longer so removed spring washers for now and used locktite. Love the winch hook and the way it pulls up tidy to the fairlead. Haven't used yet except for show and tell. Happy with purchase and quality. Highly recommend.
M
Simple easy install. Tidies the front up nicely. No more climbing under car to retrieve winch hook.
D
Quick to deliver, and carbon offroad make great products
B
Carbon Offroad MegaPro Winch Hook
A
Great product
M

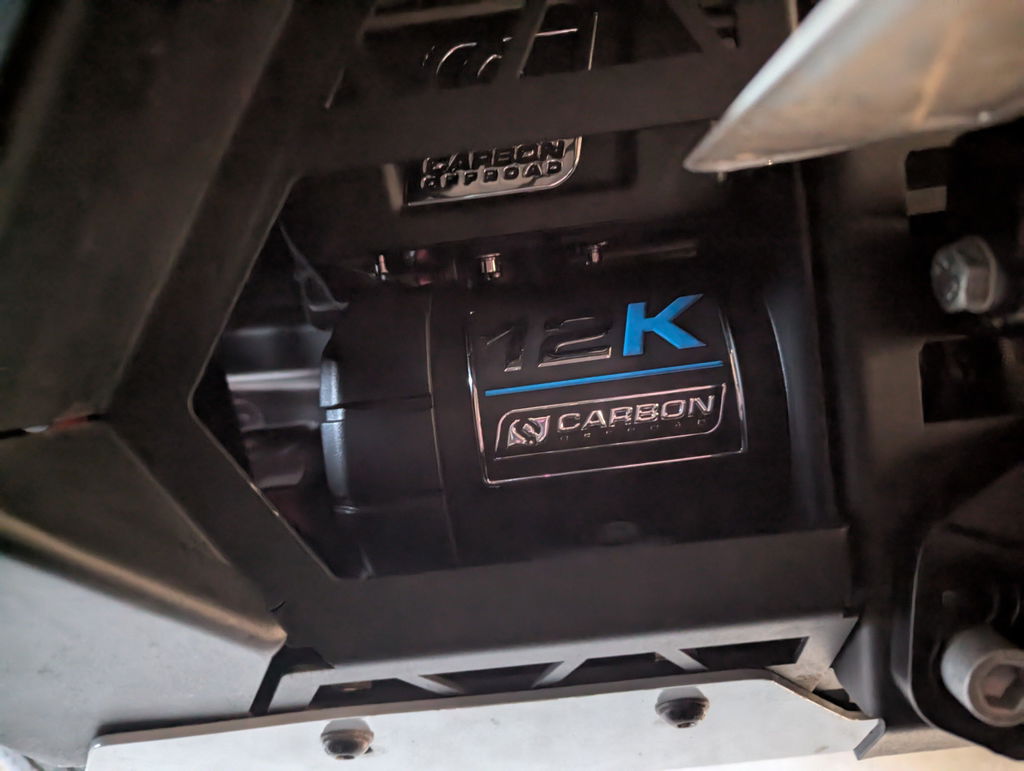

I purchased the Carbon 12K - 12000lb Winch V3X with MegaPro Hook and accessory kit, I had it installed through Fourbys 4WD in Marooka. To date I have not primed the rope nor had to use the winch. Its a nice looking unit and looks good within the Predator Bar on my Raptor. The postage was very quick. If I could recommend one thing, it would be to also get the recovery pack. Unfortunately I was a day early with my order and missed the Carbon Recovery Ring and Soft Shackle Combo which was part of the bundle the following day. I will be purchasing the full recovery pack so I can have better flexibility with the winch.
