Carbon Scout Pro - 15000lb Winch V3

CW-XD15BLU

$1,299.00
Tax included. Shipping calculated at checkout.

Carbon Offroad Scout Pro 15K Winch - 15,000lb pulling power bridging 12K and truck-grade 20K units. Features a 7.0HP motor, 11mm UHMWPE rope, forged thimble, MegaPro hook, premium fairlead, and wired/wireless remotes. Built tough for heavy rigs and extreme off-road recoveries.

Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
MegaPro Winch Hook Colour
Quantity
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Carbon Offroad

Carbon Scout Pro - 15000lb Winch V3

BLUE

$1,299.00

No Road? No Problem.

The Carbon 15K is the ultimate insurance policy. It gives you the power to push past the turn-around point, explore deeper and still make it home.

Carbon Scout Pro - 15000lb Winch V3 - CW - XD15BLK 5

Engineered For the Extreme

The The Carbon 15K is IP68 waterproof , ready to pull and backed by a relentless 5-year water ingress warranty.

No Road? No Problem.

The Carbon 15K is the ultimate insurance policy. It gives you the power to push past the turn-around point, explore deeper and still make it home.

Carbon Scout Pro - 15000lb Winch V3 - CW - XD15BLK 5

Engineered For the Extreme

The The Carbon 15K is IP68 waterproof , ready to pull and backed by a relentless 5-year water ingress warranty.

Wired and Wireless Remote Included

Complete Wiring and Accessories Kit

Includes everything you need, dual remotes, and a 5-year electrical warranty.

MegaPro Hook and Fairlead Included

Limited Lifetime Mechanical Warranty

The Carbon 15K is backed by a Limited Lifetime Mechanical Warranty covering the geartrain, brake and drum.

Wired and Wireless Remote Included

MegaPro Hook and Fairlead Included

Complete Wiring and Accessories Kit

Includes everything you need, dual remotes, and a 5-year electrical warranty.

Limited Lifetime Mechanical Warranty

The Carbon 15K is backed by a Limited Lifetime Mechanical Warranty covering the geartrain, brake and drum.

Heavy Duty Recovery Power

The Carbon Offroad CW-XD15-V3 is a heavy-duty recovery solution delivering an immense 6803kg (15000lbs) of pulling capacity via a powerful 12V DC 7.0 HP series wound motor.

Overview

Engineered for the Outback. Built for reliable off-road recovery, this winch utilises a 3-stage planetary geartrain with a 218:1 gear ratio and a rotating ring gear. It features an automatic brake inside the motor bracket for secure load holding during highly technical recoveries.

You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.

Features

  • Extreme Pulling Capacity: Delivers 6803kg (15000lbs) of single-line pull, perfect for heavily loaded 4WDs and extreme off-road scenarios.
  • Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation.
  • Reliable Braking: An automatic brake in the motor bracket ensures absolute control and prevents rollback under heavy loads.
  • MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior synthetic rope protection.
  • Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, a 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.

Contents

1 x Carbon Offroad CW-XD15-V3 Winch
1 x Synthetic Rope (11mm x 24m / 7/16" x 78.7ft)
1 x Carbon Offroad MegaPro Fairlead
1 x Control Box Complete with Cables
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Bolts Kit



Feature Specification Metric (Imperial)
Part Number CW-XD15-V3
Rated Line Pull 6803kg (15000lbs) single-line
Motor 12V DC 7.0 HP series wound
Geartrain 3-Stage Planetary
Gear Ratio 218:1
Brake Automatic brake in the motor bracket
Synthetic Rope 11mm x 24m (7/16" x 78.7ft)
Fairlead MegaPro CNC billet type 3 hard anodised

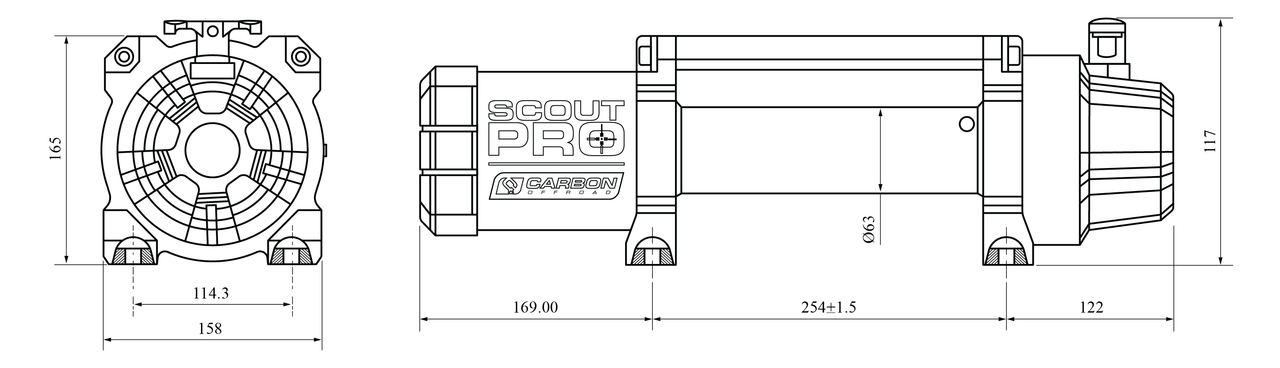

Drum Dimensions 63.5mm x 224mm (2.5" x 8.8")
Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5")
Recommended Battery 650 CCA minimum for winching
Winch Dimensions (L x W x H) 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4")
Packing Dimensions (L x W x H) 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7")
Installed Weight 26.7kg (58.9 lbs)



12V DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 27.9 (8.5) 65 1 / 15000 (6810)
2000 (910) 11.8 (3.6) 120 2 / 12700 (5765)
6000 (2720) 9.5 (2.9) 160 3 / 10770 (4890)
10000 (4540) 6.6 (2.0) 215 4 / 9130 (4145)
13000 (5900) 4.6 (1.4) 265 -
15000 (6818) 3.6 (1.1) 380 -
