CW-XD20BLK
$1,999.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Description
Extreme Duty Recovery Power

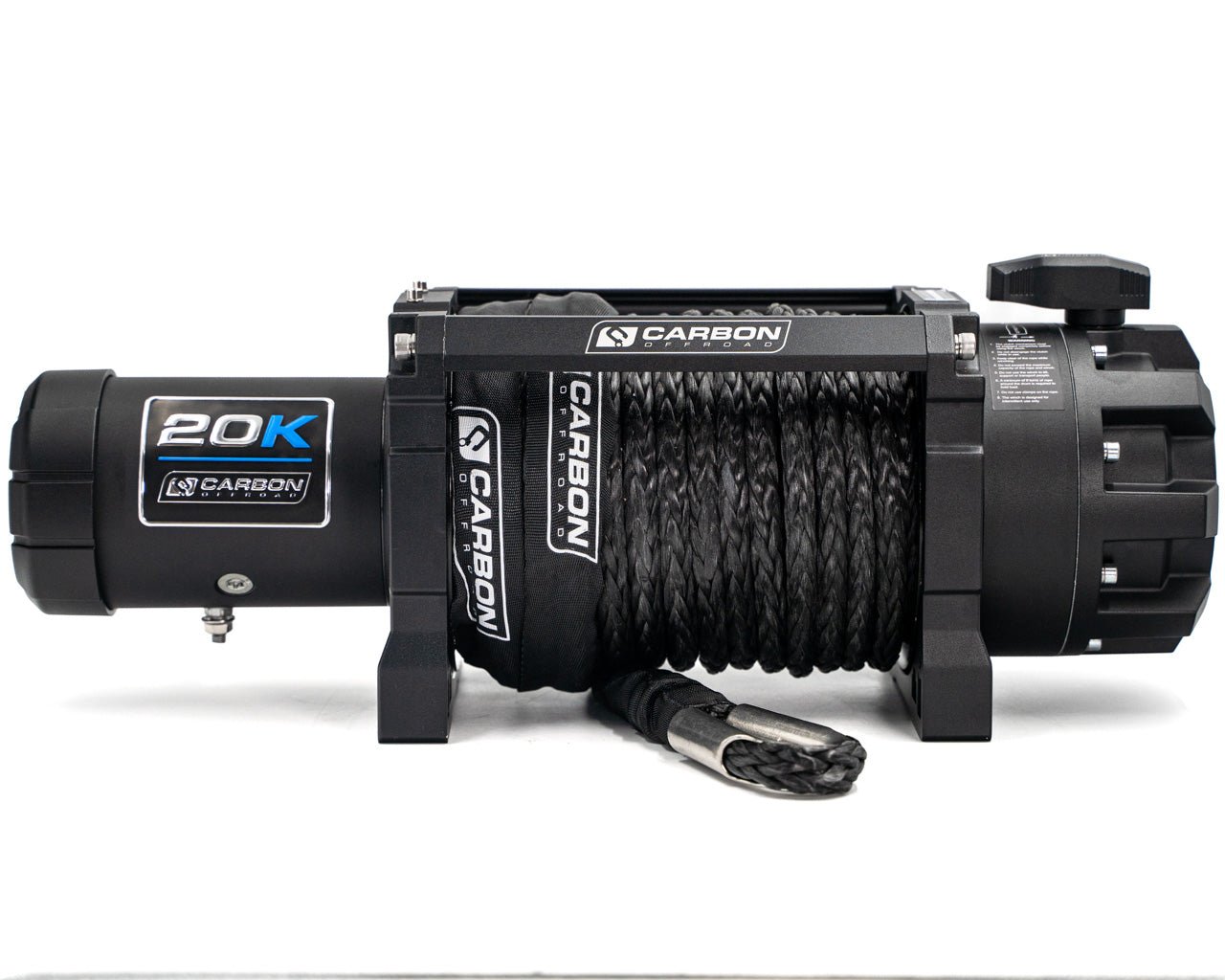

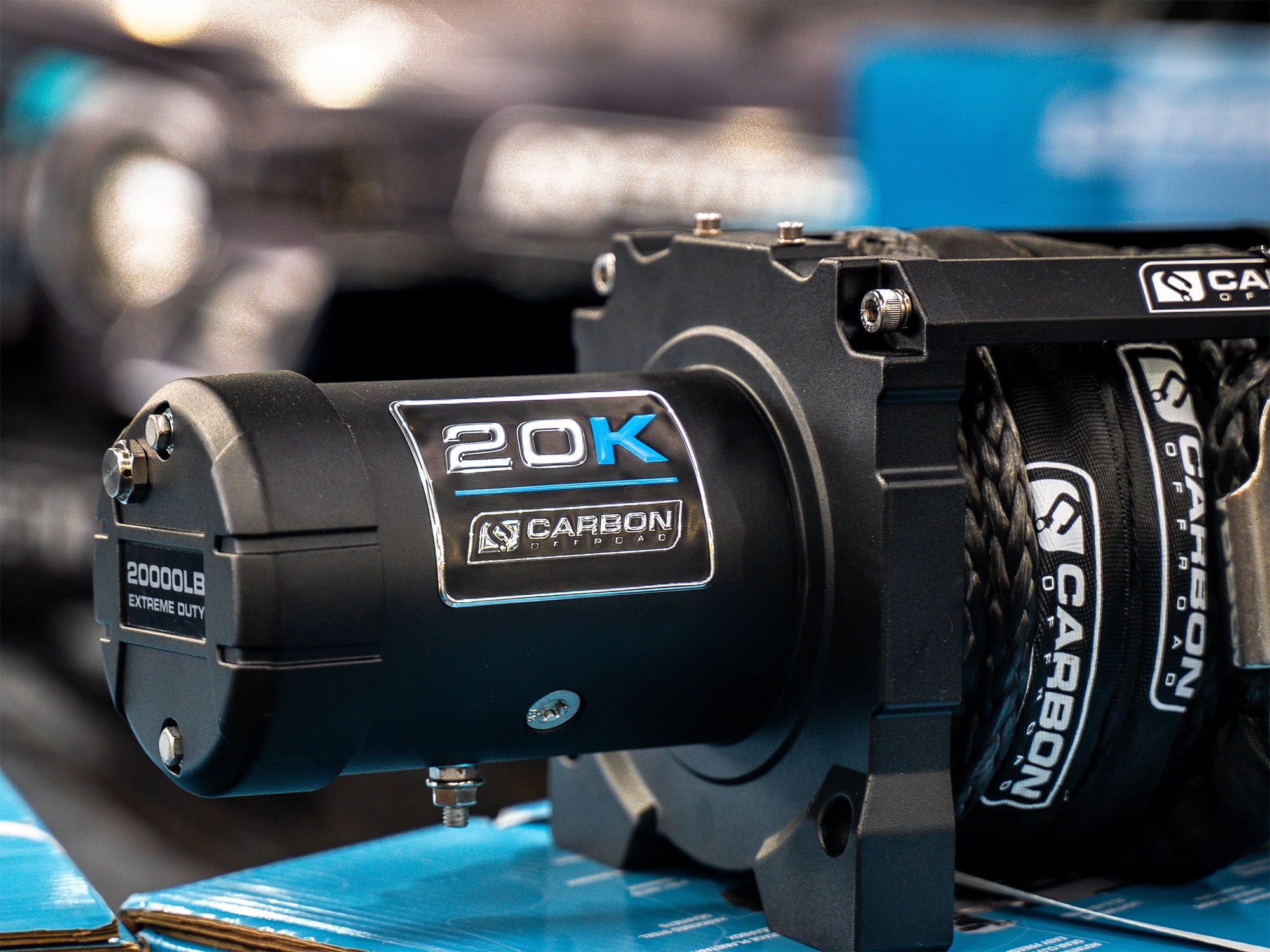

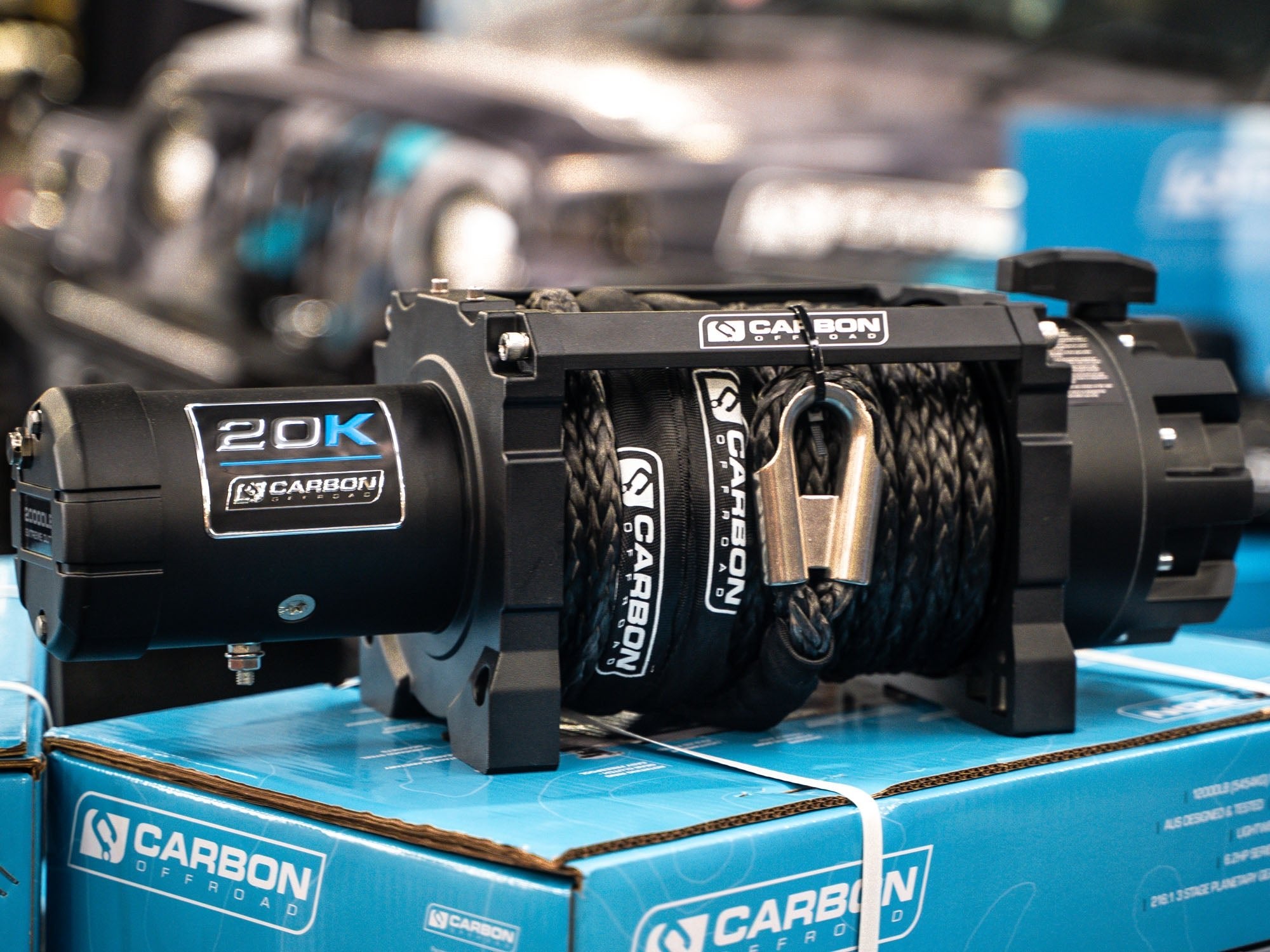

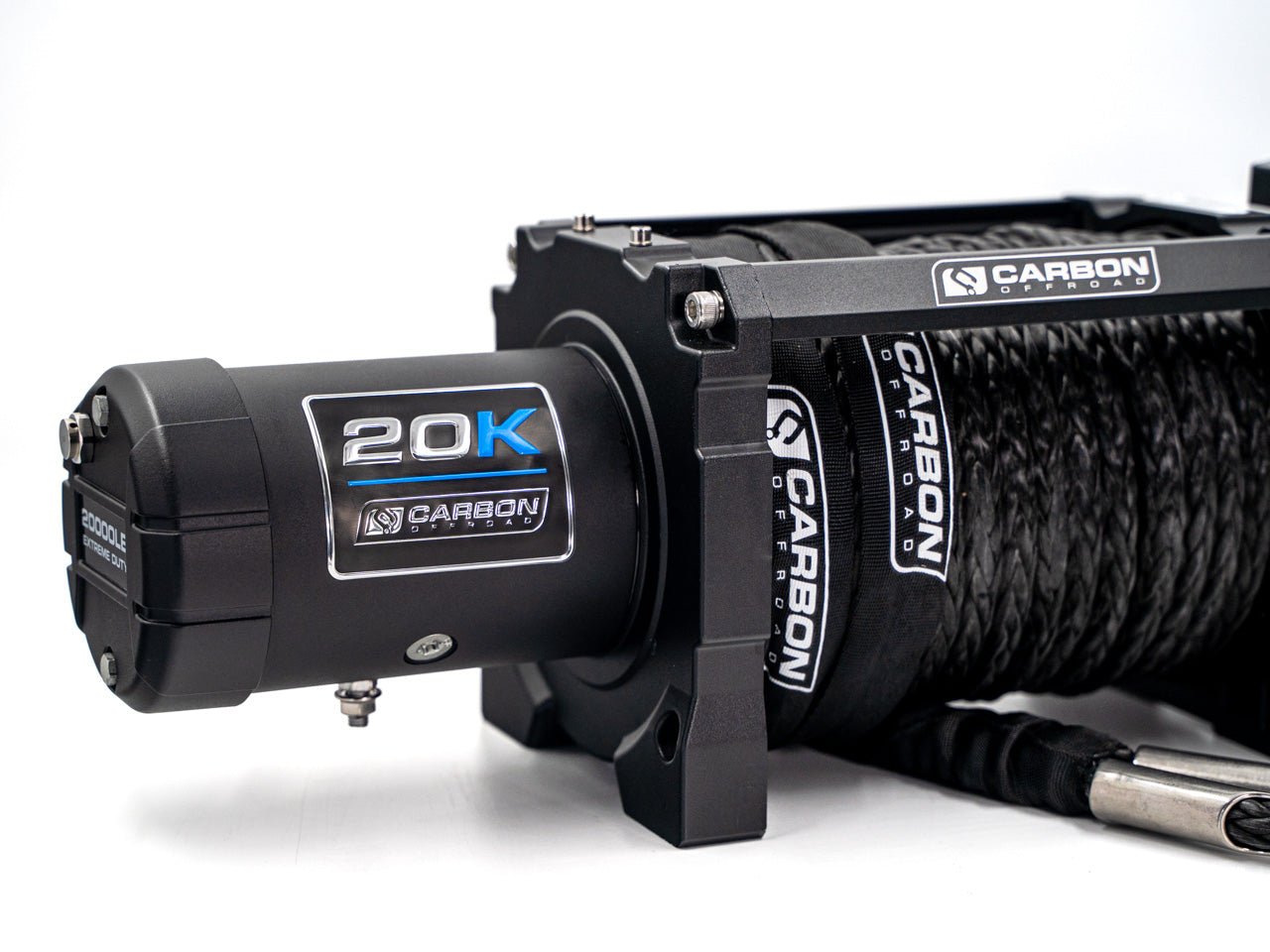

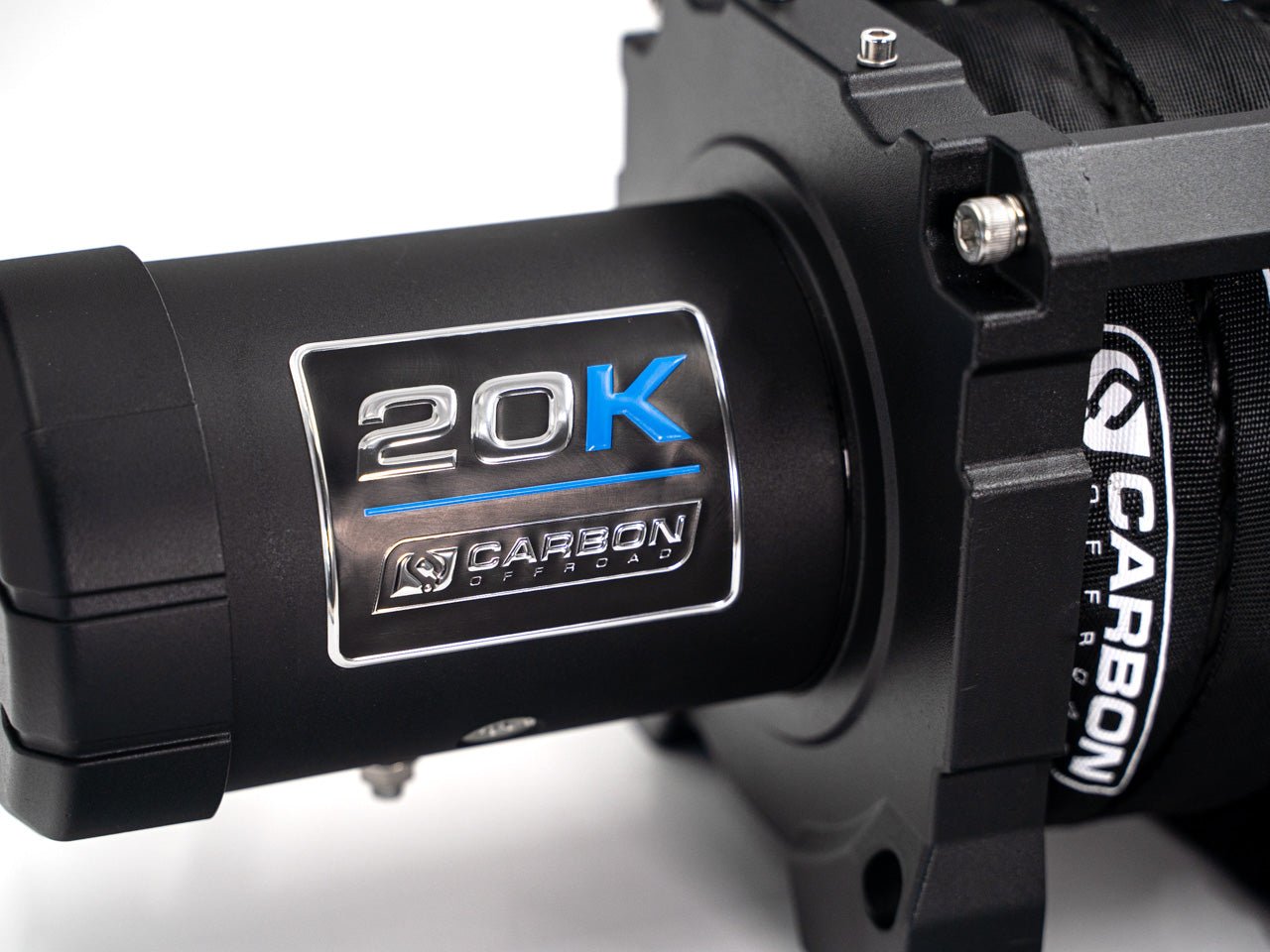

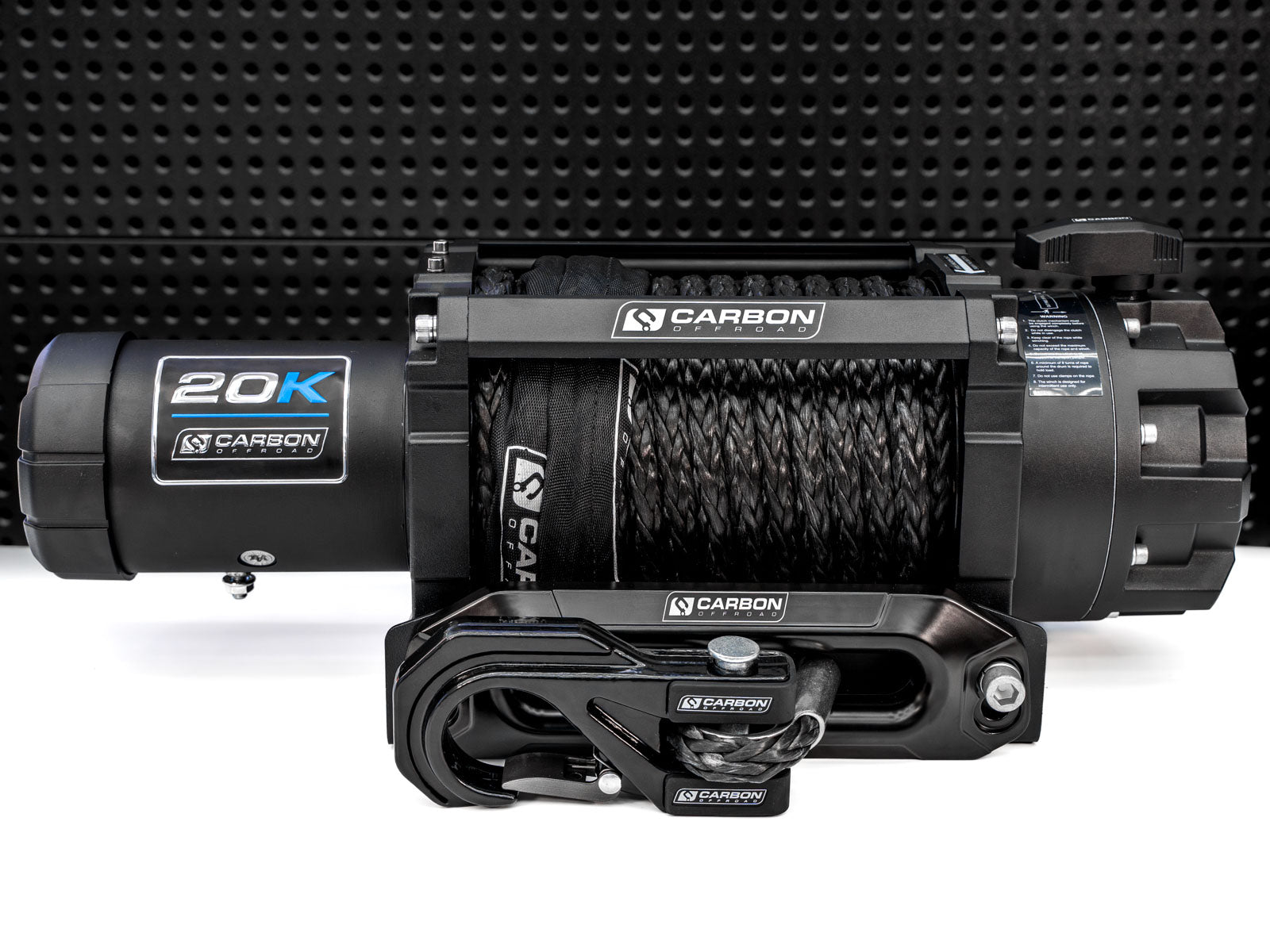

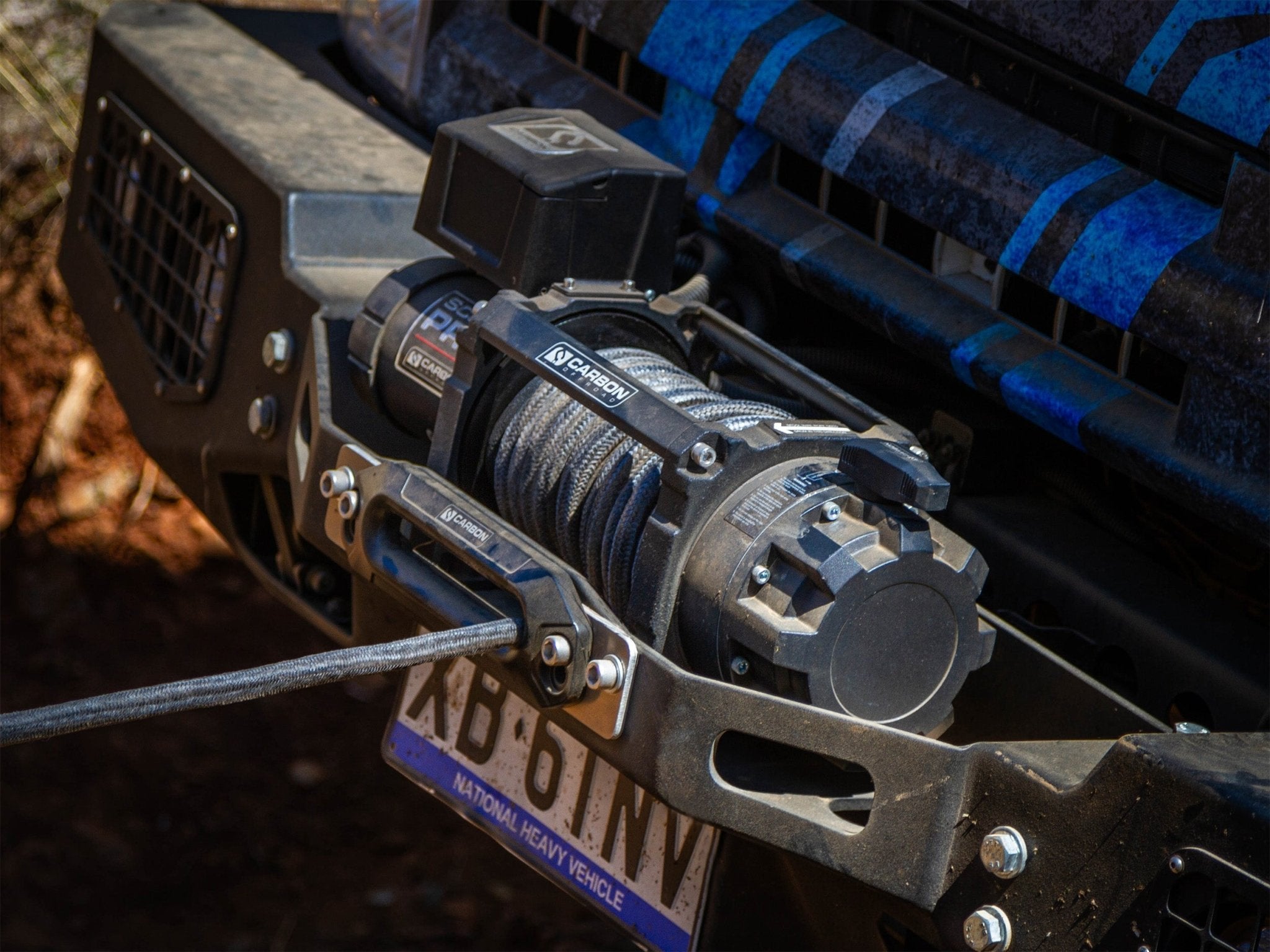

The Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch is engineered to deliver reliable performance in demanding off-road and recovery environments, featuring a massive 7HP series-wound motor and an ultra-low 354:1 three-stage planetary gearbox.
Overview
The Carbon Offroad Scout 20K is a high-capacity recovery powerhouse. With a rated pulling capacity of 9072kg (20000lbs), the CW-XD20 is specifically suited to hauling heavy trailers, recovering large commercial vehicles, and operating in extreme terrain where consistent, unstoppable pulling power is required.
For ultimate convenience, you can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for seamless integration with the Scout Pro series.
Features
- Colossal Pulling Capacity: Delivers a massive 9072kg (20000lbs) single-line pull for heavy-duty trucks and industrial recovery.
- Proportional Braking: The automatic brake system integrated within the motor frame applies force based on the load, significantly reducing heat buildup on the drum.
- MegaPro Premium Components: Includes the multi-position CNC billet type 3 hard anodised fairlead for maximum protection of your high-capacity synthetic rope.

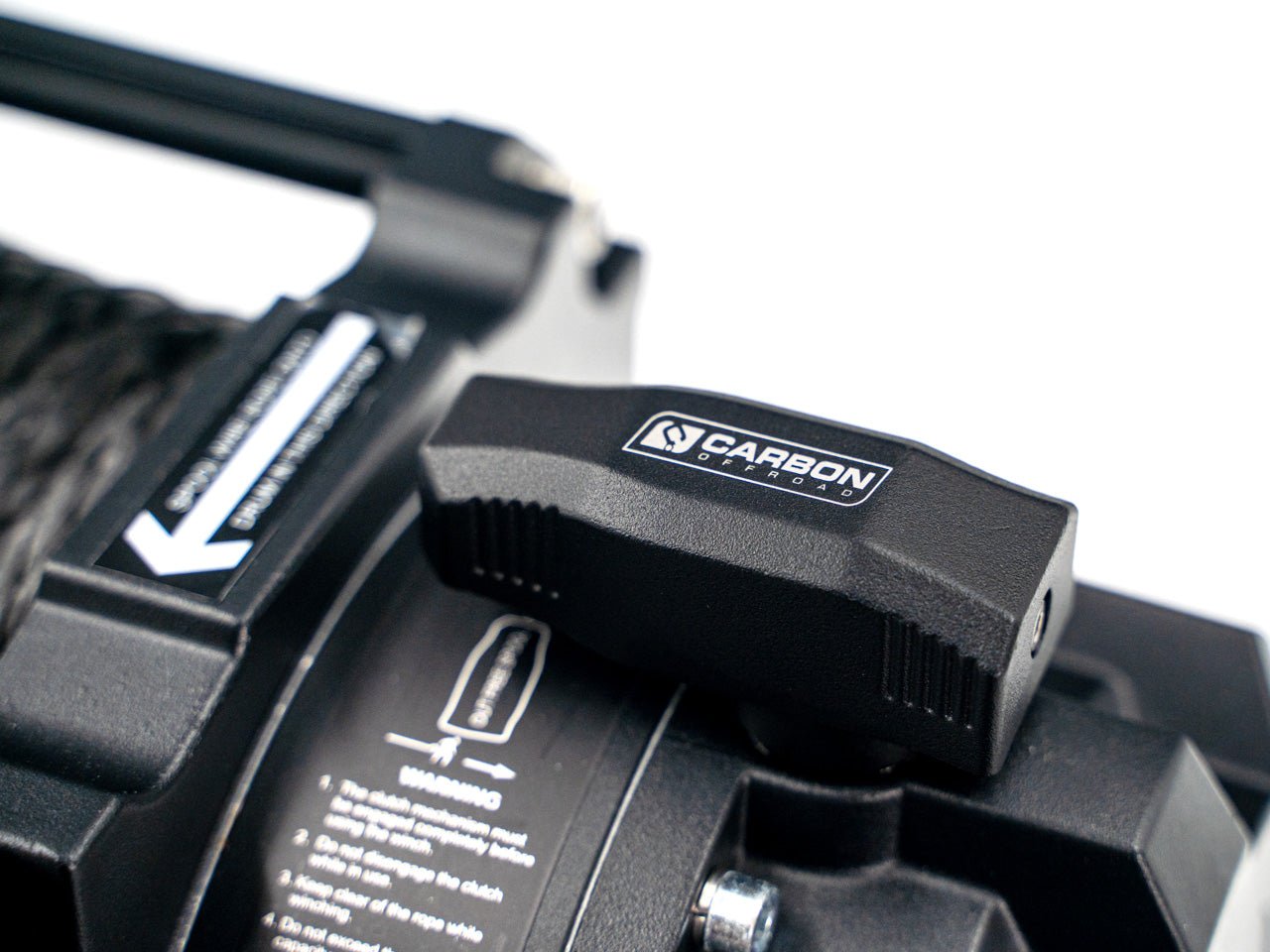

- Rotating Ring Gear Clutch: Provides easy switching between freespool and engaged modes for rapid deployment.
- Weatherproof Electronics: Features a 600A sealed solenoid and an IP68 rating for protection against water ingress and dust.
- Unmatched Warranty: Backed by a Lifetime Mechanical Warranty and 5-Year Electrical and Water Ingress Protection.
Contents
1 x Carbon Offroad Scout Pro 20K Truck Winch
1 x Synthetic Rope (25m x 13mm / 82ft x 0.5")
1 x MEGAPRO CNC Billet Fairlead
1 x 600A Sealed Solenoid & Control Box
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Hardware Kit
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD20 |
| Rated Line Pull | 9072kg (20000lbs) single-line |
| Motor | 12V DC 7HP Series Wound |
| Gear Ratio | 354:1 3-Stage Planetary |
| Synthetic Rope | 25m x 13mm (82ft x 0.5") |
| Drum Dimensions (D x L) | 88mm x 224mm (3.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Winch Dimensions (L x W x H) | 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") |
| Recommended Battery | 650 CCA minimum |
| Installed Weight | 31.7kg (69.9lbs) |
| Total Kit Weight | 37.2kg (82.0lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70 | 1 / 20000 (9072) |
| 4000 (1814) | 10.8 (3.3) | 145 | 2 / 16140 (7321) |
| 8000 (3629) | 8.5 (2.6) | 230 | 3 / 13520 (6133) |
| 12000 (5443) | 6.2 (1.9) | 310 | 4 / 11660 (5289) |
| 16000 (7257) | 4.6 (1.4) | 390 | - |
| 20000 (9072) | 3.3 (1.0) | 460 | - |
Carbon Scout Pro - 20000lb Extreme Duty Truck Winch
BLACK
$1,999.00
Commercial Grade Pulling Power

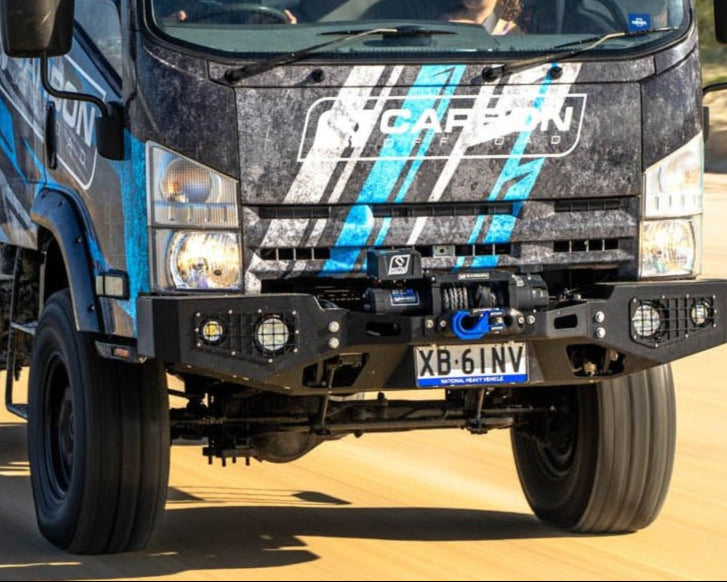

Engineered for a massive 9072kg single-line load. Built specifically for full-size imported pick-ups, light trucks and heavy agricultural setups. It is designed to handle the tough Aussie transport industry and serious heavy-duty offroad use.
7.0HP Motor - 354:1 Gearing
Packs a heavy-duty 7HP series-wound motor paired with an ultra-low 354:1 three-stage planetary gearbox. This combination gives you consistent torque and unstoppable momentum under extreme loads.
Proportional Braking System
An automatic brake system integrated within the motor frame that applies force based on the load to reduce heat buildup on the drum.

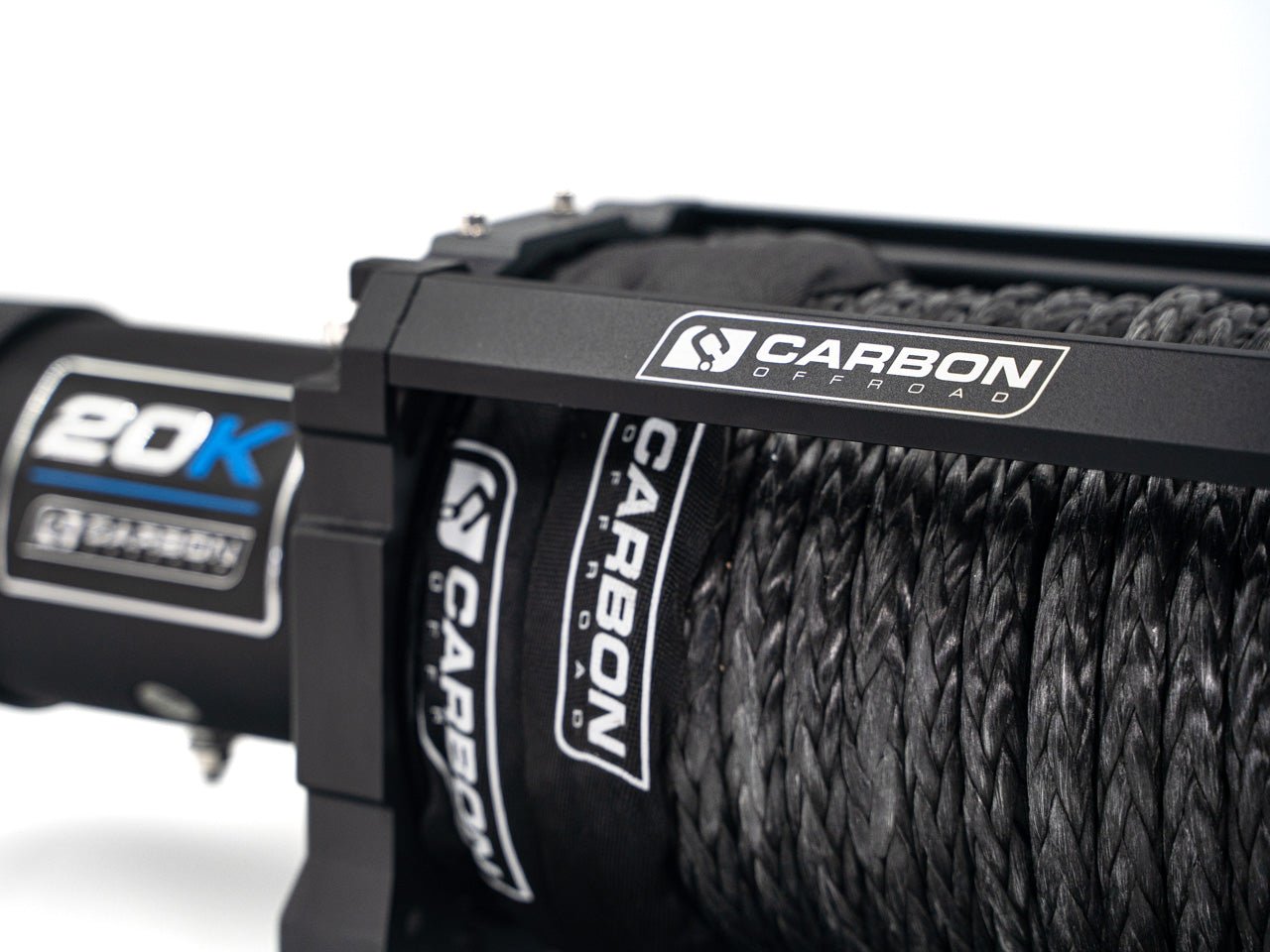

Premium 13mm Synthetic Rope
Spooled with 25 metres of ultra-thick 13mm synthetic rope. You get massive tension capacity without the dangerous weight and snapback of traditional steel cable.
IP68 Sealed Electronics
Runs a heavy-duty 600A sealed solenoid. The entire unit is completely IP68 rated to keep water, mud and dust out of the critical components.
Air Freespool Ready
Comes standard with a rotating ring gear clutch for easy manual operation. It is also fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade for rapid deployment from the cab.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70 | 1 / 20000 (9072) |
| 4000 (1814) | 10.8 (3.3) | 145 | 2 / 16140 (7321) |
| 8000 (3629) | 8.5 (2.6) | 230 | 3 / 13520 (6133) |
| 12000 (5443) | 6.2 (1.9) | 310 | 4 / 11660 (5289) |
| 16000 (7257) | 4.6 (1.4) | 390 | |
| 20000 (9072) | 3.3 (1.0) | 460 |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
This is a bundle with no reviews of its own. The merchant set it to show reviews from the products it includes.
M
Installed the new winch hook it looks fantastic and is a great colour
G
Took around 2 minutes to swap over and it's been brilliant. Sits snug against the fairlead and keeps the rope out of harm's way. Also, it fits easily behind my flip up reg plate.
I can get both loops of my tree trunk protector in and out of it easily which was a struggle with my stock hook.
Definitely recommend this to anyone looking to speed up and simplify using their winch, and to get their winch rope away from the bash plate if you currently have your hook connected to a recovery point 👍🏻
Finally ... My entire rig is now considered exotic because I chose the lamborghini-green coloured hook 🤣
J
I haven't had to use it yet, which is ideal. But the install was smooth, and it runs so quietly compared to my last one. I know it will get me out of my next situation with ease!
R
Installed into a pajero sport Piak front bar. Job has worked out good. Quality is high and the included winch bag is a bonus. Only small issue was the mounting washers collapsing under the correct torque, as the piak bar has large mounting holes. Upgraded them. The mounting bolts could be a bit longer so removed spring washers for now and used locktite. Love the winch hook and the way it pulls up tidy to the fairlead. Haven't used yet except for show and tell. Happy with purchase and quality. Highly recommend.
M
Simple easy install. Tidies the front up nicely. No more climbing under car to retrieve winch hook.
D
Quick to deliver, and carbon offroad make great products
B

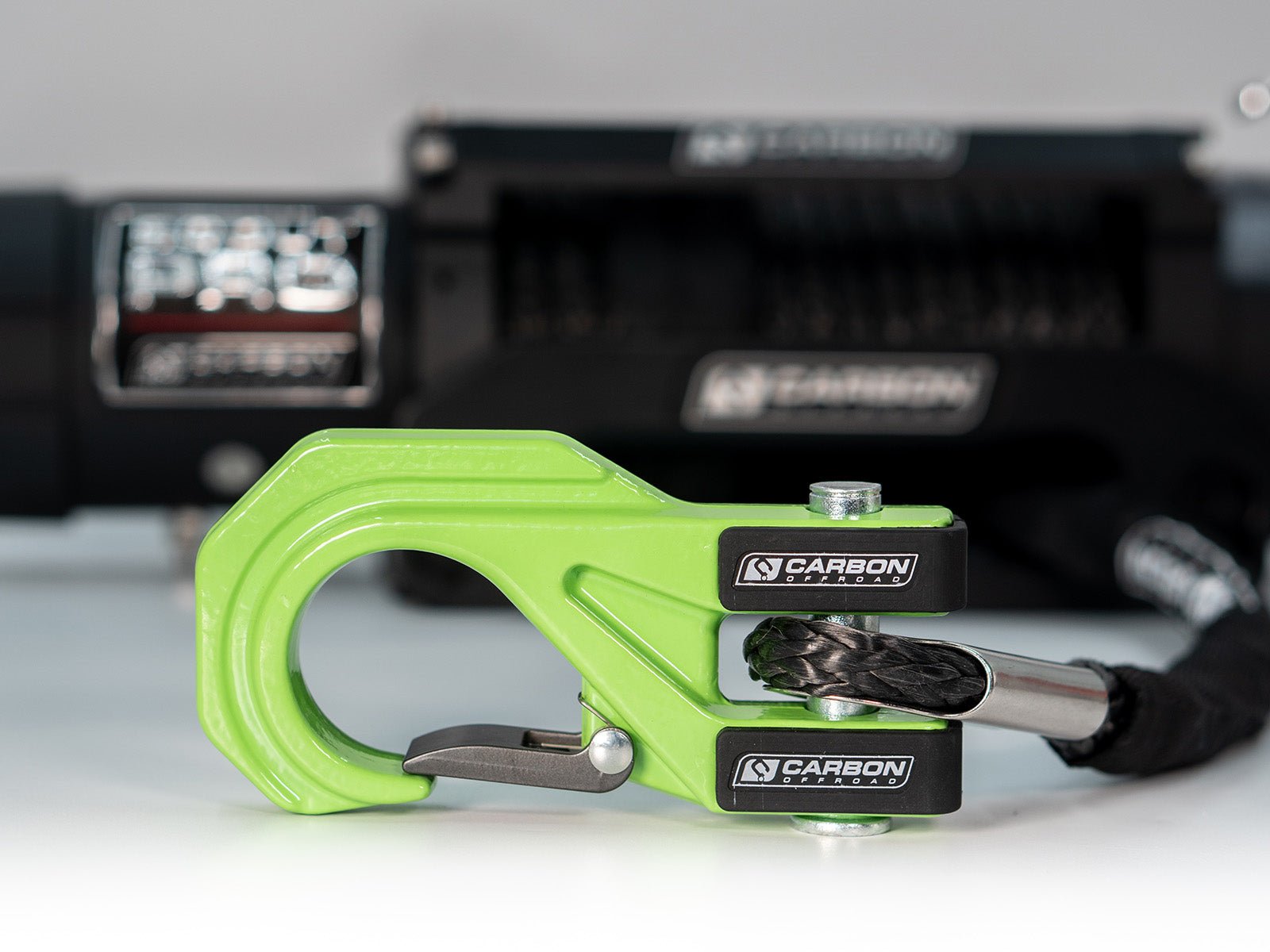

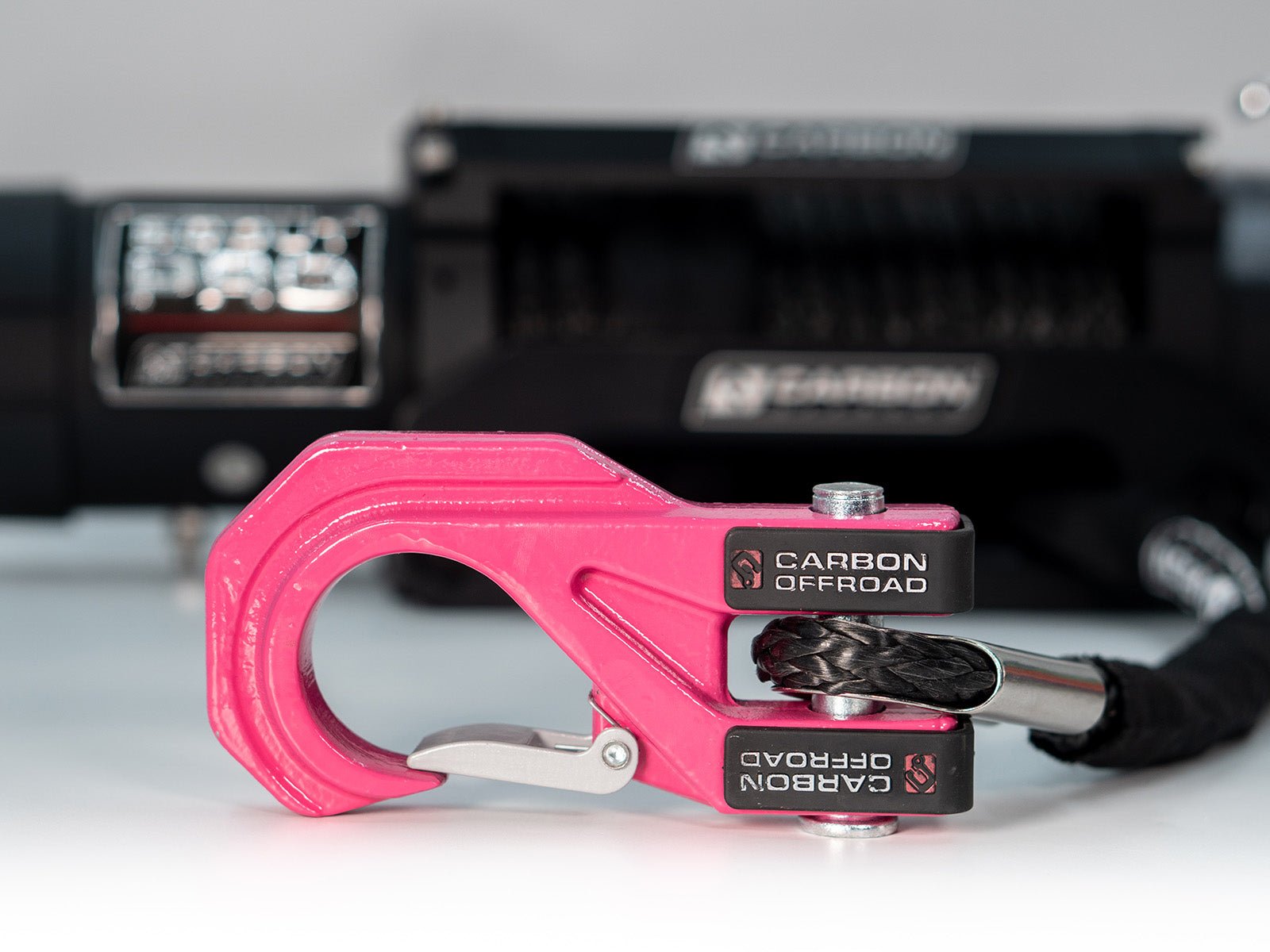

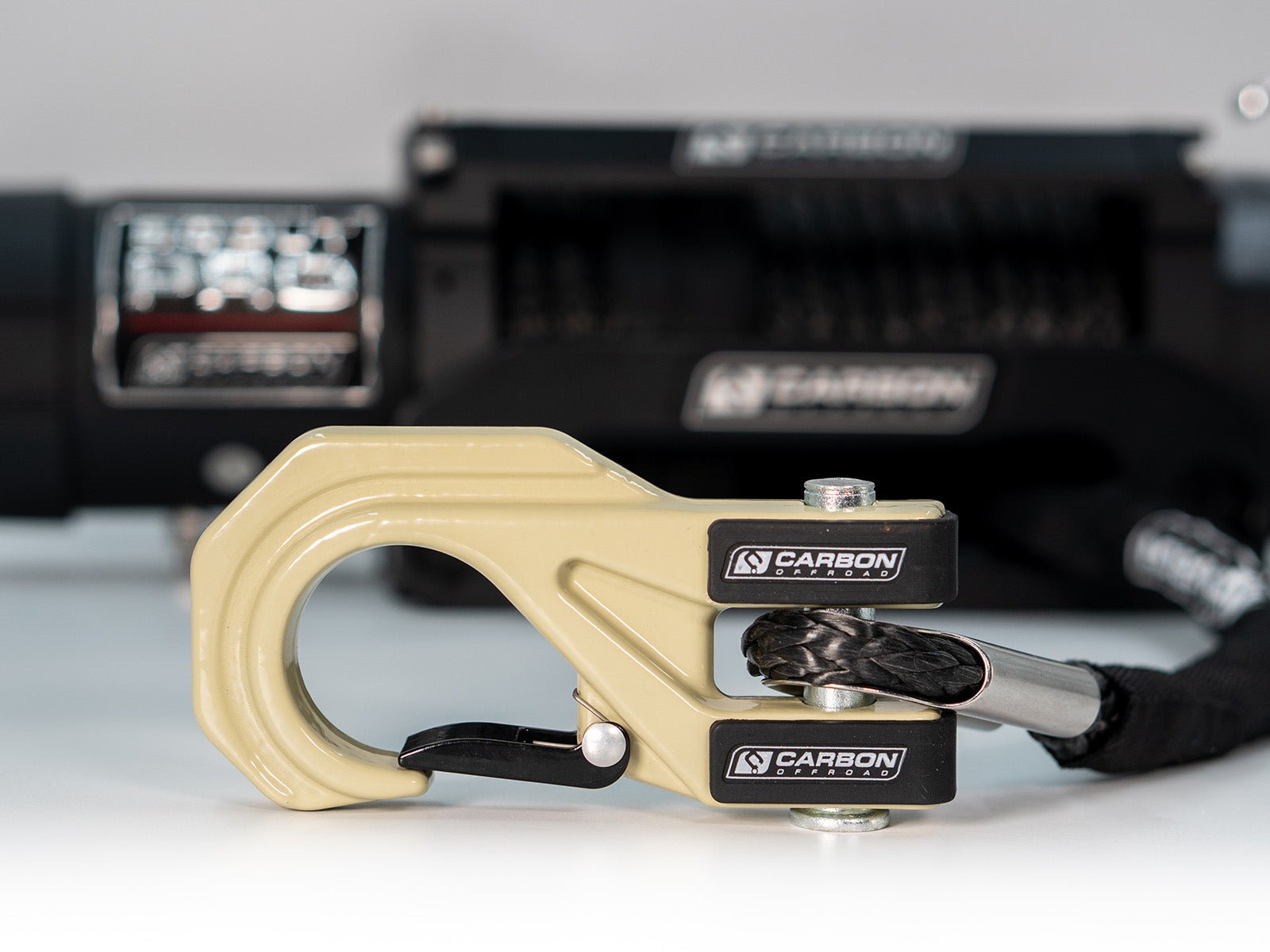

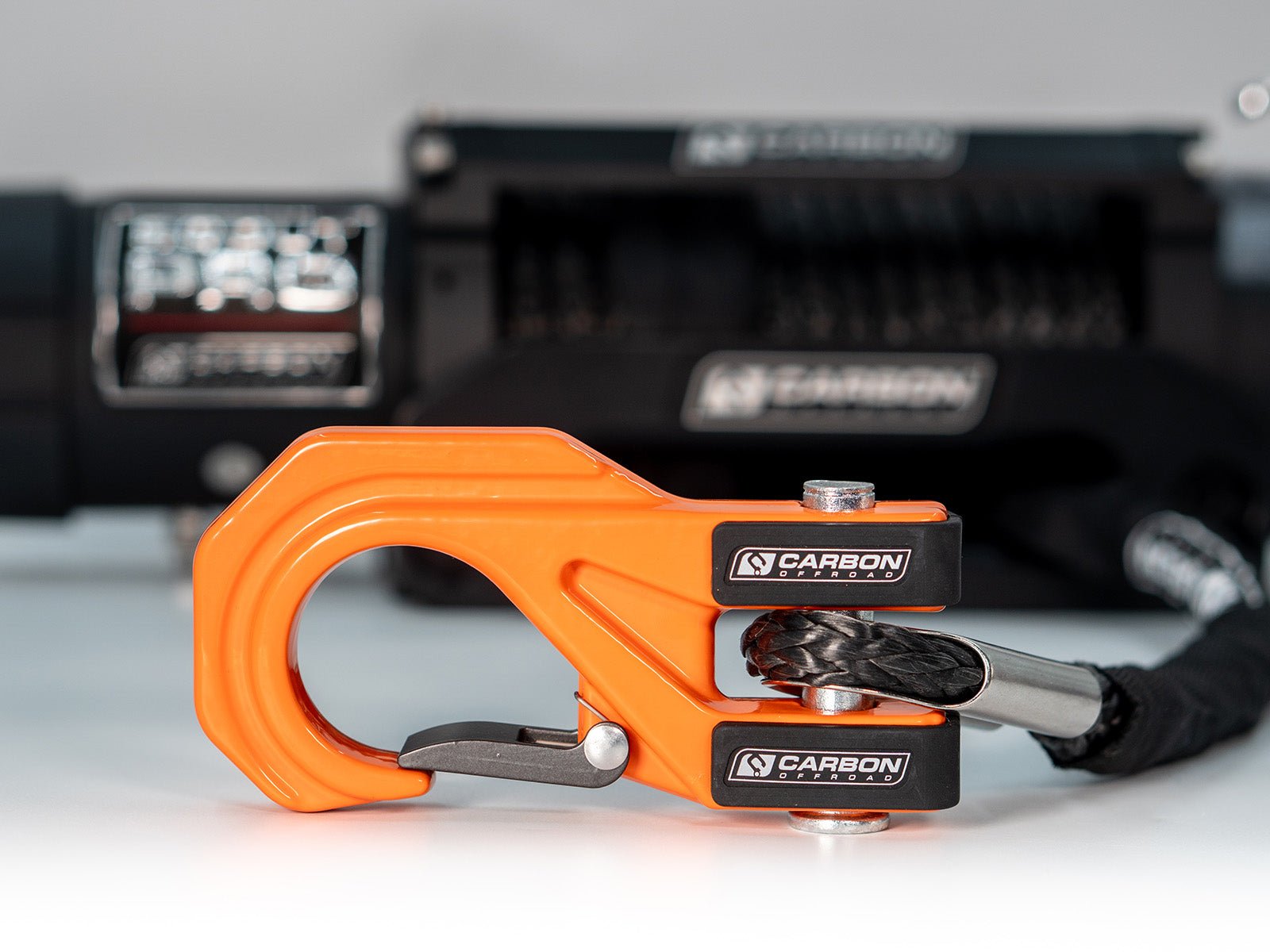

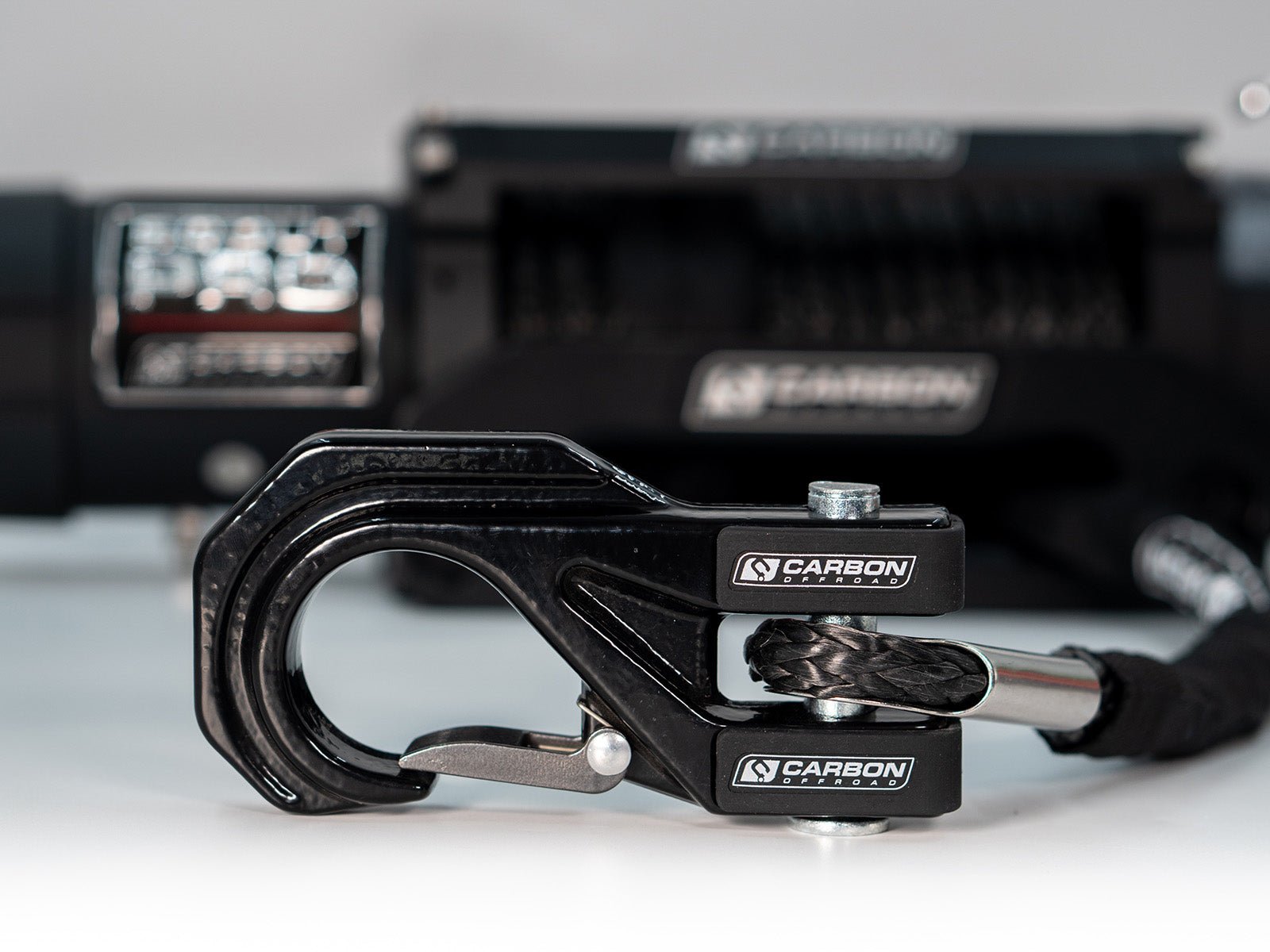

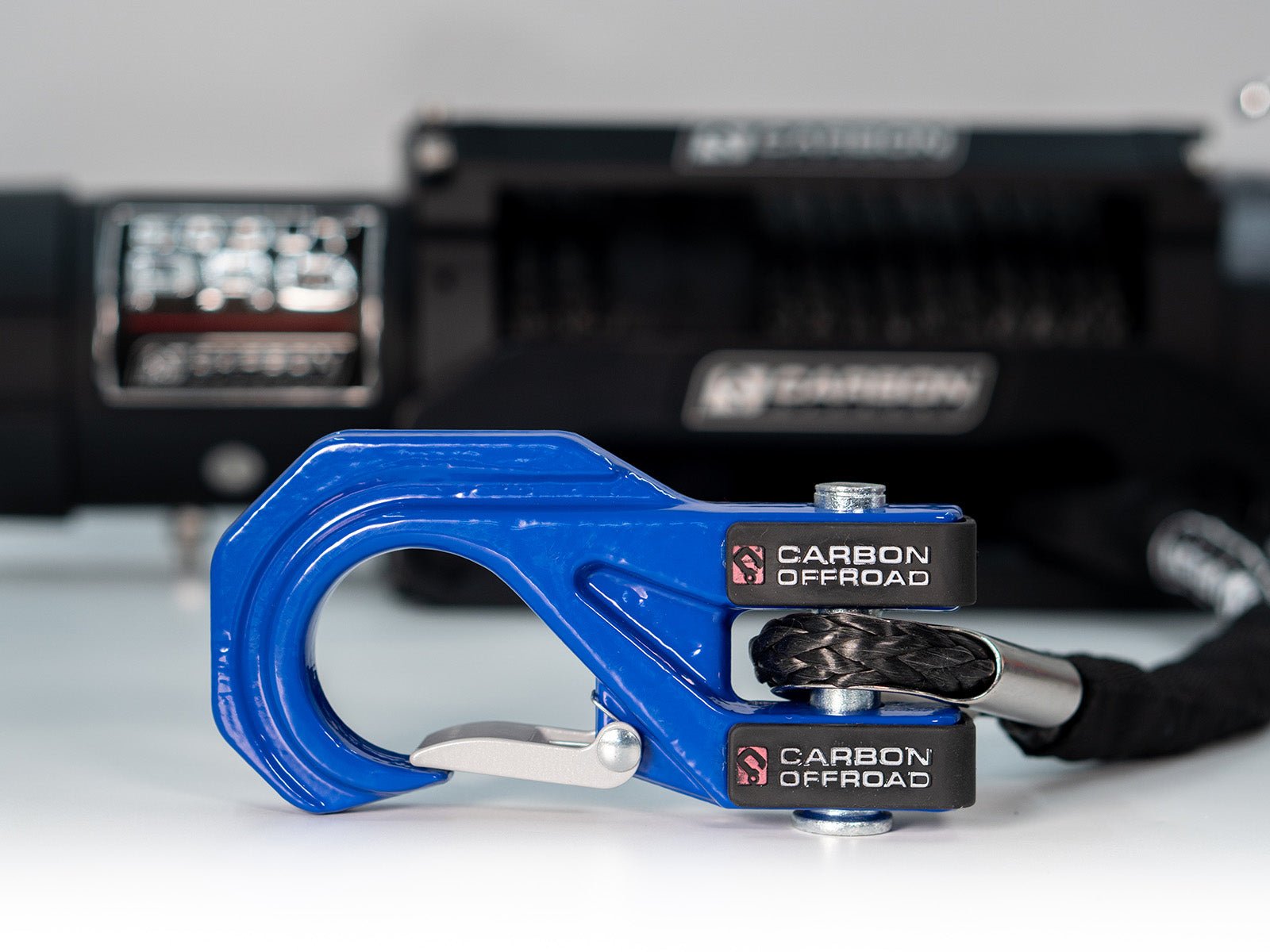

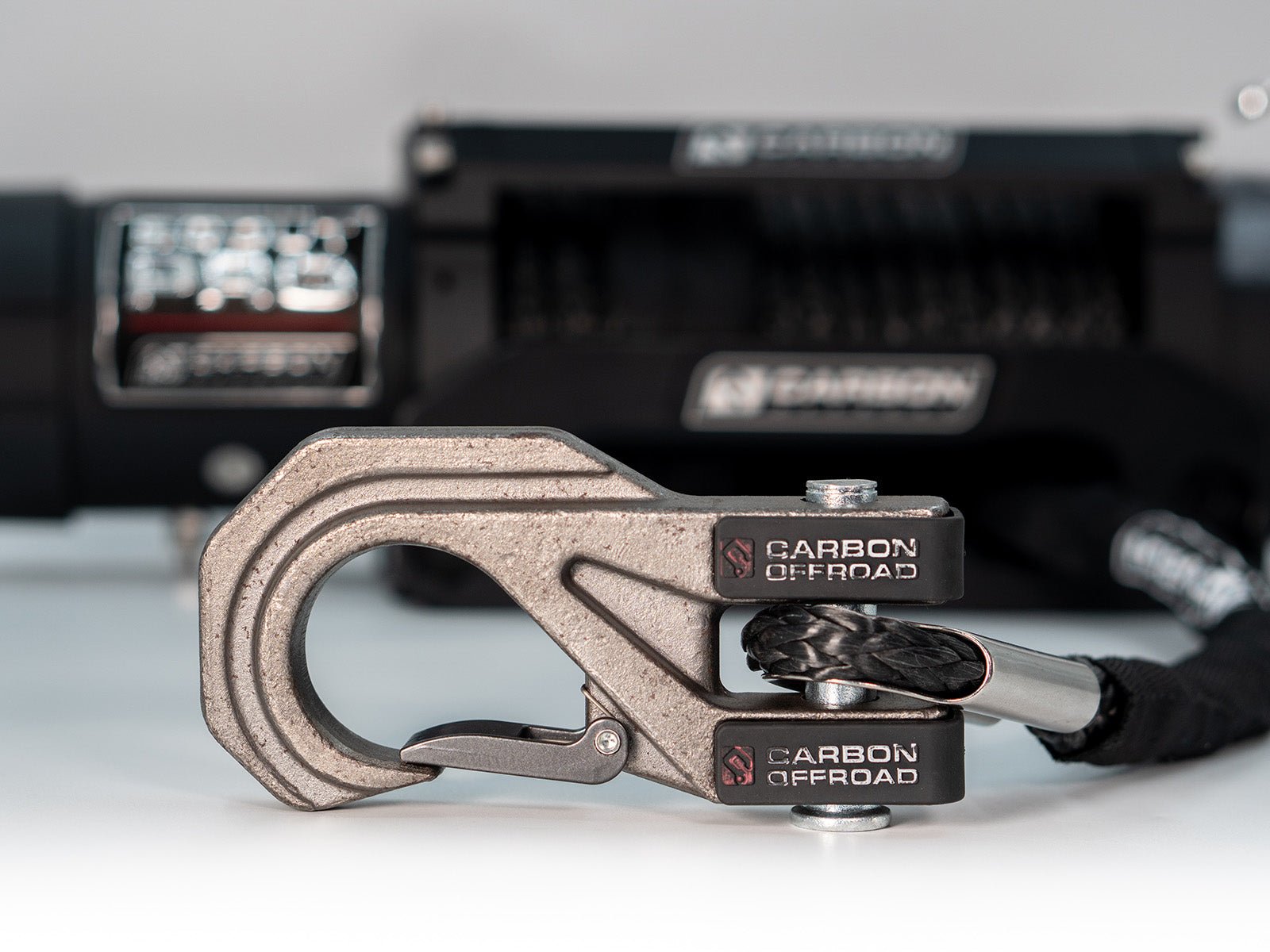

Carbon Offroad MegaPro Winch Hook
