CW-XD6L
$699.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Carbon Offroad Long Drum 6000lb ATV - Small 4X4 Winch
$699.00
Extra Reach For Awkward Jobs
When you are dragging a boat up a low tide ramp or hauling machinery into the back of a van, a standard ATV winch will not cut it. You end up wasting time rigging extension straps just to hook up.
The Long Drum 6K solves this completely.
We stretched the drum and packed it with 26 metres of synthetic rope. It gives you the massive reach you need for awkward jobs in tight spaces.
It still packs 6000lbs of pulling power from a 2.5 HP motor, but the whole kit weighs just 11.2kg. It is the perfect setup for camper trailers and small 4WDs.
IP68 Waterproofing
The motor and geartrain are fully IP68 rated. High grade seals lock out mud, water, and dust. It will survive deep water crossings and harsh job sites without missing a beat.
Extensive Carbon Warranty
Covered by our Limited Lifetime Mechanical Warranty and a 5-year Electrical Warranty. We build these to work hard. You get total peace of mind no matter how tough the job gets.
26m Extended Reach
The custom long drum fits a massive 26 metres of 6.5mm synthetic rope. You can hit distant anchor points or winch up long boat ramps without needing external extension lines.
6000lb Pulling Power
Powered by a 12V 2.5 HP permanent magnet motor and a 147:1 planetary gear ratio. It delivers a solid 2725kg of single line pull. This is plenty of torque for small 4WDs, heavy ATV rigs, and general utility hauling.
Supported By 150+ Dealers
We are stocked by over 150 authorized dealers across Australia. When you run Carbon gear, you have local support, fast access to spare parts, and a massive network backing you up on the tracks.

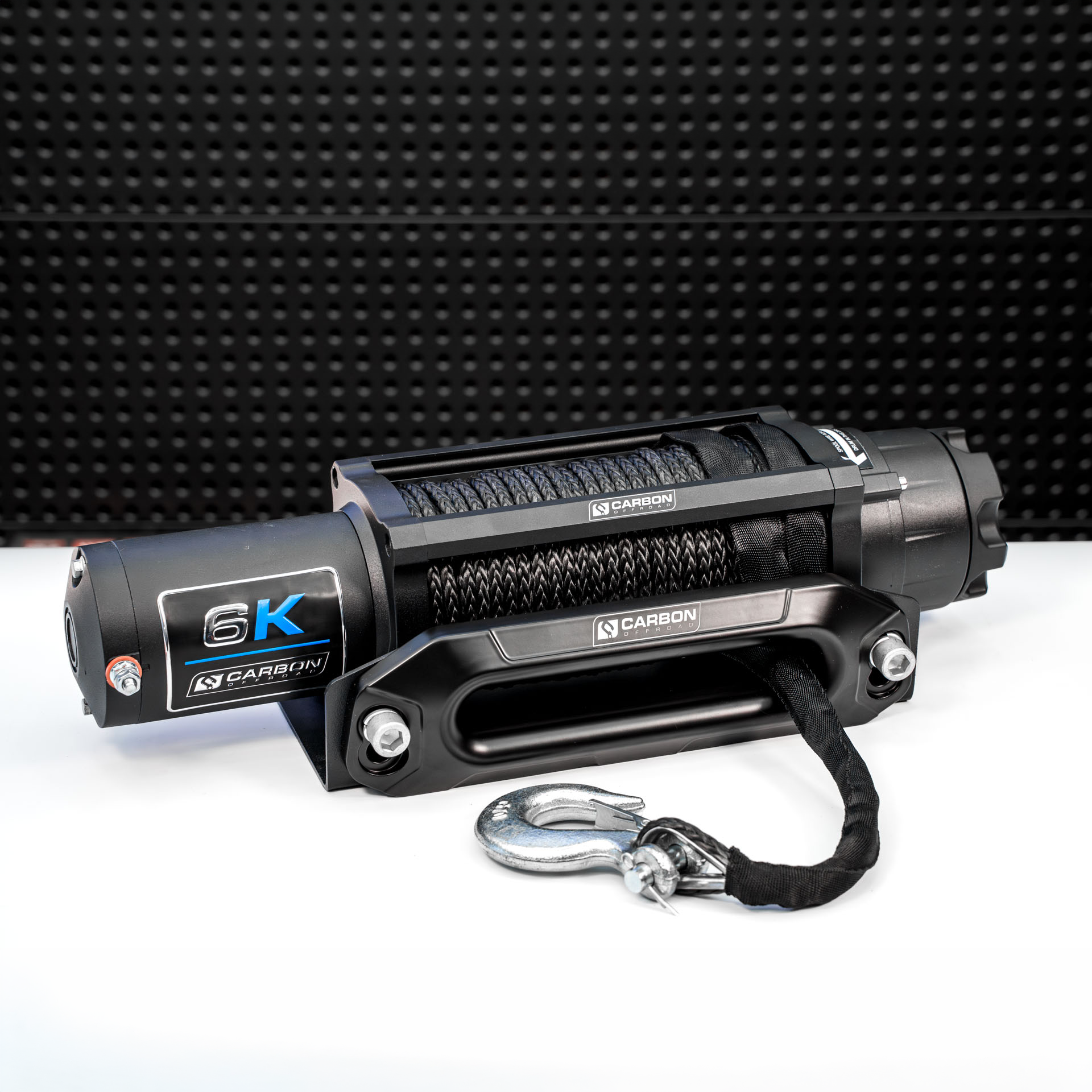

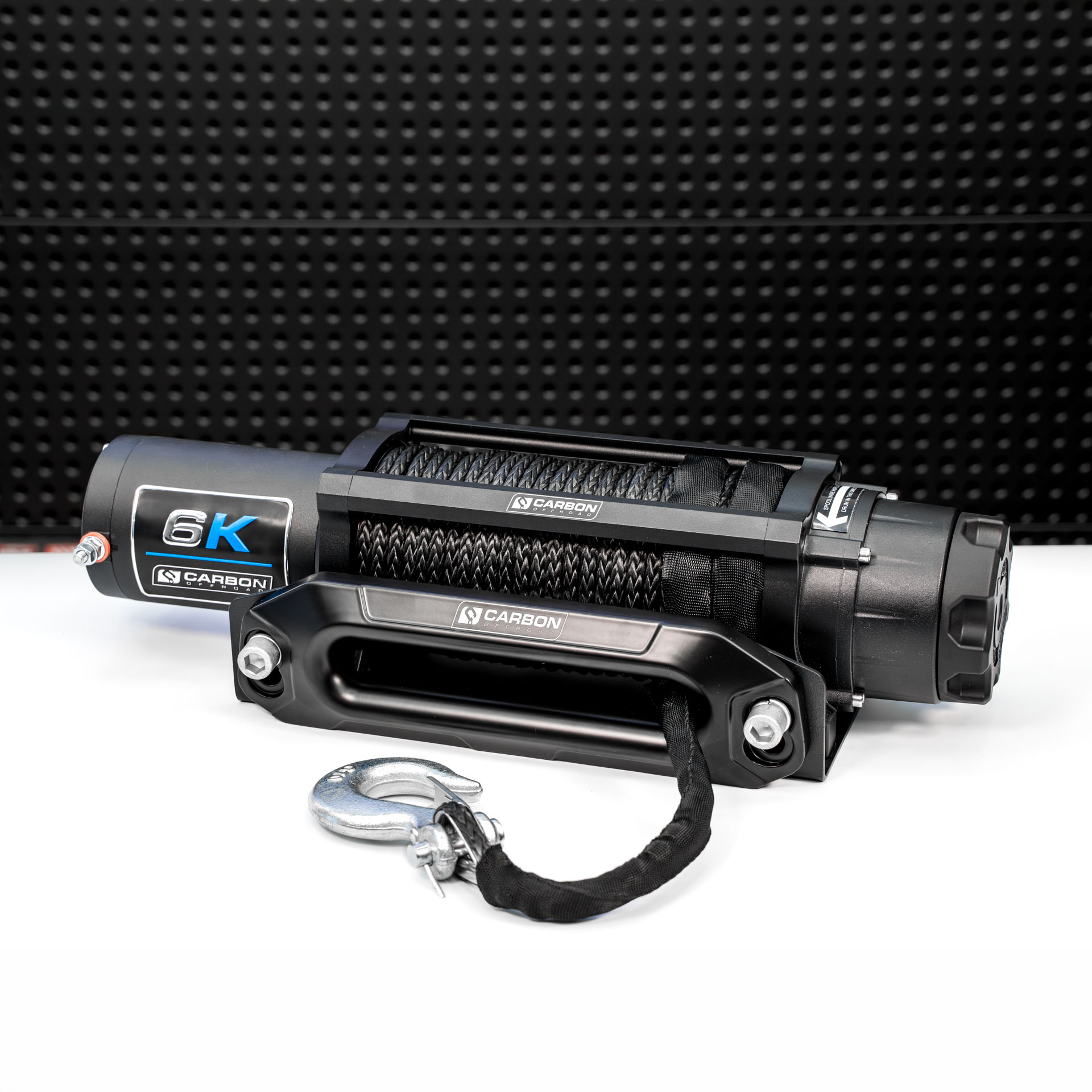

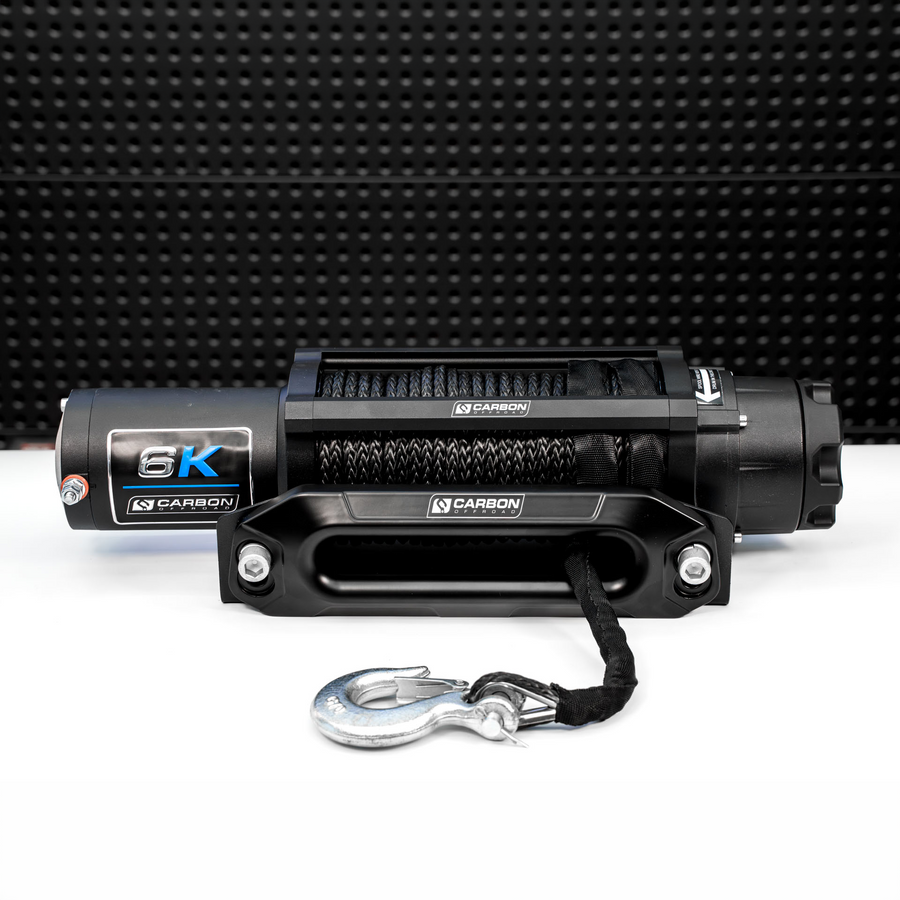

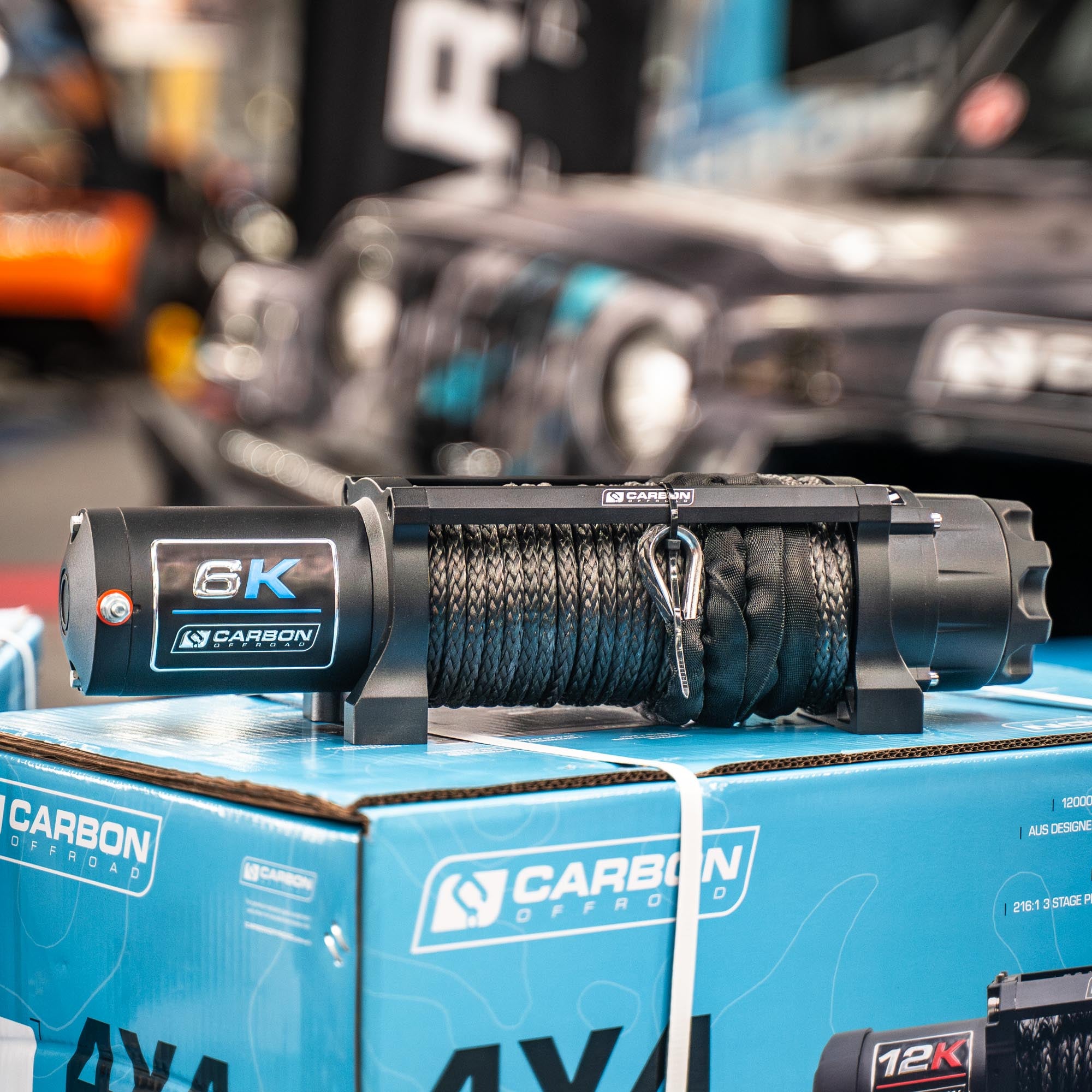

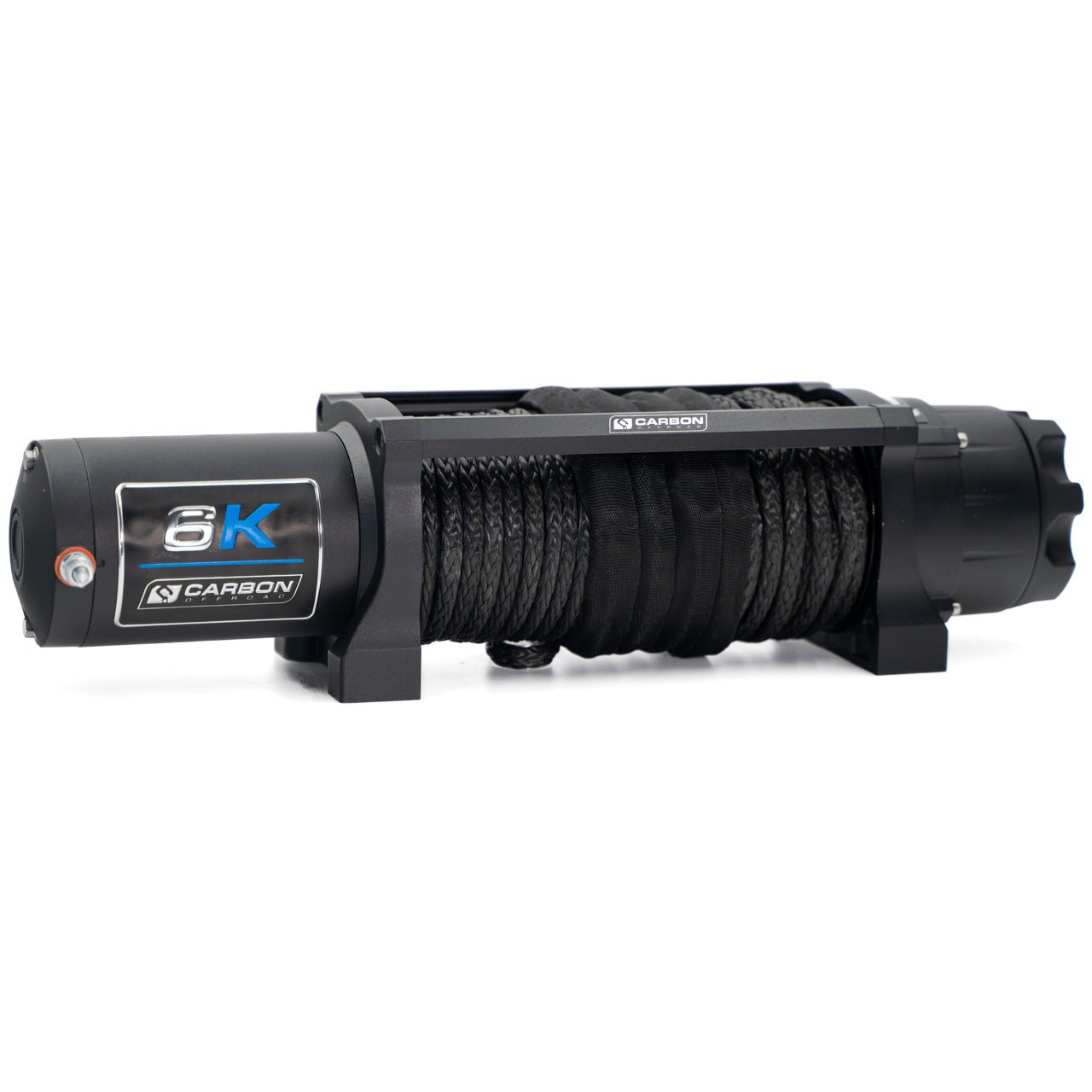

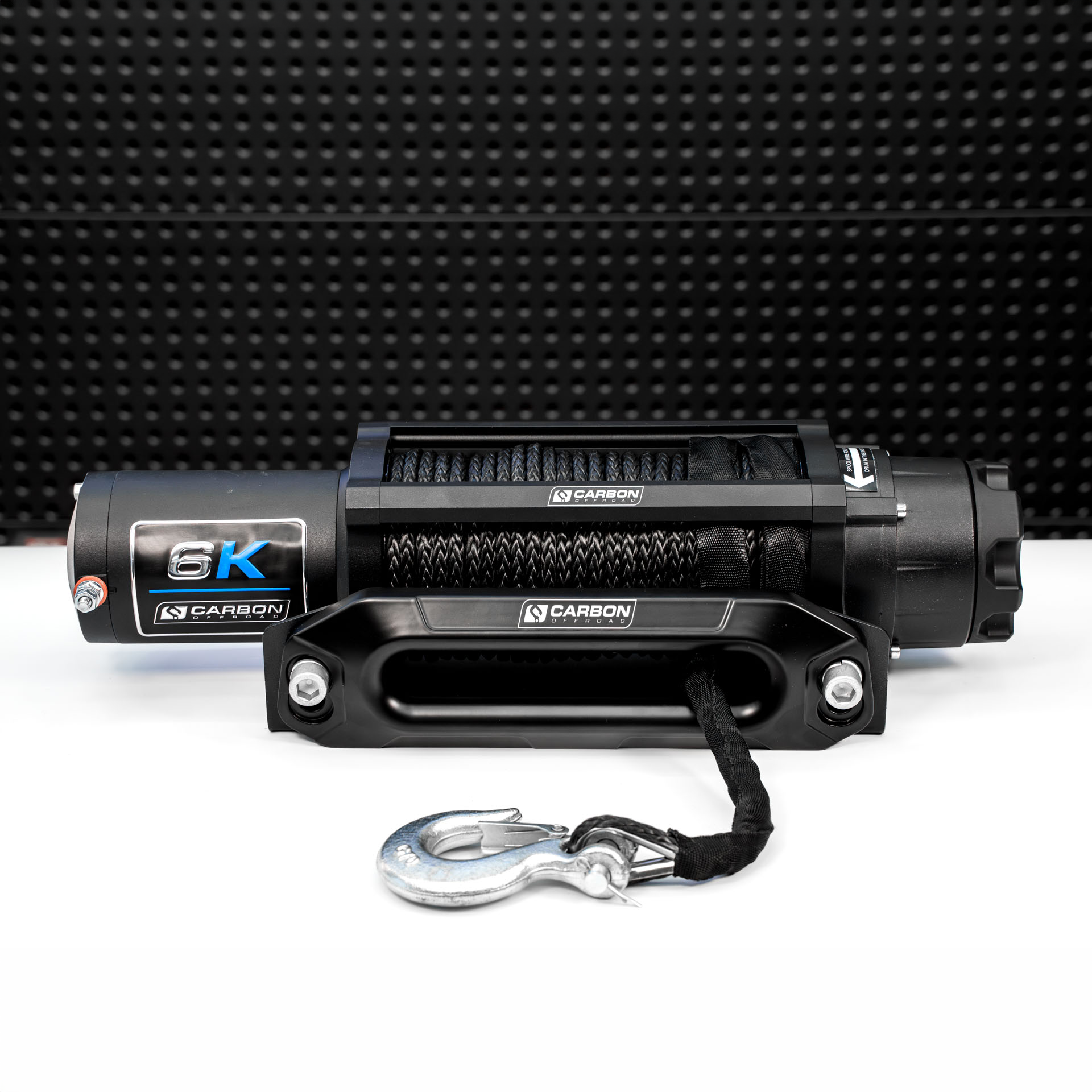

The Carbon Offroad Long Drum 6000lb ATV / Small 4x4 Winch is a nimble workhorse created to reach where short-drum winches can’t.
Overview
With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope?
If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired and wireless remotes, and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites and weekend getaways running smoothly.
Features
- Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for flawless operation in extreme, wet, and dusty conditions.
- Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power.
- Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
- Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback.
- Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios.
Contents
1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)
1 x Synthetic Rope (26m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Control Box complete with cables & mounting bolts
Note: Please note this kit does not include the winch cradle shown in the pictures.
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD6L |
| Rated Line Pull | 6000 lbs (2725 kg) single-line |
| Motor | 12V DC 2.5 HP permanent magnet |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 147:1 |
| Clutch | Roller disc full load automatic |
| Brake | Automatic brake in the motor bracket |
| IP Rating | IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope | 26m x 6.5mm (85.3 ft x 1/4") |

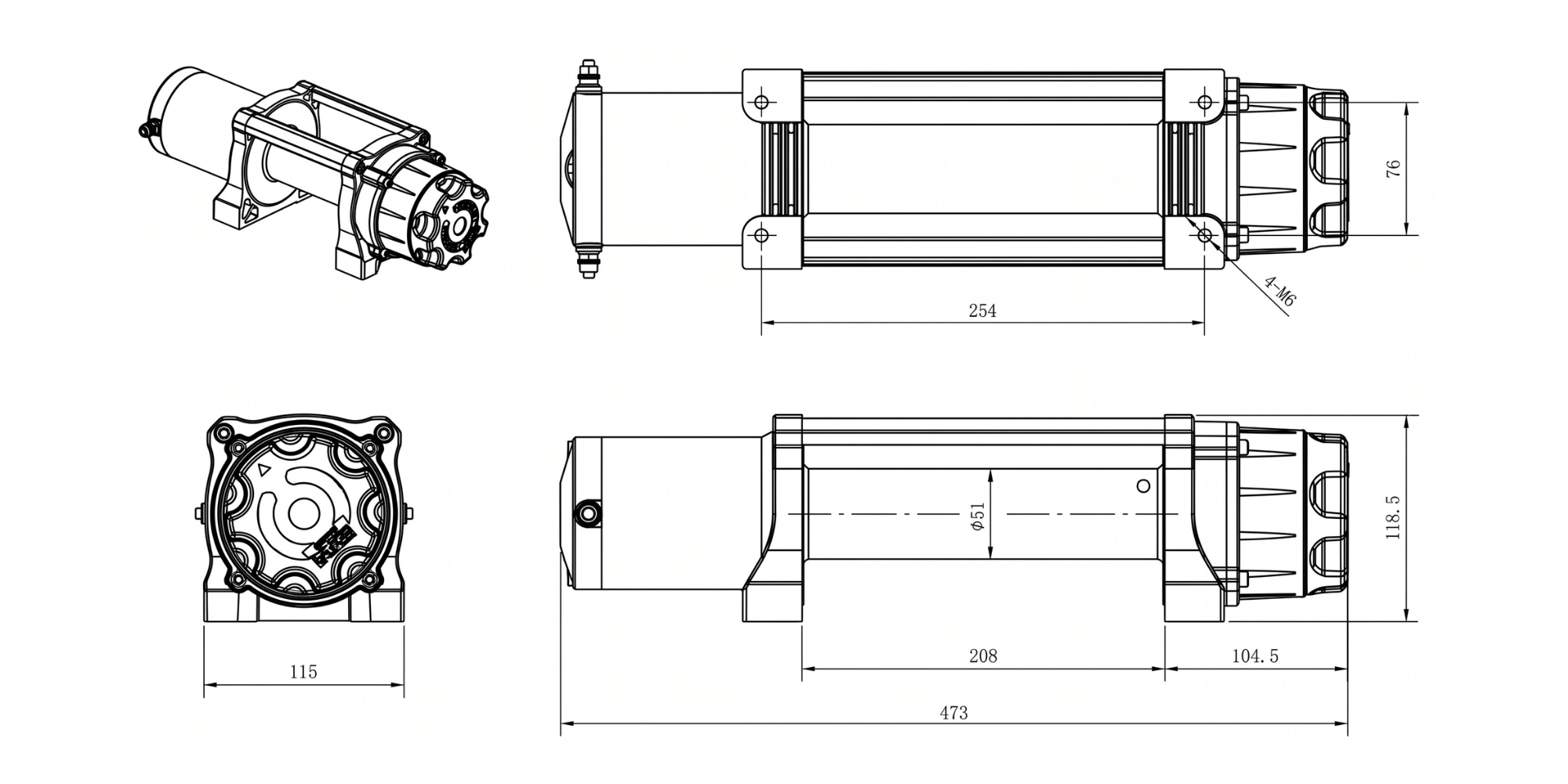

| Drum Dimensions | 51mm x 208mm (2.0" x 8.2") |
| Mounting Bolt Pattern | 254mm x 76mm (10.0" x 3.0") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 473 x 125 x 120mm (18.6" x 4.9" x 4.7") |
| Packing Dimensions (L x W x H) | 530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) | 8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight | 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty | Lifetime Mechanical / 5 Year Electrical |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8 (4.2) | 15 | 1 / 6000 (2725) |
| 2000 (907) | 9.5 (2.9) | 125 | 2 / 5350 (2430) |
| 4000 (1814) | 7.2 (2.2) | 190 | 3 / 4780 (2170) |
| 6000 (2722) | 4.6 (1.4) | 240 | 4 / 4270 (1940) |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8 (4.2) | 15 | 1 / 6000 (2725) |
| 2000 (907) | 9.5 (2.9) | 125 | 2 / 5350 (2430) |
| 4000 (1814) | 7.2 (2.2) | 190 | 3 / 4780 (2170) |
| 6000 (2722) | 4.6 (1.4) | 240 | 4 / 4270 (1940) |
M
I ordered on a Monday morning and by that afternoon I received a shipment notification with a tracking number, it was on my doorstep first thing Wednesday morning!
Excited to have this installed and test it out!
M
I ordered on a Monday morning and by that afternoon I received a shipment notification with a tracking number, it was on my doorstep first thing Wednesday morning!
Excited to have this installed and test it out!
S
Lightweight, 26m of rope, 6000lb torque; perfect winch for the Jimny! Freespool clutch is in a good location for the majority of bars too (e.g; Offroad Animal)
It does have the mounting width of a standard winch but the mounting depth of an ATV winch, but a couple of holes and you're done!
I would also recommend an isolator switch for safety (other carbon winches come with one, this one doesn't), and the Mega Hook as it can attach to a tree trunk protector easily, but the standard fairlead that comes with these winches doesn't allow the hook to sit perfectly flush; $40 fairlead from George4x4 and its fine. 👍
S
Lightweight, 26m of rope, 6000lb torque; perfect winch for the Jimny! Freespool clutch is in a good location for the majority of bars too (e.g; Offroad Animal)
It does have the mounting width of a standard winch but the mounting depth of an ATV winch, but a couple of holes and you're done!
I would also recommend an isolator switch for safety (other carbon winches come with one, this one doesn't), and the Mega Hook as it can attach to a tree trunk protector easily, but the standard fairlead that comes with these winches doesn't allow the hook to sit perfectly flush; $40 fairlead from George4x4 and its fine. 👍
k

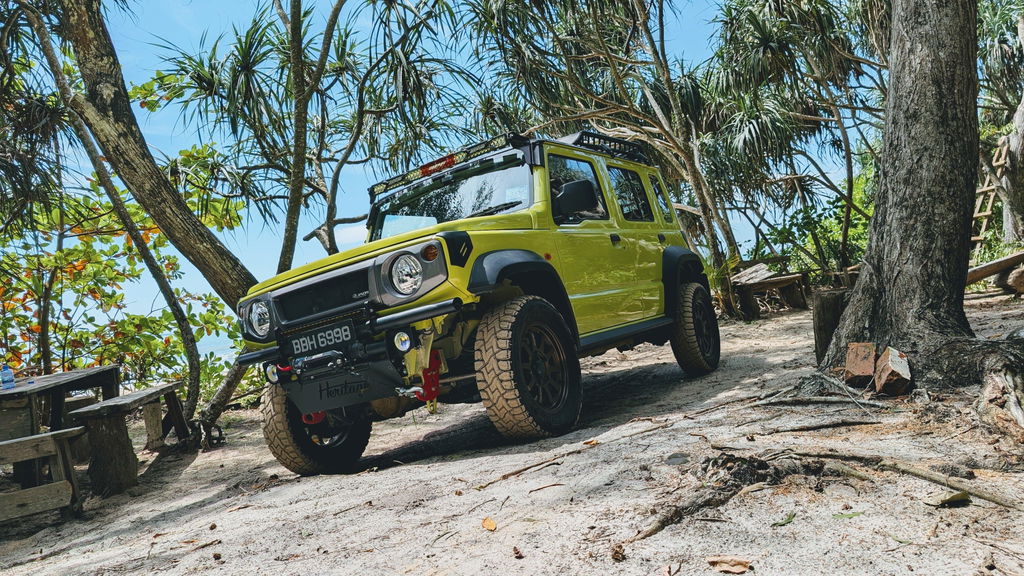

straight fwd installation,works great on my jimny.all the way fly to Brunei Darussalam.Thanks carbonoffroad
k
straight fwd installation,works great on my jimny.all the way fly to Brunei Darussalam.Thanks carbonoffroad
R
Awesome winch for my 1995 suzuki sierra
Thank you so much for your review.
J
Absolute beast of a winch ! Minor modification needed to my arb bull bar to fit and works an absolute treat !
J
Absolute beast of a winch ! Minor modification needed to my arb bull bar to fit and works an absolute treat !
Z
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Z
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
S
Ordered 6000lb long drum winch for my Jimny XL. Excellent service and quality winch and quick delivery. Very happy with my purchase.
S
Ordered 6000lb long drum winch for my Jimny XL. Excellent service and quality winch and quick delivery. Very happy with my purchase.
K
Easy to install, good quality.
K
Easy to install, good quality.
