Clearance Stock

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions. With larger modulus gearsets, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.  The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.  The 9000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.  Carbon Winch 2023 V3 winch chassis 7.0HP Motor 104:1 heavy duty performance gearbox 10mm Synthetic Rope with HD braced rope thimble Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead Carbon Offroad MEGAPRO 16 tonne soft shackle compatible winch rope thimble  High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.  CW-XD9       12V DC performance specs (first layer of drum)       Line Pull Line Speed Motor Pull by layer Lbs.(Kgs.) FT./min(M/min.) Current layer/Lbs(Kgs.) 0 62.3(19)  80 amps  1/9,000 (4090) 2000 (910)  17.4(5.3)  150 amps  2/7,625 (3,460) 4000 (1810)  15.1(4.6)  220 amps  3/6,460 (2930) 6000 (2720)  13.4(4.1)  280 amps  4/5,480 (2,490) 8000 (3630) 11.5(3.5)  350 amps   9000 (4090) 10.5(3.2)  380 amps

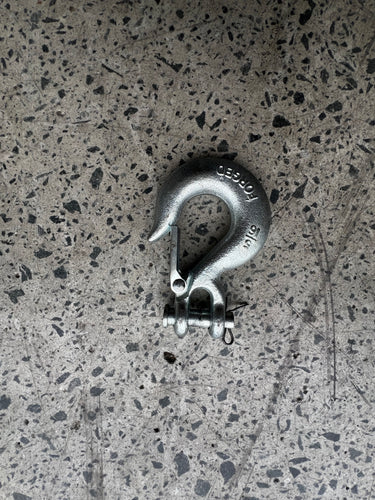

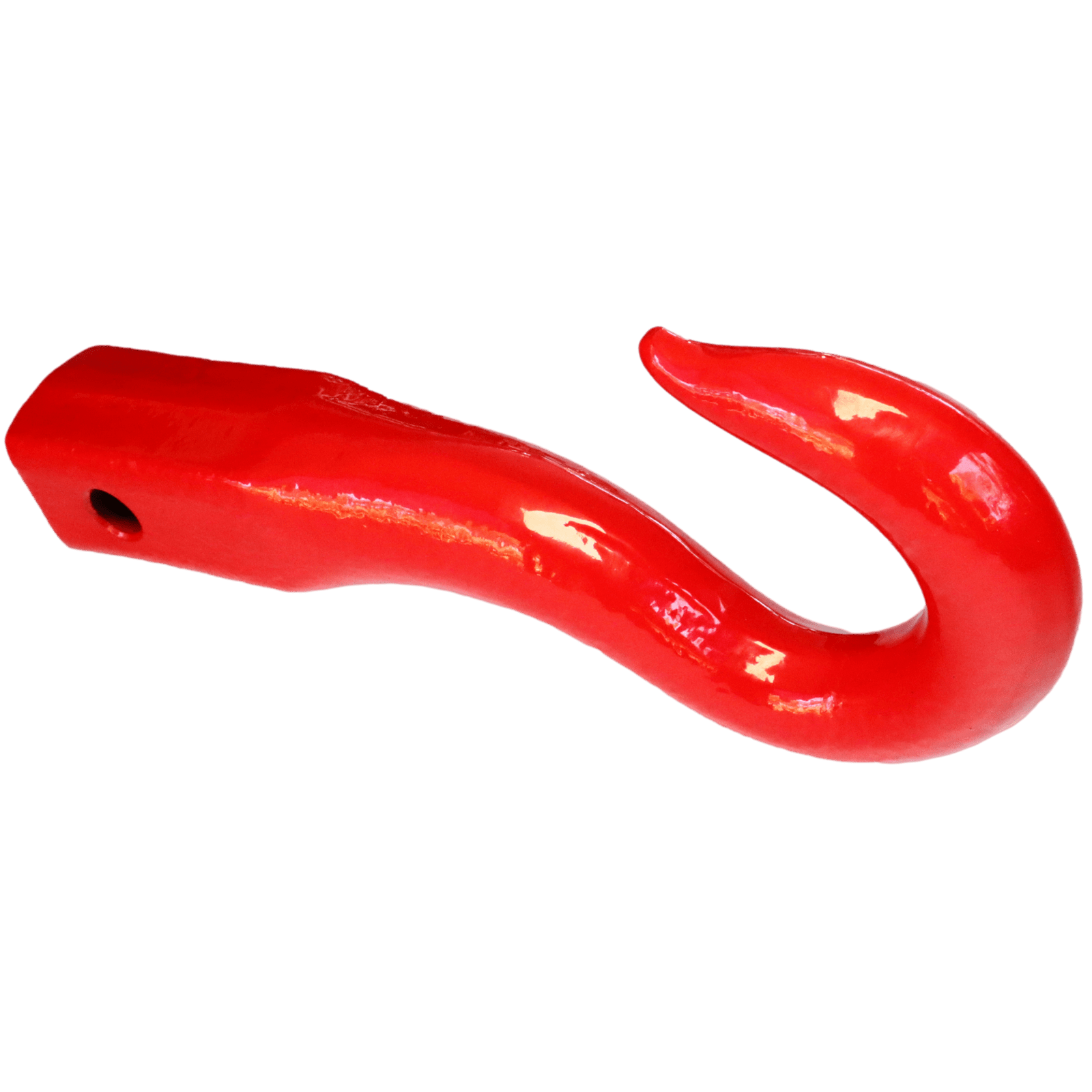

Hook comes as is no box good condition, parts included as seen in the photos.  minor surface scratches

4T ATV snatch block, Good condition minor surface scratches, still works fine no issues comes as is no box. can be sold separately or as a pair

The Carbon Offroad TANK 20000lb electric winch is a force to be reckoned with.  Scratch and Dent Special damage is shown in photos operational perfect. A new generation of winches joins the Carbon Offroad line up. TANK is synonymous for indestructible, bulletproof and powerful, which is just what this winch is. TANK is also associated with heavy, which is something this winch is not!  We understand that building the ultimate offroad rig often requires a lot of time, effort and additional parts once it comes off the factory floor, and this all adds weight. The capability to self recover a vehicle is generally high on the list of priorities for most overlanding and touring journey people, as most of the time, solo travel is the reality. In the past, this generally required a winch with steel cable and a heavy steel bullbar to carry it, but in todays market, there are smarter options and this includes the winches. Yes you can still buy a cheap heavy winch made from castings of solid steel if you like that sort of thing, but technology has improved, materials have improved and this has led to a winch being designed and built like the TANK. Billet alloys machined on CNC mills, alloy castings make up the gearbox housings and main frames of the winch, critical components such as the winch drum are still made from steel, but this winch also features an aesthetic quality that is almost unmatched in the market. If you truly appreciate good design, the TANK will impress with it's sexy lines, solid cast alloy control box and solid alloy fairlead.  One of the most notable requirements of modern winches is that a winch must be waterproof. The TANK winch features a system unseen before in the winch market. The winch motor and drum frame mount are assembled as one unit at the factory, then it undergoes real life pressure leak testing to 20PSI on a custom made jig specially designed for this test, simulating the same pressure as a depth of 14 metres underwater!  It must pass this test before moving further down the assembly line. We guarantee this winch will not see water out of the box.  Aside from the motor side, the gearbox housing also features a two stage mechanical and rubber o-ring sealing system which will ensure that part of the winch is also 100% sealed from water ingress to IP69K levels.  Other functions of the winch remain similar to our other winches, utilising a rotating ring gear free spool clutch assembly, 4 stage planetary gear train made from solid cut and hardened gear steel, with the gear train being oversize and similar to our Scout Pro Extreme Duty winches. It also features a gear train connected braking system which mitigates any heat build up on the drum which could cause damage to the winch rope.  The control box can be mounted over the drum directly into the threaded holes in the tie bars or over the motor with supplied mounting brackets, it can also be mounted remotely flush onto a bar or there is an optional remote mounting bracket available separately.  The Tank 20000lb come in both 12 volt and 24 volt configurations allowing fitment on large 4x4s through to trucks running 24 volt systems. With a single line pull capacity over 9 tonne, you can be sure this winch will perform when no other option exists to extract your vehicle from a sticky situation.    What is in the box:  1 x Tank winch with synthetic rope 1 x control box kit complete with cables 1 x battery earth cable 1 x 2 in 1 wireless remote control with plug in cable backup 1 x Alloy fairlead - standard offset 1 x Forged Alloy hook with mounting pin and split pin 1 x Mounting Bolt kit including separate fairlead mounting bolts 1 x control box "over motor" mounting bracket pair 1 x bolt kit for control box mounting 1 x rotary battery isolator switch 1 x battery isolator connecting cable 30cm 1 x battery isolator mounting bracket 1 x hook safety strap 1 x instruction manual    Specifications:  Rated Pulling Power: 20,000lb (9072kg) Power: 12V DC or 24V DC (separate website listings)  Motor: 7.8HP Series Wound intermittent duty cycle Cabling: 25mm2 conduited cable with terminated lugs Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included) IP Rating: IP68 - Motor unit pressure tested to 20psi Hook: High strength forged alloy wide gate hook Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.  Isolator: Heavy duty marine rotary style isolator with mounting bracket Winch Housing: Cast and precision machined alloy Gear Train: 440:1 Ratio 4 stage planetary gearset Clutch: Rotating ring gear clutch - easy engagement and disengagement Synthetic rope: 21m of 14mm diameter UHMWPE fibre Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)  Drum Diameter: 88mm Battery: 650CCA minimum vehicle battery size for winching.  Weight:  Shipping Carton Weight: 37KG As fitted to vehicle:  33.4kg   Rated Line Pull: 1st layer of drum: 20000lb (9072kg) / Between 16-21m rope out 2nd layer of drum: 16216lb (7371kg) / Between 11-16m rope out 3rd layer of drum: 13636lb (6198kg) / Between 1-11m rope out   Line pull 0kg Speed: 16.4ft/min - 5m/min Amp Draw: 85 amp Line pull 6000lb / 2721kg Speed: 7.4ft/min - 2.25m/min Amp Draw: 185 amp Line pull 10000lb / 4563kg Speed: 5.1ft/min - 1.55m/min Amp Draw: 275 amp Line pull 15000lb / 6803kg Speed: 3.3ft/min - 1.0m/min Amp Draw: 425 amp Line pull 20000lb / 9072kg Speed: 2.62ft/min - 0.8m/min Amp Draw: 430 amp   Warranty is Limited Lifetime Geartrain / 5 Year Electrical. Designed for Australian and international conditions. 5 Year Water Ingress Protection Warranty

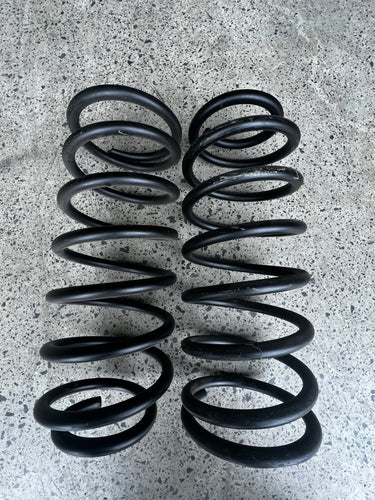

Good condition 200 series land cruiser rear springs, very minimal surface damage, good condition

Minor surface damage and scuffs, still in good condition, comes as seen in the photos

Hook comes as is no box good condition, parts included as seen in the photos.  minor surface scratches

Hook comes as is no box good condition, parts included as seen in the photos.  minor surface scratches
