Description
Compact Power for Competition

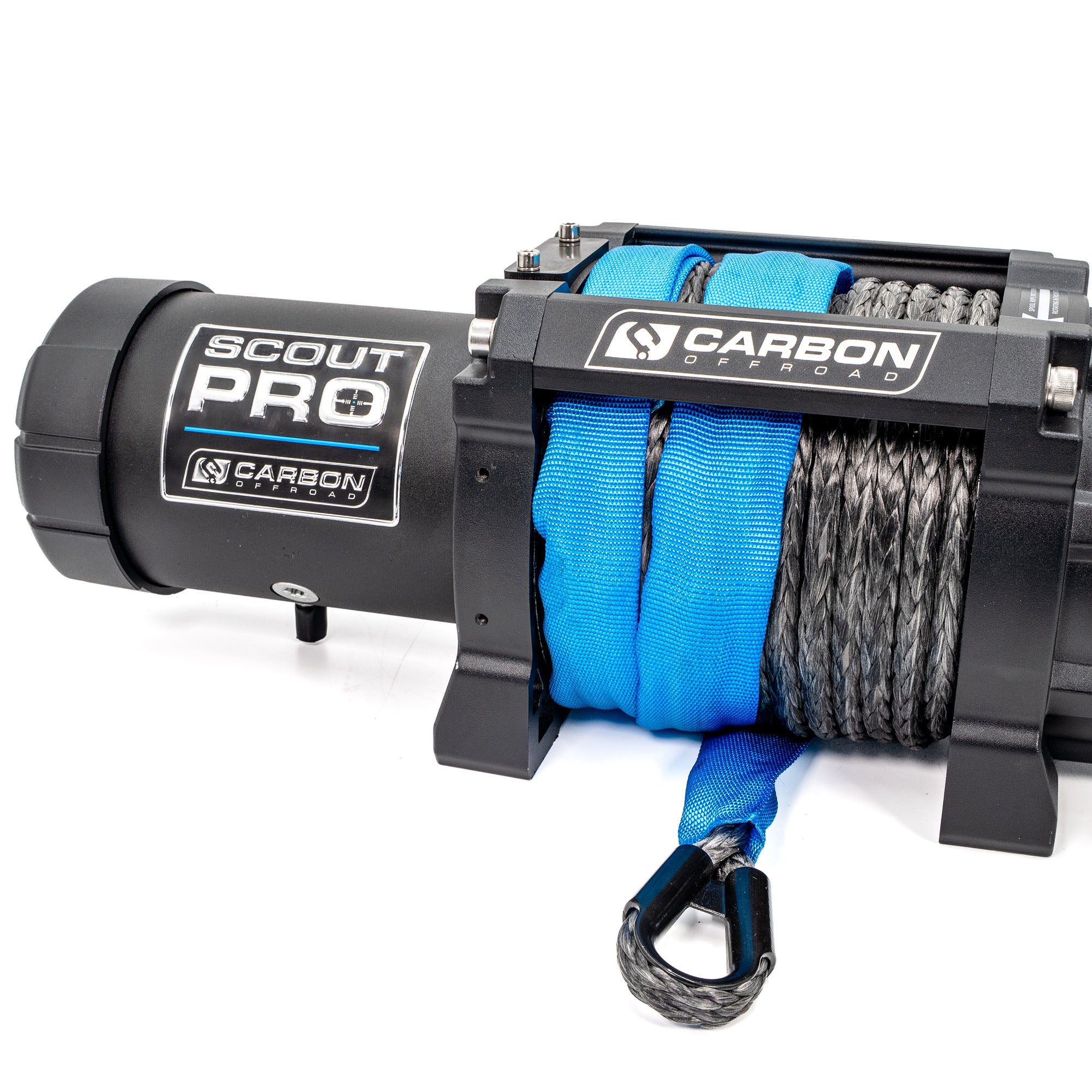

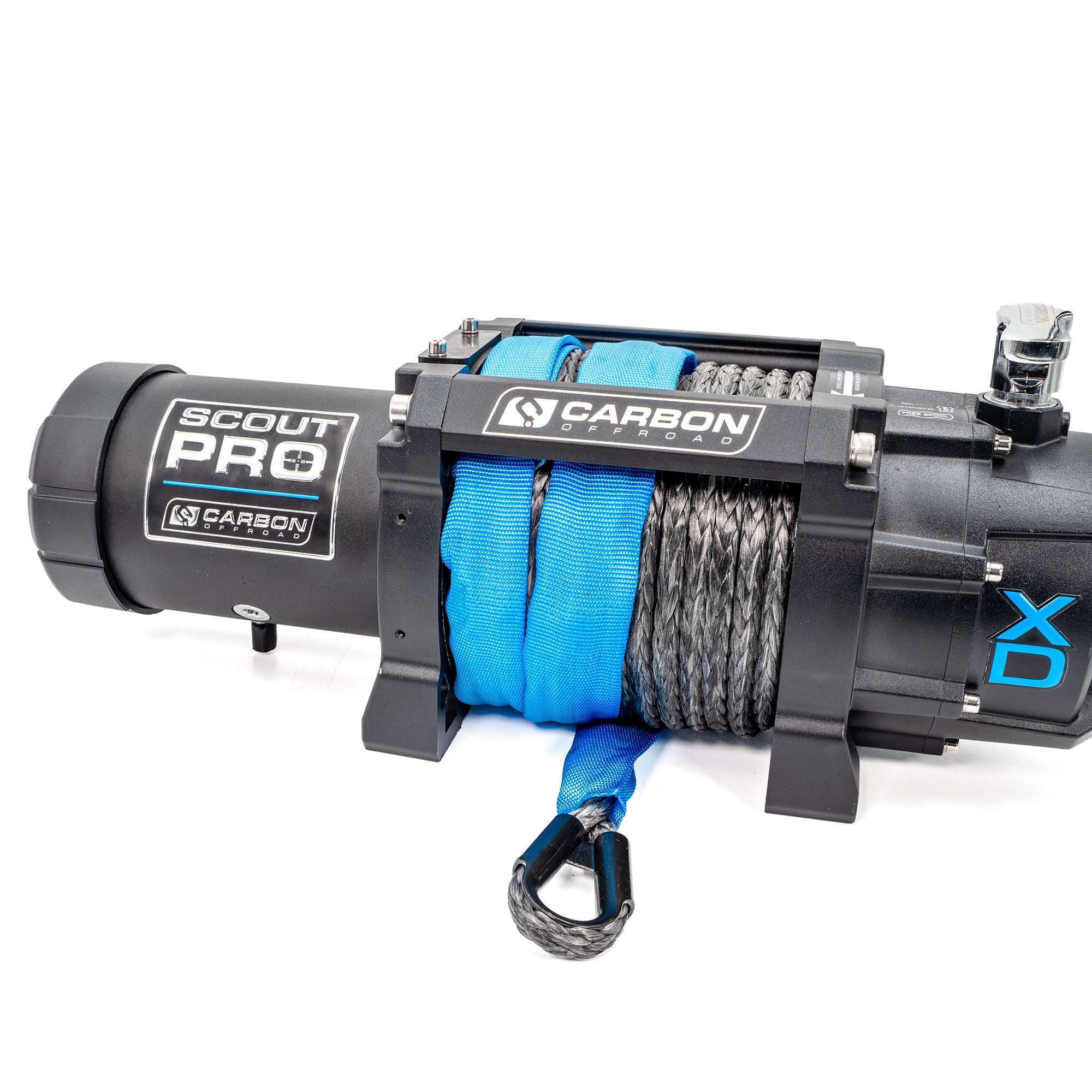

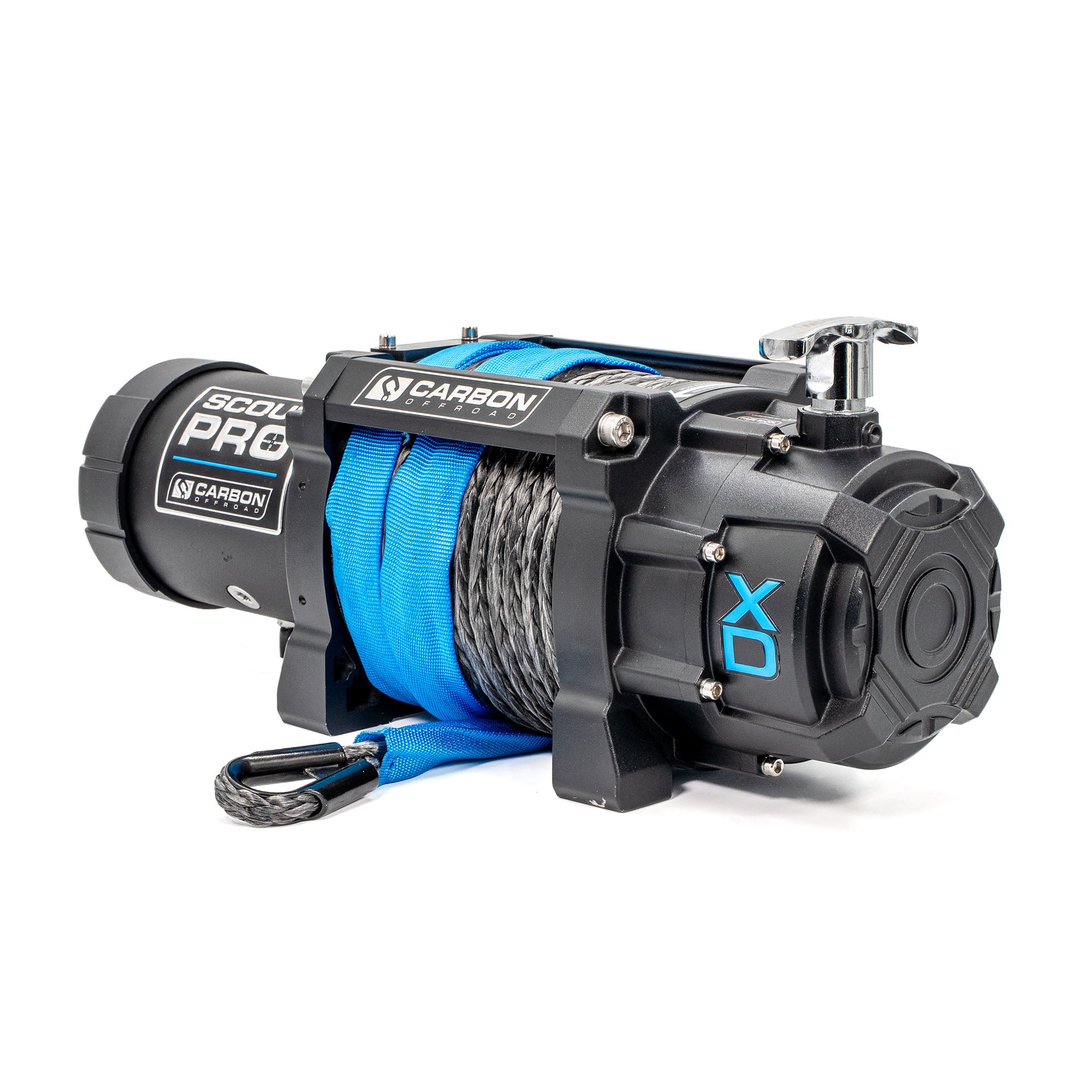

The Carbon Offroad Scout Pro RS9-S is the short-drum variant of our high-speed series, built for race buggies, UTVs, and custom builds where mounting space is limited but speed is non-negotiable.
Performance Specs
The RS9-S doesn't sacrifice power for its smaller footprint. It runs the same 8.0HP motor as our full-size unit, paired with a performance-tuned 80:1 gear ratio. This setup provides the highest line speeds available in the UTV/Buggy class, ensuring you spend less time winching and more time moving.
It's built to be a fast, reliable recovery tool that keeps the front end light and fits where standard winches won't.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
- Chassis: Ultra-lightweight short-drum design.
- Rope: 24m (80ft) of 8mm Spectra™ Fiber synthetic rope.
- Purpose: High-speed recovery for weight-sensitive, space-restricted race applications.
Builder & Racer Note
The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16") length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 4080kg (9000lb) loads, as this unit packs significantly more punch than standard UTV-class winches.
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 4080kg (9000lb) |
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 24m (5/16" x 80ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |

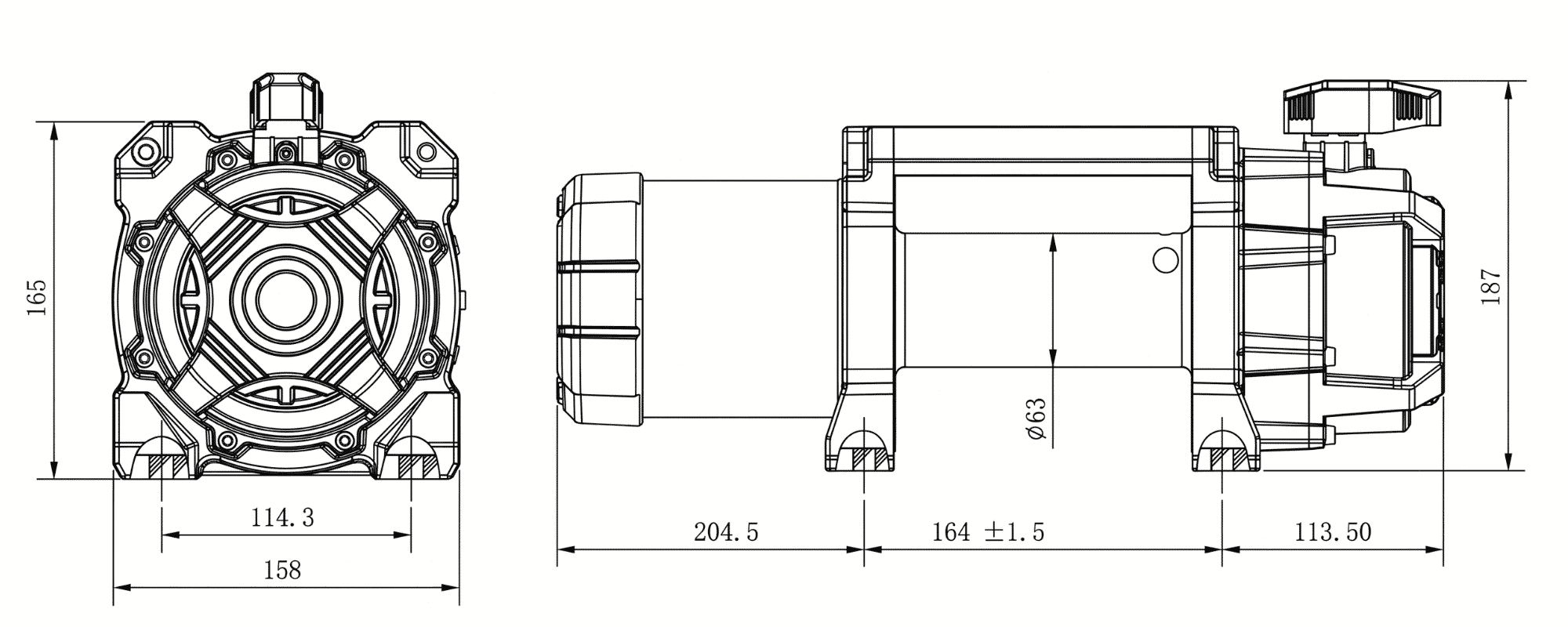

| Winch Dimensions (L x W x H) | 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7") |
| Drum Dimensions (Diameter x Length) | 63mm x 122mm (2.5" x 4.8") |
| Mounting Bolt Pattern | 164mm x 114.3mm (6.46" x 4.5") |

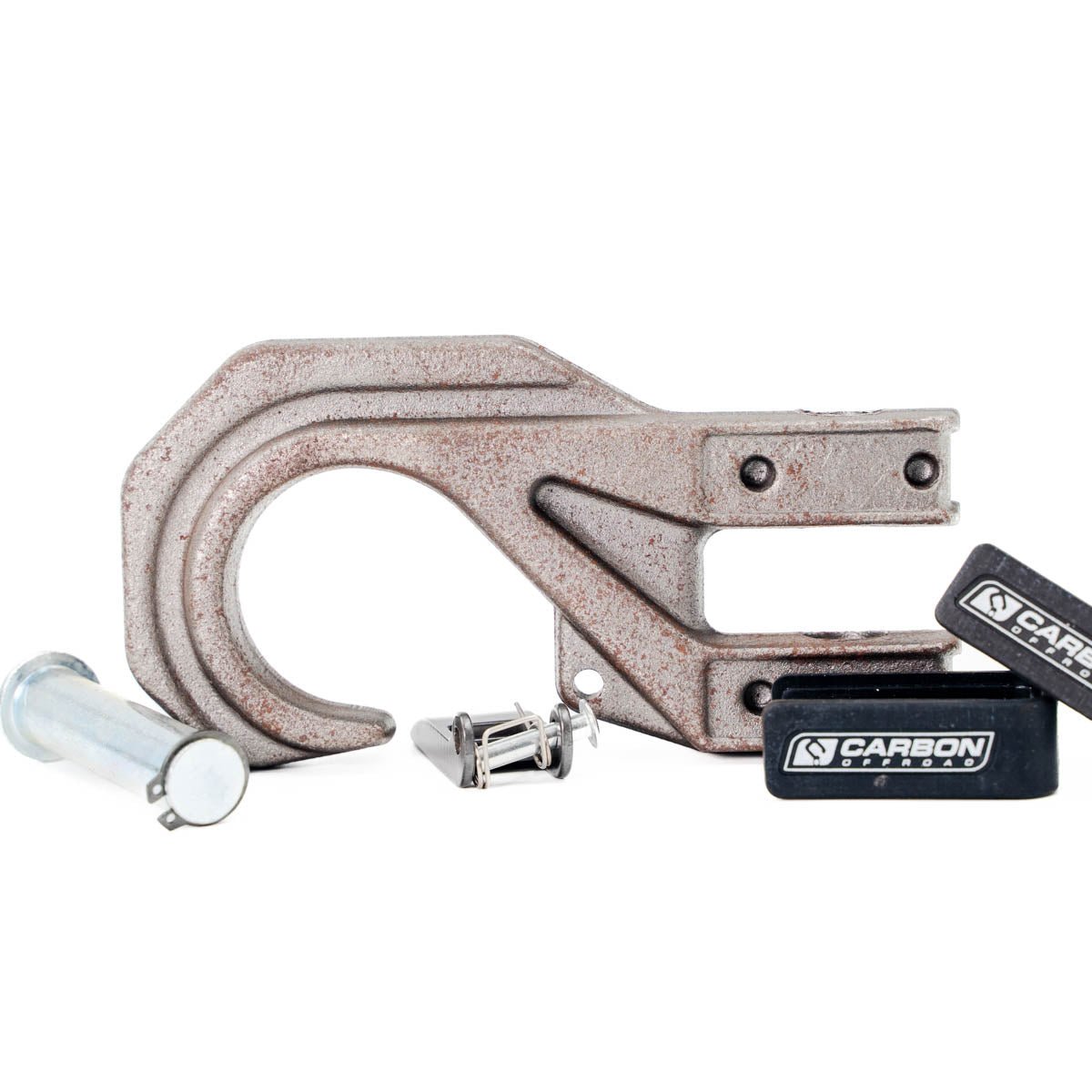

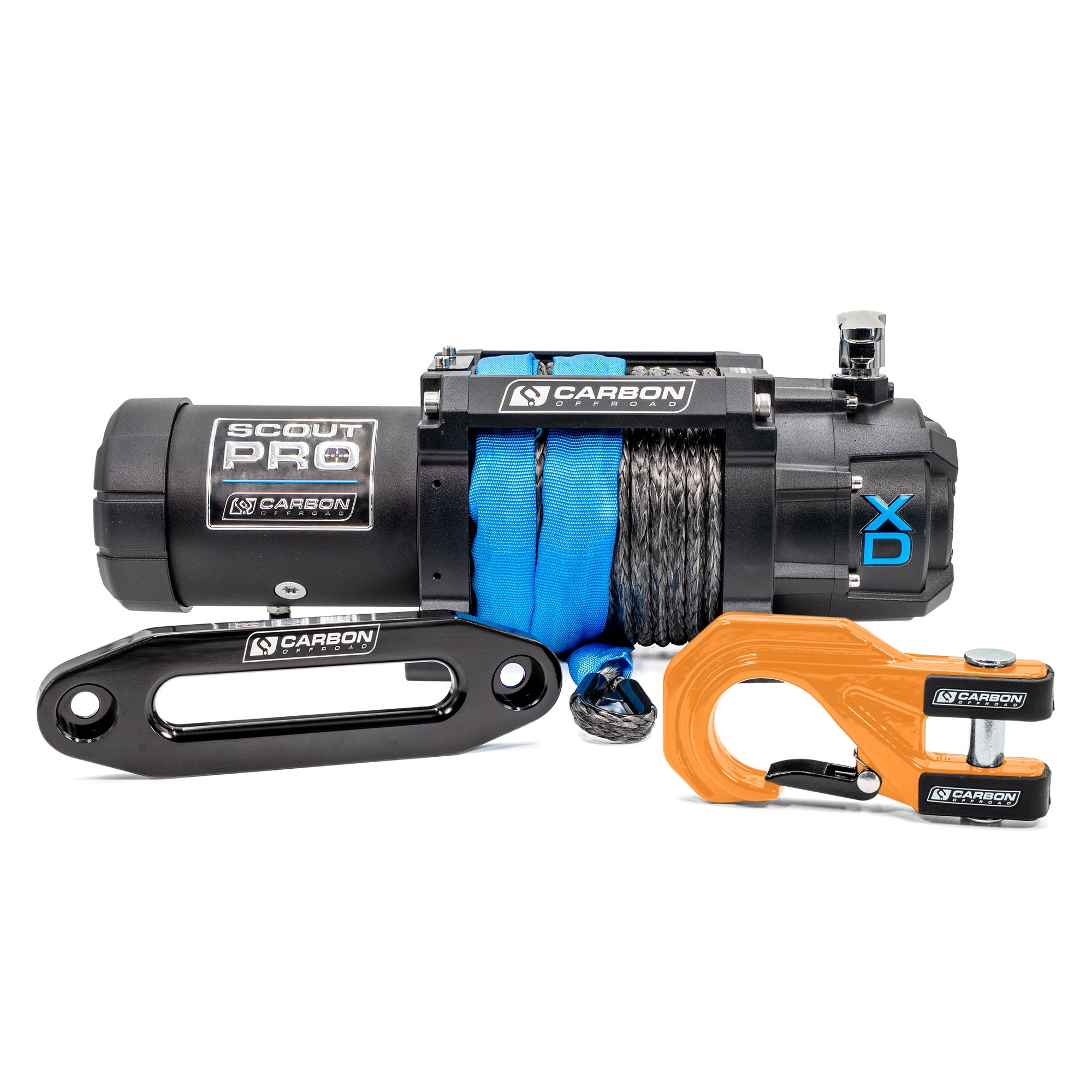

| Included Hardware | MegaPro Hook, Fairlead, Wiring Accessory Kit |
| Winch Weight | 22kg (48.4lb) |
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current |
|---|---|---|
| 0kg (0lbs) | 24.2m/min (79.4fpm) | 55A |
| 1816kg (4000lbs) | 5.6m/min (18.4fpm) | 180A |
| 3180kg (7000lbs) | 4.2m/min (13.8fpm) | 310A |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 440A |
| Layer | Rated Line Pull Metric (Imperial) |
|---|---|
| 1 | 4090kg (9000lbs) |
| 2 | 3524kg (7760lbs) |
| 3 | 3040kg (6690lbs) |
| 4 | 2615kg (5760lbs) |

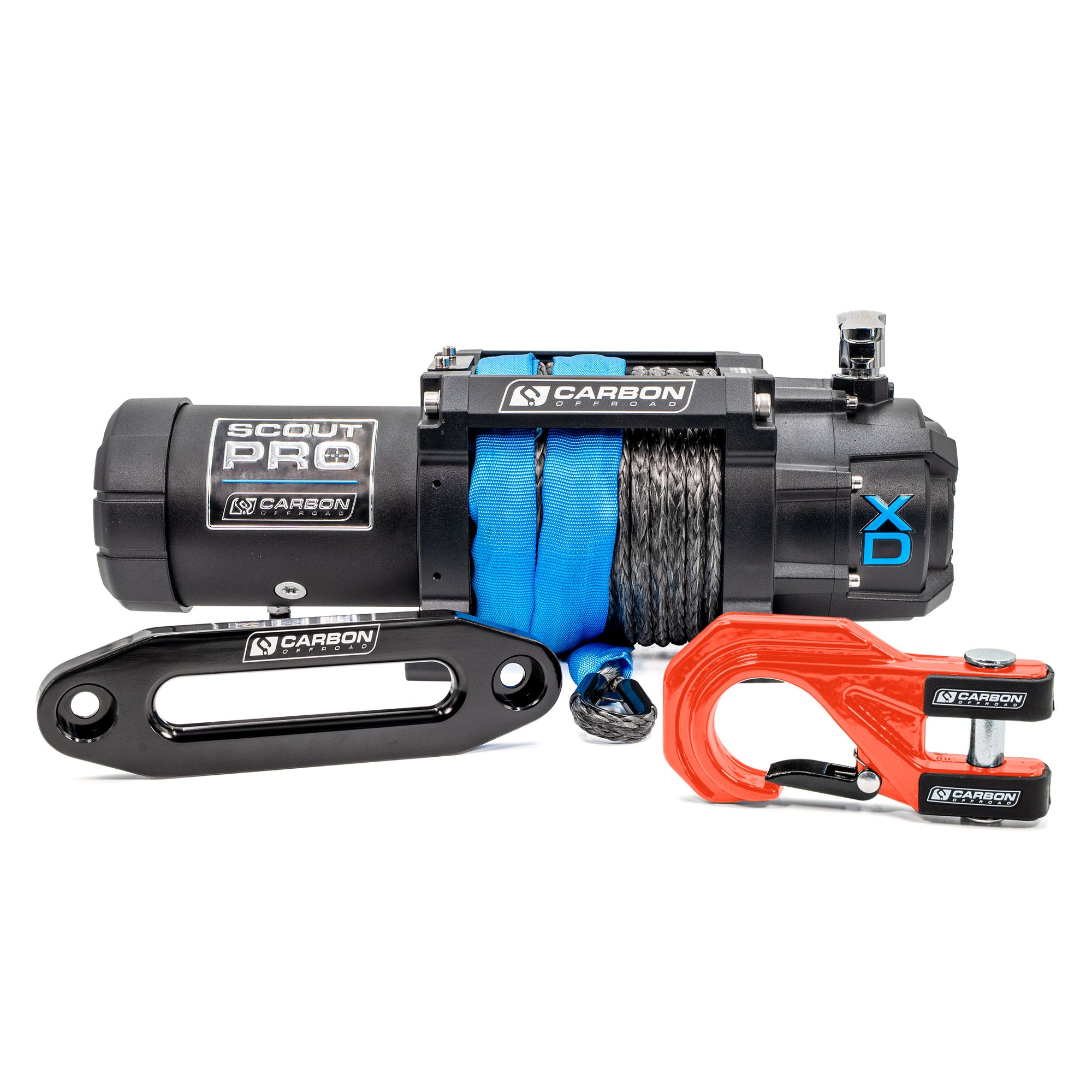

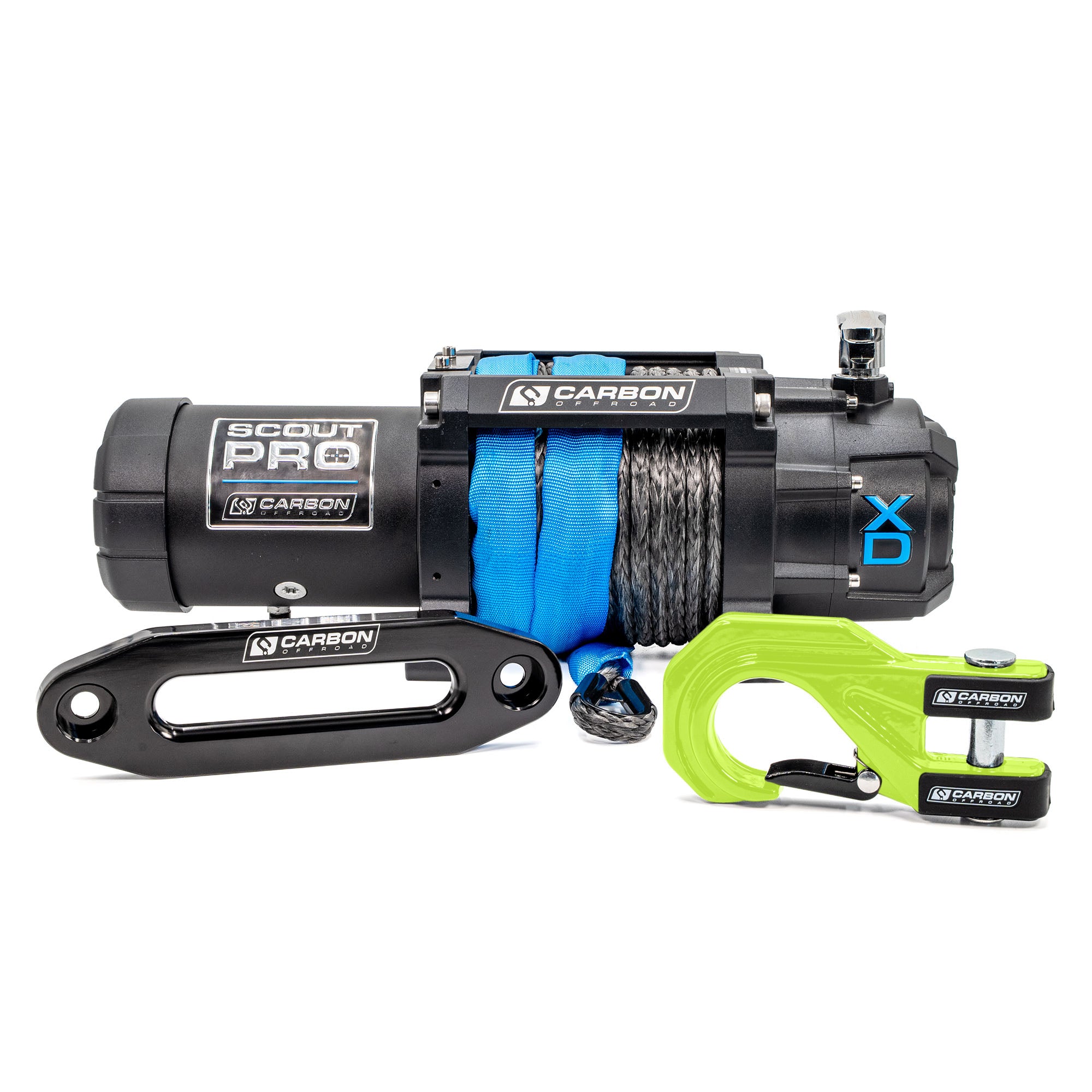

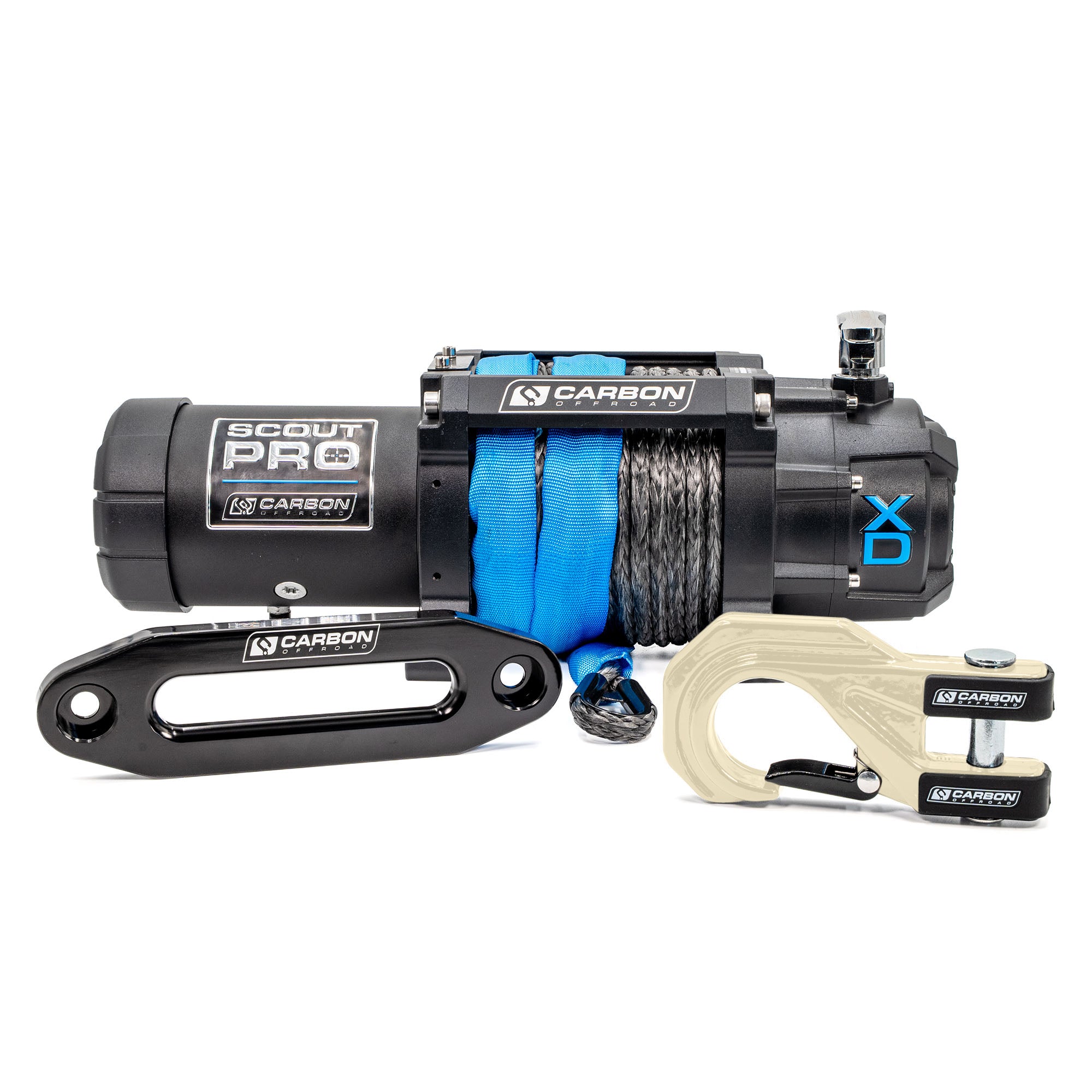

Carbon Offroad - RS9-S 9000lb Short Drum
BLACK
$1,499.00
Why Choose the Scout Pro RS9 Short Drum
Designed for compact installations without sacrificing performance, the Scout Pro RS9 Short Drum delivers strong 9,000lb pulling power from a high-output 8.0HP motor in an ultra-compact footprint. With a fast 80:1 gear ratio, IP68 water and dust sealing, and Spectra fibre synthetic rope, it’s the ideal solution for tight-fit bumpers, competition builds, and modern 4WDs where space and reliability are critical.
Extensive Carbon Warranty
Covered by our Limited Lifetime Mechanical Warranty, a 5-year Electrical Warranty, and a 5-year Water Ingress Protection Warranty. Even on a high-speed, race-spec winch, you still get our full coverage. This means you can push it hard on the tracks with total peace of mind.
Fast 80:1 Gear Ratio
The 80:1 gear ratio provides quick line speed and smooth operation, making recoveries faster and more efficient while maintaining precise control.
IP68 Water & Dust Sealing
With full IP68-rated sealing, the RS9 Short Drum is protected against water and dust ingress, ensuring dependable performance in mud, rain, and harsh off-road conditions.

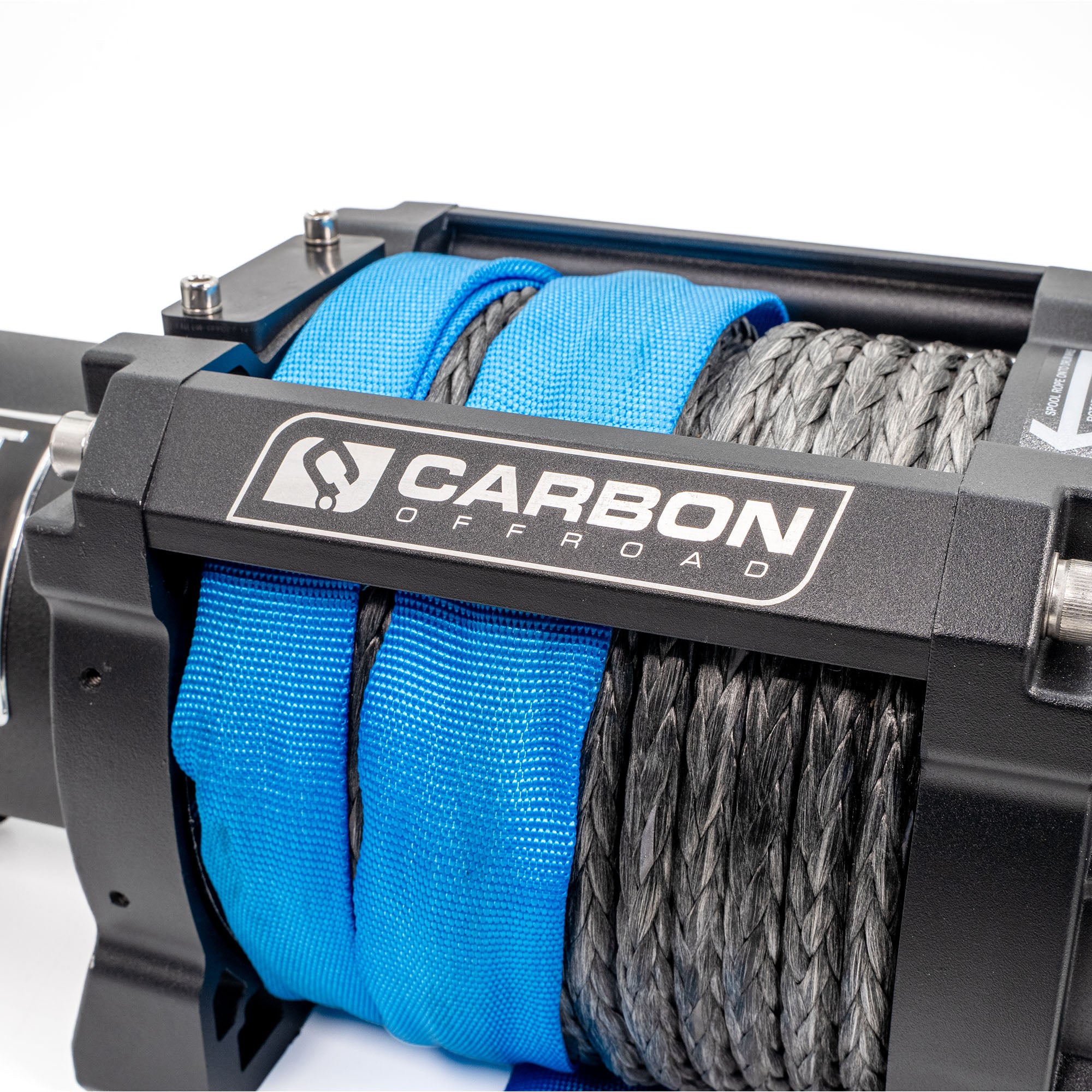

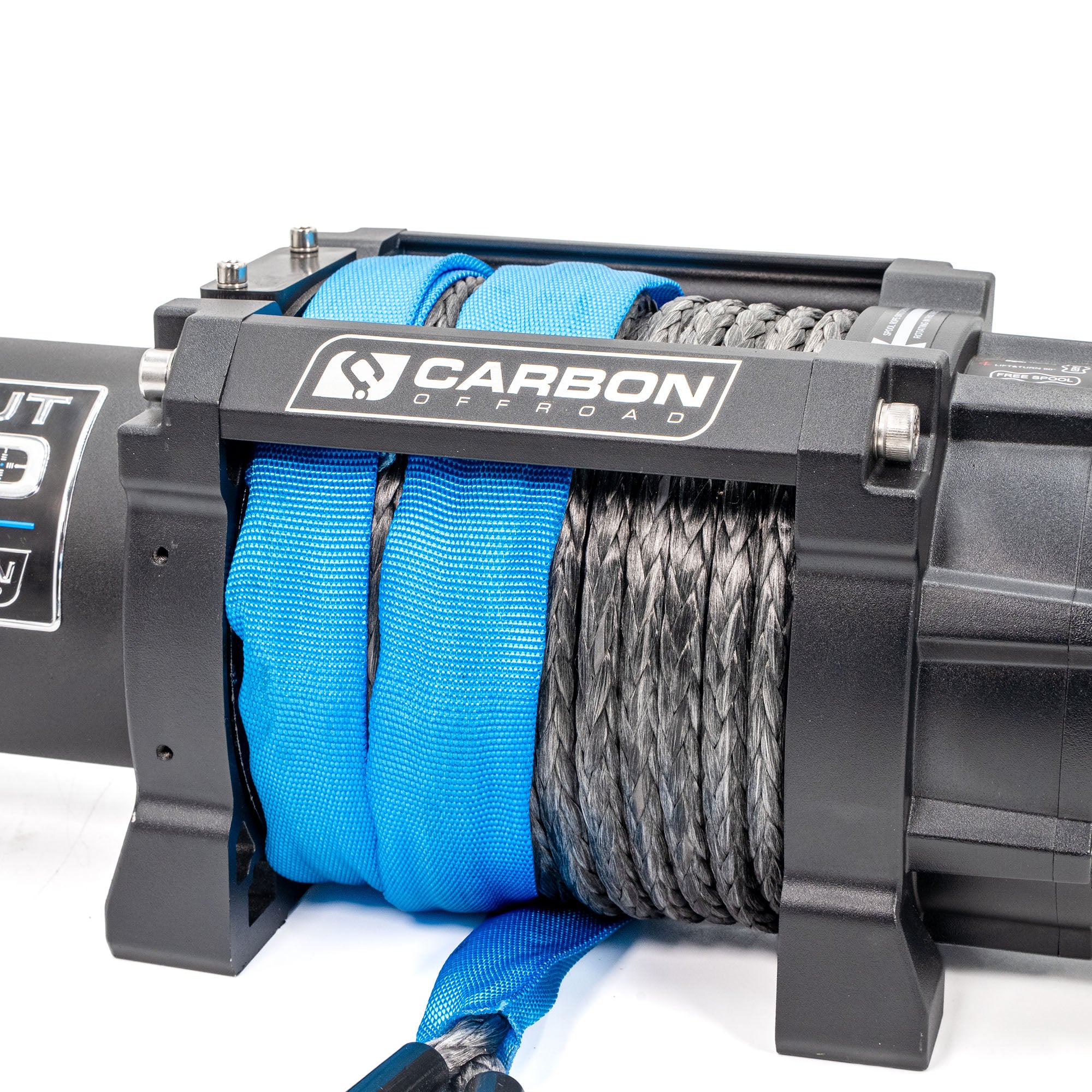

Short Drum Spectra Fibre Synthetic Rope
Equipped with 8mm x 24m Spectra fibre synthetic rope, the short drum design reduces overall winch size and weight while retaining excellent strength and
safety.
Ultra-Compact Short Drum Design
Featuring a short drum and compact housing, along with a reduced 164 x 114.3mm mounting pattern, this winch is ideal for tight-fit installations, competition builds, and modern bumpers with limited space.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 79.4(24.2) | 55 | 1/9000(4090) |
| 4000(1816) | 18.4(5.6) | 180 | 2/7760(3524) |
| 7000(3180) | 13.8(4.2) | 310 | 3/6690(3040) |
| 9000(4090) | 8.5(2.6) | 440 | 4/5760(2615) |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
