4x4 Winches

Shop Carbon Offroad 12V and 24V electric winches for touring 4WDs, heavy vehicles and specialist builds. Our range runs from 3,000lb to 20,000lb, with synthetic rope, compact options and high-speed models to suit different recovery needs.

100% Australian owned. Australian support. More than 150 dealer locations nationwide.

Limited Lifetime Mechanical Warranty, plus up to 7 years of electrical and water ingress cover. Register free within 90 days to extend the standard five-year electrical and water ingress cover to seven years. Original purchaser, recreational use and warranty terms apply.

Need help choosing a capacity? Use our winch size calculator and GVM guide.

Compare Carbon 4x4 winches

Choose a capacity that suits your vehicle and mounting system, then compare rope length, dimensions, weight and performance.

Key differences between selected Carbon 12V winches
Winch	Rated pull	Key features

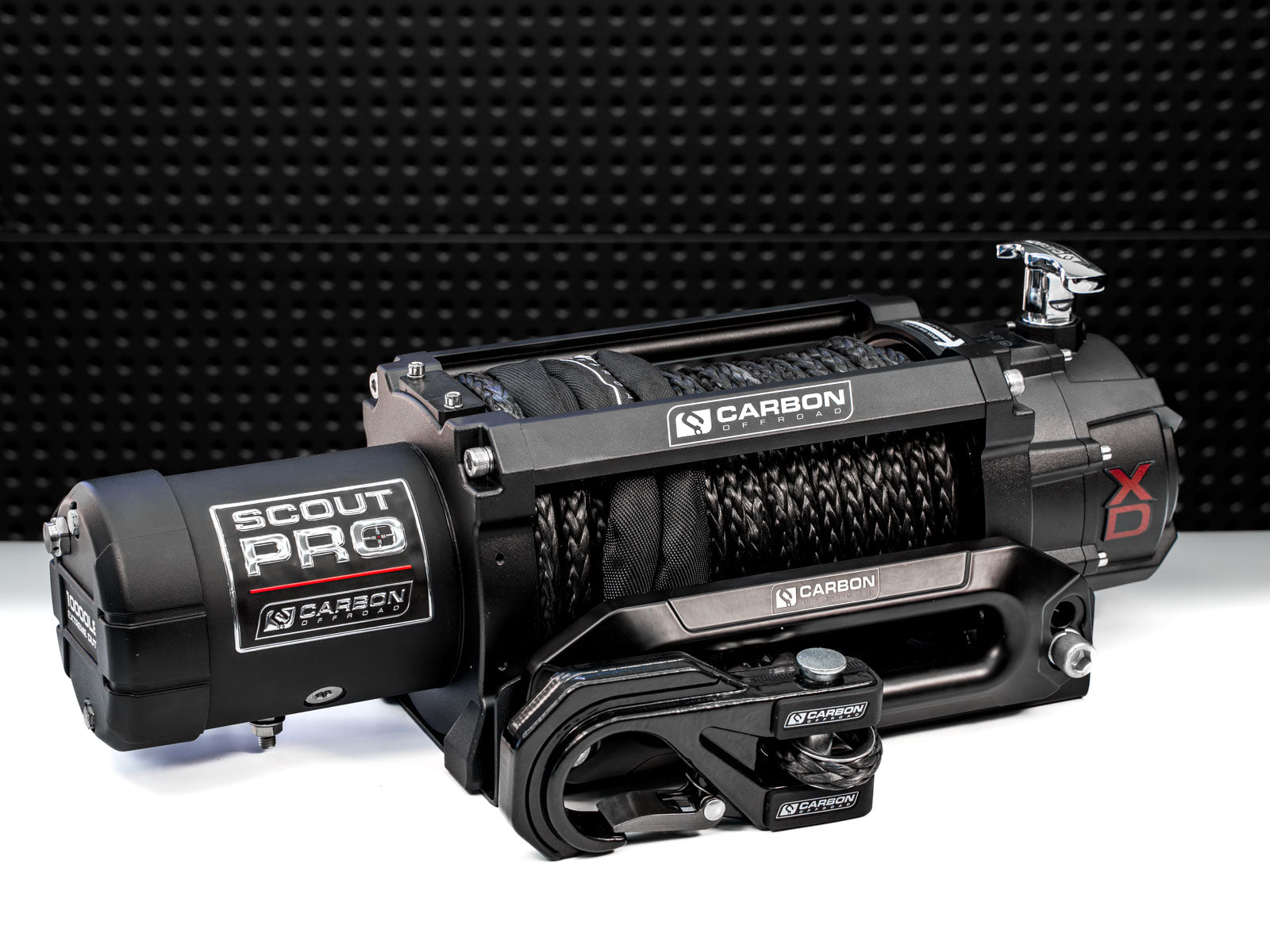

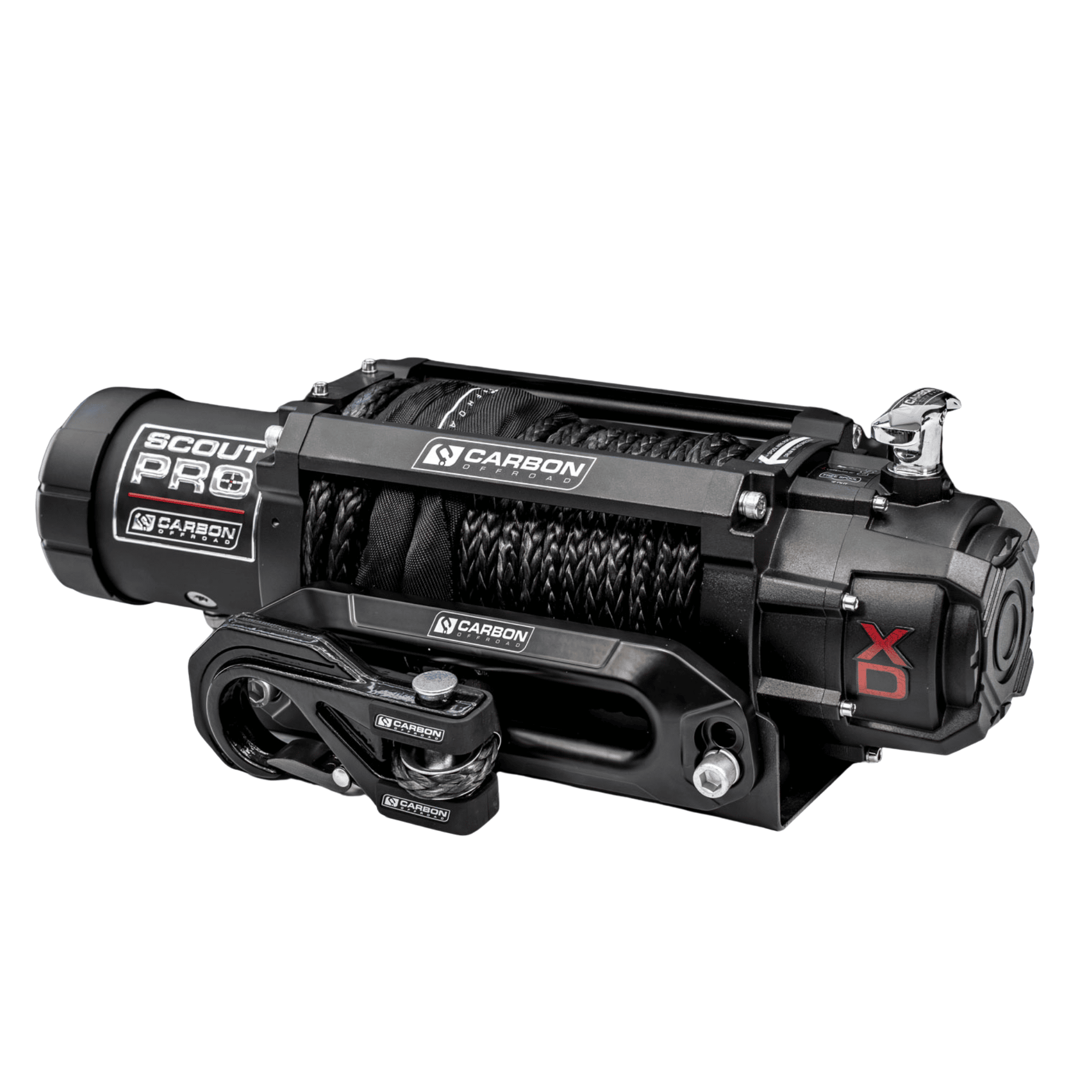

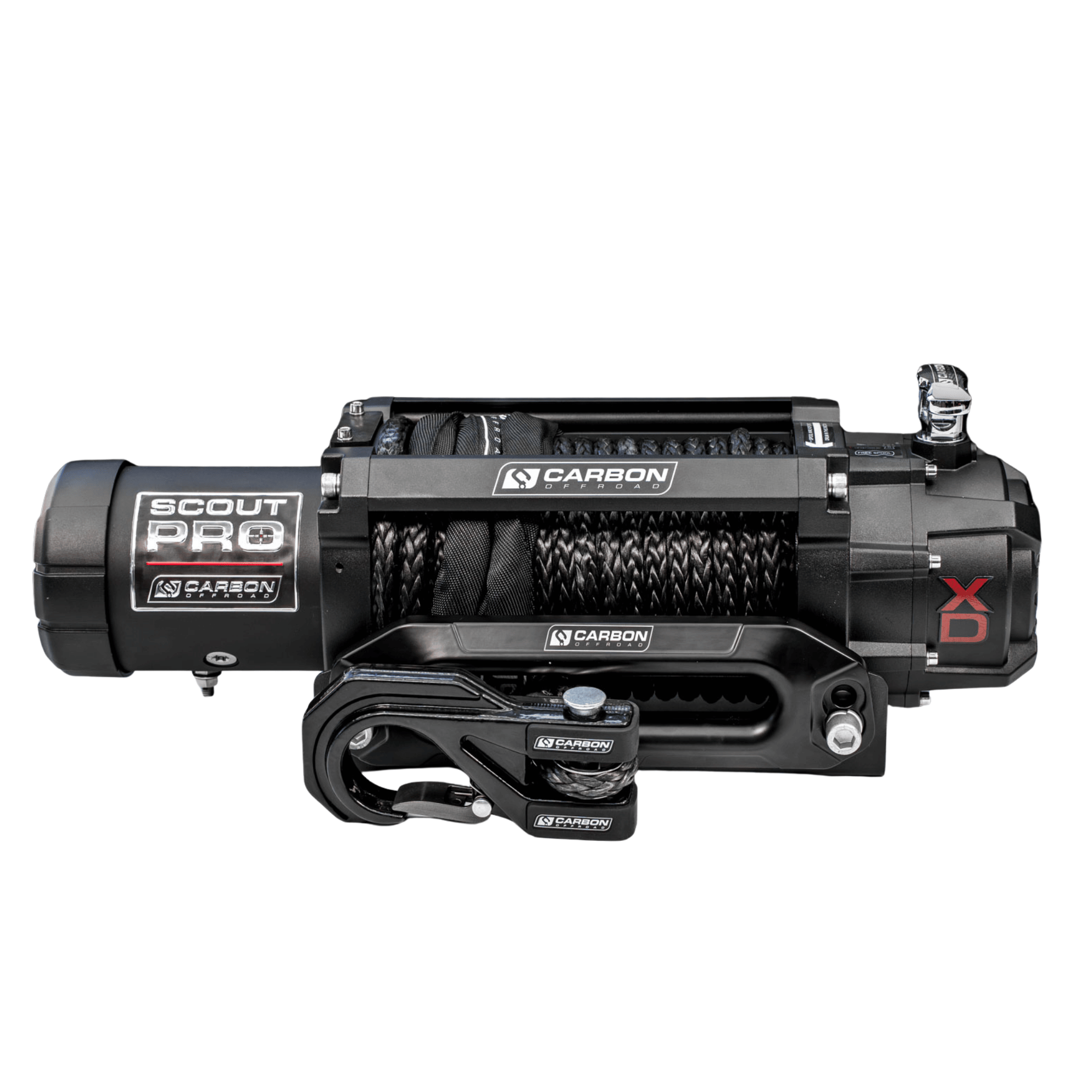

Scout Pro 10K	10,000lb	6HP motor and 24m of 10mm synthetic rope. An option where the vehicle and bull bar call for a 10,000lb winch.
Carbon 12K V3X	12,000lb	6HP motor, IP68 protection and 24m of 10mm synthetic rope for a touring or weekend 4WD build.

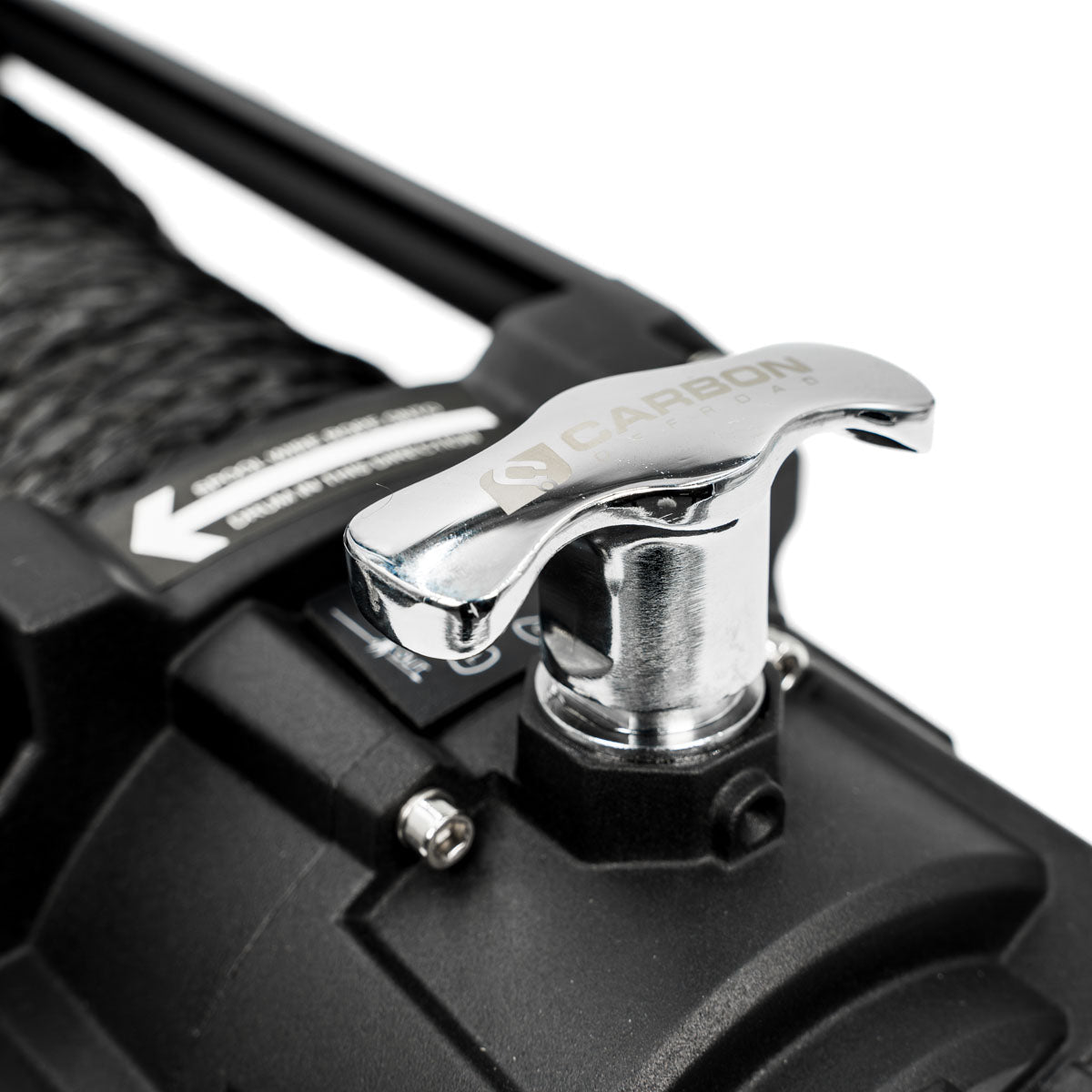

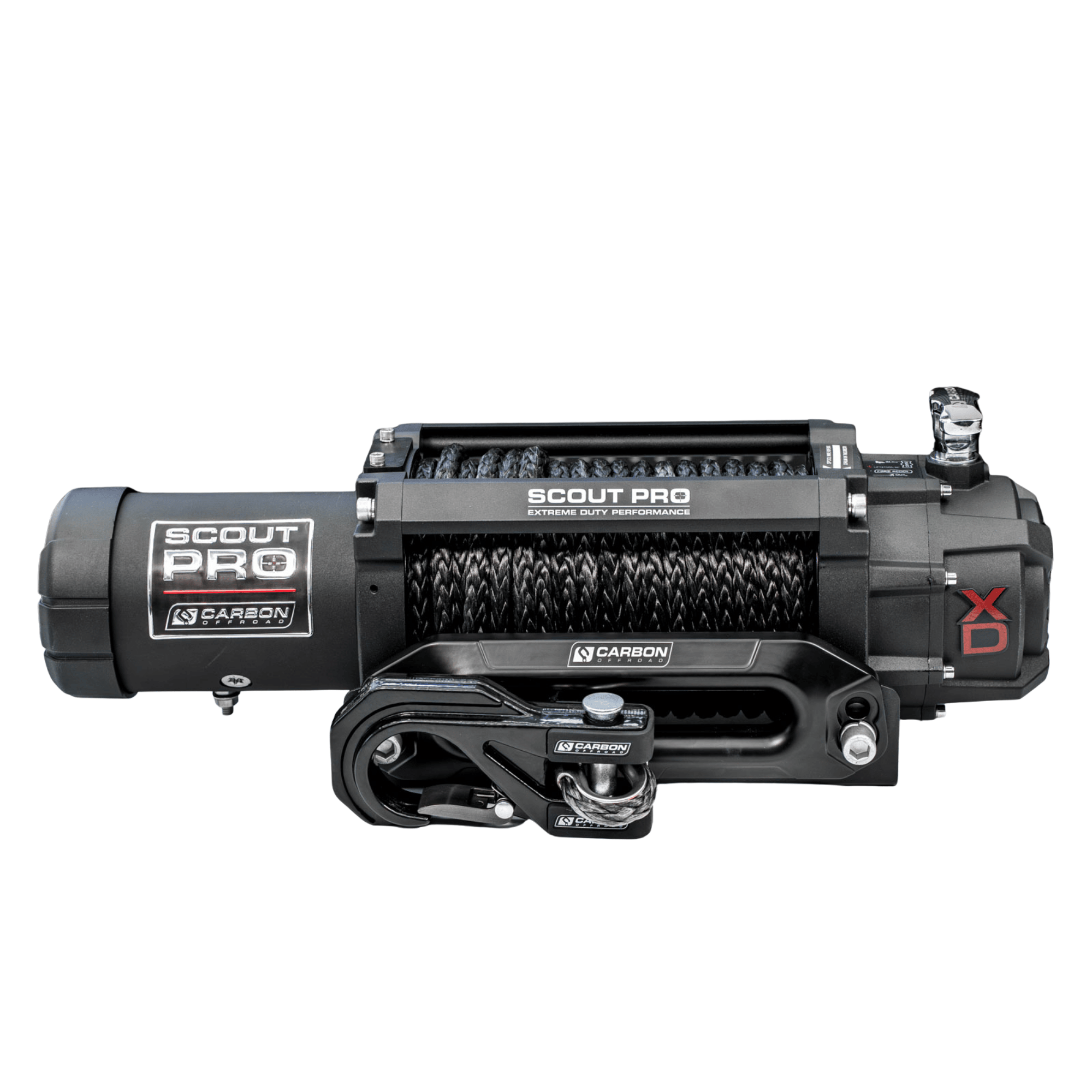

Scout Pro 15K	15,000lb	7HP motor and 24m of 11mm synthetic rope for vehicles that need a higher capacity.

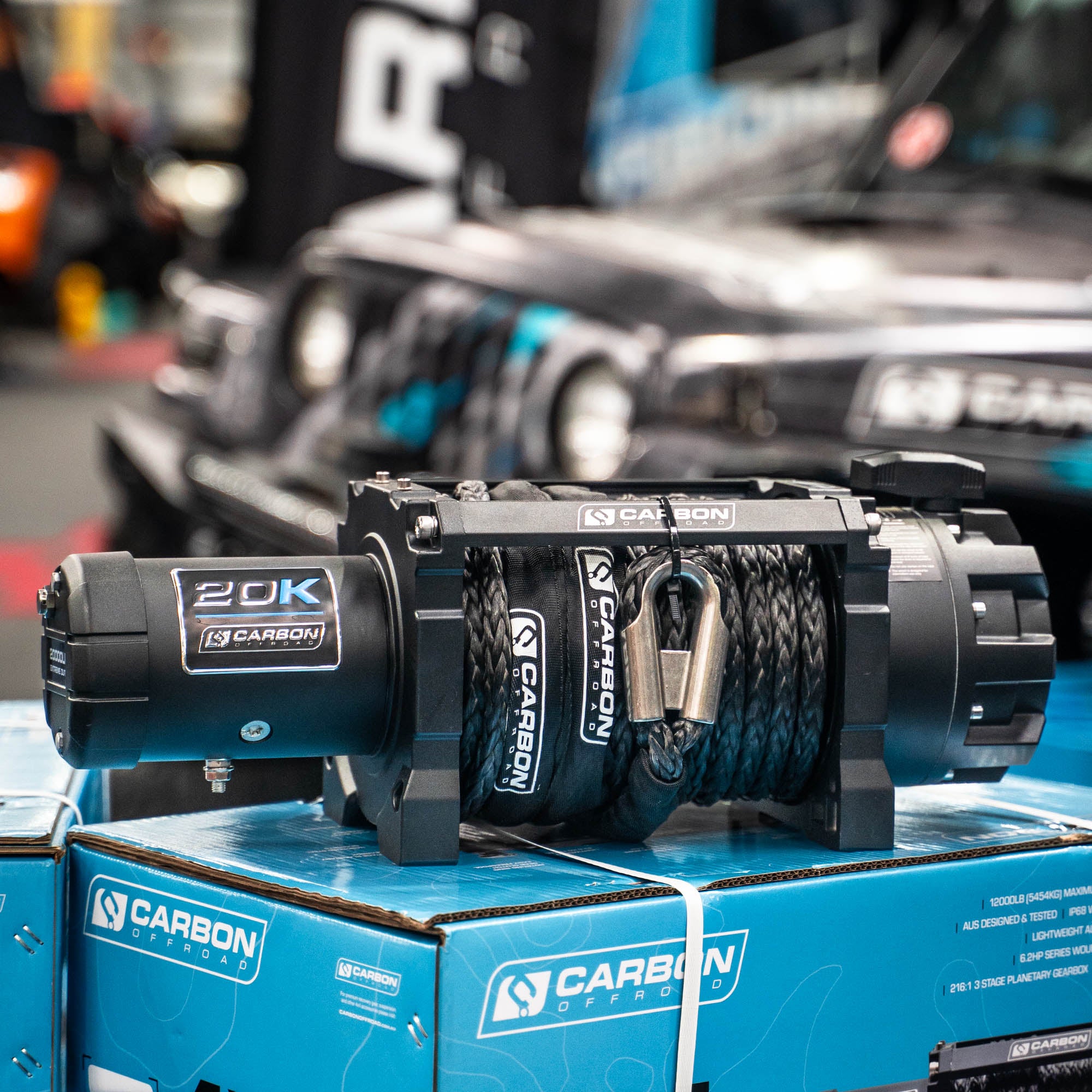

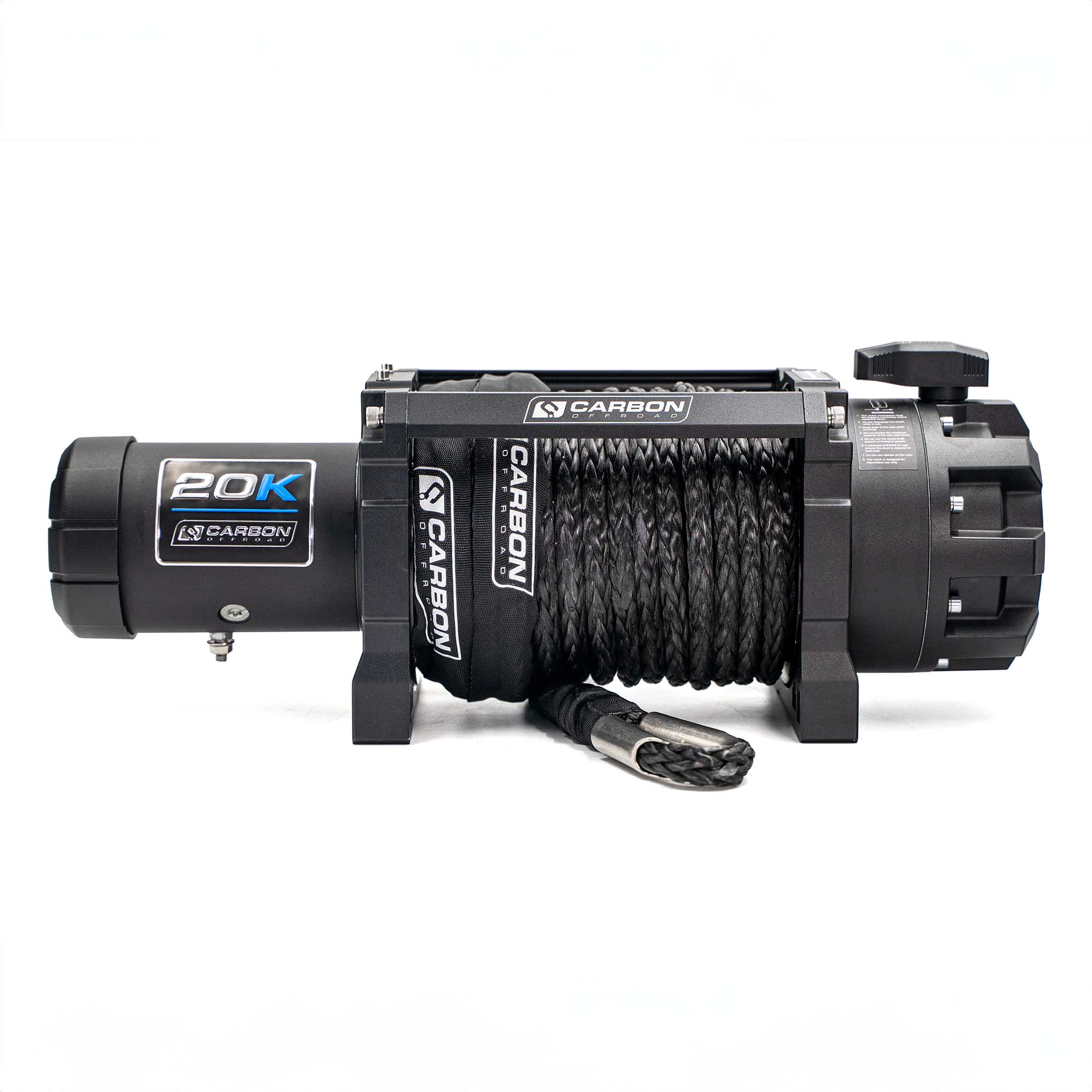

Scout Pro 20K	20,000lb	7HP motor, 600A sealed solenoid and 25m of 13mm synthetic rope for larger vehicles.
RS9 High Speed	9,000lb	8HP motor, 80:1 gearing and 42m of synthetic rope for fast recovery and extended reach.
RS9-S Short Drum	9,000lb	8HP motor and a shorter drum for buggies and specialist installations with limited mounting space.

Rated pull applies to the first rope layer. Check each product's dimensions, complete installed weight and electrical requirements before ordering.

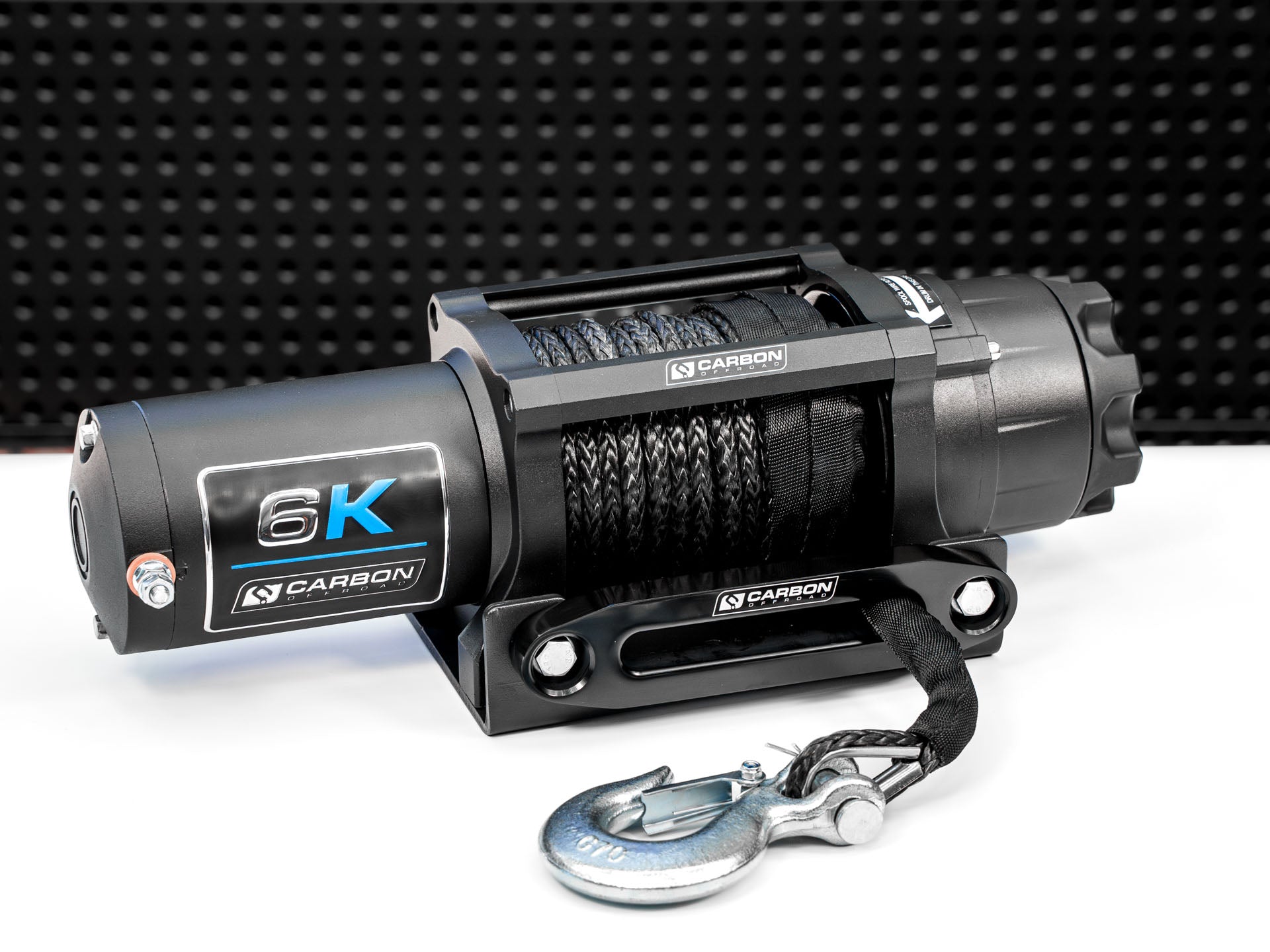

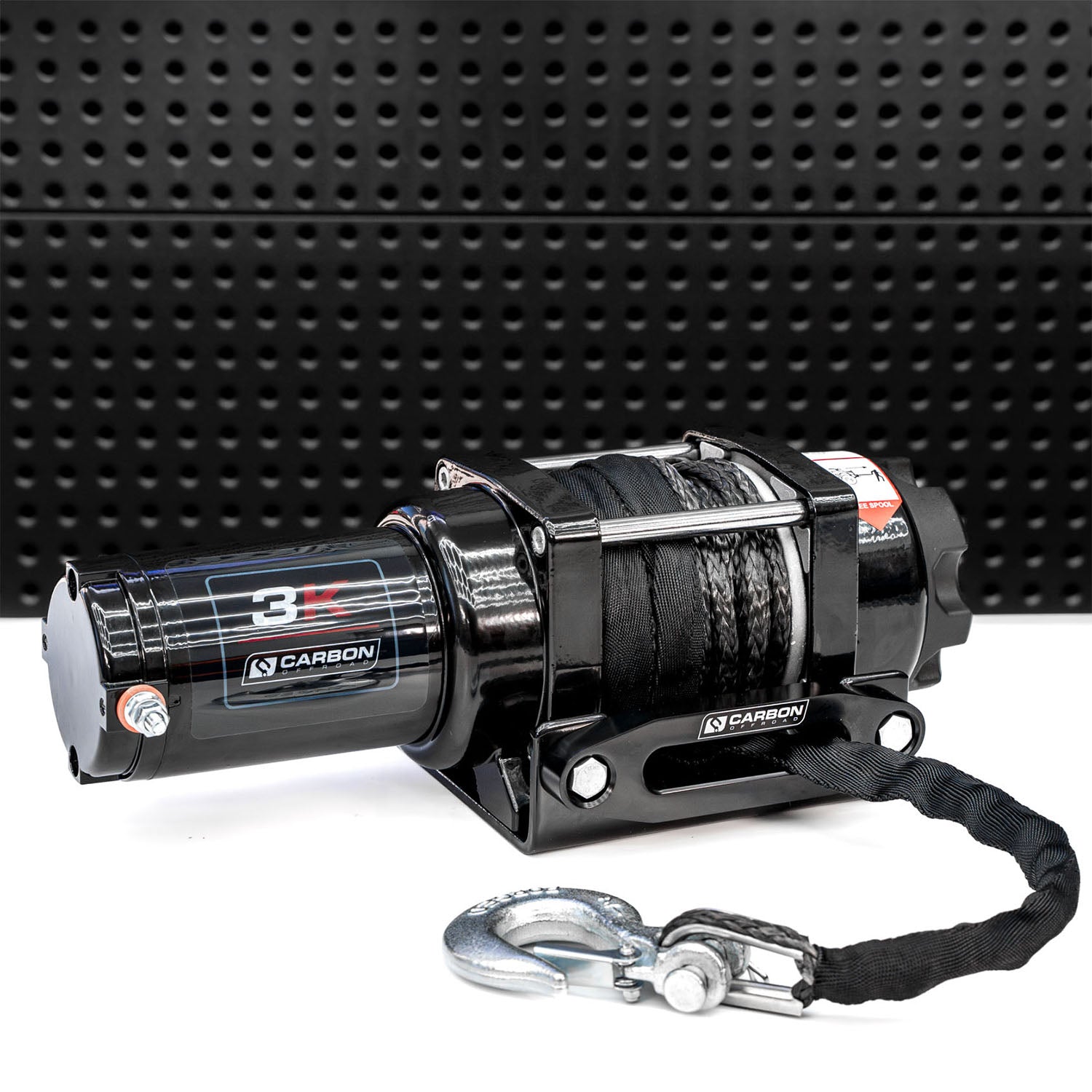

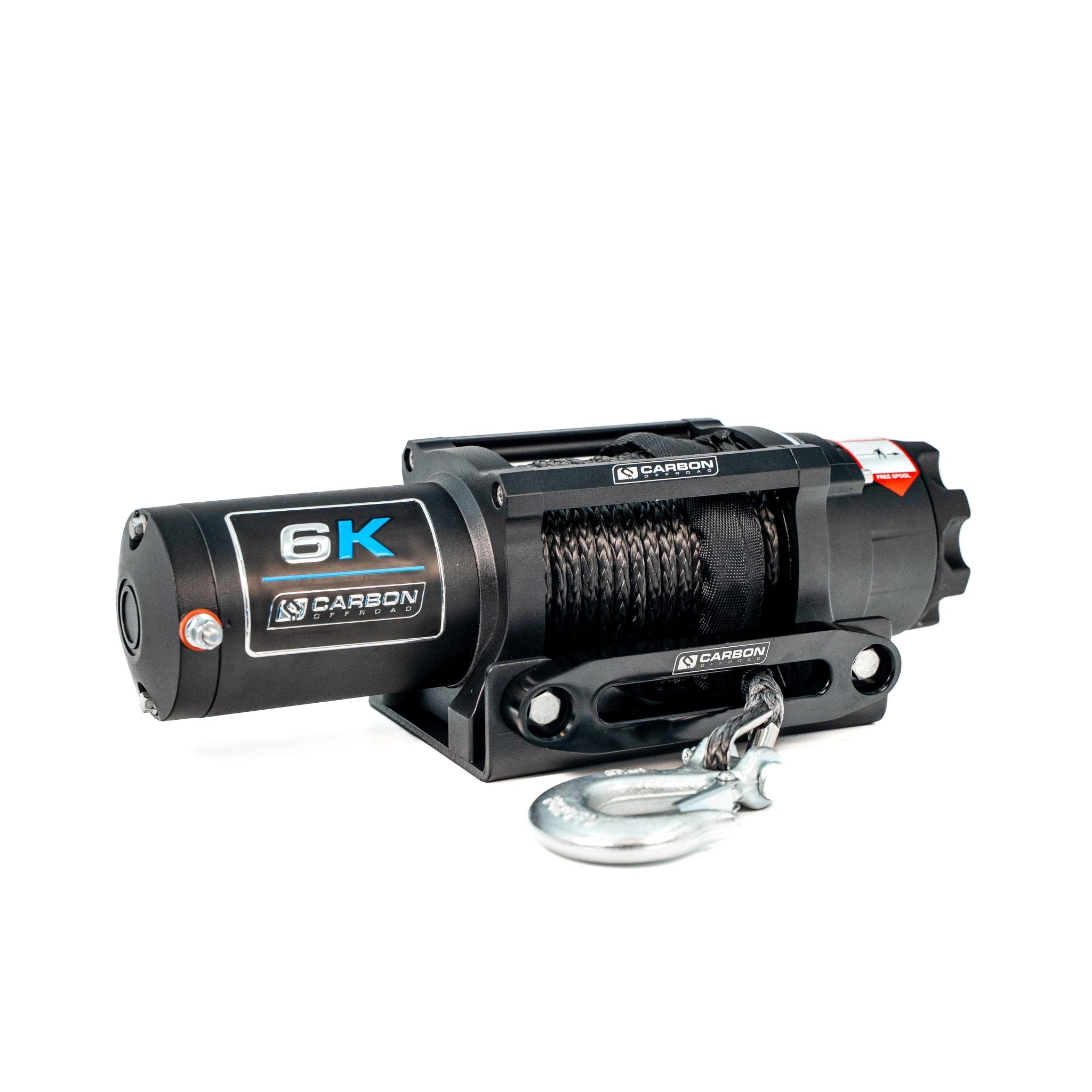

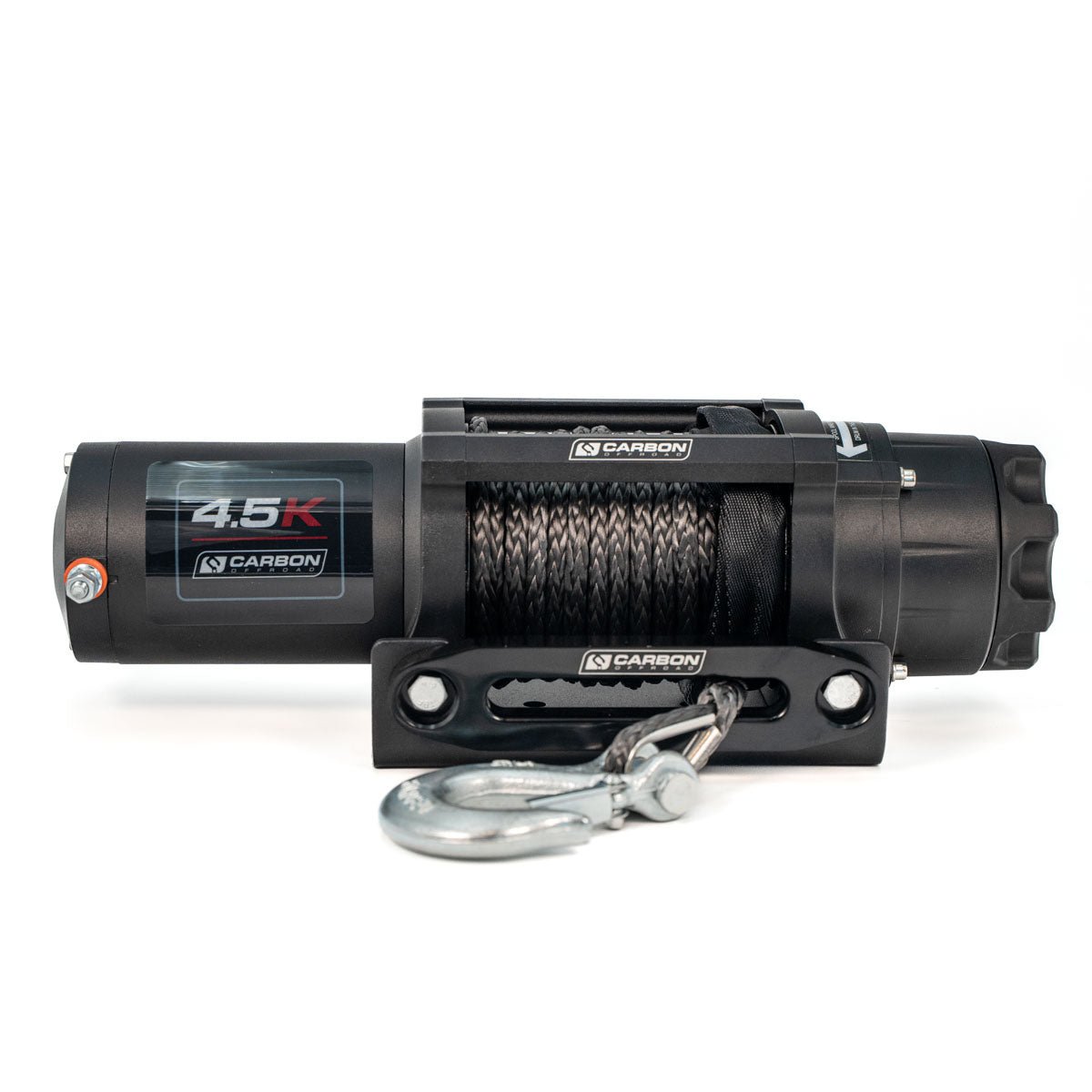

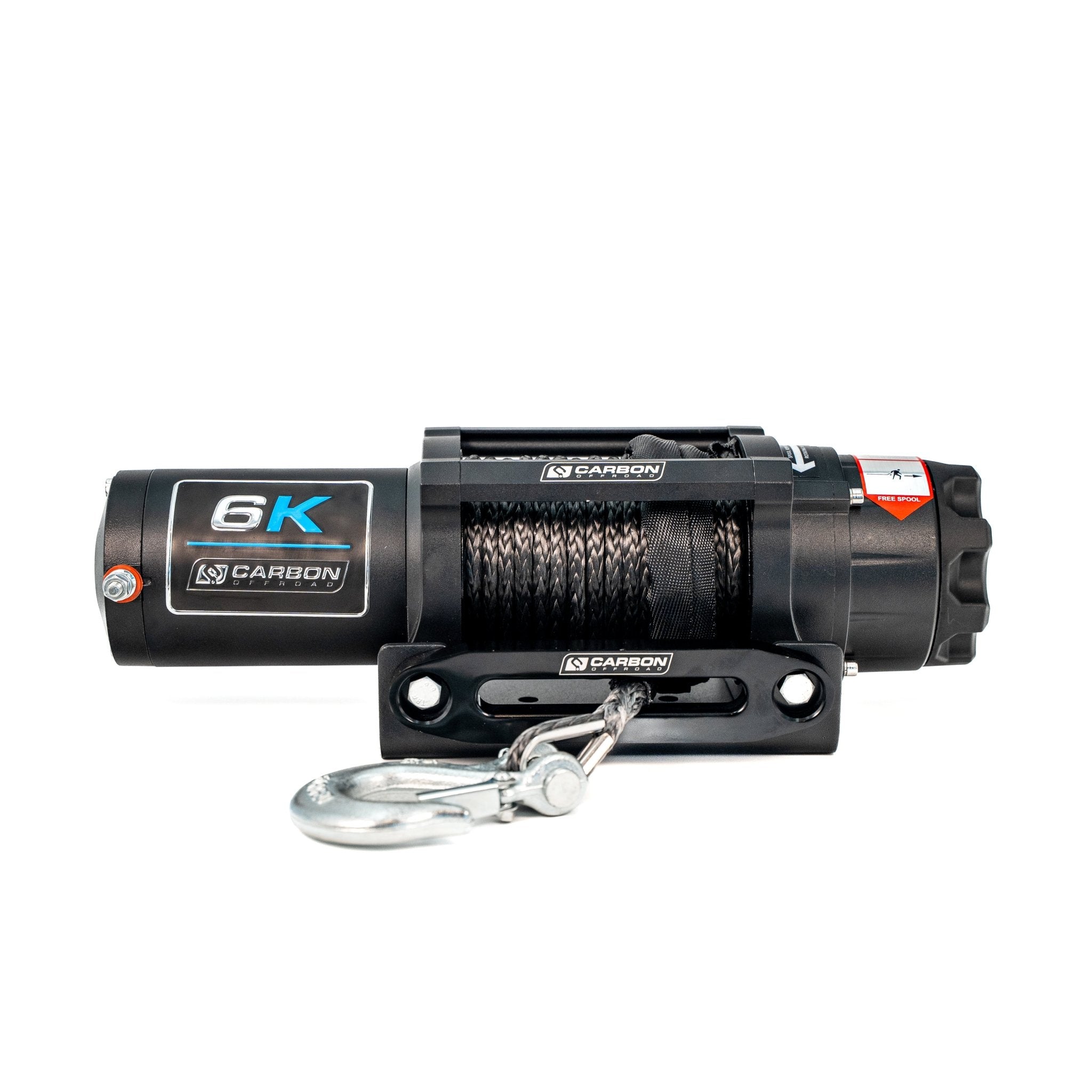

For smaller applications, browse our ATV and utility winches. Selected models are also available as 24V winches.

Why buy a Carbon Offroad winch?

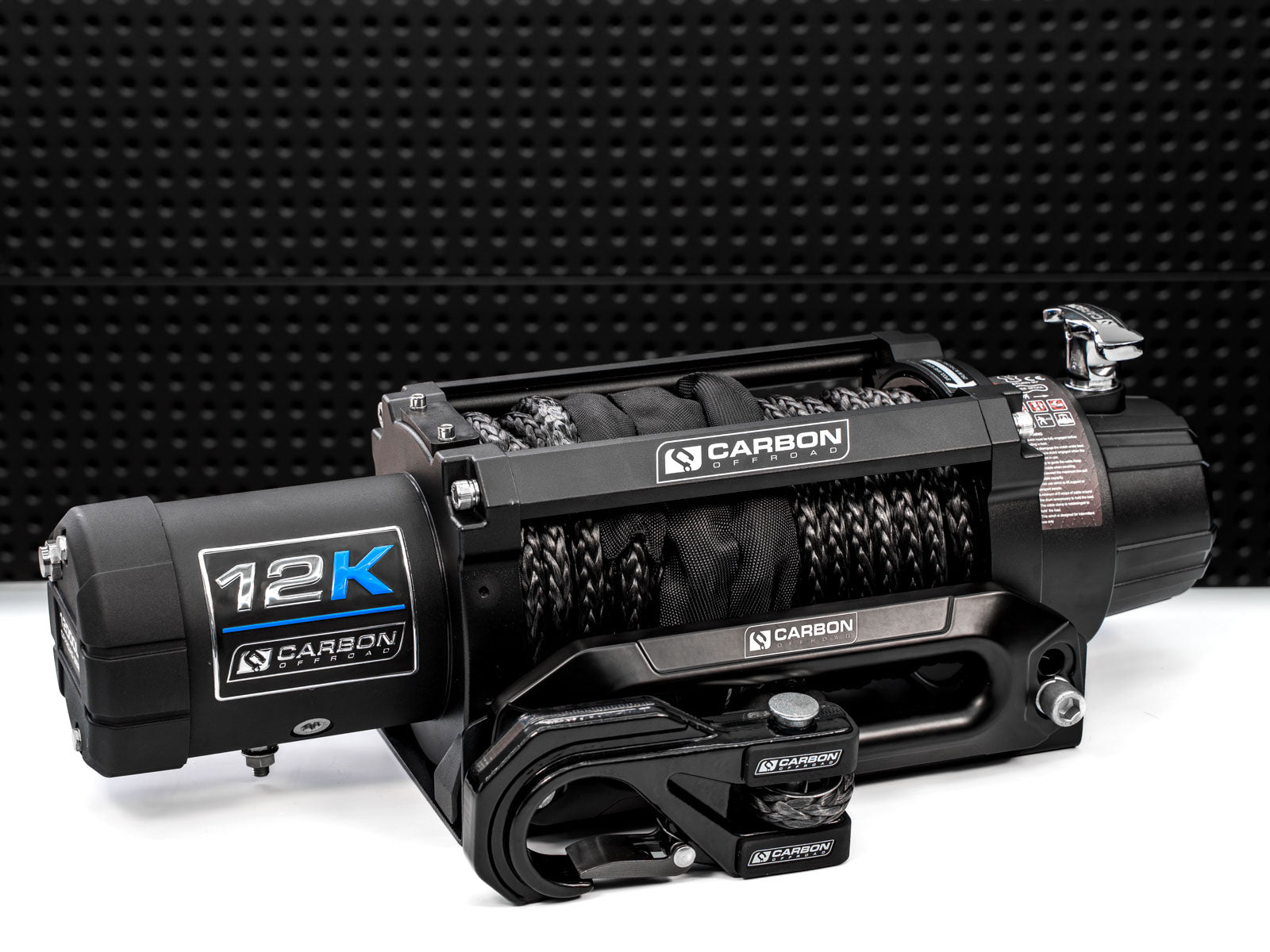

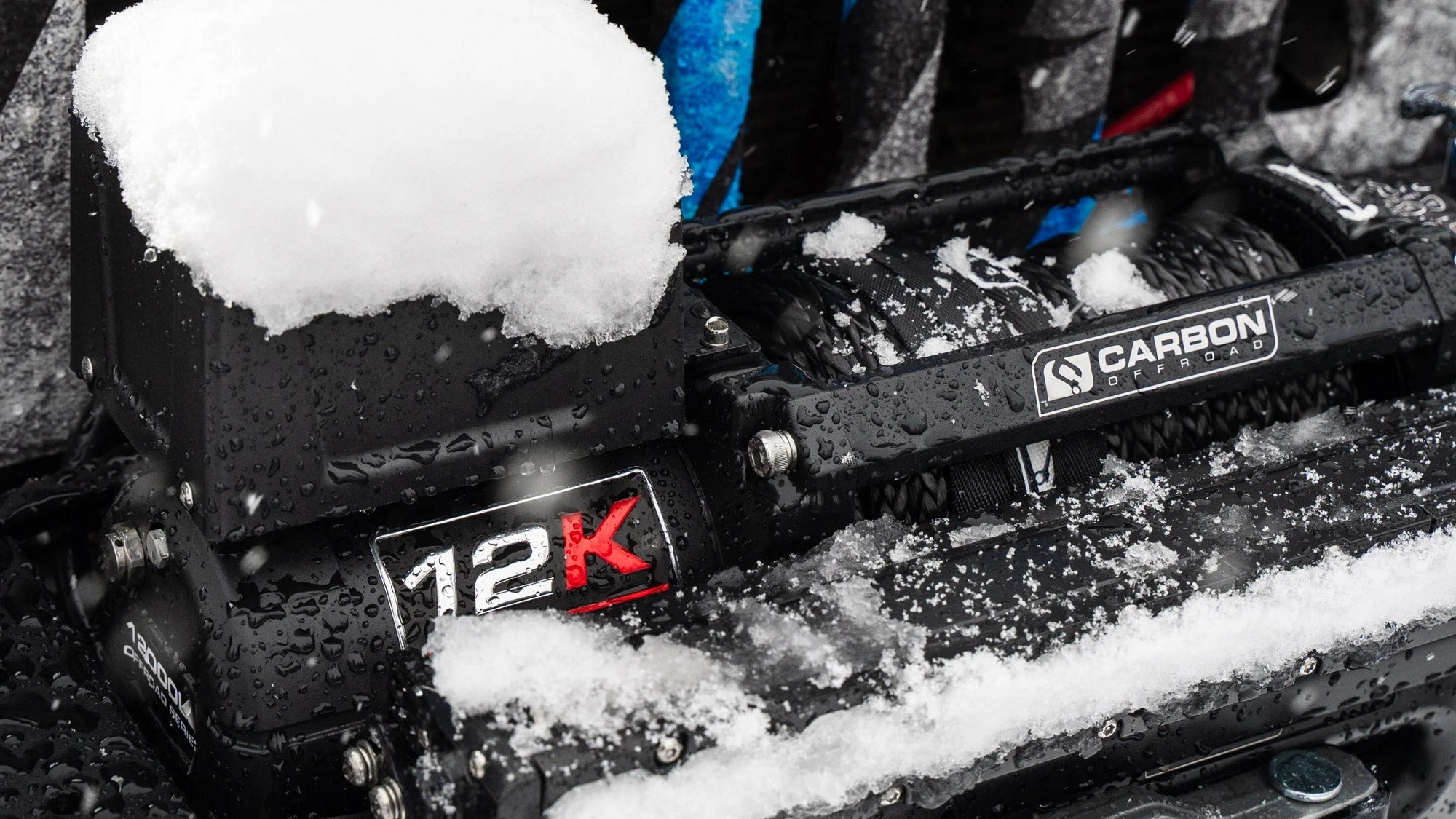

12K V3X pulling power with weight in mind

The Carbon 12K V3X combines a 12,000lb rating with a listed winch weight of 19.7kg. Allow 26.65kg for the complete installed setup when checking your front-axle and GVM limits.

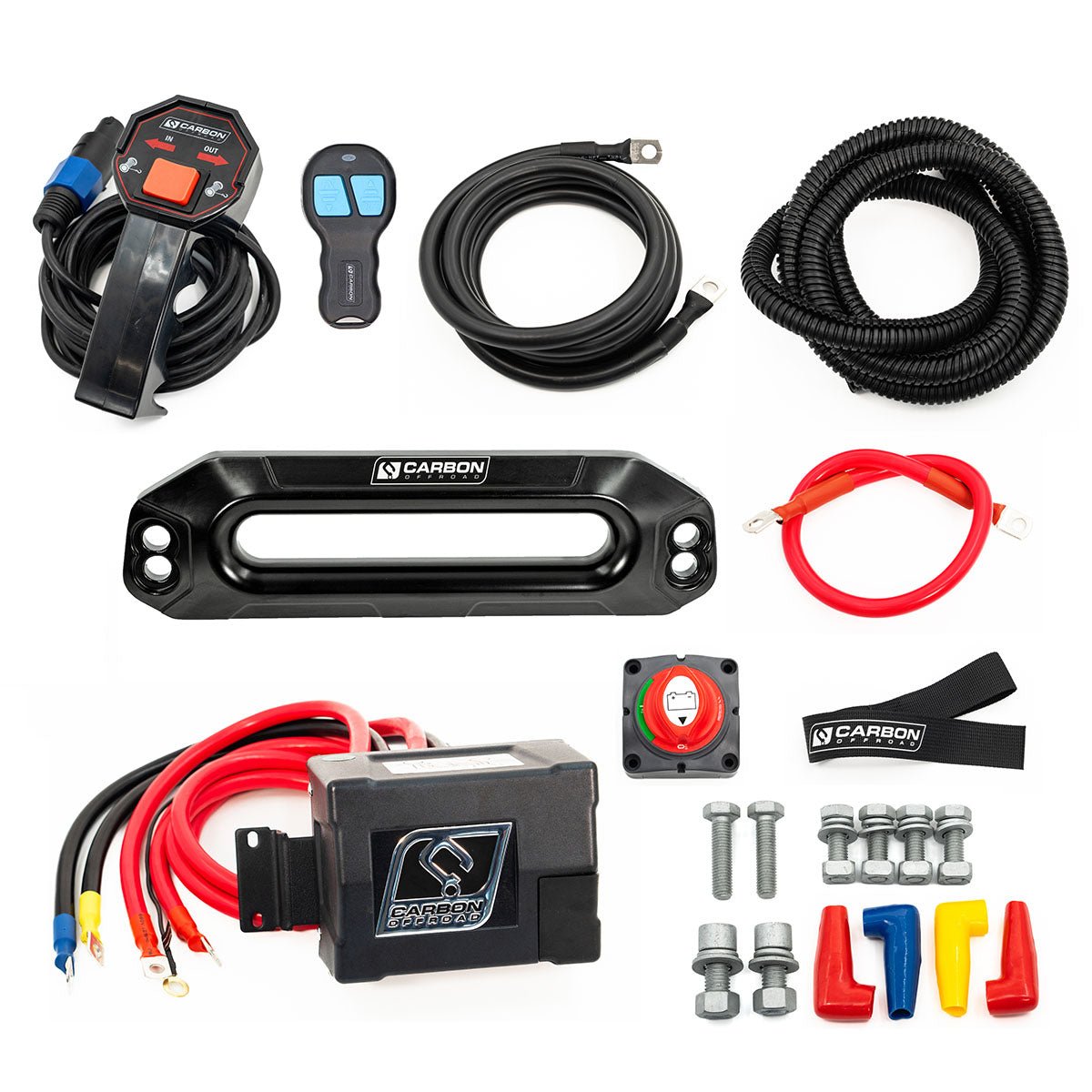

The MegaPro Hook package includes synthetic rope, an alloy fairlead, MegaPro Hook, wired and wireless remotes, an isolator switch and mounting hardware. Check the exact package and your installation requirements before purchase.

The 12K V3X also carries an IP68 rating for dust and water protection. Follow the model's immersion limits and maintenance instructions. The rating is not permission to operate the winch underwater.

RS9 line speed you can compare

The RS9 combines an 8HP motor with 80:1 gearing. Its published line speed is 24.2 metres per minute without load and 2.6 metres per minute at its 9,000lb rated pull. It is built for applications where recovery speed matters, with 42 metres of synthetic rope for longer reach.

Australian support and a national dealer network

Carbon Offroad is an Australian-owned winch and recovery specialist based in Coomera on the Gold Coast. Since launching the Carbon winch brand in 2016, we have continued developing the range through customer feedback and real-world use.

Buy directly from Carbon or through our network of more than 150 Australian dealer locations. Speak to your local dealer about product advice and installation services, and confirm stock before visiting. Find a Carbon Offroad dealer near you.

Carbon also operates in the United States, with a Meyer Distributing partnership expanding access for US retailers.

Winch warranty and free extended cover

The same standard warranty applies across the Carbon winch range, with extra electrical and water ingress cover available at no charge through registration.

Carbon Offroad Australia winch warranty
Cover	Standard	Register free within 90 days
Mechanical	Limited Lifetime	Limited Lifetime
Electrical	5 years	7 years
Water ingress	5 years	7 years

Register with valid proof of purchase within 90 days. Cover runs from the purchase date and applies to eligible Australian purchases by the original purchaser for non-commercial recreational use. Mechanical lifetime cover lasts while that purchaser owns the winch, subject to the policy. Water ingress cover applies to the motor and gearbox, excluding remotes.

Registration is optional. Your standard warranty and Australian Consumer Law rights remain unchanged without it. Register for free extended cover or read the full warranty terms.

Winch buying questions

What size winch do I need for my 4WD?

Our sizing guide uses 1.5 times your vehicle's GVM as a starting point. A 3,500kg GVM works out to approximately 11,575lb, pointing to a 12,000lb winch. Recovery conditions, rope layers and fitment still matter. Use our winch sizing guide for the calculation and checks.

Can I buy Carbon 4x4 winches at Supercheap Auto?

Carbon Offroad is rolling out selected winches and recovery products through Supercheap Auto as part of our Super Retail Group partnership. Models, store participation and stock vary as the rollout progresses. Check with Supercheap Auto for current availability or contact Carbon for stockist information.

Will a Carbon winch fit my Hilux, Ranger, Patrol or LandCruiser?

Fitment depends on your bull bar, mounting plate and available space as well as the vehicle. Check the maximum permitted winch rating, bolt pattern, complete dimensions, clutch access and control box position. A matching bolt pattern alone does not confirm compatibility.

Can I buy replacement parts and winch rope?

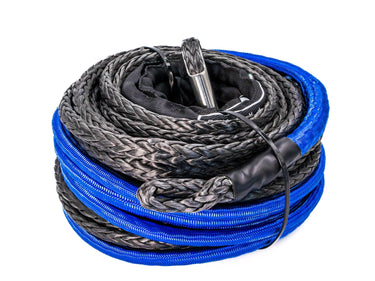

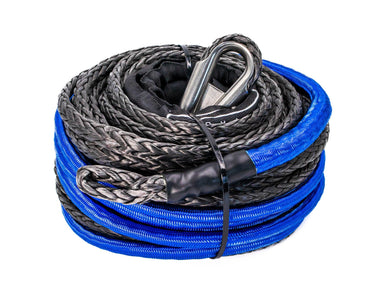

Yes. Browse our winch spare parts and replacement winch ropes, or ask the Carbon team to help identify the part for your model.

Get help choosing your winch

Send us your vehicle model, GVM, bull bar make and model, voltage and intended use. We can help you compare the options and identify the specifications to check before ordering.
