CW-12KV3XBLK
$1,099.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
High-Performance Off-Road Recovery
The Carbon 12K is a lightweight, high-performance 5443kg (12000lbs) winch equipped with a 6HP motor and an IP68 waterproof rating, engineered for reliable pulling power in tough off-road conditions.
Overview
The Carbon 12K is a lightweight, high-performance 5443kg (12000lbs) winch designed to handle tough off-road conditions.
Engineered in Australia and refined through real-world use.

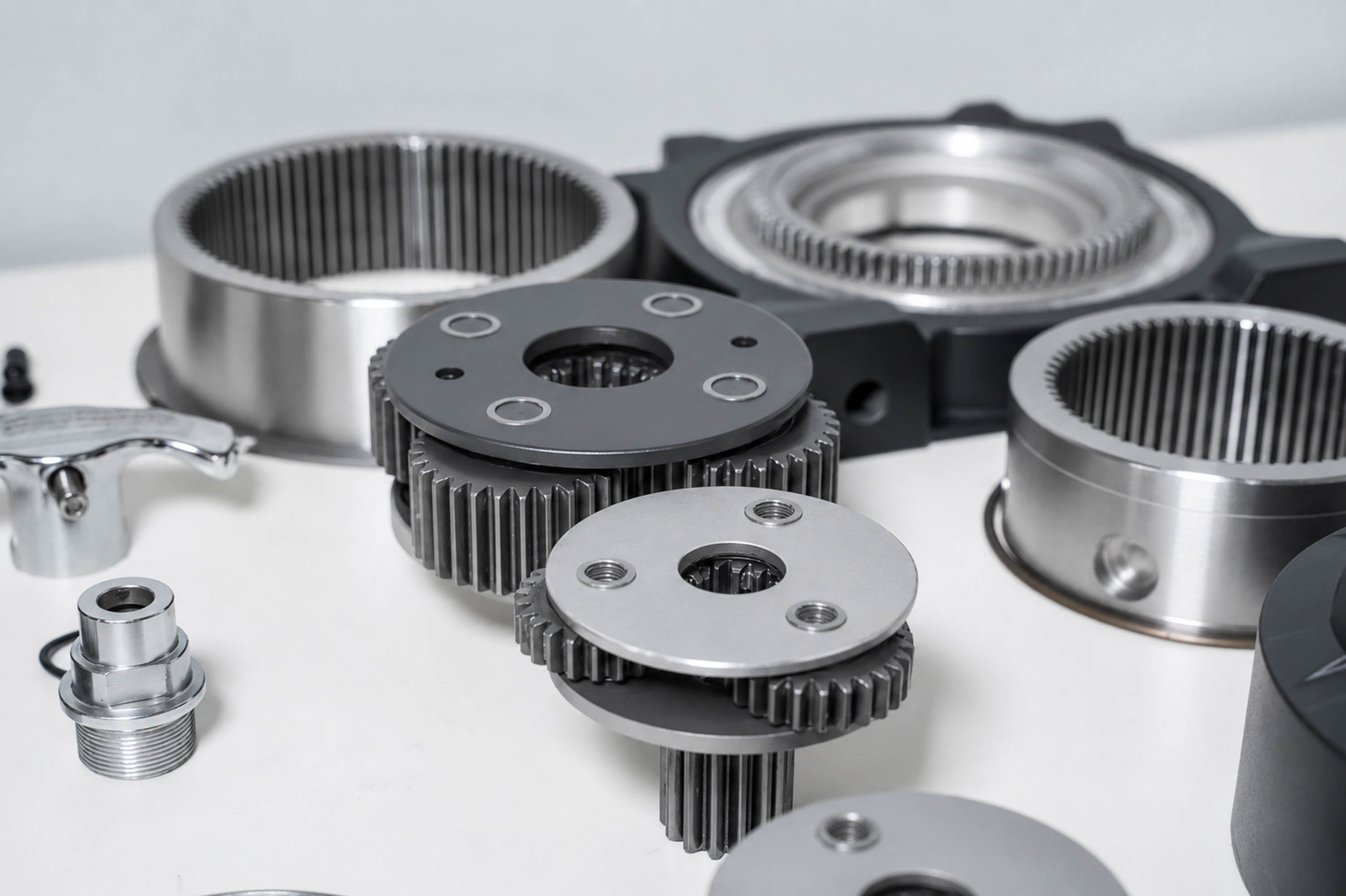

With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain.
Supplied as a complete kit with everything you need, wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware, it’s ready for installation straight out of the box.
The control box offers flexible mounting options, and the multi-fit fairlead ensures compatibility with most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises.
River crossings and mud runs are stress-free, this winch features a breathable membrane-style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver’s seat.
IP68 Ingress Protection
6 - Can withstand dust and dirt
8 - Can be submerged under freshwater for 30 minutes up to 1.5m (5ft) depth, but not during operation.
The Carbon Winch is a proven performer with year-on-year sales growth and real-world recoveries across some of the toughest terrain in the U.S., including the Rubicon Trail, Sand Hollow, and demanding conditions involving mud, snow, and sand. For peace of mind it’s backed by a class-leading 5-year water ingress and electrical warranty and a lifetime geartrain warranty.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodized alloy signature Carbon fairlead paired with our own robustly designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4WD accessories, the Carbon Winch is super lightweight at only 19.7kg (43.0lbs).
Carbon Winches 12K Winch is a 5443kg (12000lbs) line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Get a winch you can trust.
Contents
1 x Wired remote
1 x Wireless remote
1 x Synthetic rope
1 x CNC alloy fairlead
1 x Isolator switch
1 x Mounting hardware kit
1 x MegaPro Hook
Free Extended Warranty
Register your winch and get 7 years of cover. All Carbon winches include a Limited Lifetime Mechanical Warranty. Register within 90 days to extend Electrical and Water Ingress cover from 5-year to 7-year.
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 5443kg (12000lbs) |
| Motor | 6HP |
| Waterproof Rating | IP68 |
| Weight | 19.7kg (43.0lbs) |
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current (Amps) | Rated Line Pull Position Metric (Imperial) |
|---|---|---|---|
| 0kg (0lbs) | 9.5m/min (31.2fpm) | 60 | 1 / 5450kg (12000lbs) |
| 1360kg (3000lbs) | 4.7m/min (15.4fpm) | 135 | 2 / 4450kg (9800lbs) |
| 2725kg (6000lbs) | 3.6m/min (11.8fpm) | 220 | 3 / 3770kg (8300lbs) |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 285 | 4 / 3270kg (7200lbs) |
| 4540kg (12000lbs) | 1.7m/min (5.6fpm) | 340 |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60 | 1/12000 (5450) |
| 3000 (1360) | 15.4 (4.7) | 135 | 2/9800 (4450) |
| 6000 (2725) | 11.8 (3.6) | 220 | 3/8300 (3770) |
| 9000 (4090) | 8.5 (2.6) | 285 | 4/7200 (3270) |
| 12000 (4540) | 5.6 (1.7) | 340 |
How much weight will this add to my vehicle?
The total installed weight is just 26.65kg. Its lightweight construction helps minimize the load on your front suspension.
Is the winch built to handle mud and water?
Yes. It features an IP68 rating for top-tier water and dust protection. It also includes a membrane motor breather for excellent pressure and moisture management, making it proven for harsh Australian conditions.
What kind of rope and hardware are included?
It comes with a lightweight 24m x 10mm synthetic rope, alongside premium front-end hardware including a MegaPro Hook and an alloy fairlead.
How do I control the winch during a recovery?
You have complete flexibility with both wired and wireless remotes included. The winch utilizes a 218:1 Triple Planetary Gearbox to ensure slow, highly controlled pulling performance.
Does it come with everything needed for installation?
Yes, it is ready straight from the box with a complete installation kit. If you want to customize your setup, it is also compatible with an optional Air Freespool clutch upgrade.
What kind of warranty comes with the winch?
Limited Lifetime Mechanical Warranty. Alongside this long-term mechanical coverage, the winch is backed by a 5-year water and electrical warranty. And yes—our water warranty means we actually have you covered even if you end up submarining your vehicle in a bog hole. We offer comprehensive Australian warranty support to ensure you are backed for the long haul.
