CW-12KV3XBLK
$1,099.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Lightweight High-Performance Winch

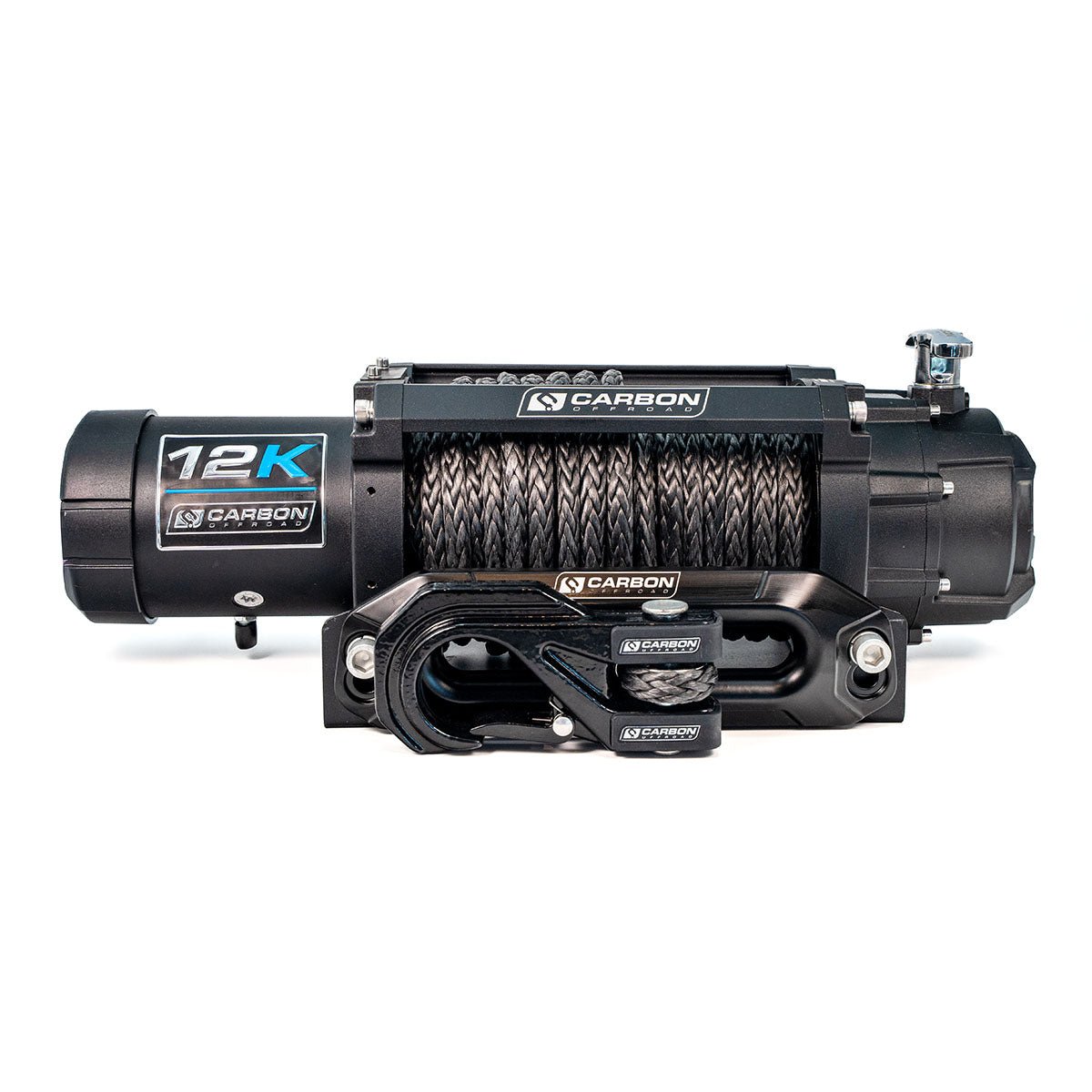

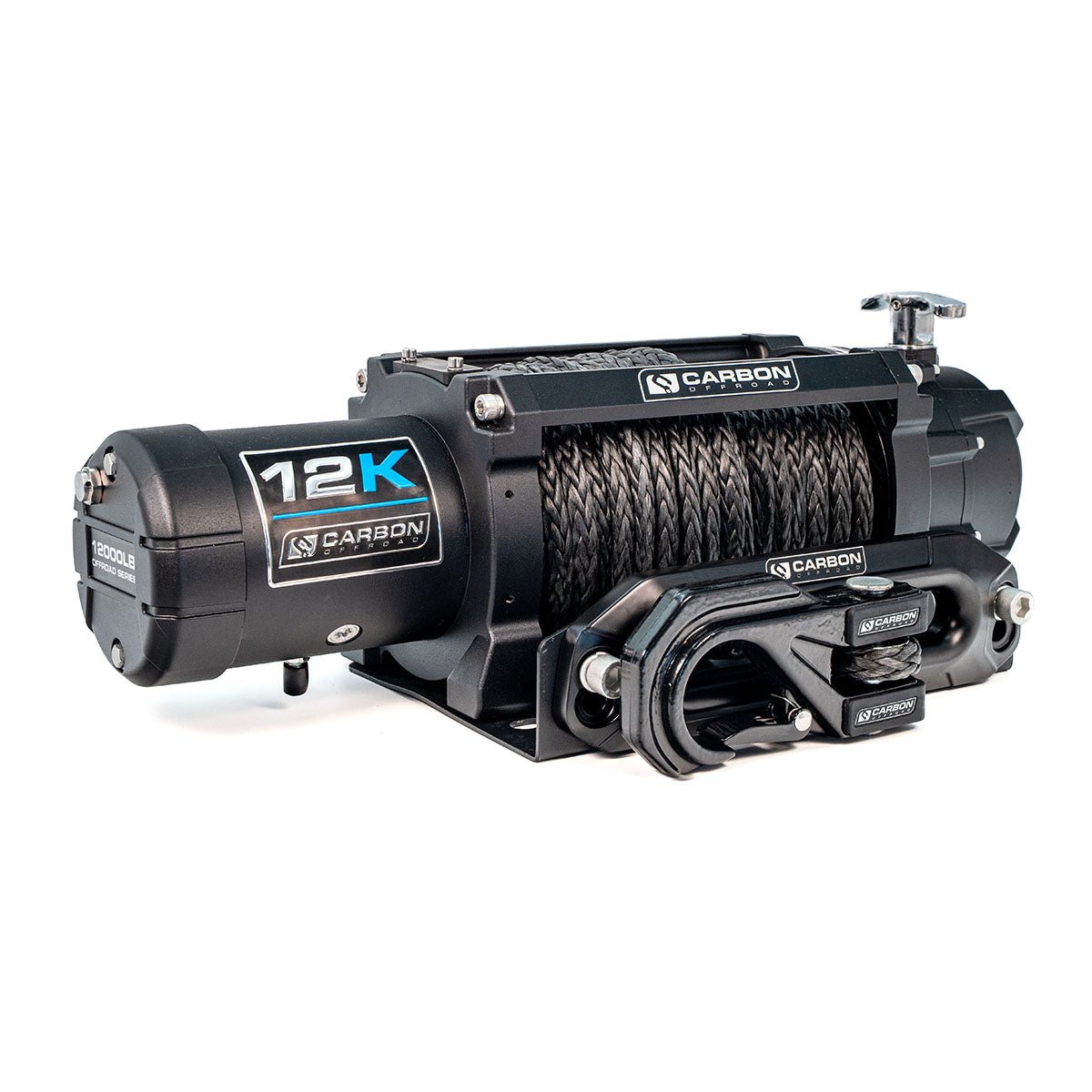

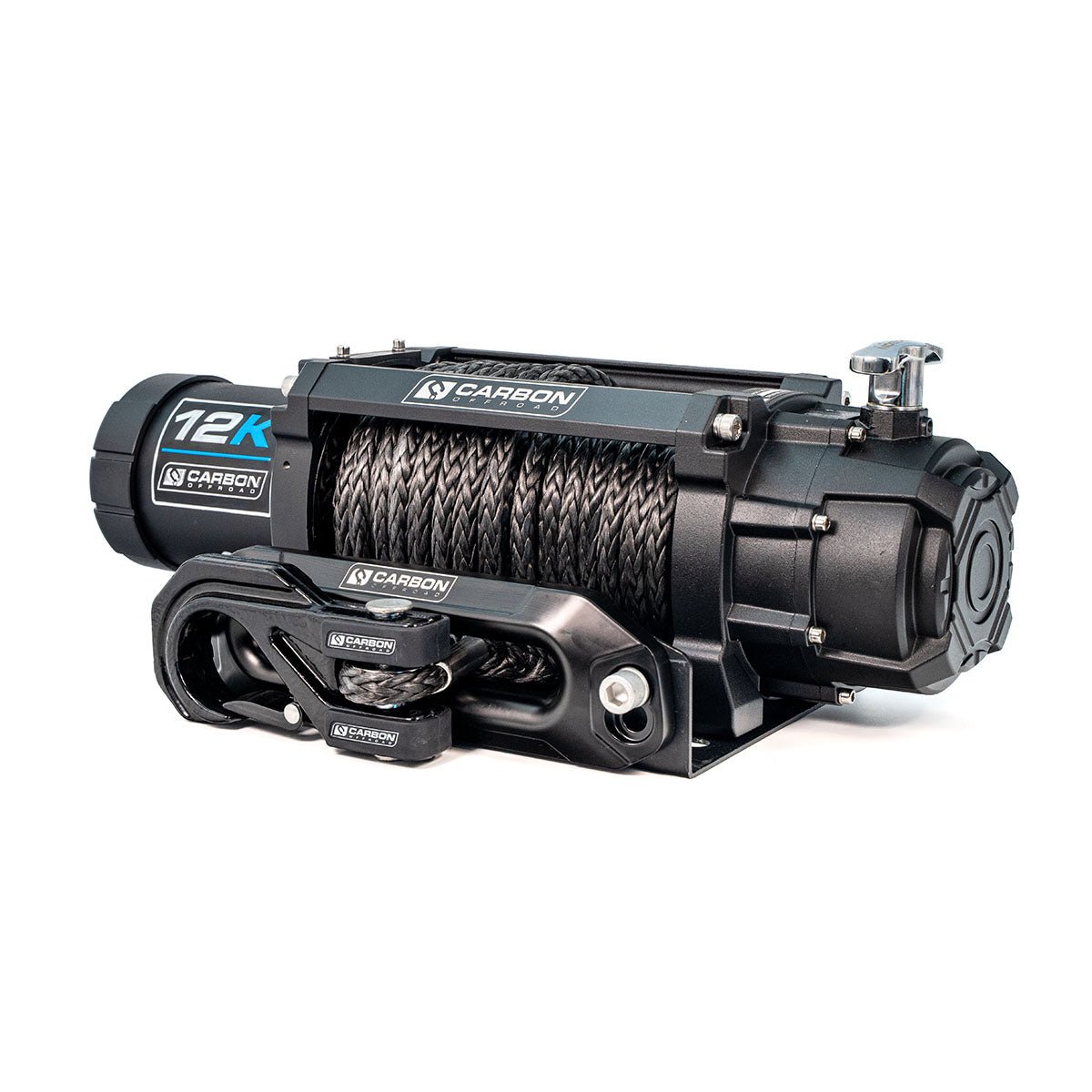

The Carbon 12K V3X is a lightweight, high-performance 12000lb (5450kg) electric winch designed to handle tough off-road conditions.
Overview
Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free; this winch features a breathable membrane-style motor breather for heat expansion and contraction.
Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware it’s ready for installation straight out of the box. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote from the safety and convenience of your driver's seat.
The Carbon 12K is a proven performer with countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind, it is backed here in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. It is designed to meet the rugged demands of off-road and utility use in Australian conditions, delivering reliable performance and service life.
Features
- Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.
- IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
- Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
- Complete Installation Kit: Includes a CNC'd anodised alloy signature Carbon fairlead paired with our robust MegaPro hook, plus an isolator switch with extra cabling for safety when not in use.
- Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

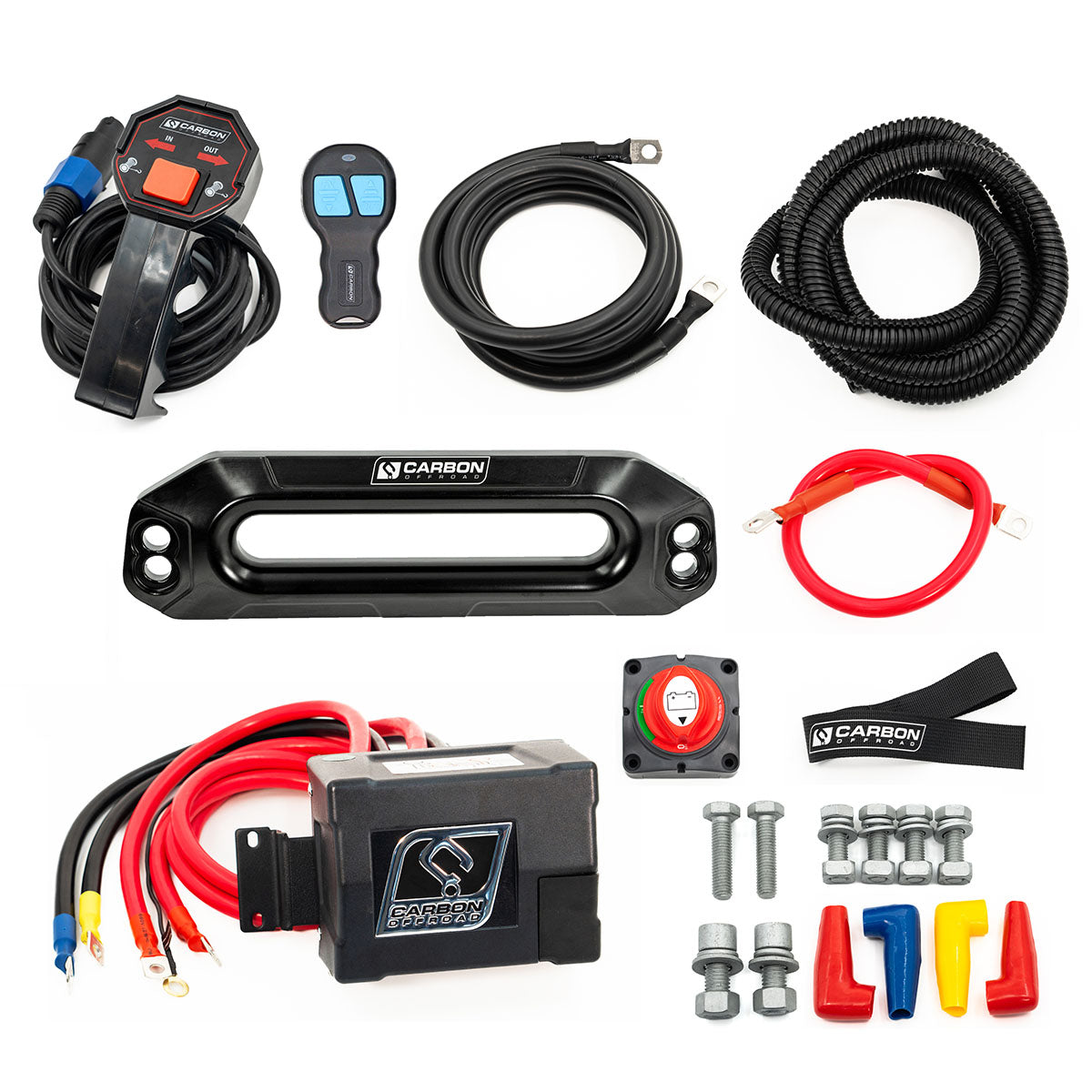

Contents
1 x Carbon 12K Winch V3X

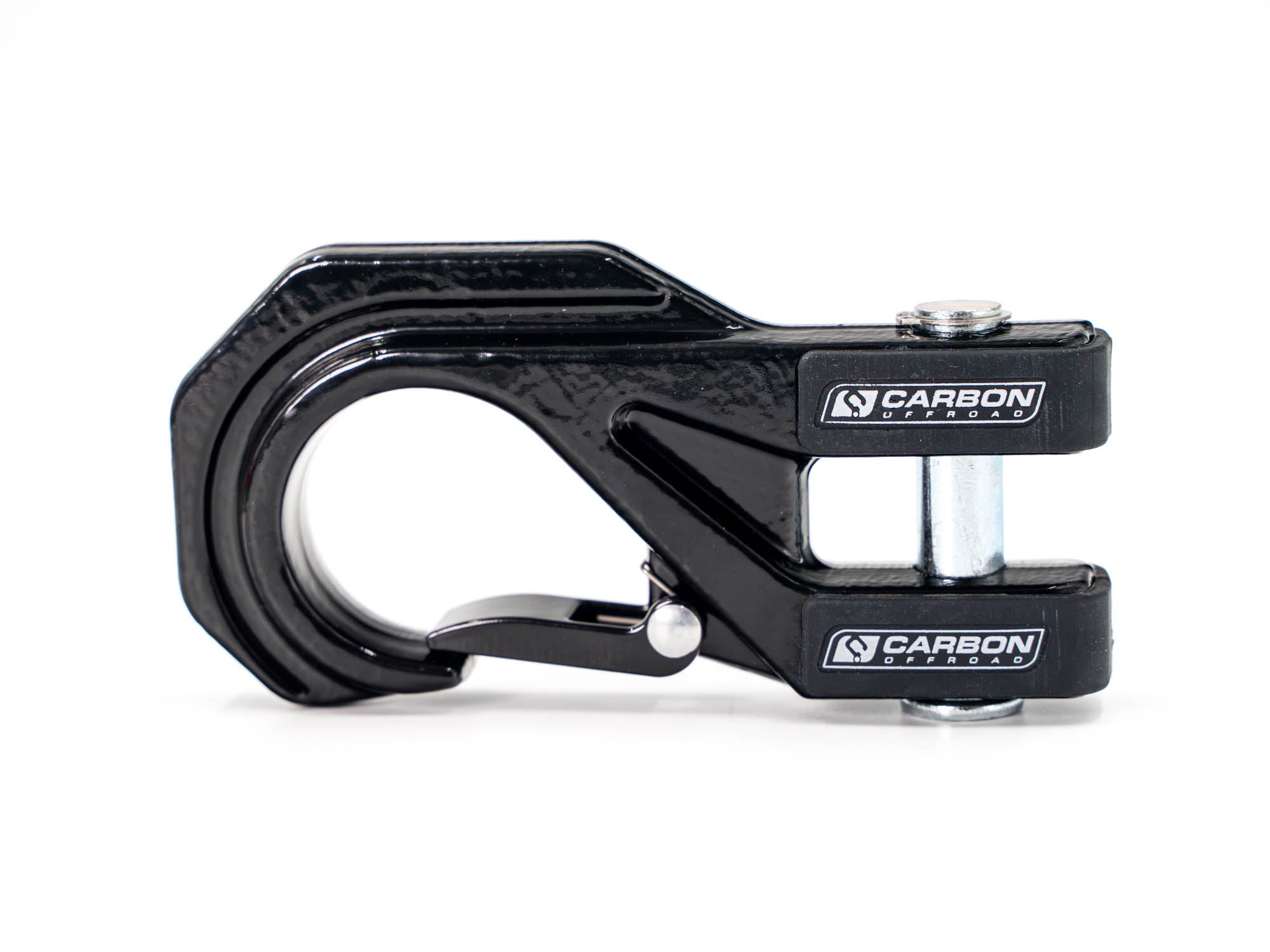

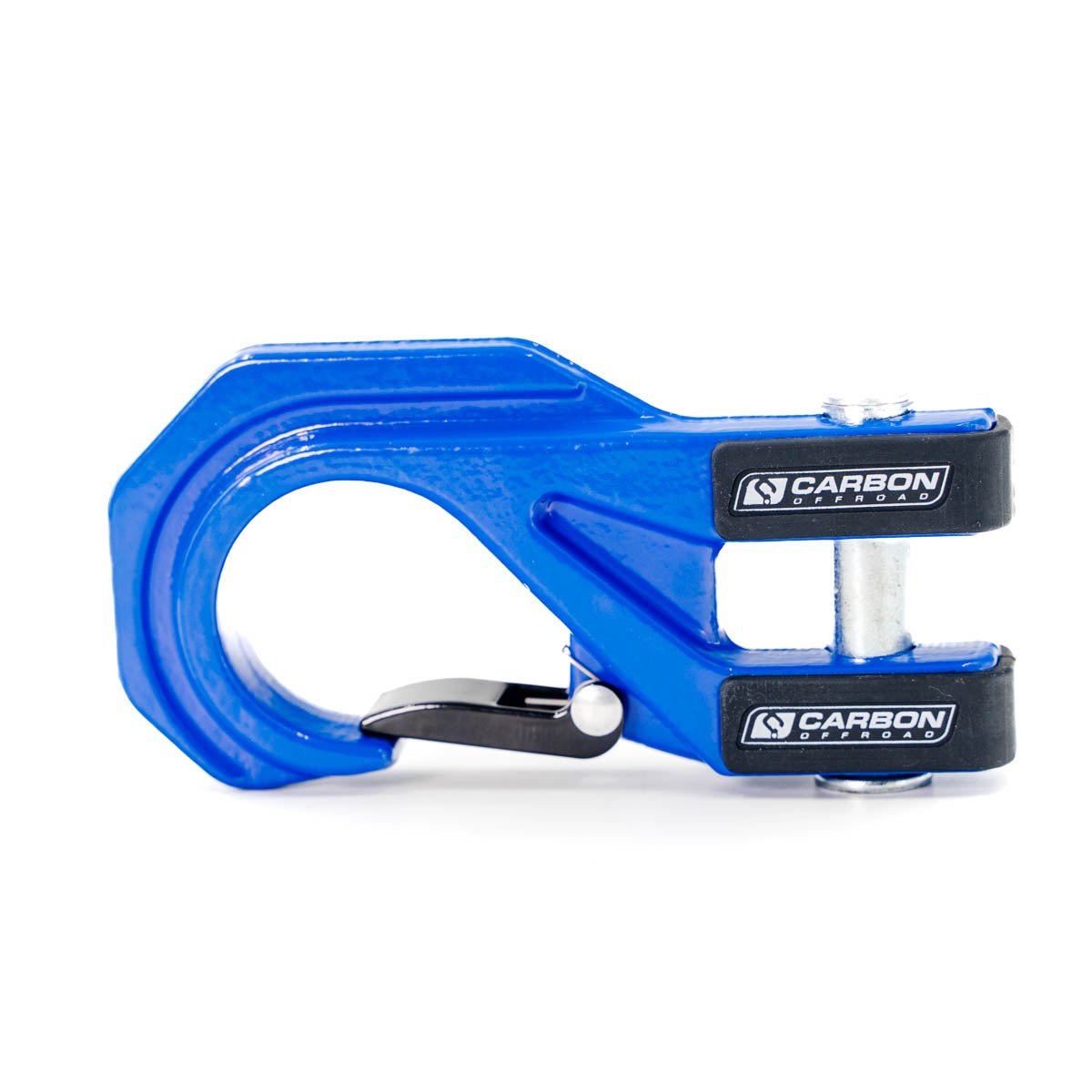

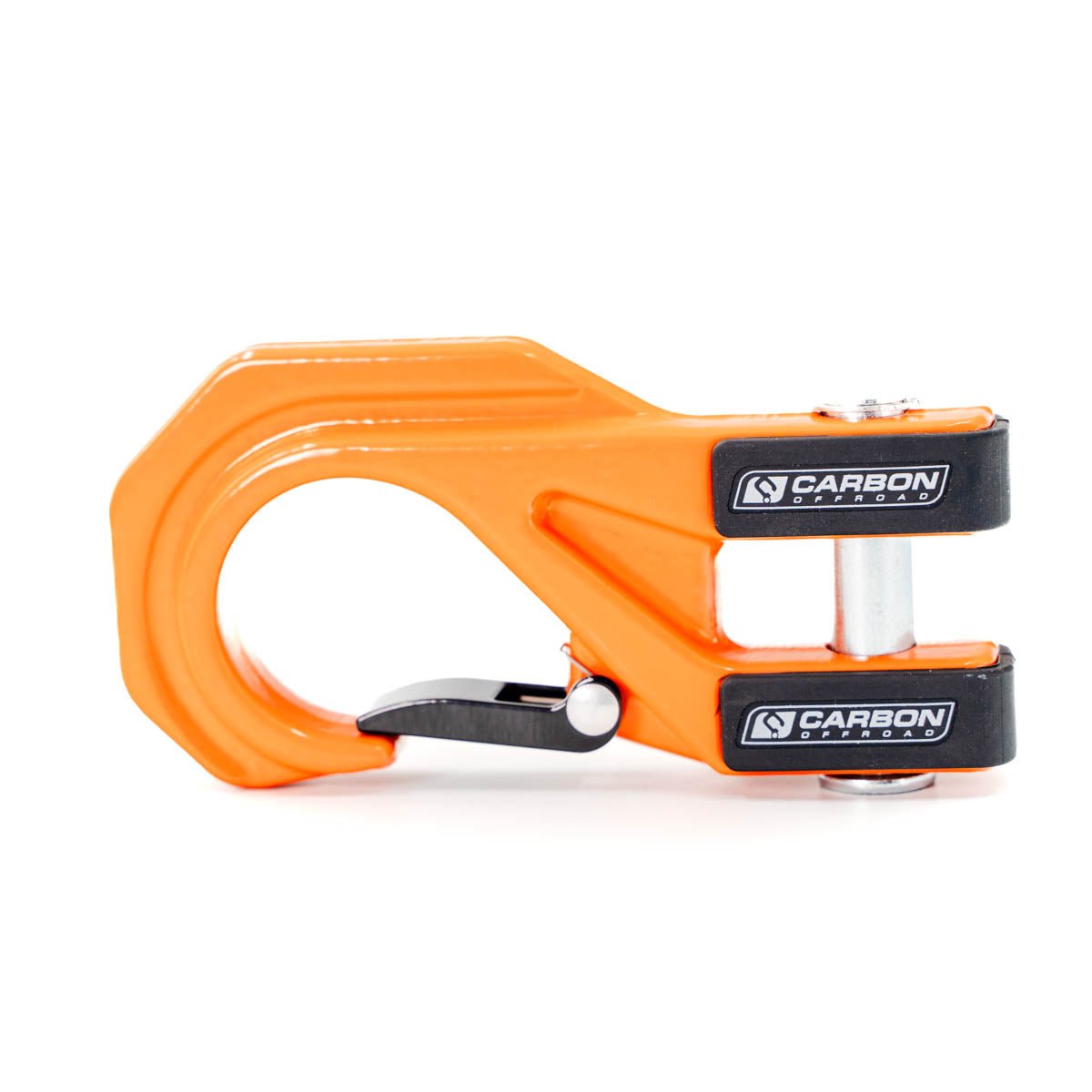

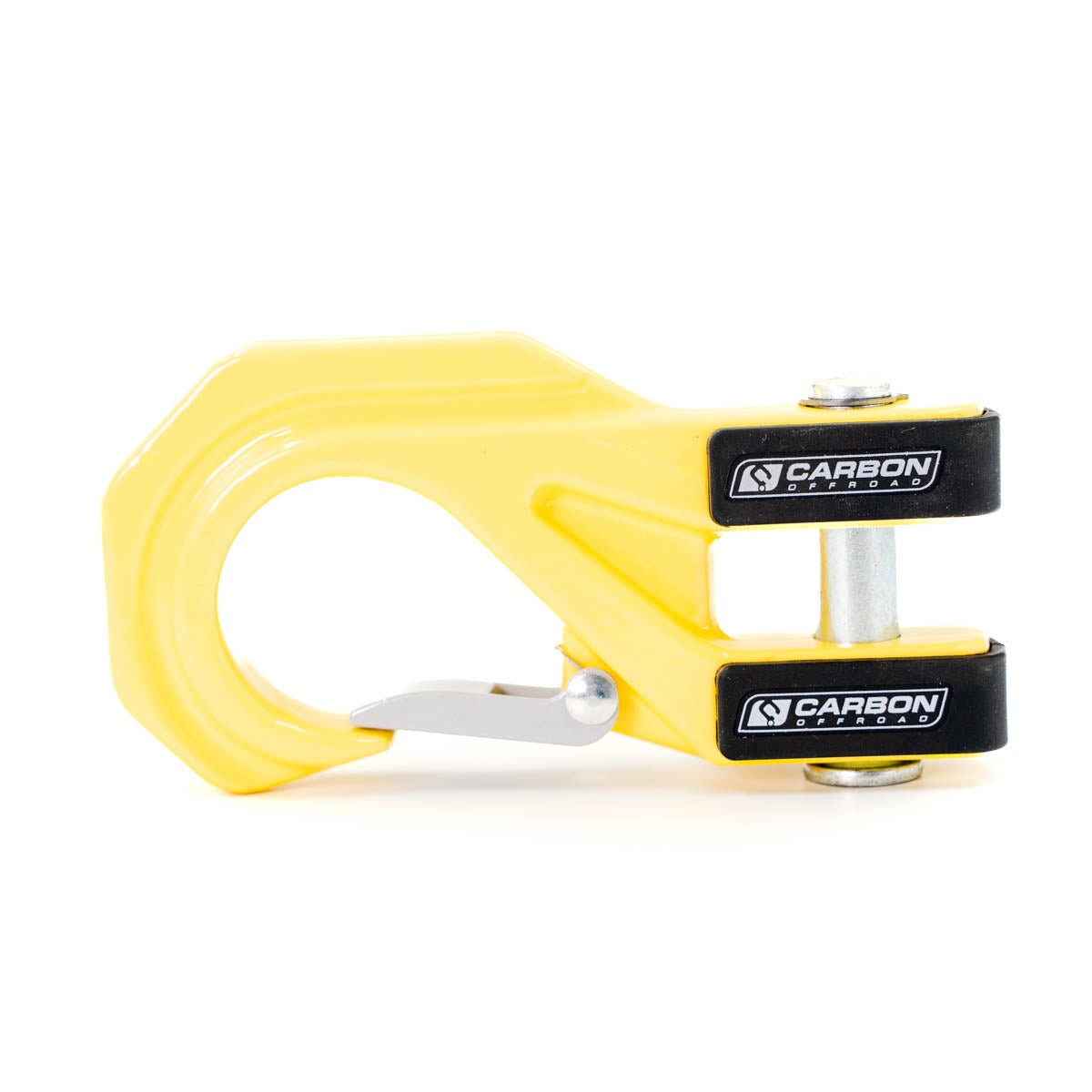

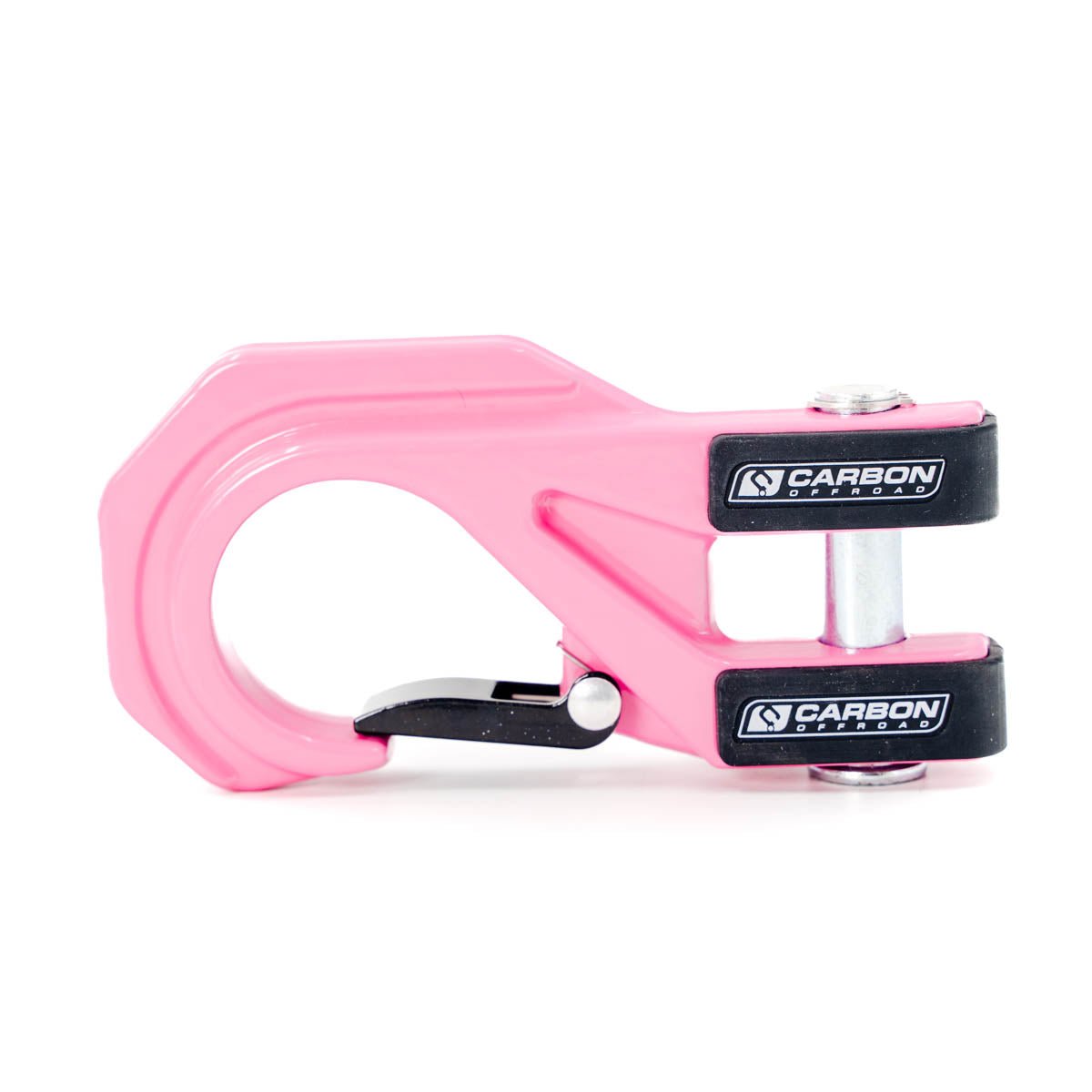

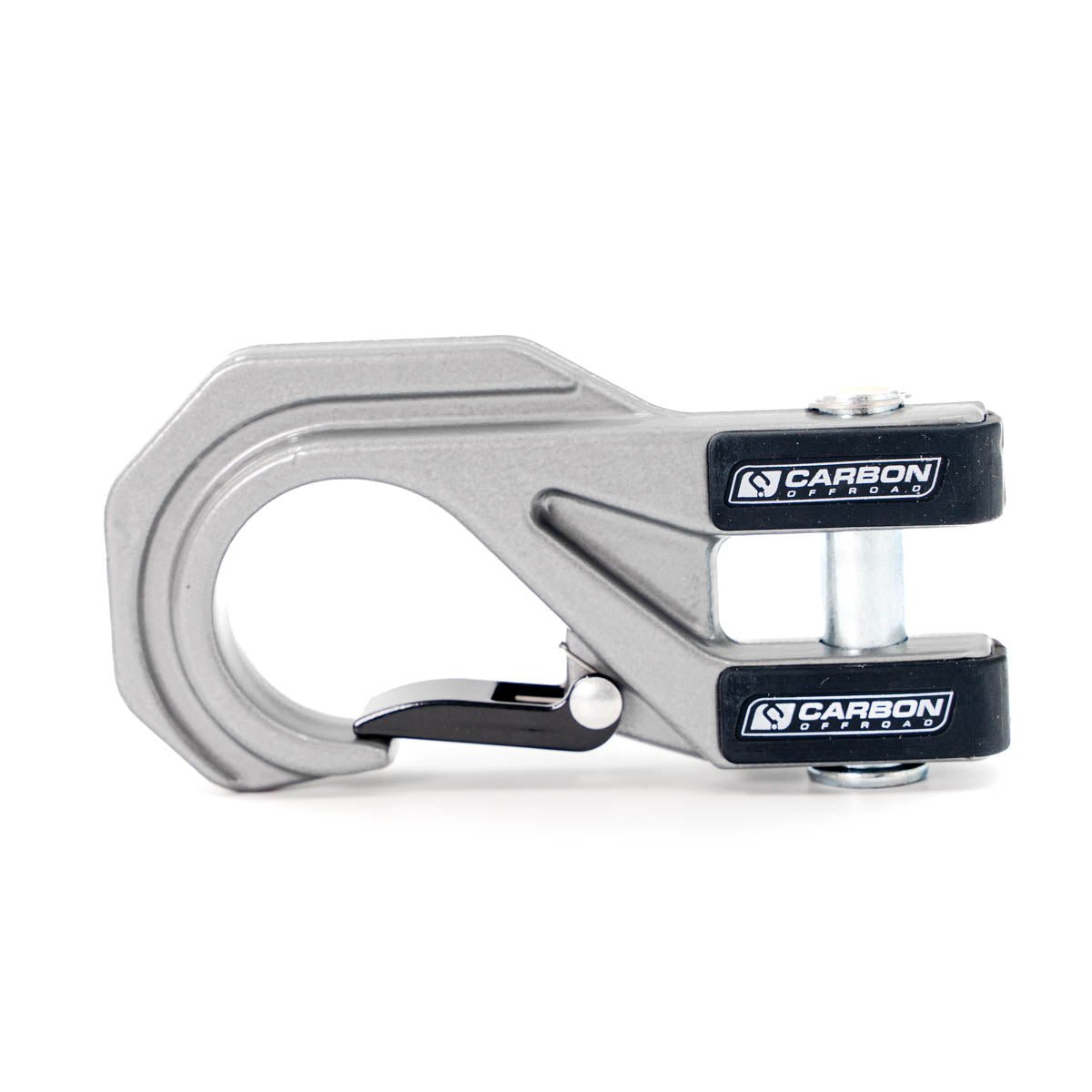

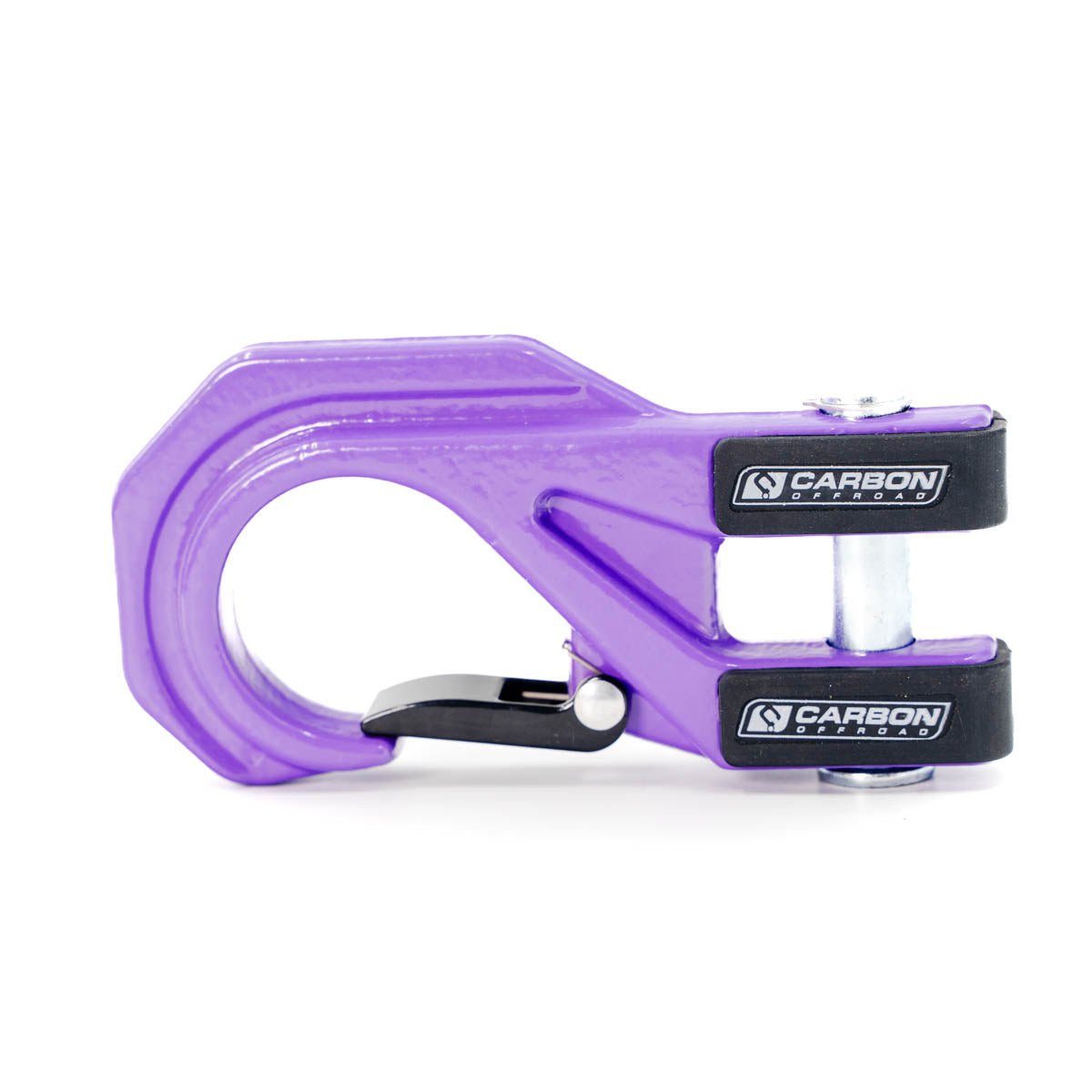

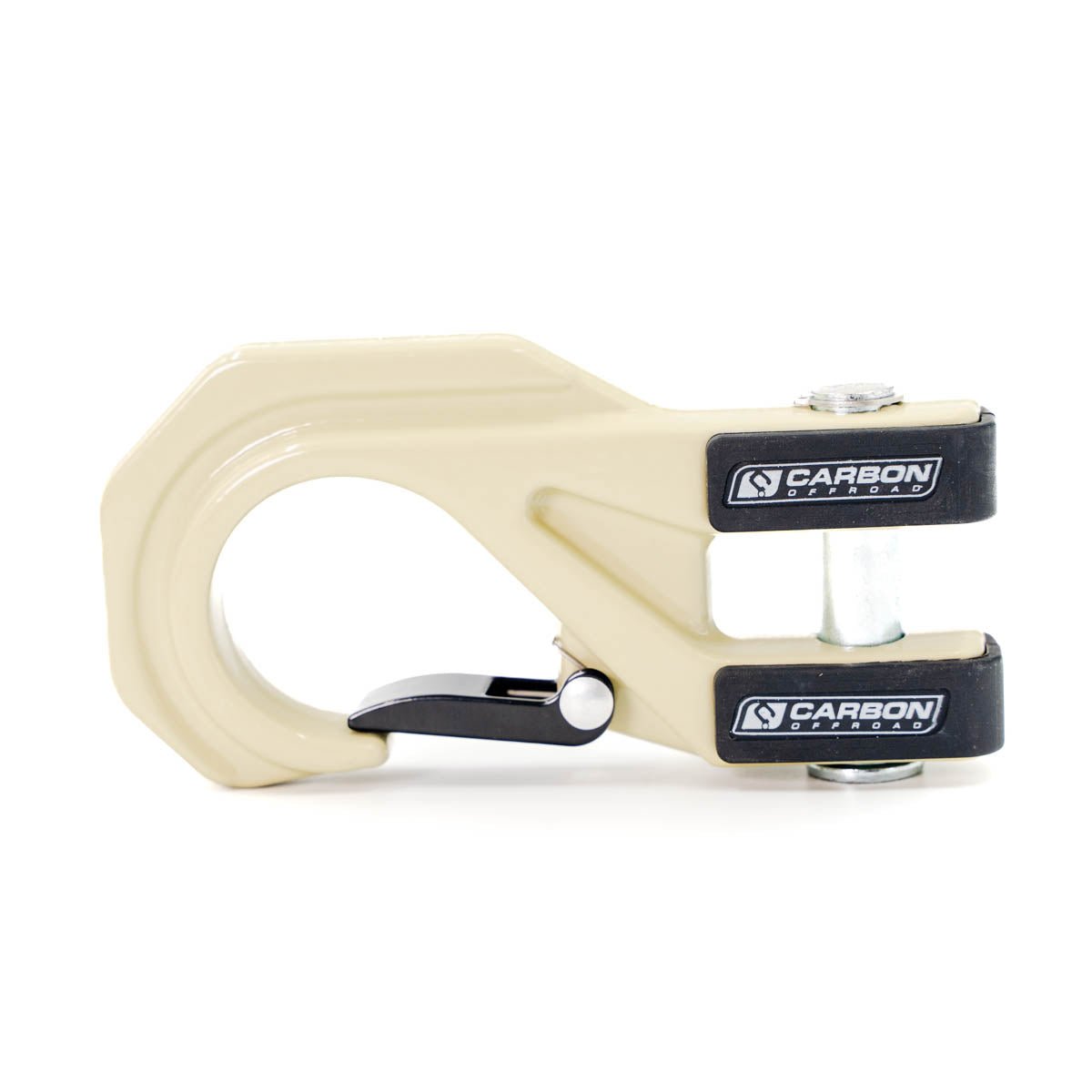

1 x MegaPro Hook
1 x Synthetic Rope (24m x 10mm diameter)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Wired Remote Control (12ft/3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch and Cabling
1 x Mounting Hardware Set
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-12KV3X |
| Rated Line Pull | 12000lbs (5450kg) single-line |
| Motor | 12V DC 6HP series wound motor |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 218:1 |

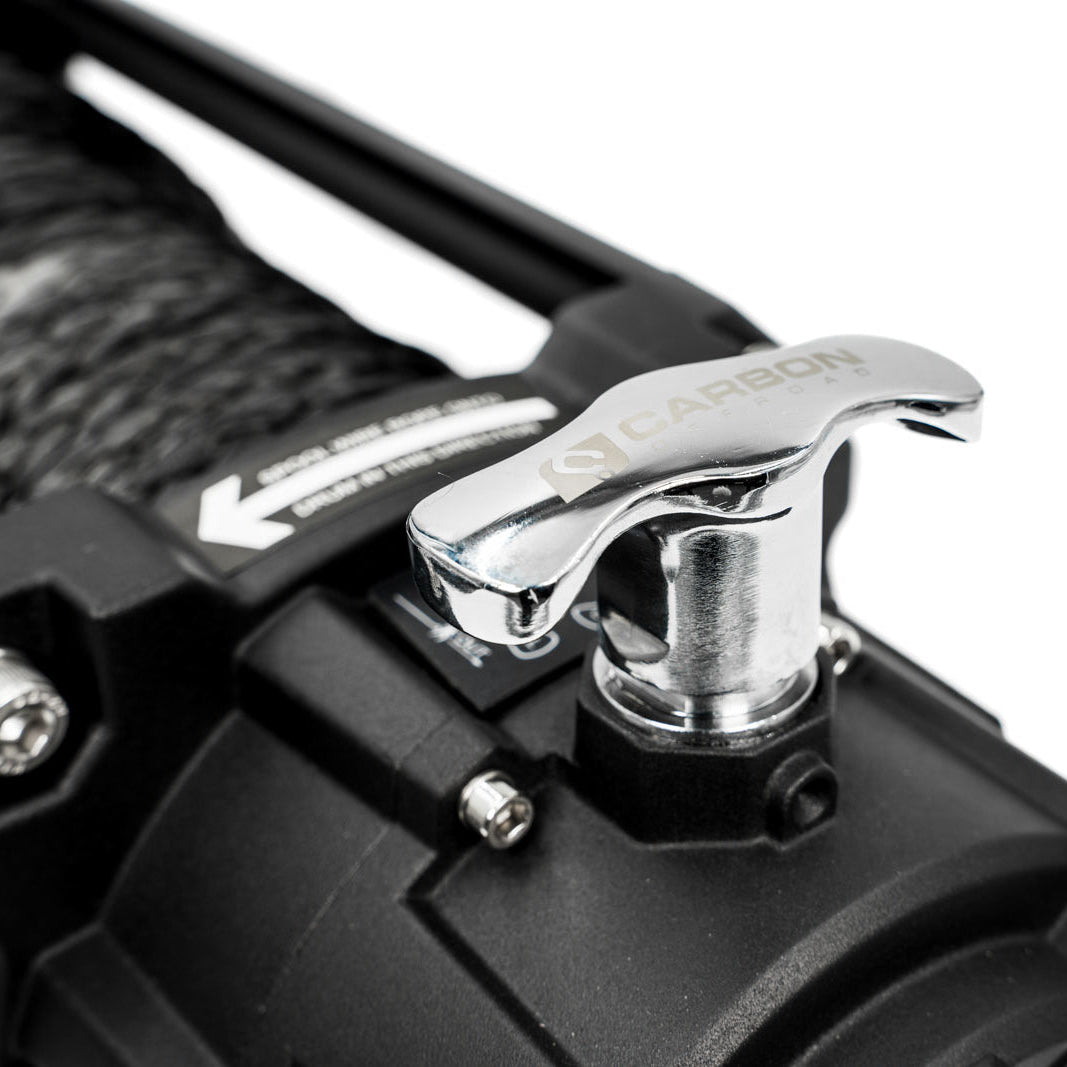

| Clutch (Free Spooling) | Rotating Ring Gear clutch with manual pull and twist handle |
| Brake | Full load automatic brake (installed in motor housing end plate) |

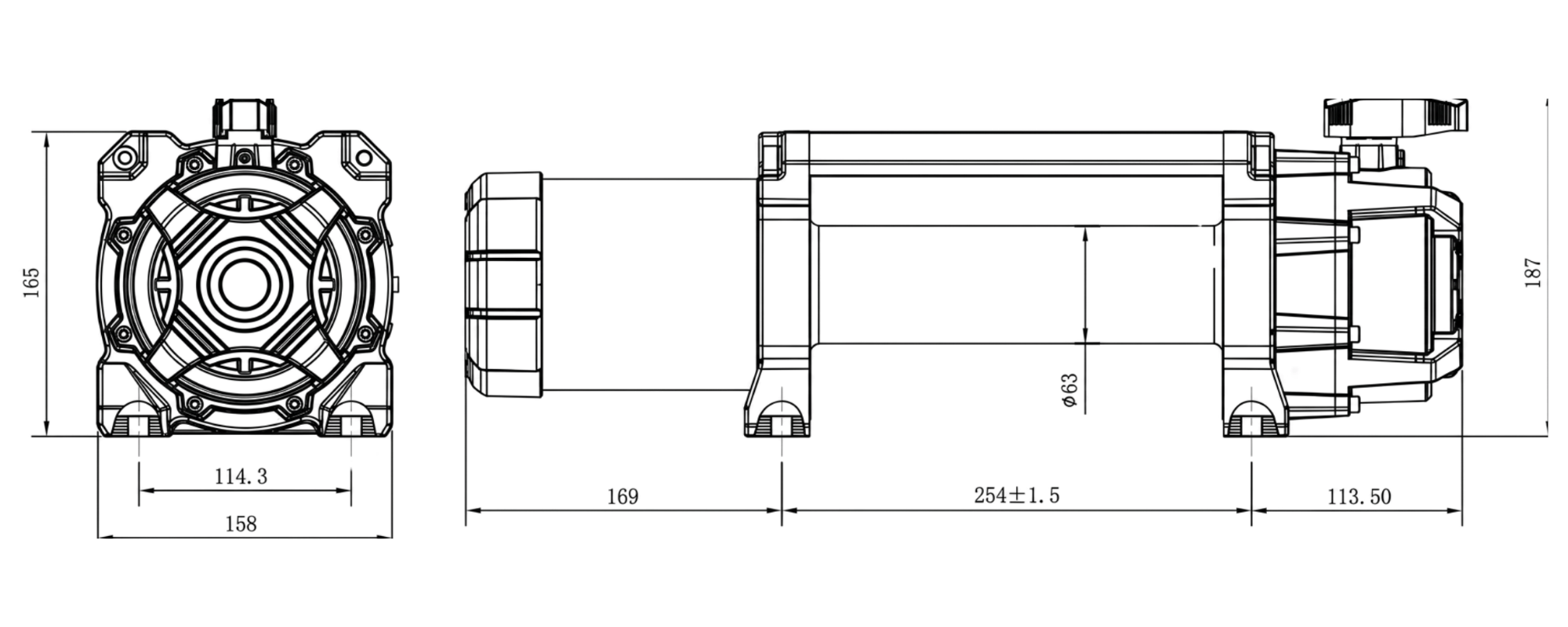

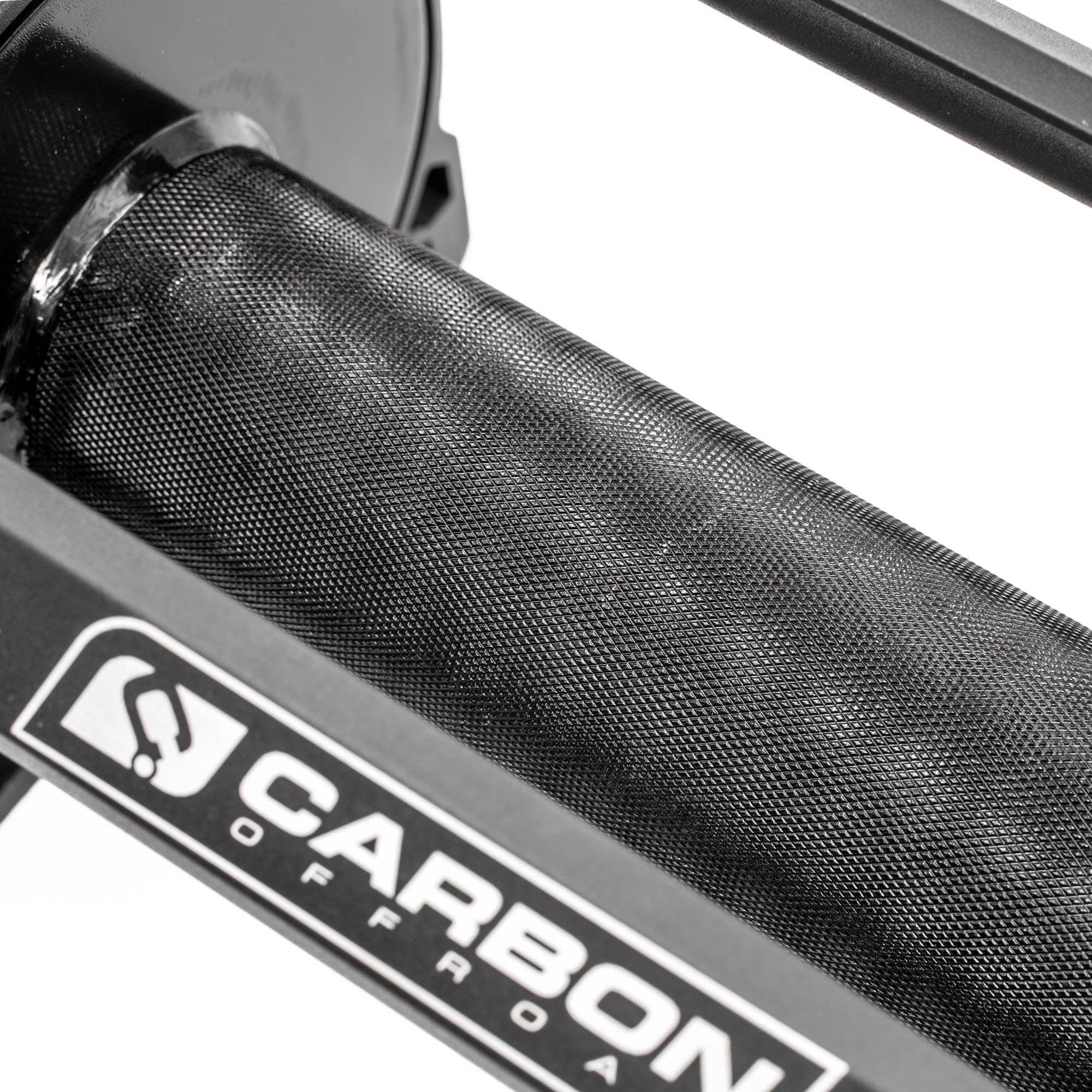

| Drum Diameter/Length | 63mm x 224mm |
| Mounting Bolt Pattern | 254mm x 114.3mm |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580 x 200 x 220mm (22.8" x 7.9" x 8.7") |
| Winch Weight (Version 3X) | 19.7kg (with synthetic rope attached) |
| Total Kit Weight | 26.65kg (including rope, control box, cables, bolts & fairlead) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60 | 1 / 12000 (5450) |
| 3000 (1360) | 15.4 (4.7) | 135 | 2 / 9800 (4450) |
| 6000 (2725) | 11.8 (3.6) | 220 | 3 / 8300 (3770) |
| 9000 (4090) | 8.5 (2.6) | 285 | 4 / 7200 (3270) |
| 12000 (4540) | 5.6 (1.7) | 340 |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60 | 1/12000 (5450) |
| 3000 (1360) | 15.4 (4.7) | 135 | 2/9800 (4450) |
| 6000 (2725) | 11.8 (3.6) | 220 | 3/8300 (3770) |
| 9000 (4090) | 8.5 (2.6) | 285 | 4/7200 (3270) |
| 12000 (4540) | 5.6 (1.7) | 340 |
How much weight will this add to my vehicle?
The total installed weight is just 26.65kg. Its lightweight construction helps minimize the load on your front suspension.
Is the winch built to handle mud and water?
Yes. It features an IP68 rating for top-tier water and dust protection. It also includes a membrane motor breather for excellent pressure and moisture management, making it proven for harsh Australian conditions.
What kind of rope and hardware are included?
It comes with a lightweight 24m x 10mm synthetic rope, alongside premium front-end hardware including a MegaPro Hook and an alloy fairlead.
How do I control the winch during a recovery?
You have complete flexibility with both wired and wireless remotes included. The winch utilizes a 218:1 Triple Planetary Gearbox to ensure slow, highly controlled pulling performance.
Does it come with everything needed for installation?
Yes, it is ready straight from the box with a complete installation kit. If you want to customize your setup, it is also compatible with an optional Air Freespool clutch upgrade.
What kind of warranty comes with the winch?
Limited Lifetime Mechanical Warranty. Alongside this long-term mechanical coverage, the winch is backed by a 5-year water and electrical warranty. And yes—our water warranty means we actually have you covered even if you end up submarining your vehicle in a bog hole. We offer comprehensive Australian warranty support to ensure you are backed for the long haul.
This is a bundle with no reviews of its own. The merchant set it to show reviews from the products it includes.
M
Installed the new winch hook it looks fantastic and is a great colour
A
Great winch in a very compact design.
G
Took around 2 minutes to swap over and it's been brilliant. Sits snug against the fairlead and keeps the rope out of harm's way. Also, it fits easily behind my flip up reg plate.
I can get both loops of my tree trunk protector in and out of it easily which was a struggle with my stock hook.
Definitely recommend this to anyone looking to speed up and simplify using their winch, and to get their winch rope away from the bash plate if you currently have your hook connected to a recovery point 👍🏻

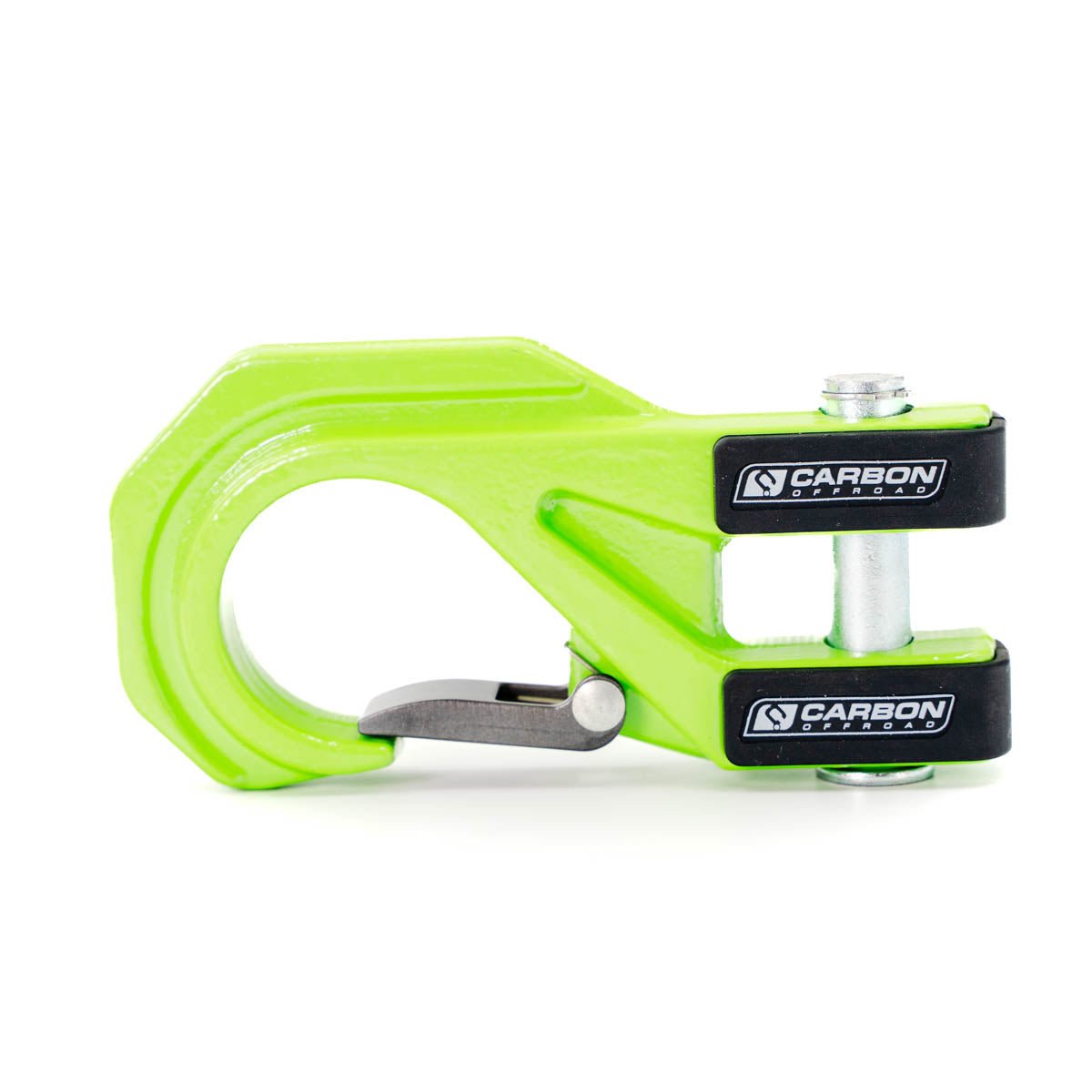

Finally ... My entire rig is now considered exotic because I chose the lamborghini-green coloured hook 🤣
J
I haven't had to use it yet, which is ideal. But the install was smooth, and it runs so quietly compared to my last one. I know it will get me out of my next situation with ease!
R

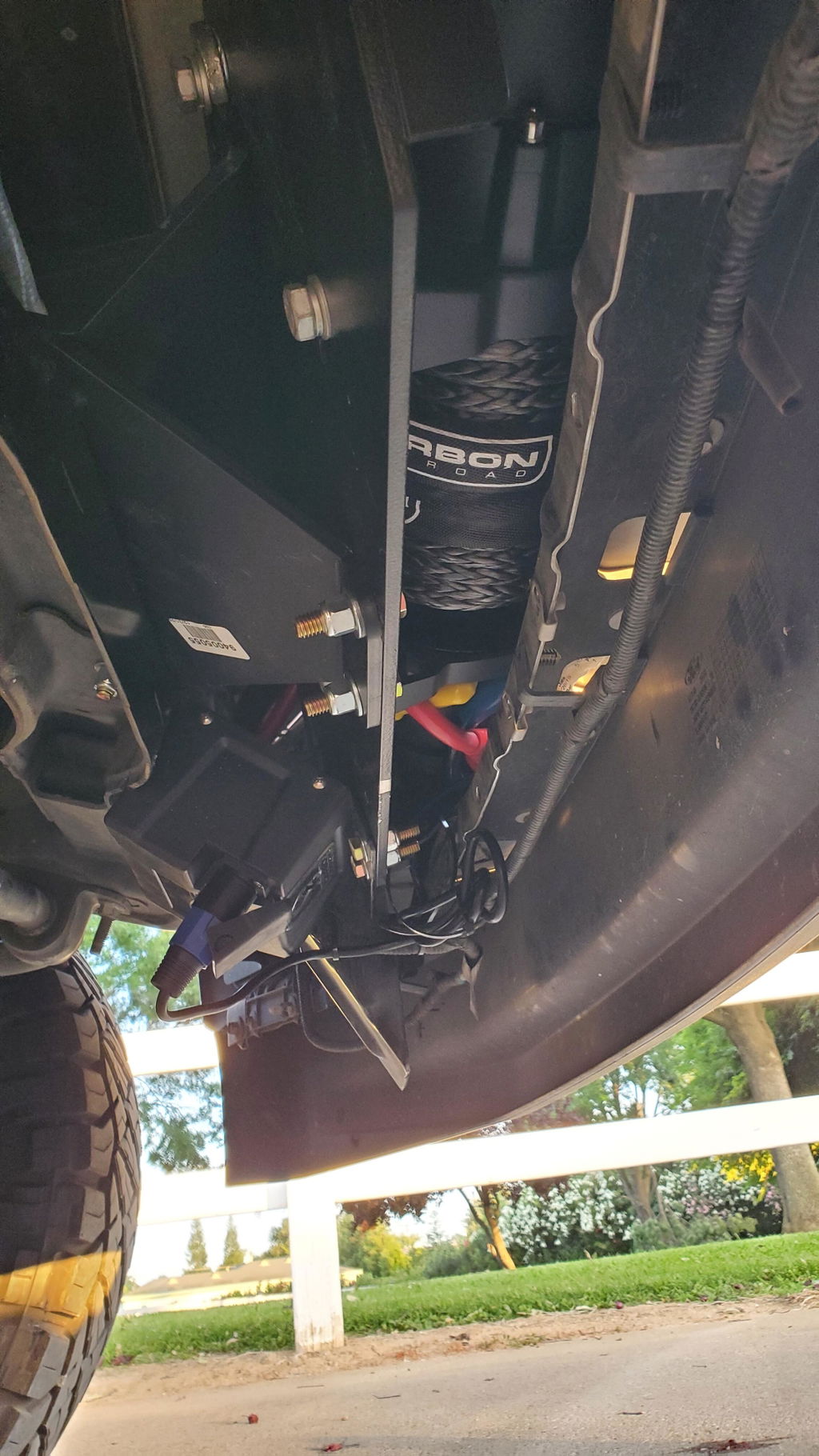

Installed into a pajero sport Piak front bar. Job has worked out good. Quality is high and the included winch bag is a bonus. Only small issue was the mounting washers collapsing under the correct torque, as the piak bar has large mounting holes. Upgraded them. The mounting bolts could be a bit longer so removed spring washers for now and used locktite. Love the winch hook and the way it pulls up tidy to the fairlead. Haven't used yet except for show and tell. Happy with purchase and quality. Highly recommend.
