Carbon Offroad RS9 High Speed Winch Kit

$1,699.00

Carbon Offroad MegaPro Winch Hook (Choose Your Colour)

BLACK BLUE GREEN ORANGE RED YELLOW PINK SANDY TAUPE PURPLE DIY RAW HOOK SILVER
Thumbnail for Carbon Offroad RS9 High Speed Winch Kit
Carbon Offroad RS9 High Speed Winch Kit
Carbon Offroad RS9 High Speed Winch Kit

Carbon Offroad RS9 High Speed Winch Kit

$1,699.00

When you’re racing, seconds disappear fast. The Scout Pro RS9 is for drivers who need line speed, control, and enough rope to choose the smart anchor without wasting time on resets.

The big advantage is reach. With 42m of 8mm Spectra Fiber synthetic rope, you can winch from farther back, grab cleaner anchor points, and link longer pulls. More line means more options, and options keep you moving.

Under the hood, it’s a simple formula: an 8HP 12V motor paired with an 80:1 gearbox. Built for repeat pulls when heat builds and the clock keeps running.

Finish it with IP68 sealing plus wired and wireless remotes, and you’ve got a winch setup made for hard use in competition, recovery, and high-demand off-road builds.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Carbon Offroad MegaPro Winch Hook (Choose Your Colour)

BLACK BLUE GREEN ORANGE RED YELLOW PINK SANDY TAUPE PURPLE DIY RAW HOOK SILVER

Quality Assured by Carbon Staff

Your Order Packed With Care
Technical Features Warranty
  • Rated line pull: 9,000lb (4,080kg)
  • Voltage: 12V
  • Motor: 8HP
  • Gear ratio: 80:1
  • Sealing: IP68 water/dust sealed
  • Rope: 8mm x 42m (5/16in x 137ft) Spectra Fiber synthetic rope
  • Mounting bolt pattern: 254 x 114.3mm (10in x 4.5in)
  • Drum diameter x length: 63 x 224mm (2.5in x 8.8in)
  • Winch dimensions (L x W x H): 572 x 158 x 187mm (22.52in x 6.22in x 7.36in)

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Rated line pull: 9,000lb (4,080kg)
  • Voltage: 12V
  • Motor: 8HP
  • Gear ratio: 80:1
  • Sealing: IP68 water/dust sealed
  • Rope: 8mm x 42m (5/16in x 137ft) Spectra Fiber synthetic rope
  • Mounting bolt pattern: 254 x 114.3mm (10in x 4.5in)
  • Drum diameter x length: 63 x 224mm (2.5in x 8.8in)
  • Winch dimensions (L x W x H): 572 x 158 x 187mm (22.52in x 6.22in x 7.36in)

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

Download Guide

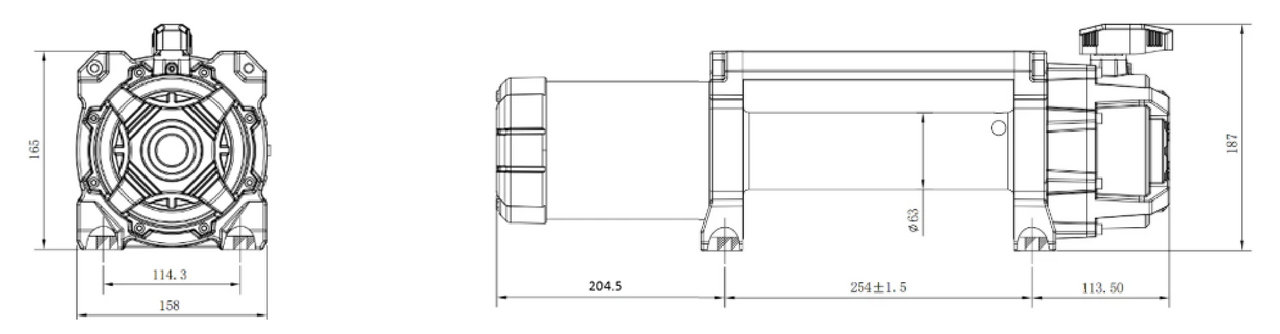

Winch Dimensions

Click Here for a Winch Dimension Comparison Chart
