Carbon 3.0k 3000lb ATV/Trailer Winch

SKU: CW-3U

$399.00

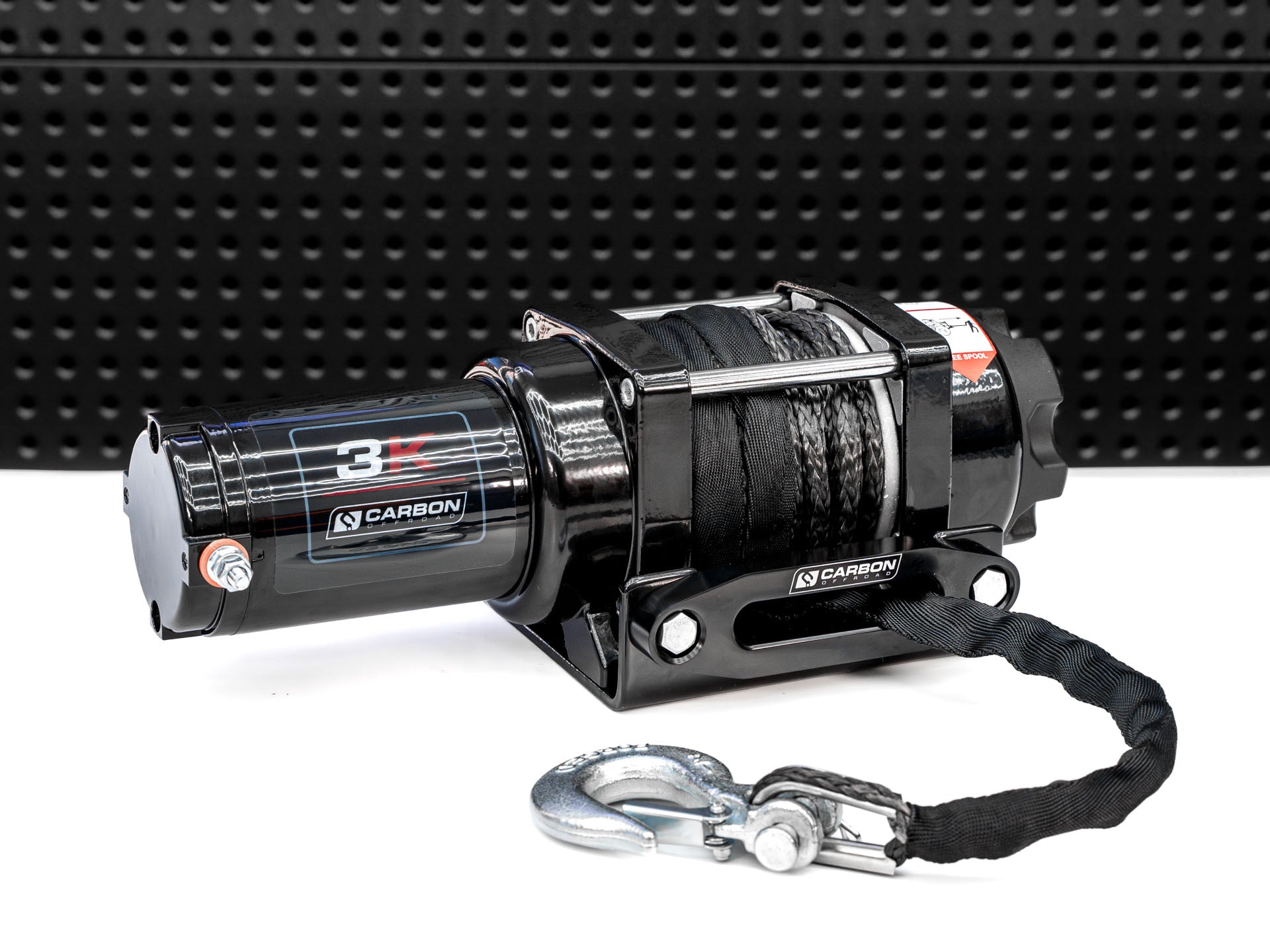

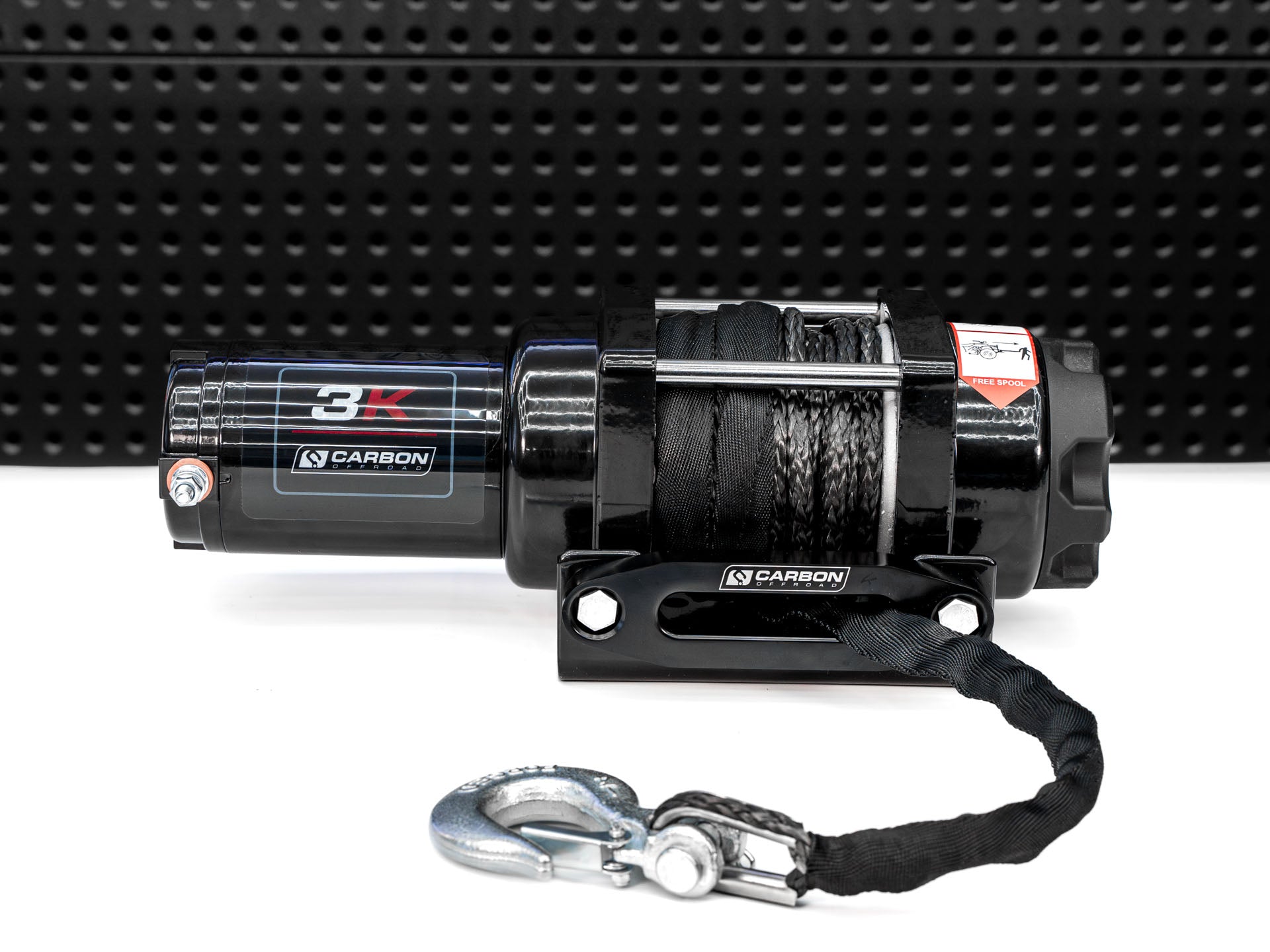

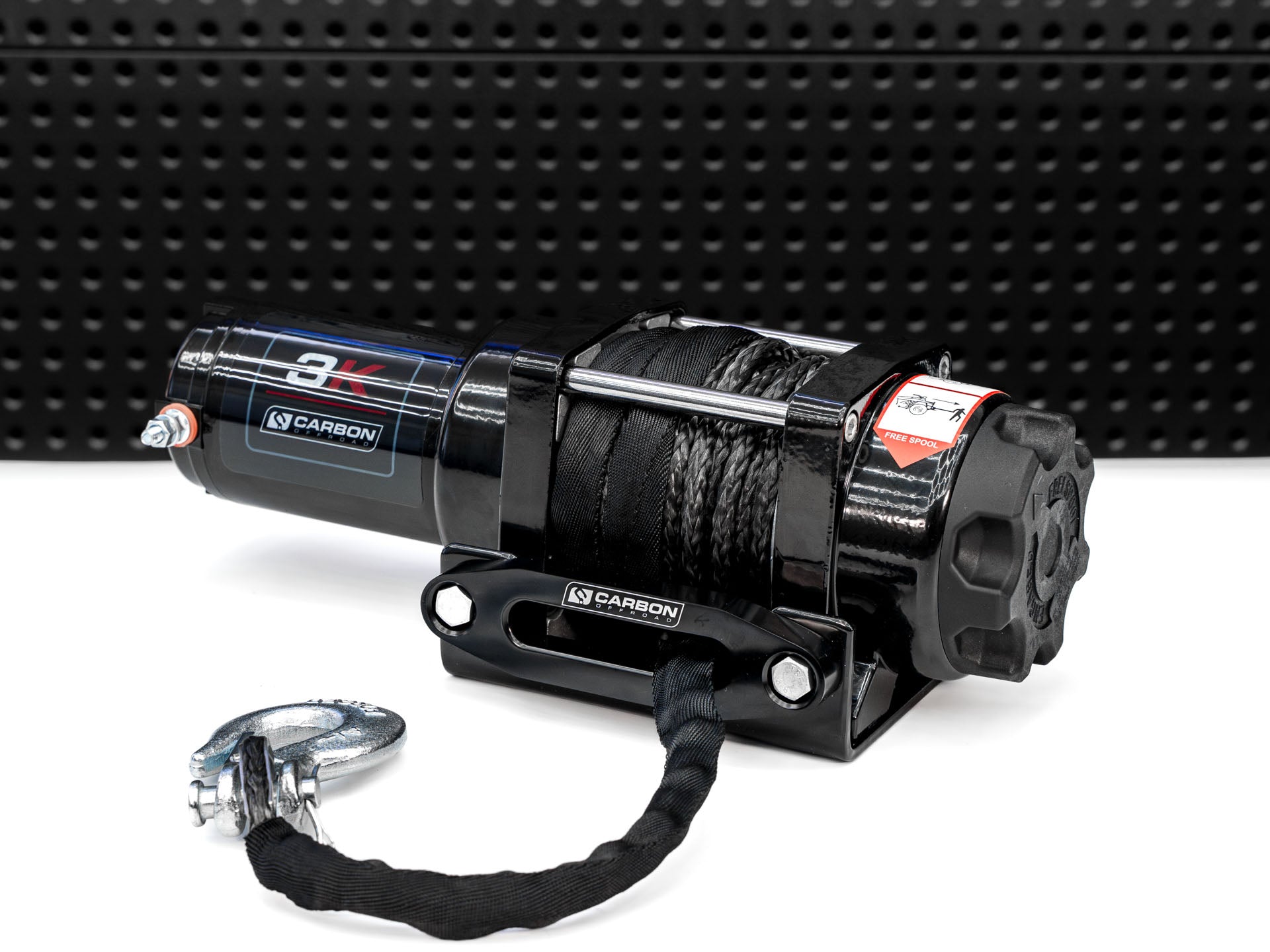

Carbon CW-3U 3,000 lb Light-Duty Winch – Compact 12V DC winch with single-stage planetary gear, synthetic rope, roller fairlead, and wired & wireless remotes. Ideal for small trailers, ATVs, and light utility tasks.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Quality Assured by Carbon Staff

Your Order Packed With Care
Key Features & Specifications Dimensions Warranty
  • Rated Line Pull: 3,000 lbs (1360 kg), single-line
  • Motor: 12V DC, 1.5 HP Permanent Magnet Motor
  • Remote Controls: Wired remote with 12 ft (3.7 m) lead; Wireless remote included
  • Geartrain: Single-stage planetary
  • Gear Ratio: 153:1
  • Clutch (Free-Spooling): Split ring gear
  • Brake System: Self-locking gear train (rated load holding)
  • Drum Dimensions: 1.26” diameter × 2.87” length (32 mm × 73 mm)
  • Synthetic Rope: 43 ft × 3/16” diameter (13 m × 4.8 mm)
  • Fairlead: Roller
  • Mounting Bolt Pattern: 3.0” × 4.87” (76 mm × 124 mm)
  • Winch Dimensions: 12.2” × 5.0” × 5.0” (310 mm × 127 mm × 127 mm)
  • Packing Dimensions: 15.7” × 7.9” × 8.7” (400 mm × 200 mm × 220 mm)
  • Shipping Weight: 22 lbs (10 kg)
  • Warranty: 1 year


Click here for an ATV Winch Dimension Comparison Chart

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Rated Line Pull: 3,000 lbs (1360 kg), single-line
  • Motor: 12V DC, 1.5 HP Permanent Magnet Motor
  • Remote Controls: Wired remote with 12 ft (3.7 m) lead; Wireless remote included
  • Geartrain: Single-stage planetary
  • Gear Ratio: 153:1
  • Clutch (Free-Spooling): Split ring gear
  • Brake System: Self-locking gear train (rated load holding)
  • Drum Dimensions: 1.26” diameter × 2.87” length (32 mm × 73 mm)
  • Synthetic Rope: 43 ft × 3/16” diameter (13 m × 4.8 mm)
  • Fairlead: Roller
  • Mounting Bolt Pattern: 3.0” × 4.87” (76 mm × 124 mm)
  • Winch Dimensions: 12.2” × 5.0” × 5.0” (310 mm × 127 mm × 127 mm)
  • Packing Dimensions: 15.7” × 7.9” × 8.7” (400 mm × 200 mm × 220 mm)
  • Shipping Weight: 22 lbs (10 kg)
  • Warranty: 1 year
Previous Product Next Product

Speed & Performance Breakdown

12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 20.4(6.2) 10 1/3000(1360)
1000(453) 14.2(4.3)  65 3/2725(1235)
2000(907)  10.9(3.3)  96 3/2480(1125)
3000(1360) 7.7(2.4) - -
