CW-XD20BLK
$1,799.10
$1,999.00
Tax included.
Shipping calculated at checkout.
Special Bonus Unlock
Limited Time Offer!
Quantity
Description
Extreme Duty Recovery Power
The Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch is engineered to deliver reliable performance in demanding off-road and recovery environments, featuring a massive 7HP series-wound motor and an ultra-low 354:1 three-stage planetary gearbox.
Overview
The Carbon Offroad Scout 20K is a high-capacity recovery powerhouse. With a rated pulling capacity of 9072kg (20000lbs), the CW-XD20 is specifically suited to hauling heavy trailers, recovering large commercial vehicles, and operating in extreme terrain where consistent, unstoppable pulling power is required.
For ultimate convenience, you can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for seamless integration with the Scout Pro series.
Features
- Colossal Pulling Capacity: Delivers a massive 9072kg (20000lbs) single-line pull for heavy-duty trucks and industrial recovery.
- Proportional Braking: The automatic brake system integrated within the motor frame applies force based on the load, significantly reducing heat buildup on the drum.
- MegaPro Premium Components: Includes the multi-position CNC billet type 3 hard anodised fairlead for maximum protection of your high-capacity synthetic rope.

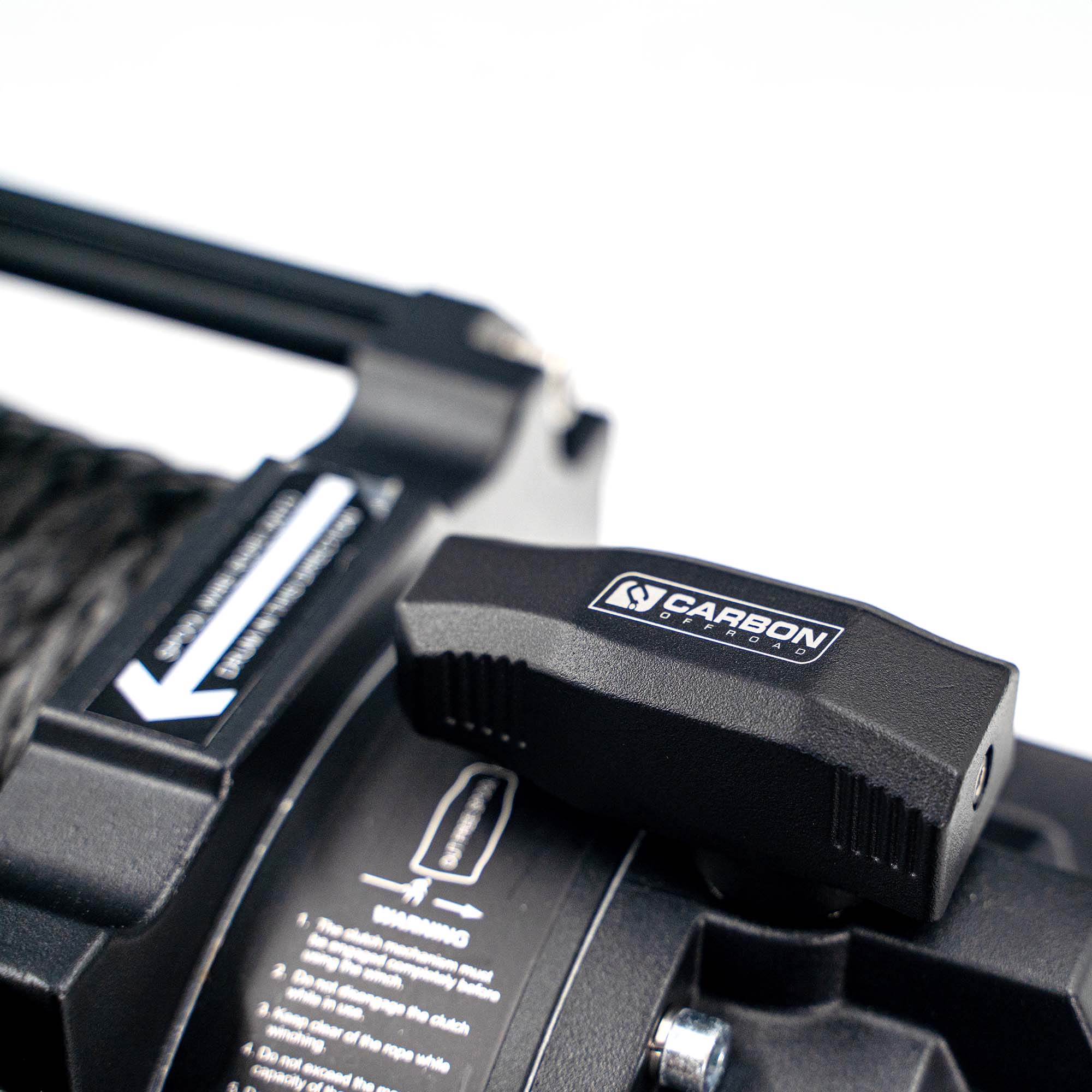

- Rotating Ring Gear Clutch: Provides easy switching between freespool and engaged modes for rapid deployment.
- Weatherproof Electronics: Features a 600A sealed solenoid and an IP68 rating for protection against water ingress and dust.
- Unmatched Warranty: Backed by a Lifetime Mechanical Warranty and 5-Year Electrical and Water Ingress Protection.
Contents
1 x Carbon Offroad Scout Pro 20K Truck Winch
1 x Synthetic Rope (25m x 13mm / 82ft x 0.5")
1 x MEGAPRO CNC Billet Fairlead
1 x 600A Sealed Solenoid & Control Box
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Hardware Kit
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD20 |
| Rated Line Pull | 9072kg (20000lbs) single-line |
| Motor | 12V DC 7HP Series Wound |
| Gear Ratio | 354:1 3-Stage Planetary |
| Synthetic Rope | 25m x 13mm (82ft x 0.5") |

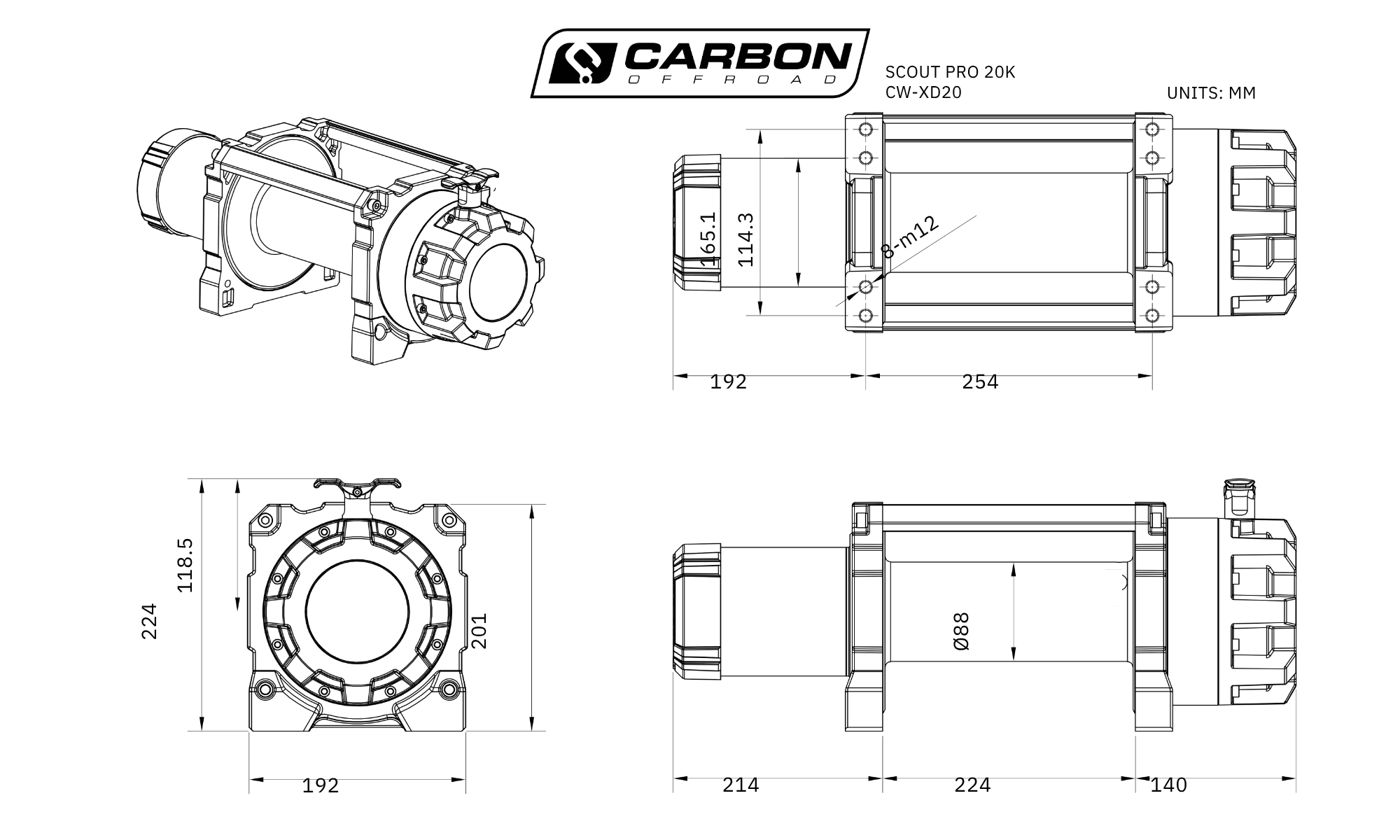

| Drum Dimensions (D x L) | 88mm x 224mm (3.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Winch Dimensions (L x W x H) | 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") |
| Recommended Battery | 650 CCA minimum |
| Installed Weight | 31.7kg (69.9lbs) |
| Total Kit Weight | 37.2kg (82.0lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70 | 1 / 20000 (9072) |
| 4000 (1814) | 10.8 (3.3) | 145 | 2 / 16140 (7321) |
| 8000 (3629) | 8.5 (2.6) | 230 | 3 / 13520 (6133) |
| 12000 (5443) | 6.2 (1.9) | 310 | 4 / 11660 (5289) |
| 16000 (7257) | 4.6 (1.4) | 390 | - |
| 20000 (9072) | 3.3 (1.0) | 460 | - |
Carbon Scout Pro - 20000lb Extreme Duty Truck Winch
BLACK
$1,799.10
$1,999.00
Commercial Grade Pulling Power
Engineered for a massive 9072kg single-line load. Built specifically for full-size imported pick-ups, light trucks and heavy agricultural setups. It is designed to handle the tough Aussie transport industry and serious heavy-duty offroad use.
7.0HP Motor - 354:1 Gearing
Packs a heavy-duty 7HP series-wound motor paired with an ultra-low 354:1 three-stage planetary gearbox. This combination gives you consistent torque and unstoppable momentum under extreme loads.
Proportional Braking System
An automatic brake system integrated within the motor frame that applies force based on the load to reduce heat buildup on the drum.
Premium 13mm Synthetic Rope
Spooled with 25 metres of ultra-thick 13mm synthetic rope. You get massive tension capacity without the dangerous weight and snapback of traditional steel cable.
IP68 Sealed Electronics
Runs a heavy-duty 600A sealed solenoid. The entire unit is completely IP68 rated to keep water, mud and dust out of the critical components.
Air Freespool Ready
Comes standard with a rotating ring gear clutch for easy manual operation. It is also fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade for rapid deployment from the cab.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70 | 1 / 20000 (9072) |
| 4000 (1814) | 10.8 (3.3) | 145 | 2 / 16140 (7321) |
| 8000 (3629) | 8.5 (2.6) | 230 | 3 / 13520 (6133) |
| 12000 (5443) | 6.2 (1.9) | 310 | 4 / 11660 (5289) |
| 16000 (7257) | 4.6 (1.4) | 390 | |
| 20000 (9072) | 3.3 (1.0) | 460 |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
