Carbon 3.0k 3000lb ATV - Trailer Winch
$399.00
The Ultimate Light Duty Workhorse
The Carbon 3000lb gives you the exact capacity you need in a smart, compact footprint.
It pulls 1360kg using a highly efficient 1.5 HP motor, and the entire setup weighs just 9kg installed. It is engineered to drop easily into spaces requiring a smaller form factor, giving you a clean and simple installation.
Whether you are pulling a quad bike up trailer ramps, hauling light machinery into a van, or building a compact utility rig, this setup provides smooth, reliable pulling power exactly where you need it.
Ultra-Compact Footprint
Designed specifically for tight spaces. It uses a tiny 76mm x 124mm mounting bolt pattern and weighs just 9kg fully fitted, allowing you to mount it easily to small trailer pedestals or ATV racks.
Local Expert Support & 150+ Dealers
We are stocked by over 150 authorized dealers across Australia. Better yet, when you need support, you are talking to real wheelers who actually use this gear. You get local backup from people who know exactly what they are talking about.
Extensive Carbon Warranty
Covered by our Limited Lifetime Mechanical Warranty and a 5-year Electrical Warranty. Even our smallest utility winches are built to work hard, so you get total peace of mind on the job.
3000lb Pulling Power
Powered by a 12V 1.5 HP permanent magnet motor and a 153:1 planetary gear ratio. It delivers 1360kg of single-line pull, giving you the perfect amount of torque for light ATVs, small trailers, and everyday utility tasks.
Wired & Wirelss Controls
You get complete control straight out of the box. The kit includes a wireless remote for safe operation from a distance, plus a 2-metre wired remote as a reliable physical backup.
Compact and Reliable Light-Duty Winch
The Carbon CW-3U 3.0K 3000lb Winch delivers exceptional value, combining reliability and premium quality in a compact design. Built for light-duty applications with a 3000 lbs capacity, this winch is engineered to handle a variety of towing and utility tasks effortlessly.
Overview
Designed with convenience in mind, it features both a handheld wired remote and a wireless remote control, allowing seamless operation of the power-in/power-out functions. Enhanced with tie rods for added stability, the CW-3U ensures durability and performance when you need it most.
The Carbon CW-3U is an excellent choice for small trailers, ATVs, and light-duty applications, offering smooth operation, powerful performance, and reliability in a compact package. Upgrade your winching experience with the Carbon CW-3U Winch today!
Features
- Compact Pulling Power: Features a 3000 lbs single-line rated pull powered by a reliable 12V DC, 1.5 HP Permanent Magnet Motor.
- Dual Remote Operation: Comes standard with both a wired remote (with a 6.5 ft / 2m lead) and a wireless remote control for safe, seamless operation.
- Secure Braking: Equipped with a self-locking gear train that provides rated load holding for safety during recovery and loading tasks.
- Synthetic Rope Setup: Spooled with 43 ft of 3/16” (13m x 4.8mm) synthetic rope and paired with a durable roller fairlead.
- Optimised Geartrain: Features a 3-Stage Planetary geartrain with a 153:1 gear ratio and a split ring gear clutch for easy free-spooling.
Contents
1 x Carbon CW-3U 3000lb Winch
1 x Synthetic Rope (43 ft x 3/16" / 13m x 4.8mm)
1 x Wired Remote Control (6.5 ft / 2m lead)
1 x Wireless Remote Control
1 x Mounting Hardware Set
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-3U |
| Rated Line Pull | 3000 lbs single-line |
| Motor | 12V DC, 1.5 HP Permanent Magnet Motor |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 153:1 |
| Clutch (Free-Spooling) | Split ring gear |
| Brake System | Self-locking gear train (rated load holding) |
| Drum Dimensions | 32mm x 73mm (1.26" x 2.87") |
| Synthetic Rope | 13m x 4.8mm (43 ft x 3/16") |
| Fairlead | Fairlead Included |

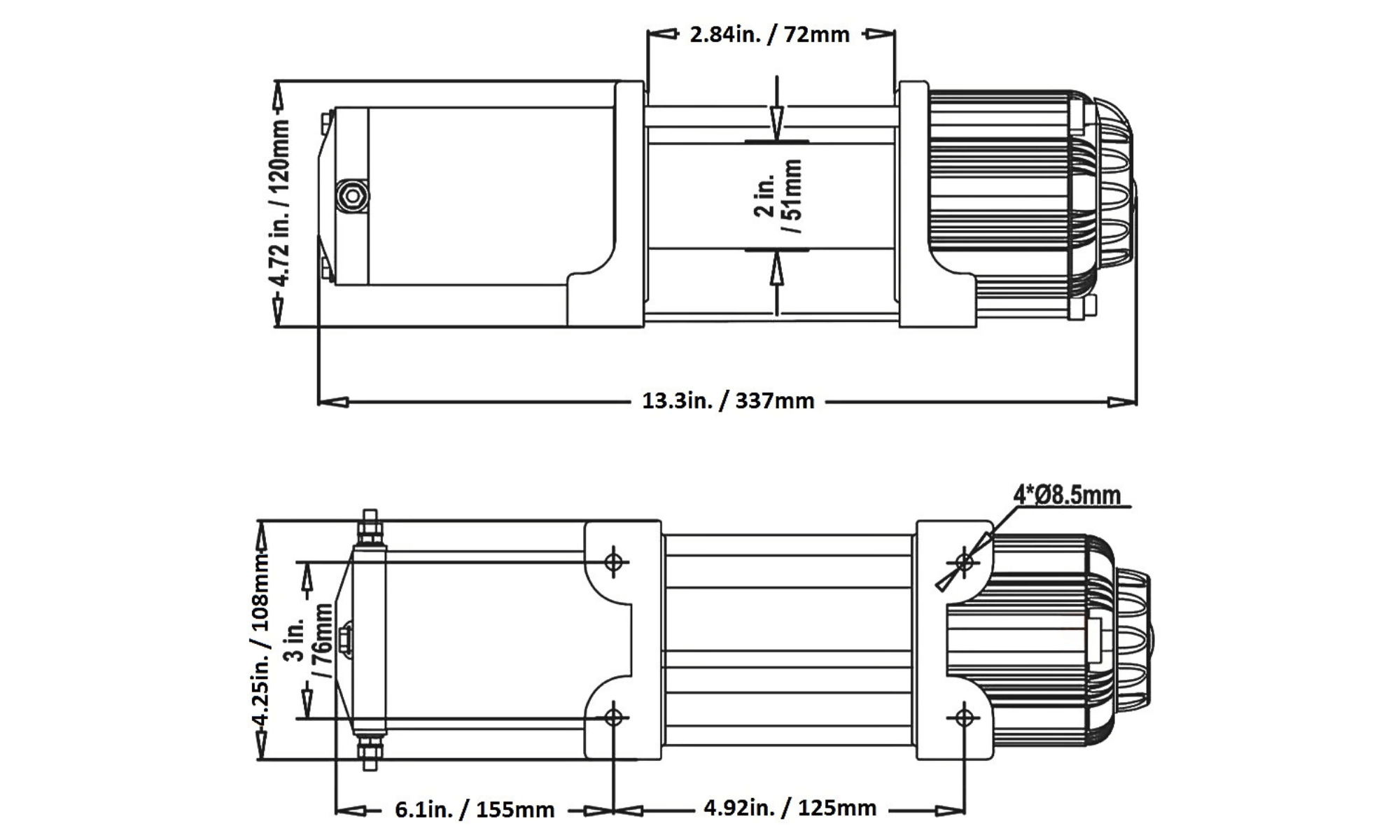

| Mounting Bolt Pattern | 76mm x 124mm (3.0" x 4.87") |
| Winch Dimensions (L x W x H) | 310mm x 127mm x 127mm (12.2" x 5.0" x 5.0") |
| Packing Dimensions (L x W x H) | 400mm x 200mm x 220mm (15.7" x 7.9" x 8.7") |
| Shipping Weight | 10 kg (22 lbs) |
| Fitted Weight | 9 kg (19.8 lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 10 | 1 / 3000 (1360) |
| 1000 (453) | 14.2 (4.3) | 65 | 2 / 2725 (1235) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 2480 (1125) |
| 3000 (1360) | 7.7 (2.4) | - | - |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 10 | 1 / 3000 (1360) |
| 1000 (453) | 14.2 (4.3) | 65 | 2 / 2725 (1235) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 2480 (1125) |
| 3000 (1360) | 7.7 (2.4) | - |
