Carbon Offroad RS9 High Speed Winch Kit
BLACK
$1,699.00
The RS9 is race-spec equipment built purely for speed and reach.
We paired a massive 8.0HP motor with a performance tuned 80:1 gear ratio. This gives you a peak of 24.2 metres per minute line speed. We also packed the drum with 42 metres of Spectra synthetic rope so you can hit distant anchor points in one pull.
IP68 Waterproofing
Built on our proven V3 chassis and fully IP68 rated. High grade seals keep water, dust, and mud out of the internals during high speed crossings.
Optimised Power To Weight
Engineered to reduce front axle weight. It gives you 9000lbs of pulling capacity while keeping your front end light to maintain vehicle handling and suspension performance.
Air Freespool Ready
Fully compatible with our Air Freespool clutch upgrade. You can integrate the RS9 directly with your onboard air system to eliminate the manual clutch lever completely.
Standard Mounting Footprint
Despite the competition-level performance, the RS9 uses a standard 254mm x 114.3mm bolt pattern. It drops straight into most compatible bull bars and winch cradles without requiring custom fabrication.
Extensive Carbon Warranty
Covered by our Limited Lifetime Mechanical Warranty, a 5-year Electrical Warranty, and a 5-year Water Ingress Protection Warranty. Even on a high-speed, race-spec winch, you still get our full coverage. This means you can push it hard on the tracks with total peace of mind.
Built for Speed
The Carbon Offroad RS9 High Speed Winch Kit features an 8.0HP series-wound motor and a performance-tuned 80:1 gear ratio for unmatched recovery speed.
The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you're looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class. The bottom line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
The RS Series Breakdown
- High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load.
- Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance.
- Line Capacity: Comes standard with 42m (137ft) of 8mm (5/16") Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions.
- Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment.
Contents
1 x Carbon Offroad RS9 Winch
1 x 42m (137ft) Spectra™ Fiber Synthetic Rope
1 x MegaPro Hook
1 x Fairlead
1 x Wiring Accessory Kit.
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 4080kg (9000lbs) |
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 42m (5/16" x 137ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |

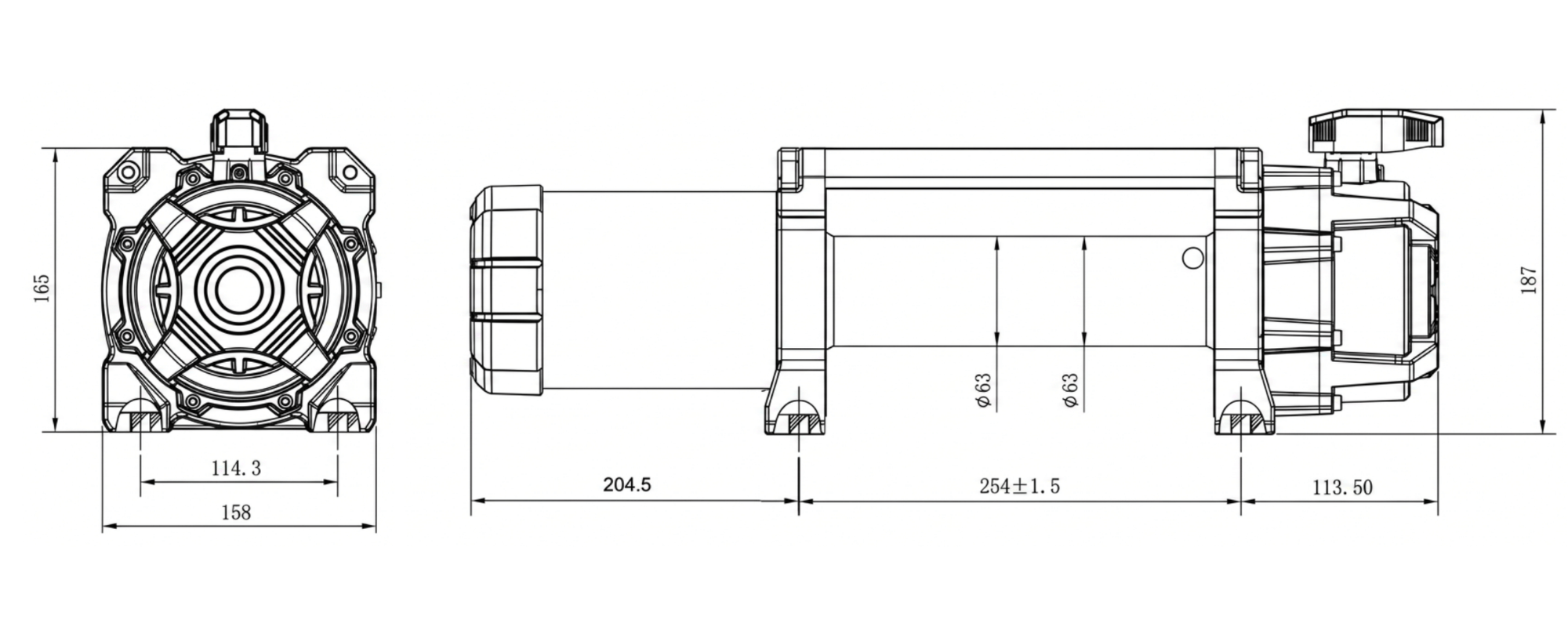

| Winch Dimensions (L x W x H) | 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") |
| Drum Dimensions (Diameter x Length) | 63mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Chassis | Carbon Offroad Version 3 (V3) |
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current |
|---|---|---|
| 0kg (0lbs) | 24.2m/min (79.4fpm) | 55A |
| 1816kg (4000lbs) | 5.6m/min (18.4fpm) | 180A |
| 3180kg (7000lbs) | 4.2m/min (13.8fpm) | 310A |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 440A |
| Layer | Rated Line Pull Metric (Imperial) |
|---|---|
| 1 | 4090kg (9000lbs) |
| 2 | 3524kg (7760lbs) |
| 3 | 3040kg (6690lbs) |
| 4 | 2615kg (5760lbs) |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current | Rated Line Pull Position Metric (Imperial) |
|---|---|---|---|
| 0kg (0lbs) | 24.2m/min (79.4fpm) | 55A | 1 / 4090kg (9000lbs) |
| 1816kg (4000lbs) | 5.6m/min (18.4fpm) | 180A | 2 / 3524kg (7760lbs) |
| 3180kg (7000lbs) | 4.2m/min (13.8fpm) | 310A | 3 / 3040kg (6690lbs) |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 440A | 4 / 2615kg (5760lbs) |
