CW-XD7-BLK
$1,299.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Description
The Carbon Offroad Scout Pro 7K is a powerhouse engineered to be the fastest winch for light vehicles.
With a formidable 3175.1kg (7000lbs) pulling capacity, the Carbon CW-XD7 combines a 7.0HP series-wound motor, oversized modulus gearsets, and a heavy-duty solenoid to deliver relentless pulling power run after run.
Performance Series Overview
The Scout Pro 7K delivers the strength, durability, and confidence you need to conquer serious recoveries and keep the adventure moving.
Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
Fitment Information

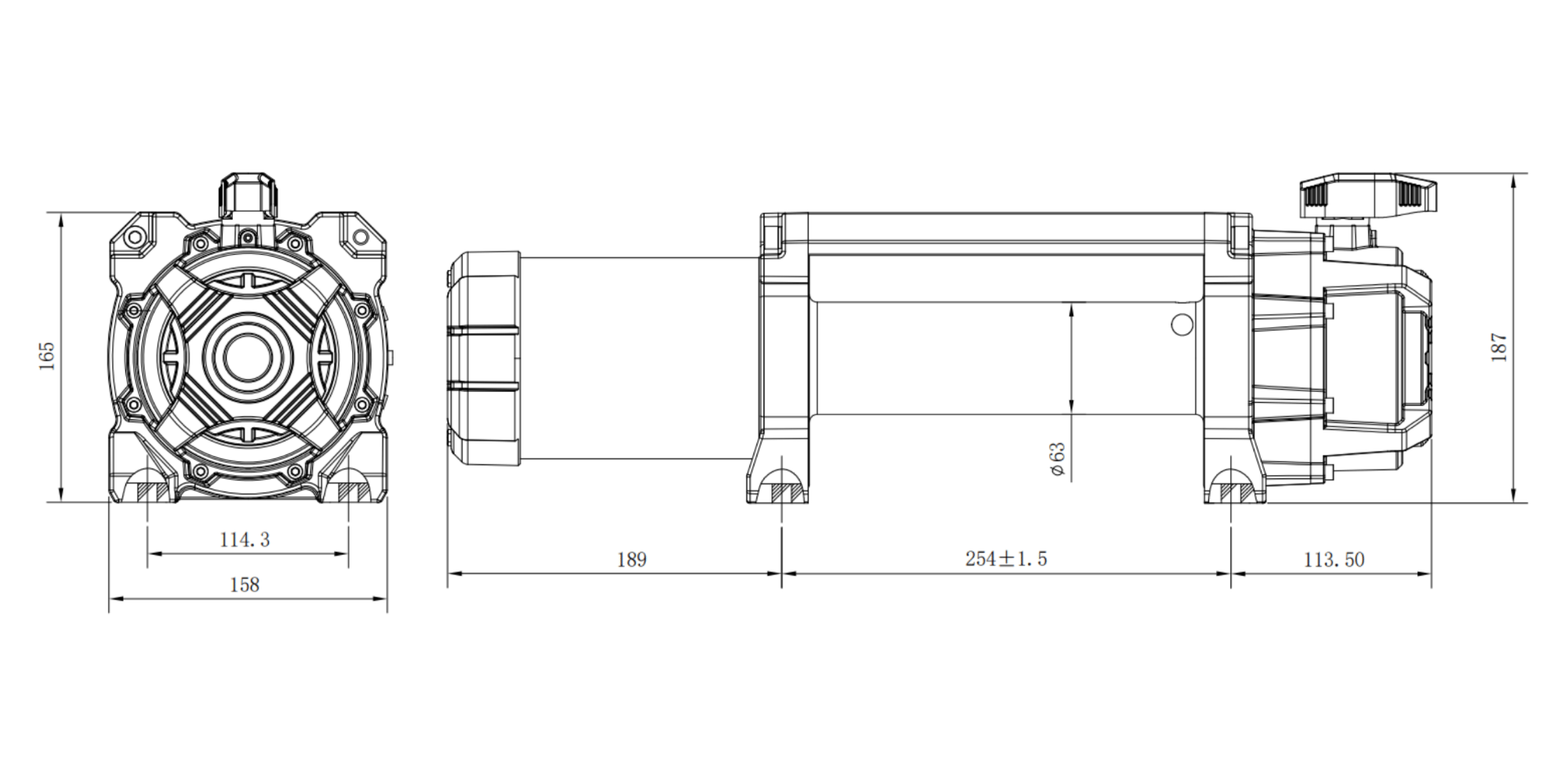

The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This configuration is suited for fast winching applications on off-road buggies, lightweight crawlers, and smaller wagons. Typical applications include lighter vehicles such as Jeep platforms, including Jeep XJ-style wagons. Due to the longer 7.0HP motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Fitment suitability should be confirmed prior to installation. The responsibility of fitment remains with the end-user or installer. Note: Check dimensions and clearance carefully before installation.
Recommended for vehicles such as off-road buggies, lightweight crawlers, and smaller wagons including lighter Jeep models and similar light vehicles.
Technical Notes
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Features
- Motor: 7.0HP High-Torque Motor
- Gearbox: 80:1 Heavy Duty Performance Gearbox
- Rope: 10mm x 24m (0.4" x 78.7ft) UHMWPE Synthetic Rope (Pre-stretched)
- Breaking Strain: Rated at 9000kg (19841.6lbs) minimum
- Chassis: Carbon Offroad 2023 V3 Winch Chassis (shared with proven 12K winch)
- Optional Upgrade: Compatible with Carbon Offroad Air Freespool Clutch Upgrade
Contents
1 x Carbon Scout Pro 3175.1kg (7000lbs) Winch
1 x 24m (78.7ft) of 10mm (0.4") high density pre stretched premium UHMWPE rope
1 x Forged rope thimble

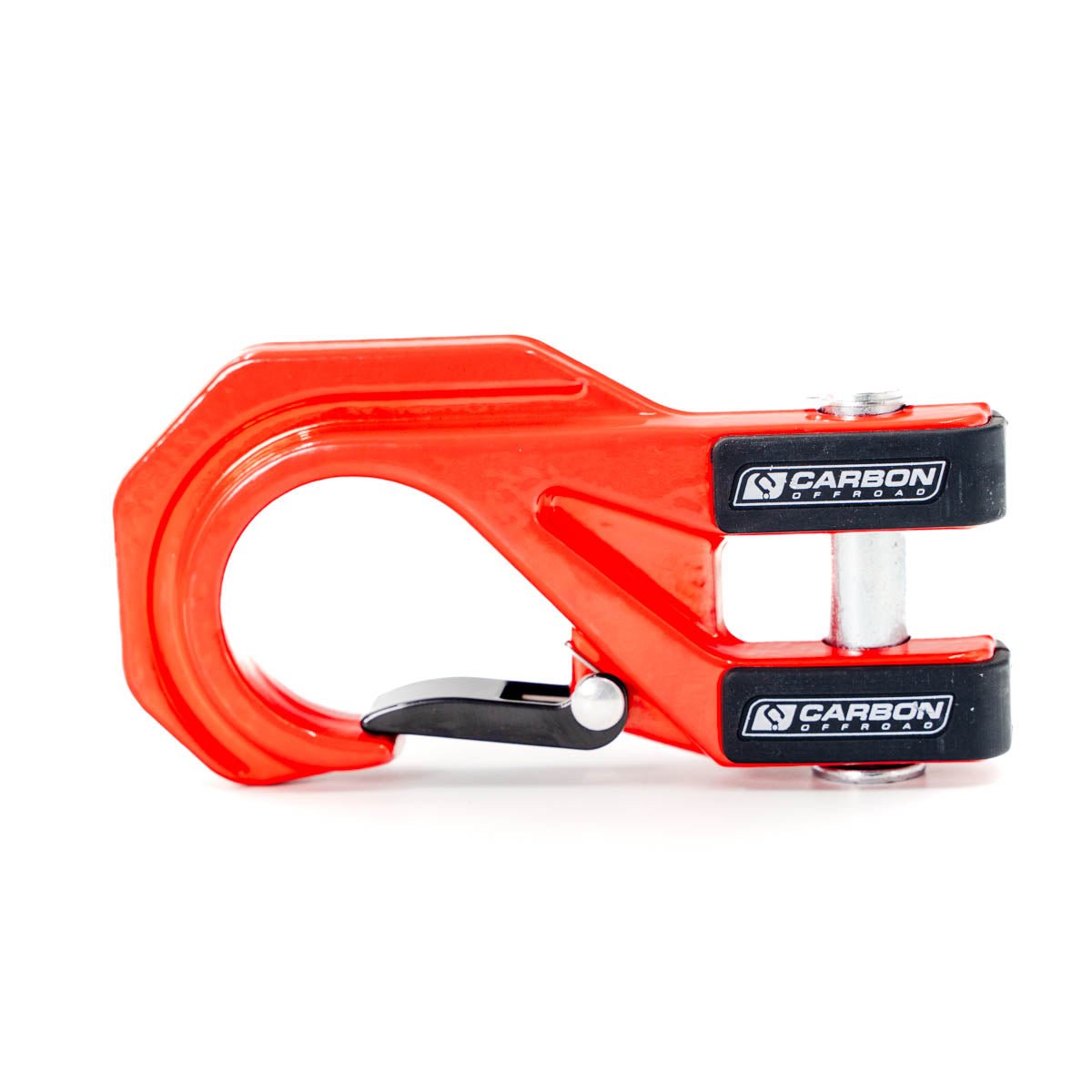

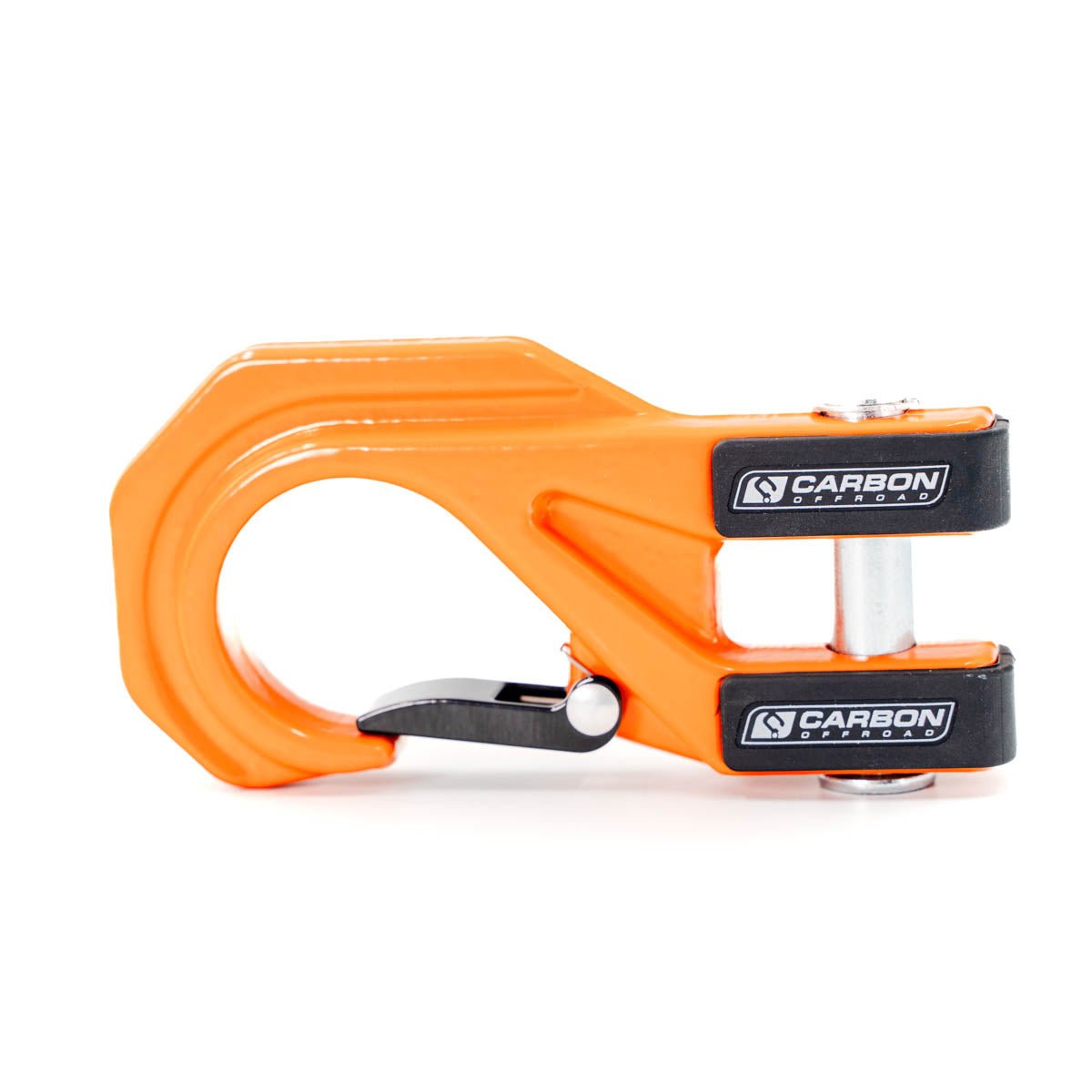

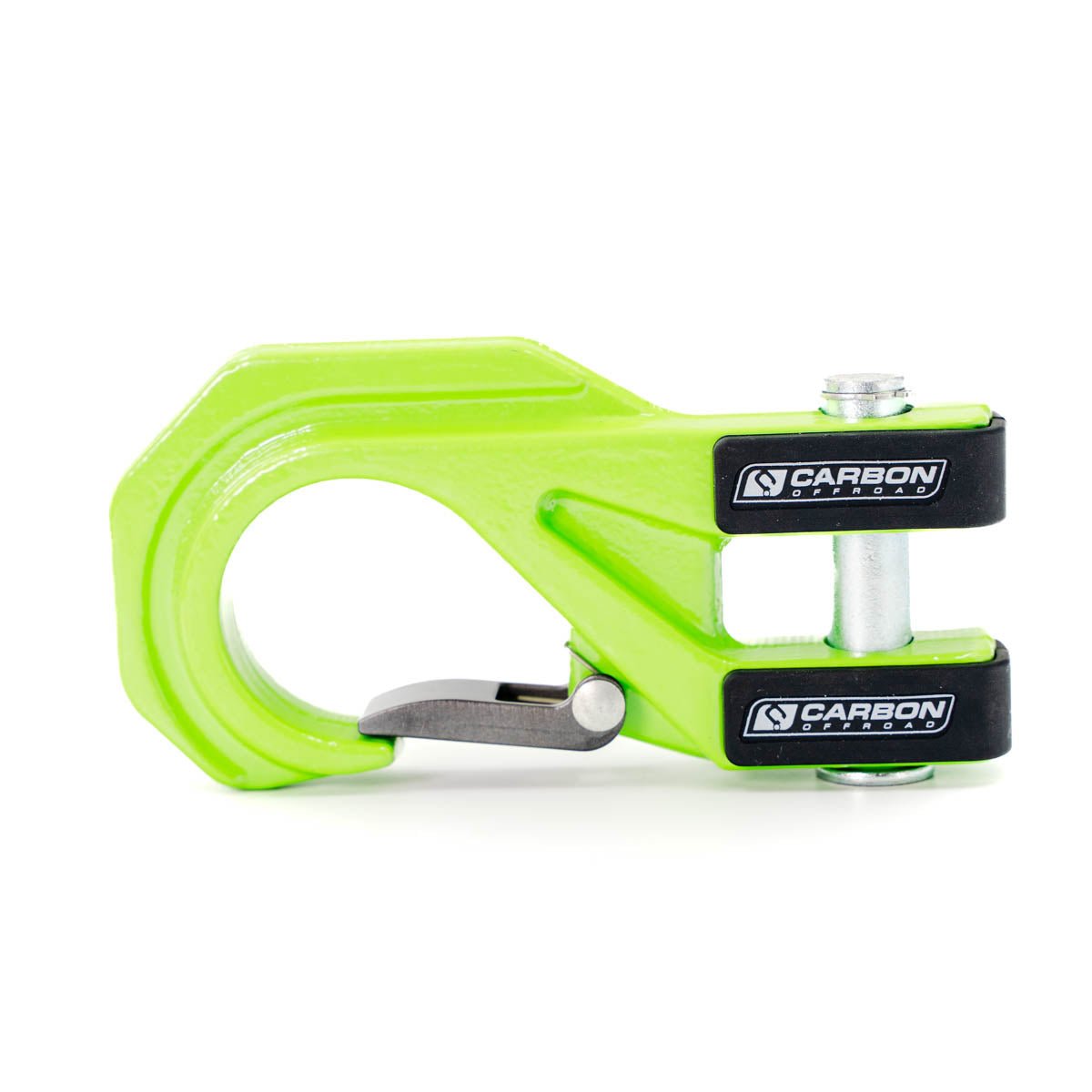

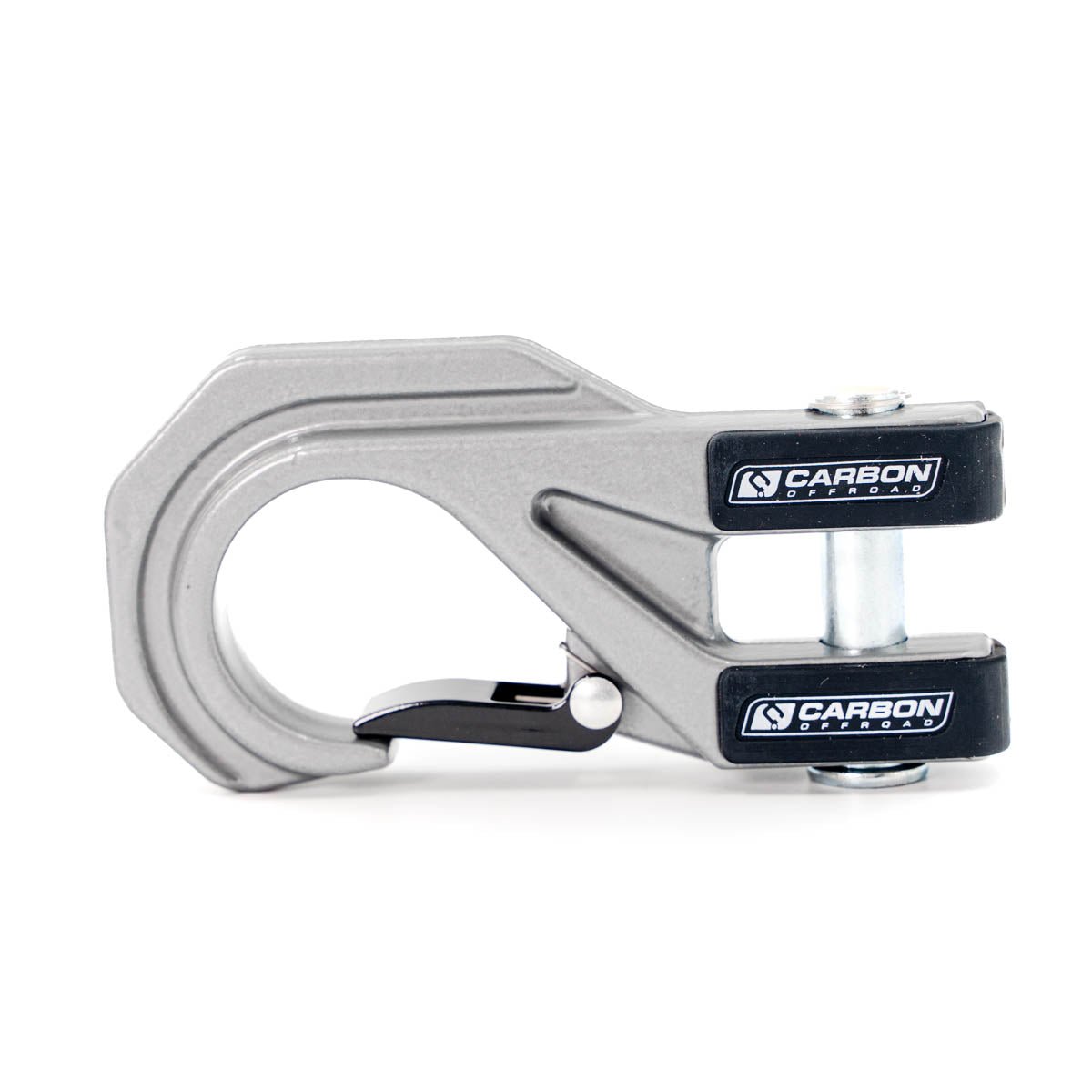

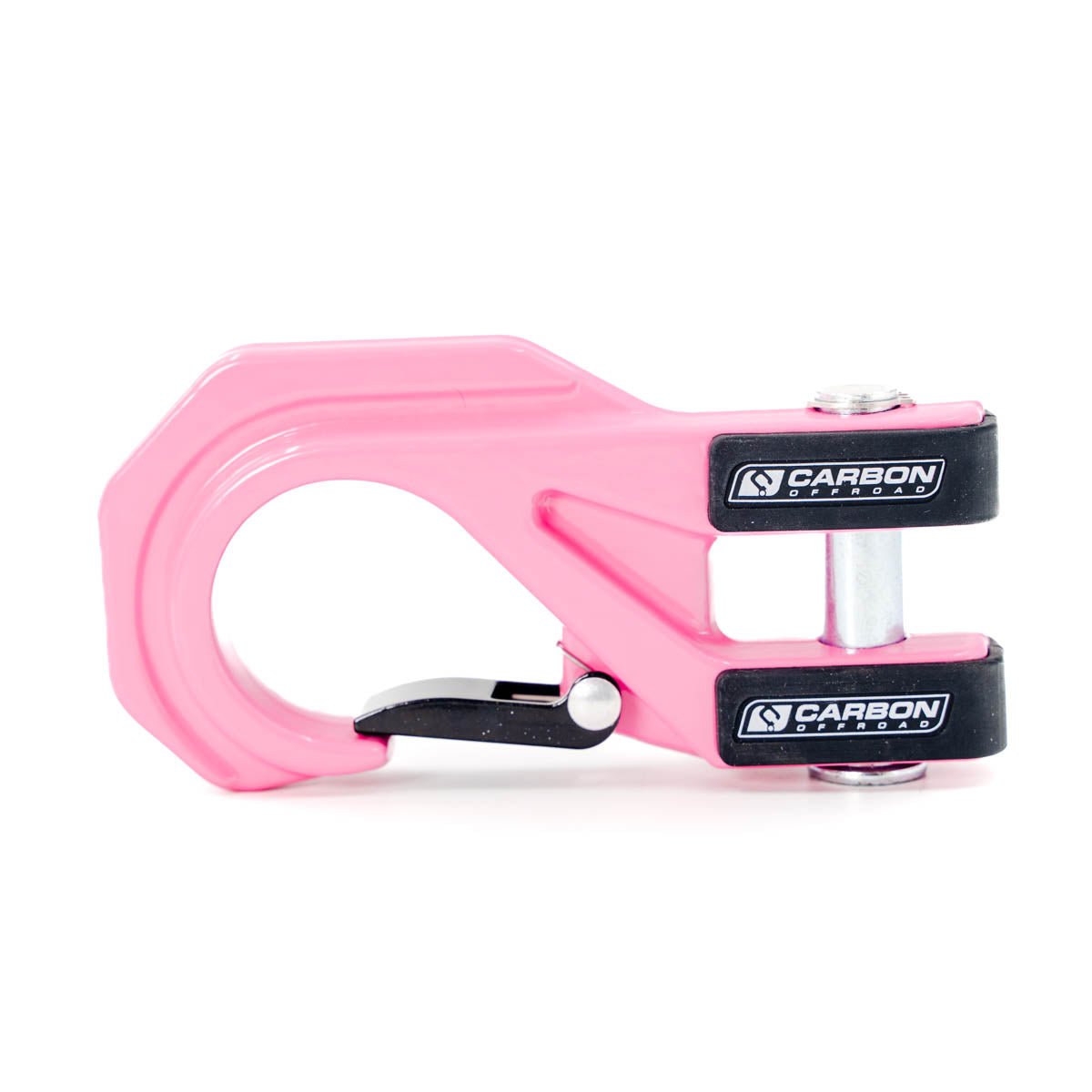

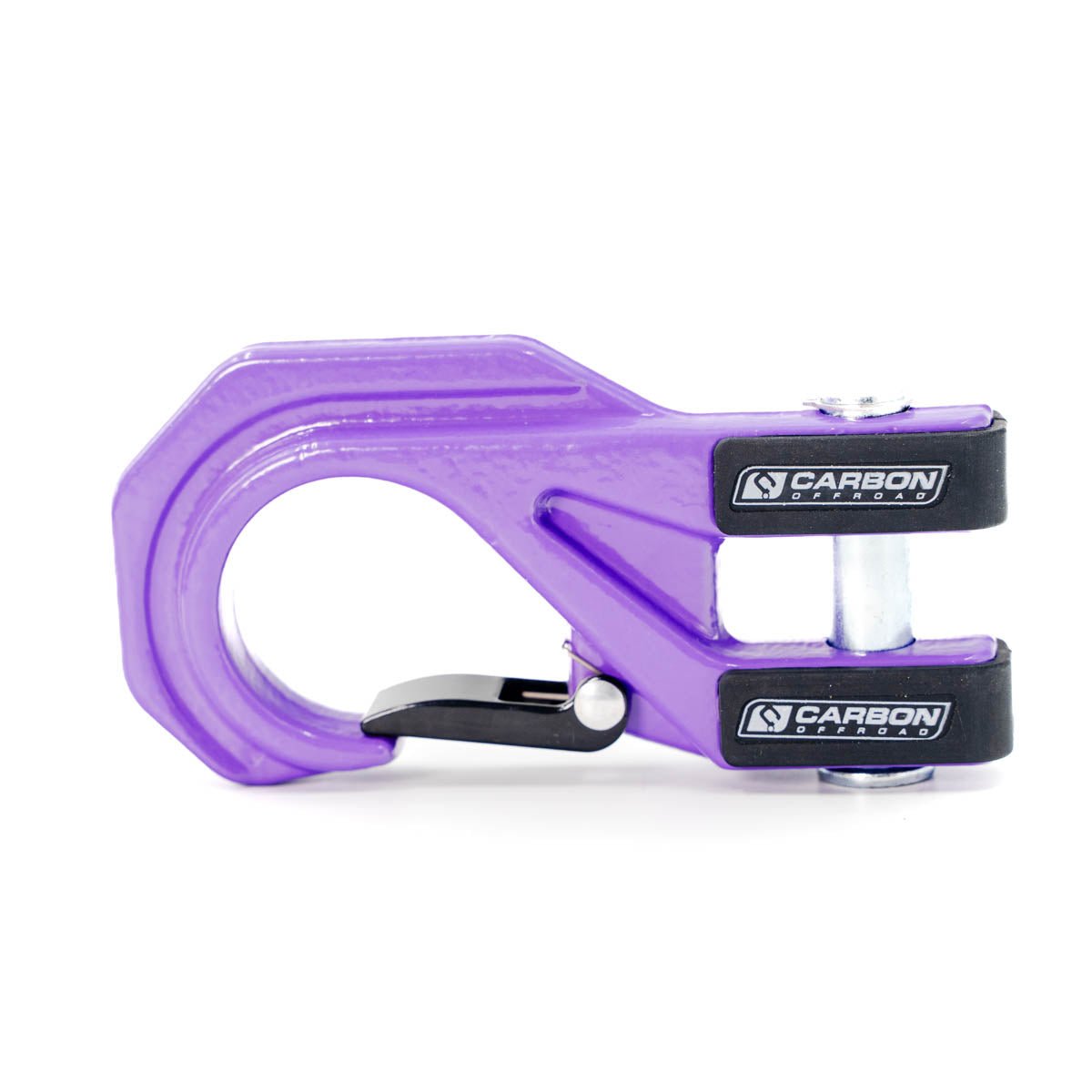

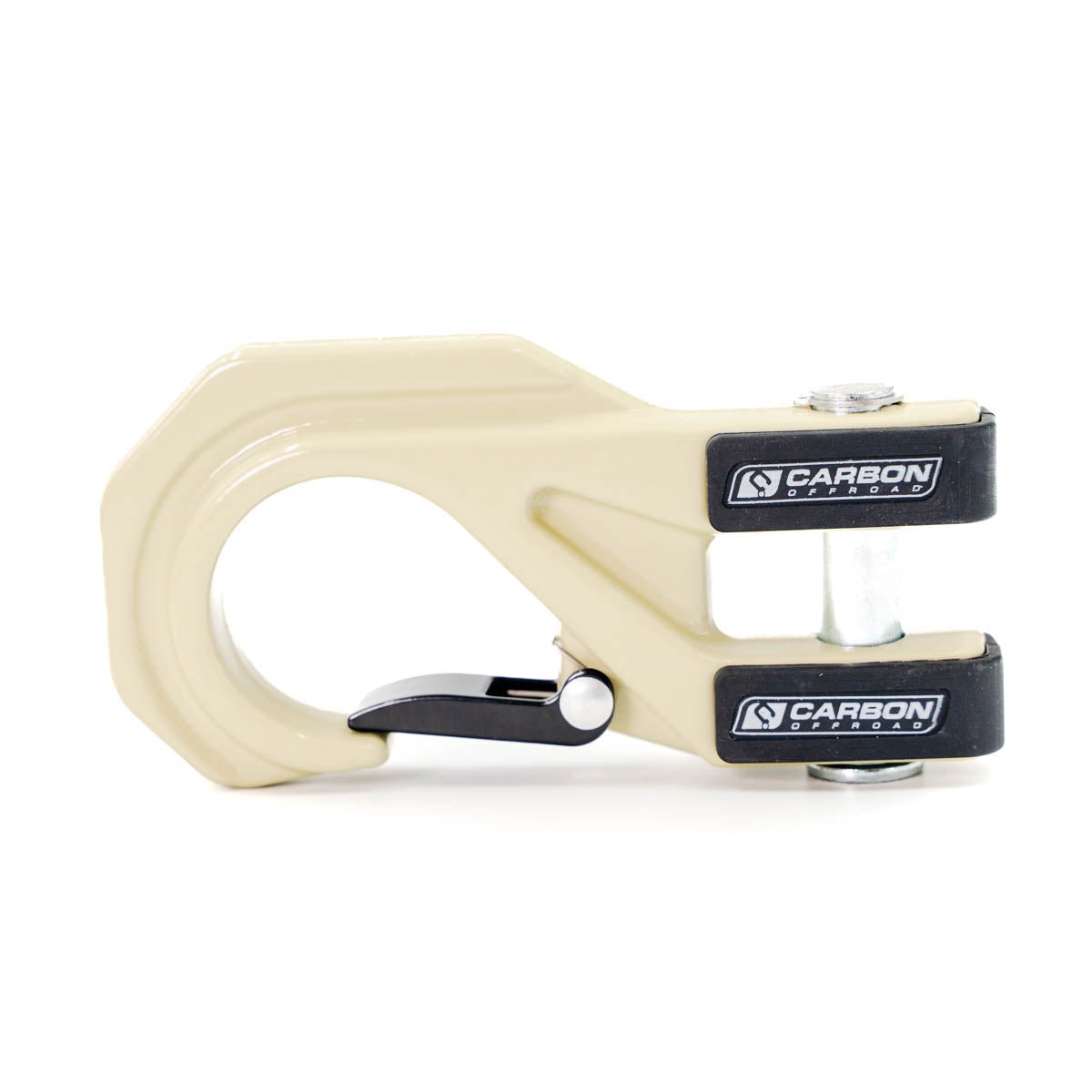

1 x Black MegaPro hook
1 x MegaPro billet fairlead
1 x Wired remote
1 x Wireless remote
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 3175.1kg (7000lbs) |
| Motor | 7.0HP |
| Gear Ratio | 80:1 |
| Rope Dimensions | 10mm x 24m (0.4" x 78.7ft) |
| Minimum Breaking Strain | 9000kg (19841.6lbs) |

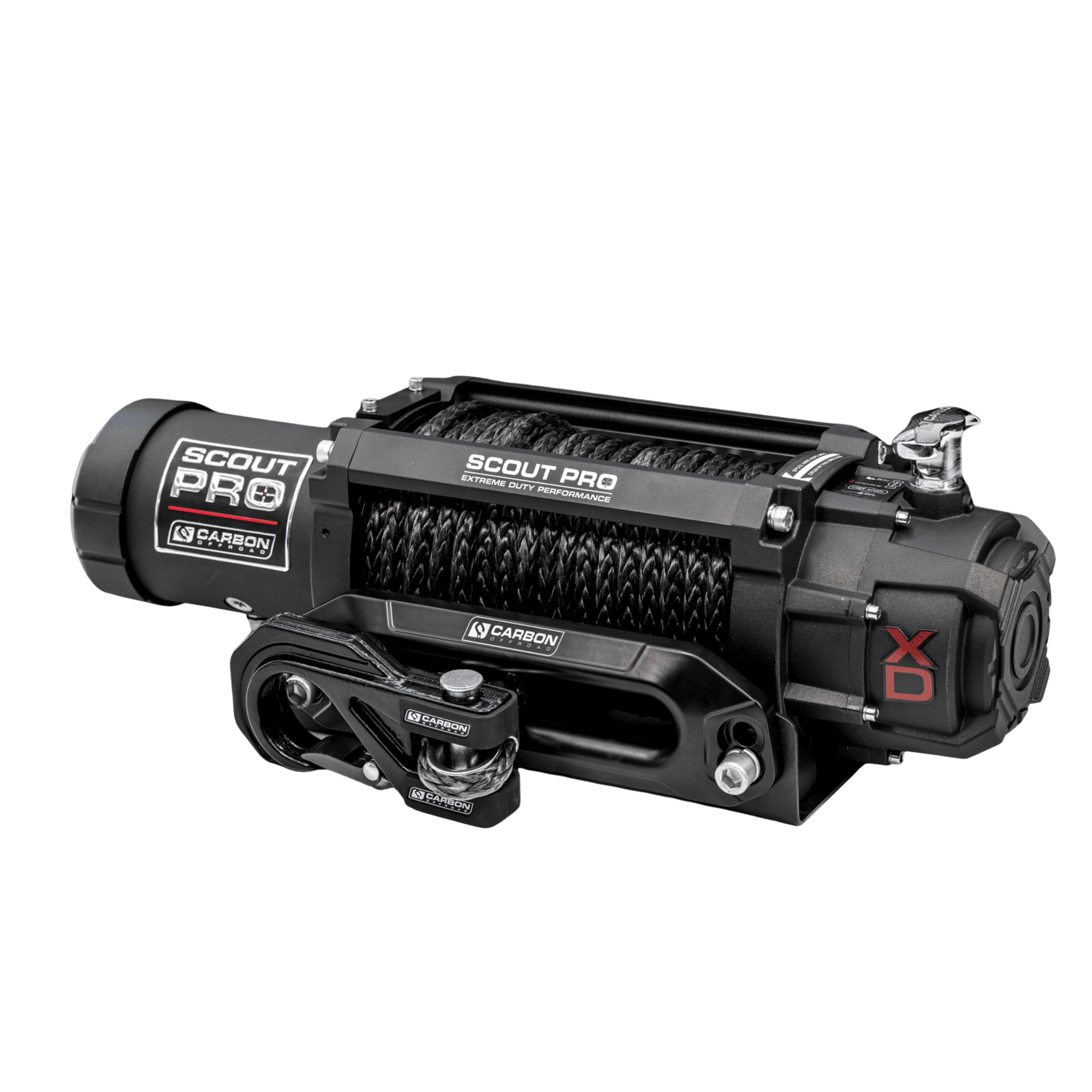

Carbon Scout Pro - 7000lb Winch
BLACK
$1,299.00
7000lb Pulling Capacity
Delivers 3175kg of pulling power. Engineered for fast recoveries on lighter vehicles like buggies, crawlers and small wagons.
7.0HP High-Torque Motor
Features a powerful series-wound motor and heavy-duty solenoid. Built to give you consistent power run after run.
80:1 Heavy Duty Gearbox
Built with oversized modulus gearsets. Designed specifically for high line speeds to keep your momentum going in the mud or on the rocks.
Premium Synthetic Rope
Spooled with 24 metres of 10mm pre-stretched UHMWPE rope. Rated to a massive 9000kg minimum breaking strain for total peace of mind.
Proven V3 Chassis
Built on our 2023 V3 winch chassis. You get the exact same tough foundation we use for our heavy-duty 12K winches.
Air Freespool Ready
Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade. Drop this in to make your recoveries even faster.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
