Speed & Performance Breakdown
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

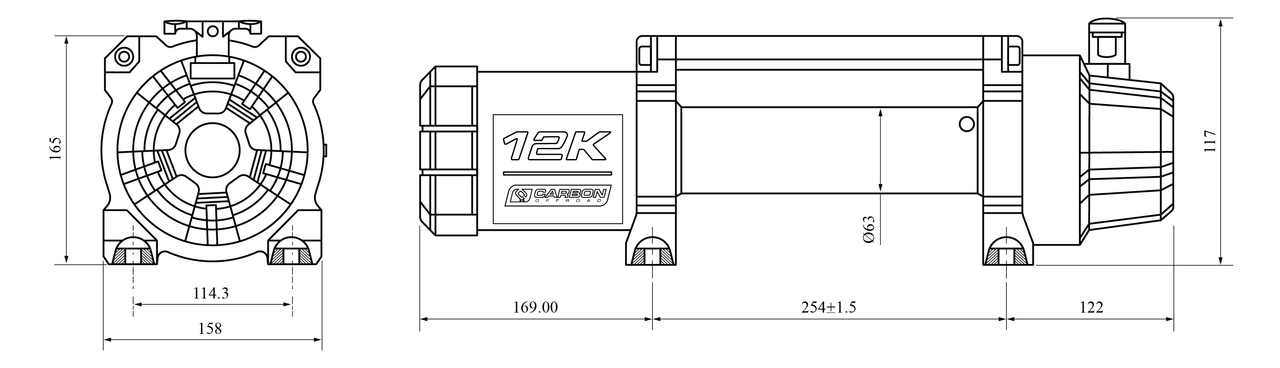

Winch Dimensions
Born from a Passion for Off-Road Excellence
Carbon Winches were developed by KPD Industries — an Australian off-road company with a mission to build a better winch. The project began in 2012 and led to the launch of Carbon Winch in 2016 after four years of intense research, design, and testing.
A Winch Refined by Experience
In 2021, after five years of field testing and user feedback, we redesigned the winch from the ground up. The result: the V2 CW-12K — stronger, smarter, and more capable than ever before.
Delivering Solutions
Our team are solution providers. We love the task of being able to listen to your requirements and consult with you through to a solution which meets your needs and exceeds your expectations.Shaping the Future of Offroad
More than ever before Carbon Offroad continue to innovate, invent, improve and deliver product outcomes in the offroad space which are unmatched in the marketProudly 100% Australian Owned
Carbon Offroad is a privately owned enterprise delivering small business personalised levels of service to the wider offroad industry. Our purpose is to create products that people love, that offer a truly tangible benefit to the end user.
