Medium to Large 4WD Winches

Heavy Duty Recovery Power The Carbon Offroad CW-XD15-V3 is a heavy-duty recovery solution delivering 6803kg (15000lbs) of pulling capacity via a 12V DC 7 HP series wound motor. Engineered for the Outback Built for reliable offroad recovery, this winch utilizes a 3-stage planetary geartrain with a 218:1 gear ratio and a rotating ring gear. It features an automatic brake in the motor bracket for secure load holding during technical recoveries. You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches. Technical Features Control: Wired with 3.6m (11.8ft) lead and wireless remote included. Geartrain: 3-Stage Planetary. Brake: Automatic brake in the motor bracket. Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead. Warranty: Lifetime Mechanical, 5 Year Electrical, and 5 Year Water Ingress Protection Warranty. Power Requirement: Recommended battery 650 CCA minimum for winching. Contents 1 x Carbon Offroad CW-XD15-V3 Winch 1 x Synthetic Rope (11mm x 24m) 1 x Control Box Complete with Cables 1 x Wired Remote Control 1 x Wireless Remote Control 1 x Carbon Offroad MEGAPRO Fairlead 1 x Mounting Bolts Kit   Feature Specification Metric (Imperial) Rated Line Pull 6803kg (15000lbs) Motor 7 HP 12V DC Gear Ratio 218:1 Drum Dimensions 63.5mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5") Winch Dimensions 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4") Packing Dimensions 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7") Installed Weight 26.7kg (58.9lbs)

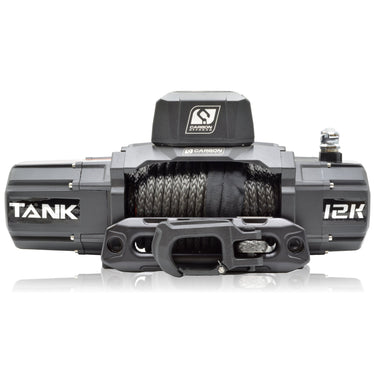

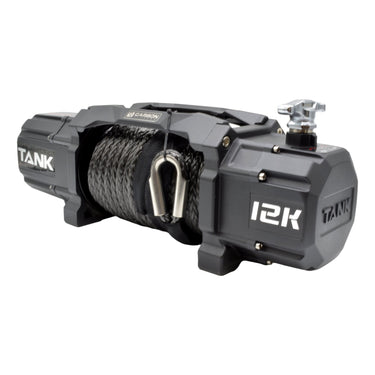

The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions. Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware - it’s ready for installation straight out of the box. The control box offers flexible mounting options, and the multi-fit fairlead ensures compatibility with most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises. River crossings and mud runs are stress free, this winch features a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection 6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.7kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. You can upgrade this winch with with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.  Get a winch you can trust.

⚠️ Please Note: This listing is for the winch only.No hook or soft shackle is included in this package. The winch comes with the winch accessory kit only – perfect if you already have a hook.  The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions. Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware - it’s ready for installation straight out of the box. The control box offers flexible mounting options, and the multi-fit fairlead ensures compatibility with most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises. River crossings and mud runs are stress free, this winch features a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection 6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.7kg  Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. You can upgrade this winch with with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.  Get a winch you can trust.

⚠️ Please Note: This listing is for the winch and 15T Soft Shackle.No hook is included in this package. The winch comes with the winch accessory kit  – perfect if you already have a hook or if you'd like to get rid of the heavy items in your kit. The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions. Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable three stage planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware - it’s ready for installation straight out of the box. The control box offers flexible mounting options, and the multi-fit fairlead ensures compatibility with most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises. River crossings and mud runs are stress free, this winch features a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. You can upgrade this winch with with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.  Get a winch you can trust.
