Carbon Offroad
Carbon TANK - 6000lb ATV UTV Small 4x4 Winch 12V
$599.00
The Carbon Offroad Tank 6000 lb Capacity winch for small 4wds, caravans, trailers, boats.
A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power
Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-TK6
Part number: CW-TK6
Rated line pull: 6,000 lbs, (2721kg) single-line
Motor: 12V DC 1.5HP motor
Geartrain: 3 Stage Planetary
Gear Ratio: 166:1
Clutch: Free spooling, Cam activated
Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
Fairlead: Aluminium Hawse
IP Rating: IP66 - Winch and Controls (Except remote switch)
Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor Current @12V
0 (0)
20.5 (6.2)
30 Amps
1000 (454)
16.1 (4.9)
83 Amps
2000 (907)
12.8 (3.9)
136 Amps
3000 (1361)
10.7 (3.3)
168 Amps
4000 (1814)
8.6 (2.6)
232 Amps
6000 (2721)
4.9 (1.5)
320 Amps
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
Carbon Offroad

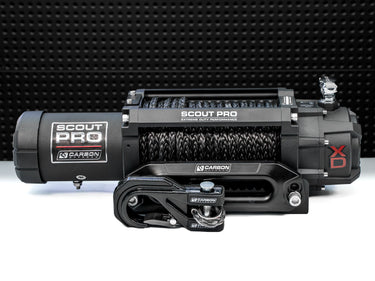

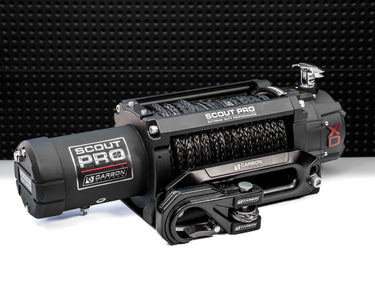

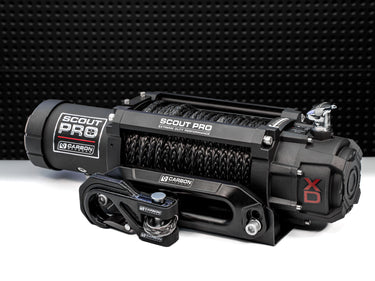

Carbon Scout Pro - 9000lb Winch V2
$1,329.00
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2021 Version 2 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 9000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
104:1 heavy duty performance gearbox
10mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
CW-XD9
12V DC performance specs (first layer of drum)
Line Pull
Line Speed
Motor
Pull by layer
Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)
0
62.3(19)
80 amps
1/9,000 (4090)
2000 (910)
17.4(5.3)
150 amps
2/7,625 (3,460)
4000 (1810)
15.1(4.6)
220 amps
3/6,460 (2930)
6000 (2720)
13.4(4.1)
280 amps
4/5,480 (2,490)
8000 (3630)
11.5(3.5)
350 amps
9000 (4090)
10.5(3.2)
380 amps
Carbon Offroad
Carbon Scout Pro - 7000lb Winch V2
$1,429.00
Do you wanna go fast? Well this is the winch for you. 80:1 Gears and a 7HP motor for pulling your lightweight rig out of the thick stuff at insane speeds.
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2021 Version 2 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 7000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
80:1 heavy duty performance gearbox
10mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
Line speeds - fast - TBA
We assemble this winch prior to dispatch, please allow 48 hours dispatch time for orders.
Carbon Offroad
Carbon Scout Pro - 9000lb Winch V3
$1,329.00
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 9000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
104:1 heavy duty performance gearbox
10mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO 16 tonne soft shackle compatible winch rope thimble
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
CW-XD9
12V DC performance specs (first layer of drum)
Line Pull
Line Speed
Motor
Pull by layer
Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)
0
62.3(19)
80 amps
1/9,000 (4090)
2000 (910)
17.4(5.3)
150 amps
2/7,625 (3,460)
4000 (1810)
15.1(4.6)
220 amps
3/6,460 (2930)
6000 (2720)
13.4(4.1)
280 amps
4/5,480 (2,490)
8000 (3630)
11.5(3.5)
350 amps
9000 (4090)
10.5(3.2)
380 amps
