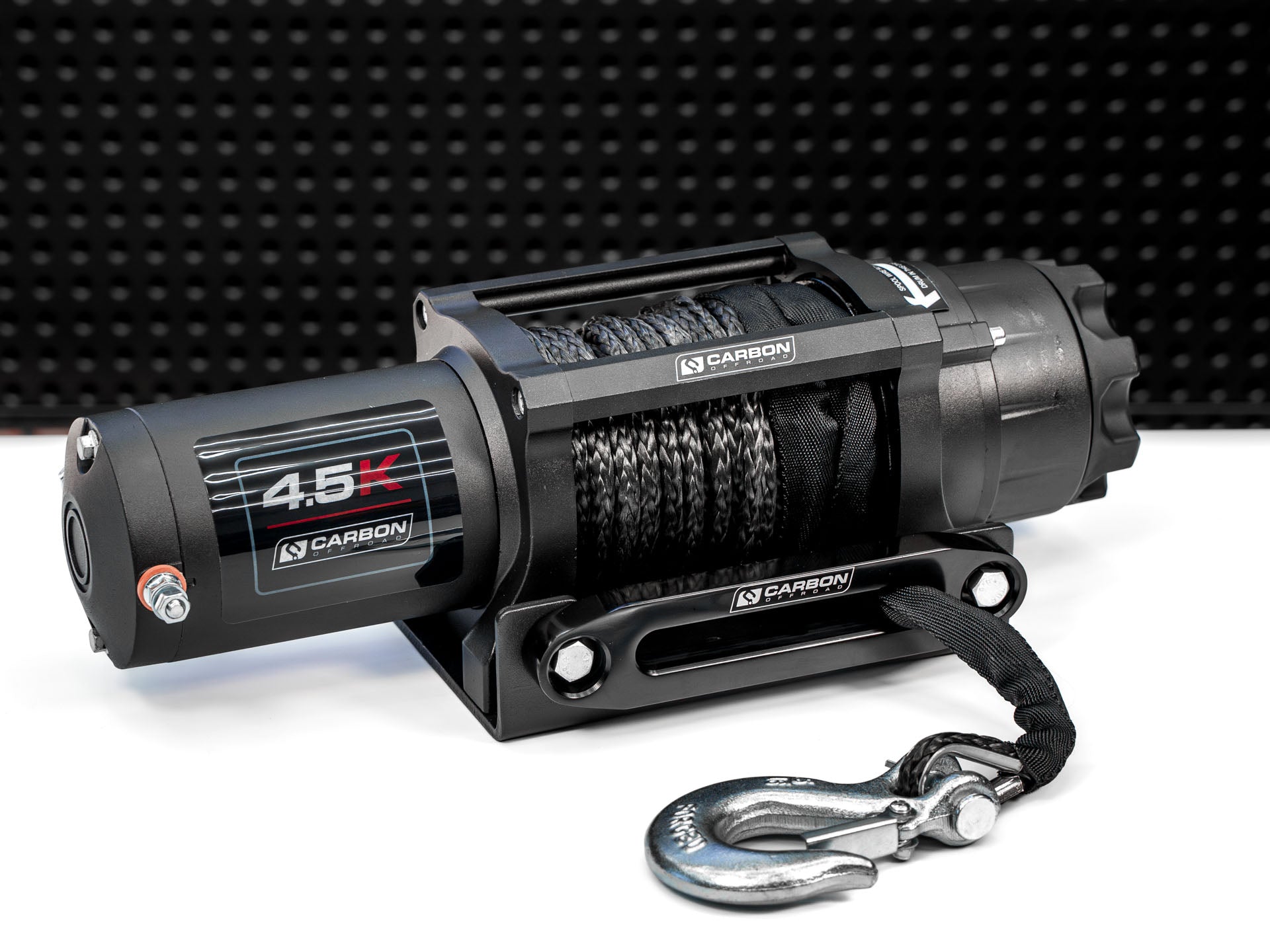

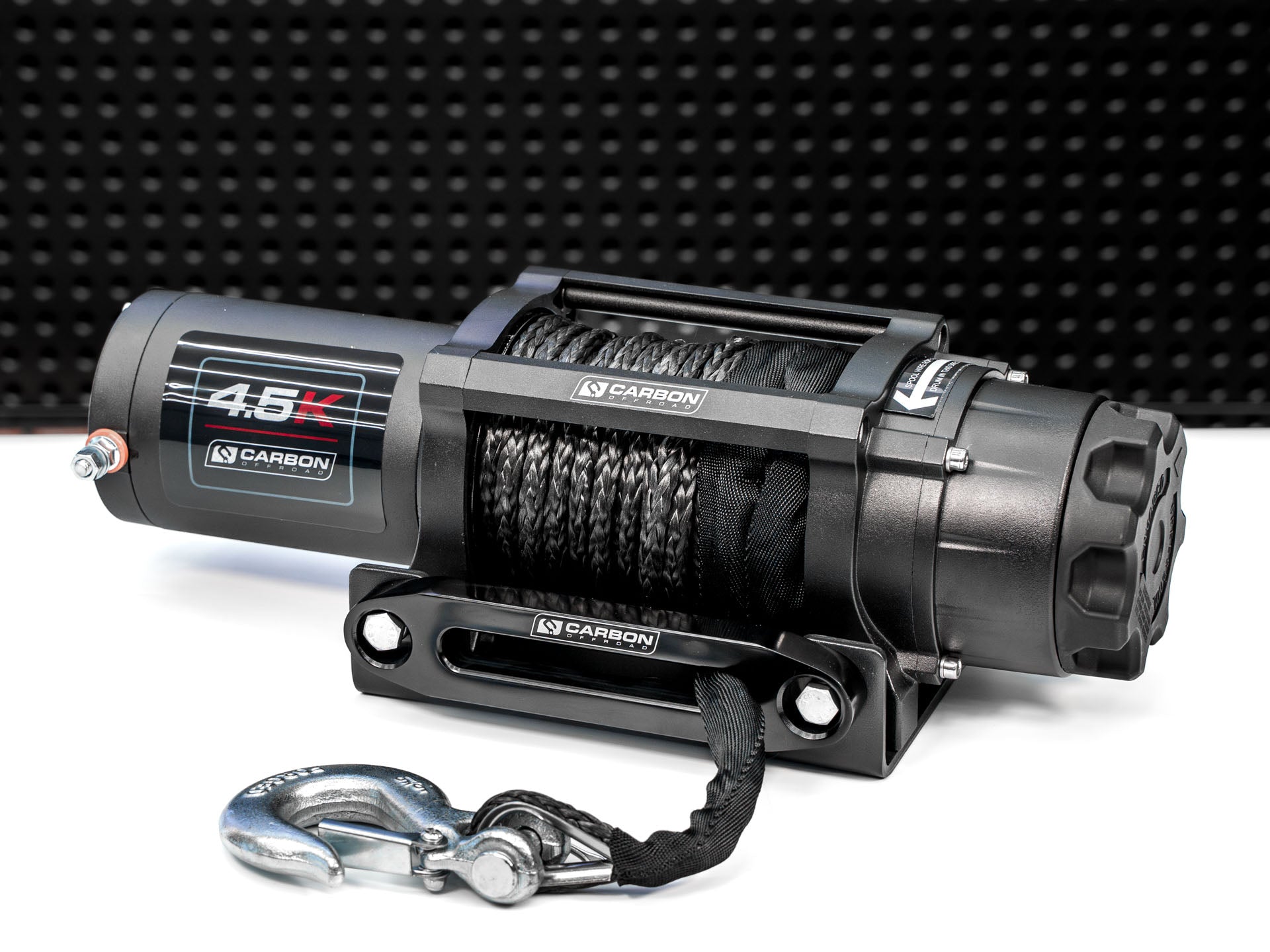

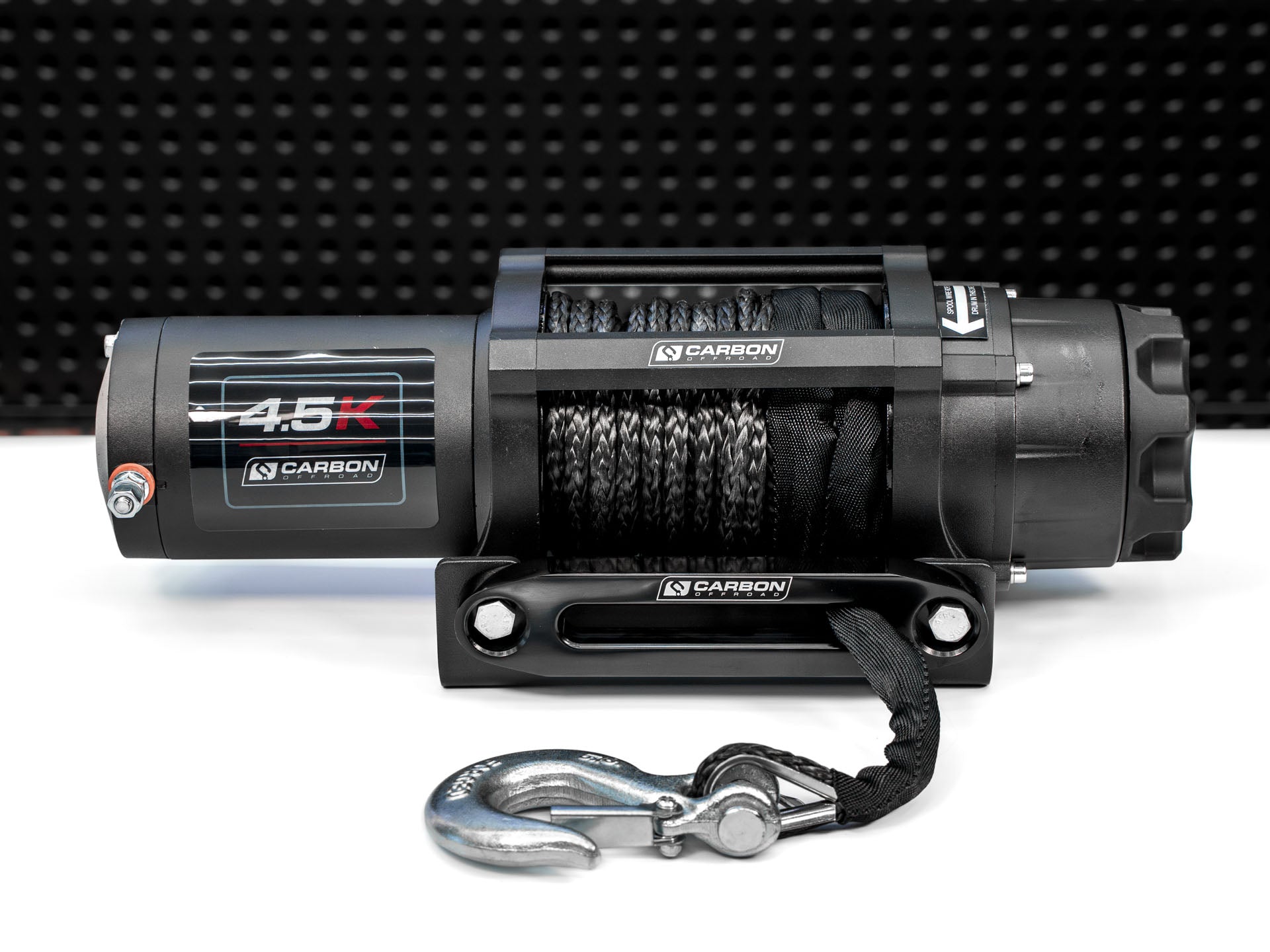

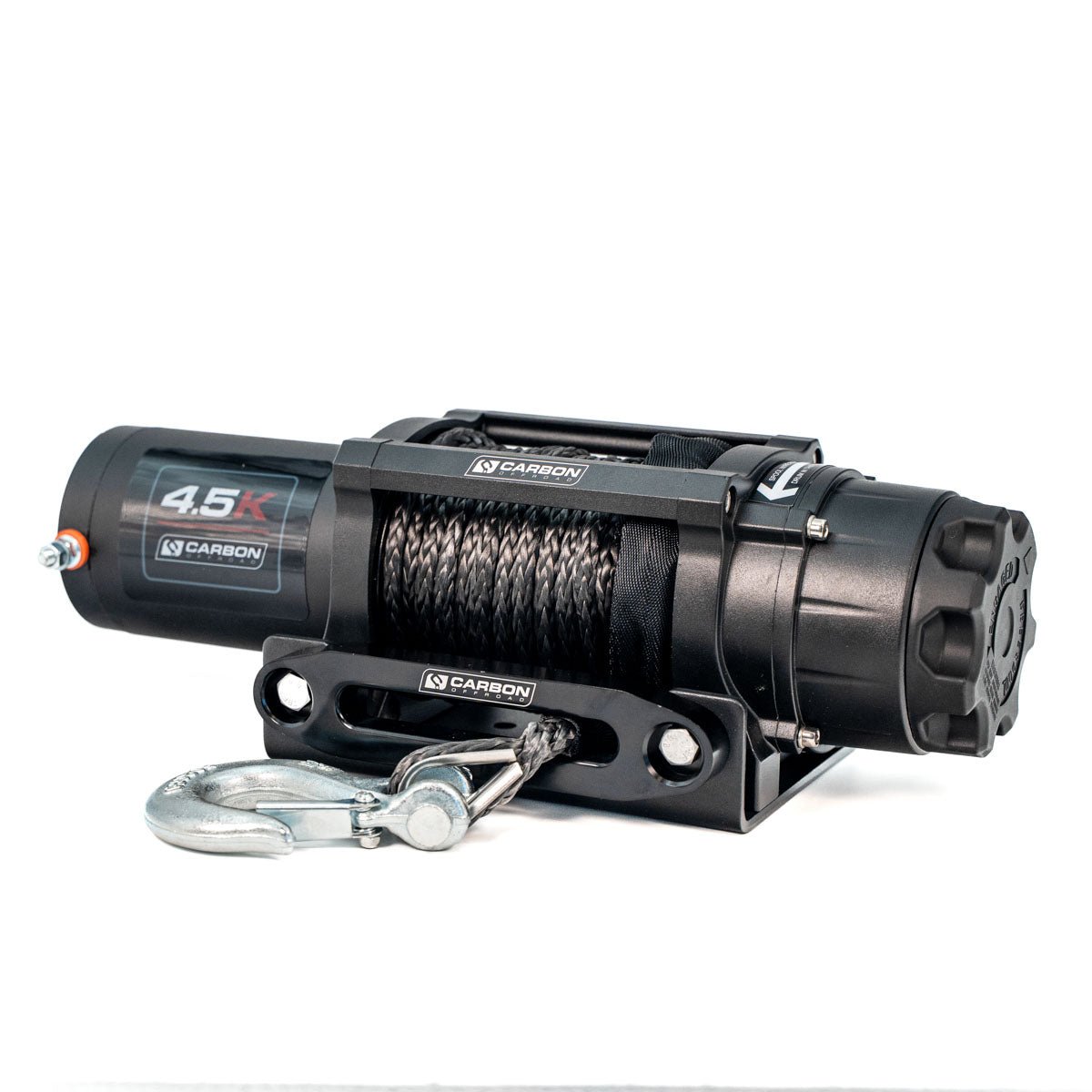

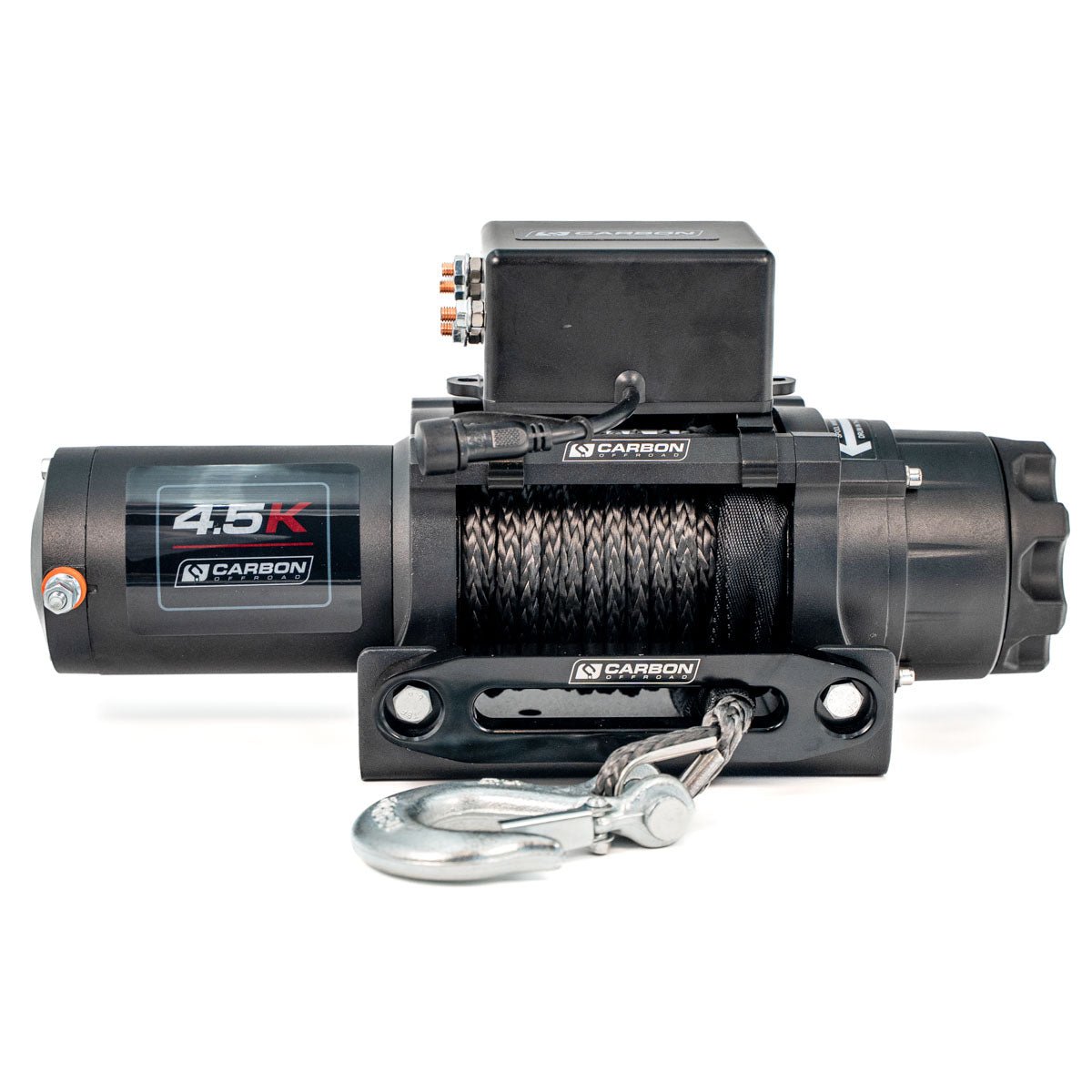

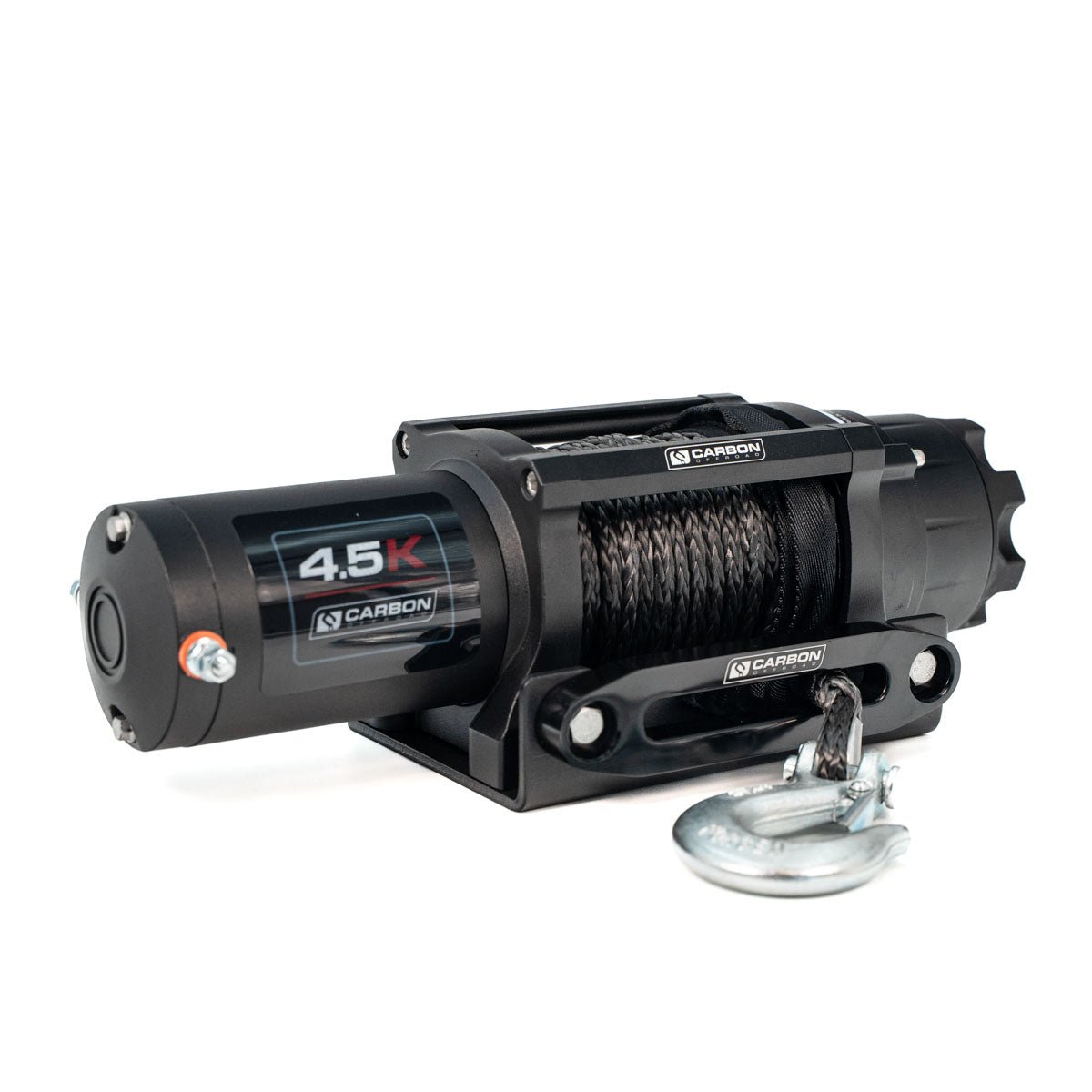

Carbon 4.5k 4500lb ATV/Trailer Winch

$459.00

SKU: CW-45

Carbon 4.5k 4500lb ATV/Trailer Winch

$459.00

Quality Assured by Carbon Staff

Your Order Packed With Care

Description Dimensions Warranty

Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, Powerful, and Versatile

Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.

Enhanced Design & Performance

Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring:

  • Improved clutch handle operation for smoother control
  • Enhanced sealing for wet and rugged conditions
  • Upgraded components & finish for long-lasting performance—all at the same great price

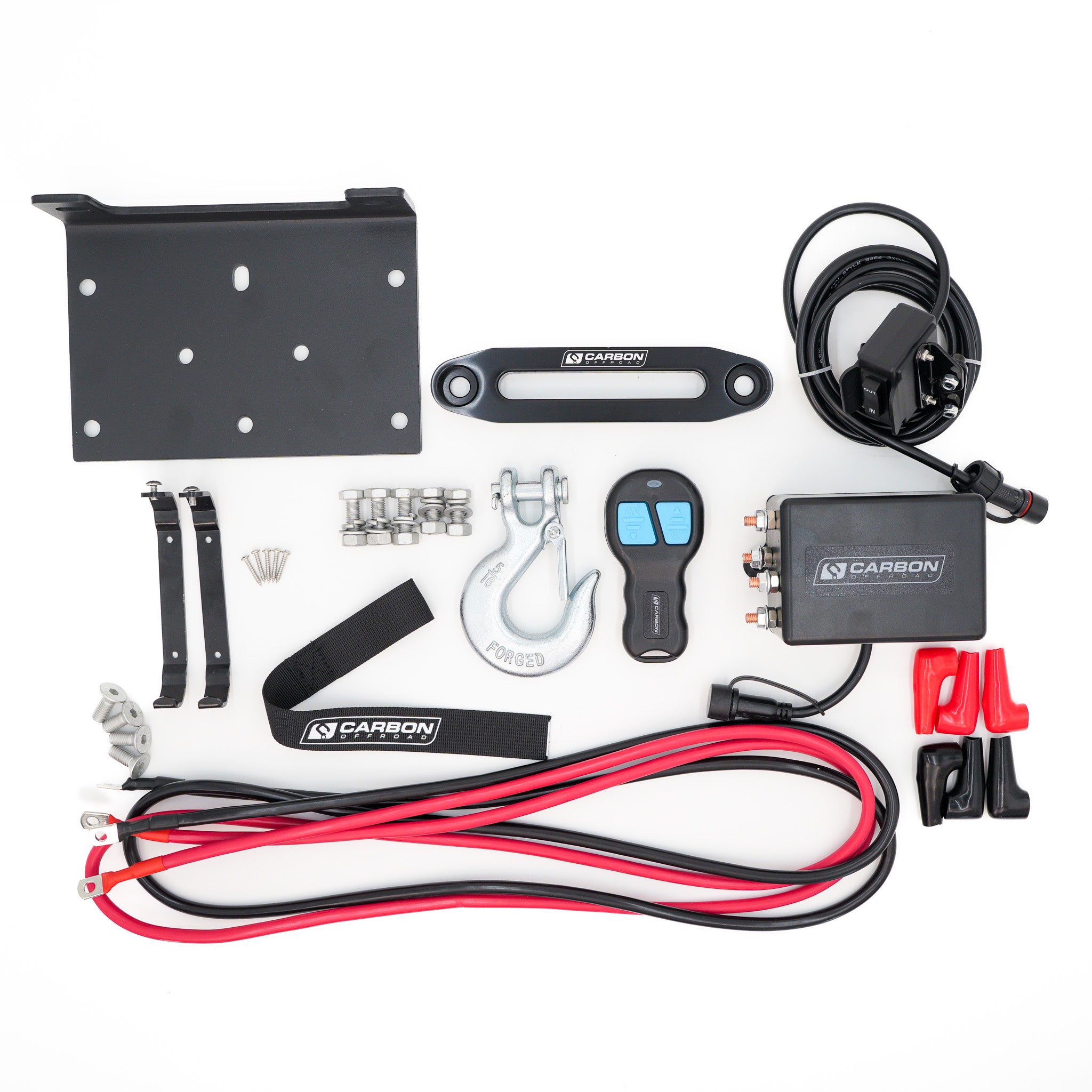

Compact & Easy to Mount

  • Integrated mounting plate for quick and simple installation
  • Compatible with trailers, ATVs, and buggies
  • Easily secures to an existing pedestal or designated winch mount

Wireless Control for Maximum Convenience

  • Includes free wireless remote control for effortless operation
  • Also features a handlebar mini-rocker switch for direct control from your ATV

Versatile Applications

Ideal for a wide range of uses, including:

  • Small car and equipment trailers
  • Loading heavy equipment into vans
  • Retrieving stuck ATVs, UTVs, or buggies
  • Pulling boats (tinnies) onto trailers
  • Opening cattle gates on livestock trucks

Key Features:

  • 4,500 lb (2,040 kg) line pull for strong and reliable performance
  • Power in & out operation with load-holding and dynamic braking
  • Sealed permanent magnet motor for high efficiency with low amp draw
  • Full metal 3-stage planetary gear train for greater pulling force and durability
  • Synthetic rope for lightweight, high-strength, and safer winching
  • Aluminium Hawse fairlead to reduce friction and extend rope life

Specifications:

  • Model: CW-45
  • Rated Line Pull: 4,500 lbs (2,040 kg)
  • Motor: 12V DC, 1.9HP
  • Remote Control: Handlebar Mini-Rocker & Wireless Remote (included)
  • Geartrain: 3-Stage Planetary, 176:1 ratio
  • Brake: Dynamic & Mechanical
  • Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)

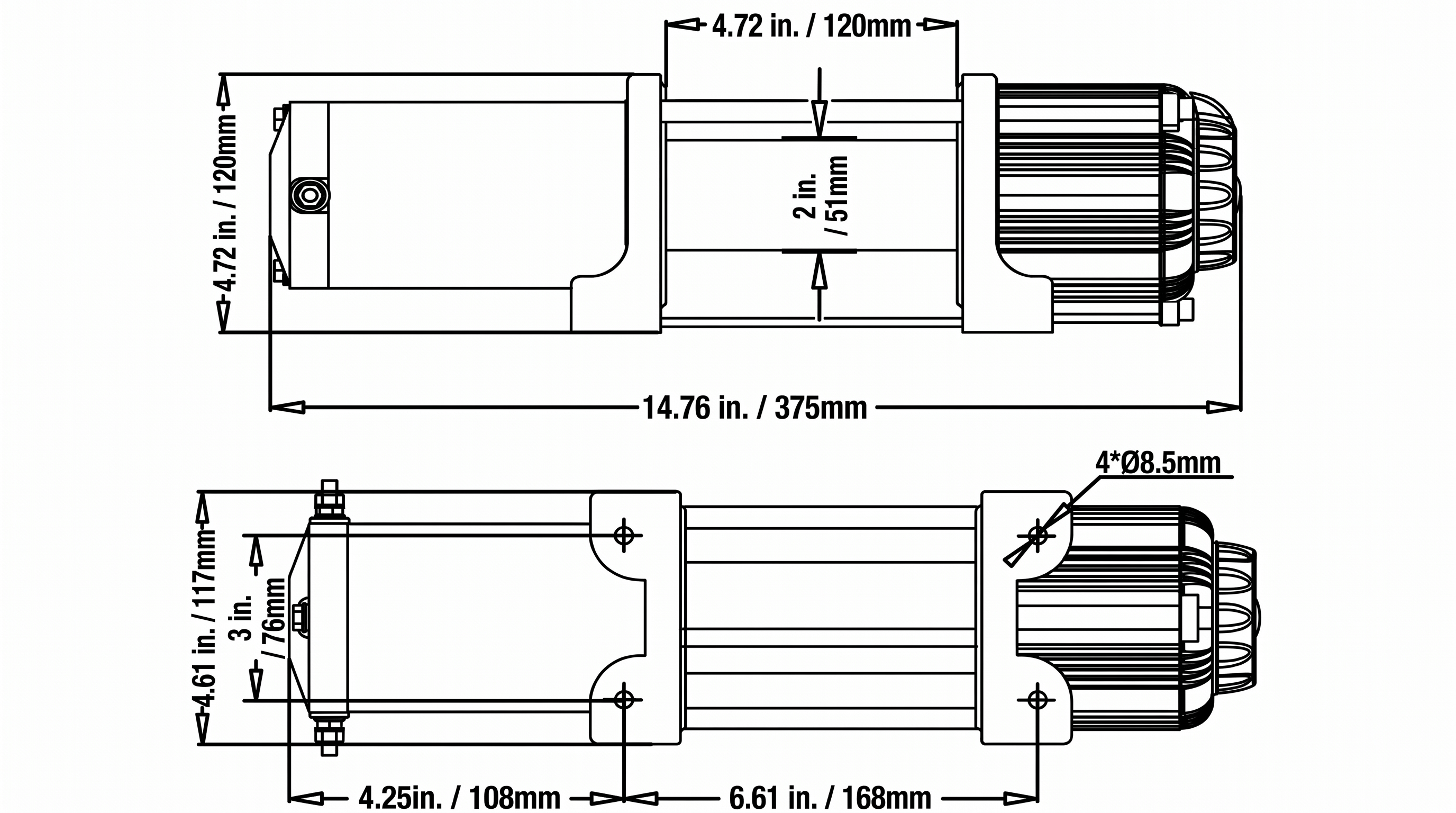

  • Mounting Bolt Pattern: 3.0” x 6.59” (76mm x 167mm)
  • Winch Dimensions: 14.9” x 4.7” x 4.5” (379mm x 120mm x 115mm)
  • Shipping Weight: 12.2 kg

This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting.

Get yours today and make every job easier!

12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
20.4(6.2) 31 Amps 1/4500(2040)
1000 14.2(4.3) 65Amps 2/3750(1700)
2000 10.9(3.3) 96Amps 3/3510(1595)
3000 7.7(2.4) 125Amps 4/3300(1500)
4500 4.9(1.5) 175.Amps




Winches Warranty

Australian Market Warranty Document – Carbon Winches Recreational Recovery Winches Warranty Form

How to apply for a warranty directly through Carbon Offroad:
To start a warranty claim, please contact us by emailing operations@carbonoffroad.com.au or calling 1300 780 141

You’ll need to:

  • Be the original purchaser of the winch
  • Provide a copy of your proof of purchase
  • Fill out our warranty form, which we’ll send you after your initial contact, along with a RA Number (Return Authority)
  • Once we receive your completed form and proof of purchase, our team will assess the issue and guide you through the next steps. If you can not provide your proof of purchase, still reach out; we will do everything in our power to get you out on the tracks.

Initial steps:

If bought from a third party seller, contact the seller of your Carbon Winch to discuss the problem. If the seller deems that the issue with the winch cannot be addressed other than through a warranty claim, the seller is required to contact Carbon Winches Australia on behalf of the user. Carbon Winches Australia will attempt to identify if the issue can be resolved without inspecting the components in question and may request additional proof, such as images or video. If it is deemed that the winch or components need to be sent back to Carbon Winches Australia, the customer must make arrangements to return them to our location at their own expense. Once the winch has been returned along with a copy of proof of purchase, Carbon Winches Australia will assess the warranty claim and provide feedback on a successful or unsuccessful claim. The winch will be repaired and then arranged to be sent back to the customer. If the work is covered under warranty, Carbon Offroad Australia will bear the return shipping cost. If not, the customer is responsible for return shipping costs.

Carbon 12K, Carbon Scout Pro, CW-95K and TANK Range

5-Year Electrical Warranty, 5-Year Water Ingress Protection Warranty, Limited Lifetime Mechanical Warranty.

The warranty applies only to the original purchaser of the winch. To apply for warranty service, you'll need to provide proof of purchase (like a copy of your invoice) that includes the purchase date and is acceptable to Carbon Winches Australia. If no such proof can be supplied, warranty work will not be authorised. Any components, labour, and other materials required will be quoted and paid in full prior to any work being conducted on the product in non-authorised warranty situations.

Carbon Offroad warrants to the original purchaser of our Carbon Offroad winches that:
The mechanical components of the Carbon Winch will be free of defects in materials and workmanship for the lifetime of the winch gearbox housing, clutch ring gear, planetary gear sets, driveshaft and brake mechanism, drum endplates and cross bars, and winch rope drum

The electrical components, including the electric motor and solenoid, will be free of defects in materials and workmanship for a period of 5 years.
That the wireless remote receiver and transmitter unit will be free of defects in materials and workmanship for a period of 5 years (battery not included).

Winches must always be fitted by a competent person skilled in winch installation. A winch is a potentially dangerous piece of equipment and must be installed correctly.

The warranty does not cover or apply to:

  • Removal or reinstallation of the winch or any labour costs in regards to the installation.
  • Shipping costs of the winch to and from Carbon Winches Australia, unless otherwise stated at the time of the warranty claim
  • The finish or appearance of the winch
  • The synthetic or wire rope (other than manufacturer defect)
  • The winch rubber and urethane seals
  • The wear of brushes

The warranty is void if the winch:

  • Is used in any commercial or industrial use or application, or any hoisting application
  • If the minimum recommended battery size requirements stated for that particular winch are not adhered to
  • Winches that have been incorrectly installed or wired
  • Has been damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation or improper maintenance or improper servicing
  • Does not have the supplied isolator switch installed or an approved failsafe switch/fuse with a method of power disconnection with a minimum rating of 400amps installed

No Carbon Winches Australia dealer, agent or employee is authorised to make any modification, extension, or addition to this warranty or represent Carbon Winches Australia in any verbal or written correspondence with regard to any warranty claim unless expressly approved by the Director.

Carbon Winches Australia reserves the right to change product design without notice. In situations in which Carbon Winches Australia has changed a product design, they shall have no obligation to upgrade or otherwise modify previously manufactured products.

Water Ingress Protection Warranty



CW-12K Winches dispatched after 24th December 2016 from Carbon Winches Australia will come with a 5-year Water Ingress Protection Warranty.
This warranty covers:
  • Mechanical components failure due to water ingress of the electric motor, gearbox and brake mechanism.
  • Electrical components failure of the electric motor, wireless receiver unit and electric solenoid unit
What the Water IP Warranty doesn’t cover:
  • The wireless transmitter hand remote control
  • The plug-in hand remote control
  • Mounting Bolts
  • Battery Cables and Lugs

Protecting your winch from water ingress:

There are no conditions on maintaining your IP Warranty. However, we would like you to understand the following information about your winch to get the best out of it in the long term.

The rubber lip seals on the winch rope drum are a wear item; they are subject to exposure to the elements and abrasive materials such as mud, sand, salt, dirt, and other environmental contaminants, and will wear out with use of your winch. We recommend you replace the drum lip seals every 12 months or as often as you feel necessary depending on the use of your winch. These are available for sale on the website. This will ensure that your winch maintains its high standard of waterproofing and provides you with years of hassle-free operation.

We highly recommend you download and read the maintenance and first use guideline document before installing and operating your winch.

Warranty for all ATV/Utility winches and 17000lb winches

5-Year Mechanical Warranty, 5-Year Electrical Warranty. (No Water Ingress Warranty on these winches)

The warranty applies only to the original purchaser of the winch. When applying for any warranty service, proof and date of purchase acceptable to Carbon Winches Australia, such as a copy of your purchase invoice, must be supplied. If no such proof can be supplied, warranty work will not be authorised. Any components, labour, and other materials required will be quoted and paid in full prior to any work being conducted on the product in non-authorised warranty situations.


Carbon Winches Australia warrants to the original purchaser of our recreational electric recovery winches range that:

  • The mechanical components of the Carbon Winch will be free of defects in materials and workmanship for 5 year of the: winch gearbox housing, clutch ring gear, planetary gear sets, driveshaft and brake mechanism, drum endplates and cross bars,winch rope drum.
  • That the electrical components including the electric motor and solenoid will be free of defects in materials and workmanship for a period of 5 years.
  • That the wireless remote receiver and transmitter unit will be free of defects in materials and workmanship for a period of 5 years (battery not included).
  • Winches must always be fitted by a competent person skilled in winch installation.
  • A winch is a potentially dangerous piece of equipment and must be installed correctly.

The warranty does not cover or apply to:

  • Removal or reinstallation of the winch or any labour costs regarding the installation
  • Shipping costs of the winch to and from Carbon Winches Australia, unless otherwise stated at the time of the warranty claim.
  • The finish of the winch
  • The synthetic or wire rope
  • The winch rubber and urethane seals
  • The wear of brushes inside the motor

The warranty is void or not valid if the winch:

  • Is used in any commercial or industrial use or application, or any hoisting application.
  • If the minimum recommended battery size requirements stated for that particular winch are not adhered to.
  • Winches that have been incorrectly installed or wired.
  • If the winch has been damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation or improper maintenance or improper servicing.
  • The ATV Winches and 17000lb winch are well sealed but are not waterproof winches, therefore we do not cover any components for water damage. We recommend after immersion for any period of time that disassembly and regreasing of the gearbox is good practice.

No Carbon Winches Australia dealer, agent or employee is authorised to make any modification, extension, or addition to this warranty or represent Carbon Winches Australia in any verbal or written correspondence with regard to any warranty claim unless expressly approved by the Director.

Carbon Winches Australia reserves the right to change product design without notice. In situations in which Carbon Winches Australia has changed a product design they shall have no obligation to upgrade or otherwise modify previously manufactured products.

General Warranty

We cover all items we sell for a minimum of 12 months for parts and manufacturing from date of purchase. If a warranty is authorised, Carbon Offroad is only obligated to cover the replacement or re-issue of the original parts. Under no circumstances is Carbon Offroad liable for any costs involving shipping, removal and replacement labour costs or other associated work. The warranty is strictly a parts only coverage.

International Warranty - Special Conditions

Lifetime Mechanical Warranty, 5-Year Electrical Warranty, 5-Year Water Ingress Protection Warranty

The warranty applies only to the original purchaser of the winch. When applying for any warranty service, proof and date of purchase acceptable to Carbon Winches Australia, such as a copy of your purchase invoice must be supplied. If no such proof can be supplied warranty work will not be authorized. Any components, labor and other materials required will be quoted and paid in full prior to any work being conducted on the product in non-authorized warranty situations.

Carbon Winches Australia warrants to the original purchaser of our 4wd recreational electric recovery winches range that:

  • The mechanical components of the Carbon Winch will be free of defects in materials and workmanship for the lifetime of the winch gearbox housing, clutch ring gear, planetary gear sets, driveshaft, brake mechanism,
    drum endplates, cross bars and winch rope.
  • The electrical components, including the electric motor and solenoid will be free of defects in materials and workmanship for a period of 5 years.
  • The wireless remote receiver and transmitter unit will be free of defects in materials and workmanship for a period of 5 years (battery not included)

Winches must always be fitted by a competent person skilled in winch installation. A winch is a potentially dangerous piece of equipment and must be installed correctly.

The warranty does not cover or apply to:

  • Removal or reinstallation of the winch.
  • Shipping costs of the winch to and from Carbon Winches Australia or their representatives, unless otherwise stated at the time of the warranty claim
  • The finish of the winch
  • The synthetic or wire rope.
  • The winch rubber and urethane seals

The warranty is void if the winch:

  • Is used in any commercial or industrial use or application, or any hoisting application.
  • If the minimum recommended battery size requirements stated for that particular winch are not adhered to.
  • Winches that have been incorrectly installed or wired.
  • If the winch has been damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation or improper maintenance or improper servicing.

Legal Disclaimer

On this page, we summarise the warranties applicable to certain products available on this website. The information contained in this website is for general guidance on the matters described herein. Given the inherent hazards of electronic communication, there may be delays, omissions or inaccuracies in information contained in this site. We strongly advise customers not to rely solely on the information contained on this website and to make their own enquiries in relation to the information provided.

The information on this site is provided with the understanding that the authors and publishers are not herein engaged in rendering any professional advice, services or any other advice in relation to the warranties summarised. As such, it should not be used as a substitute for reading the warranty information provided by the manufacturers or for consultation with professional advisors and/or the manufacturer directly.

While we have made every attempt to ensure that the information contained in this site has been obtained from reliable sources, KPD is not responsible for any errors or omissions, or for the results obtained from the use of this information.

All information in this site is provided "as is", with no guarantee of completeness, accuracy, timeliness or of the results obtained from the use of this information, and without warranty of any kind, express or implied, including, but not limited to warranties of performance, merchantability and fitness for a particular purpose.

In no event will KPD, its related partnerships or corporations, or the partners, agents or employees thereof be liable to you or anyone else for any decision made or action taken in reliance on the information in this site or for any consequential, special or similar damages, even if advised of the possibility of such damages.

Certain links in this site connect to other websites maintained by third parties over whom KPD  has no control. KPD makes no representations as to the accuracy or any other aspect of information contained in other web sites.
