CW-XD15BLK
$1,299.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Description
Heavy Duty Recovery Power

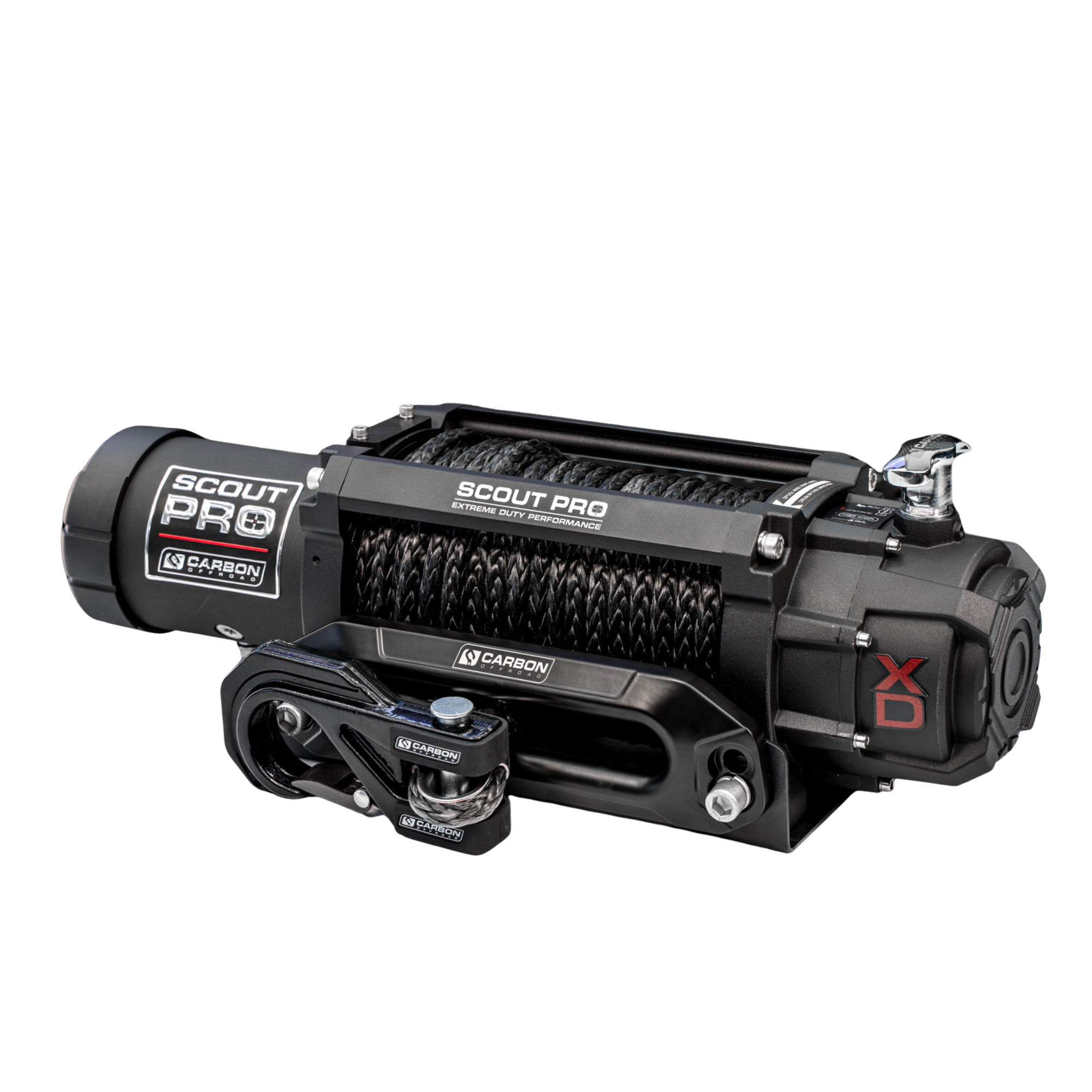

The Carbon Offroad CW-XD15-V3 is a heavy-duty recovery solution delivering an immense 6803kg (15000lbs) of pulling capacity via a powerful 12V DC 7.0 HP series wound motor.
Overview
Engineered for the Outback. Built for reliable off-road recovery, this winch utilises a 3-stage planetary geartrain with a 218:1 gear ratio and a rotating ring gear. It features an automatic brake inside the motor bracket for secure load holding during highly technical recoveries.
You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.
Features
- Extreme Pulling Capacity: Delivers 6803kg (15000lbs) of single-line pull, perfect for heavily loaded 4WDs and extreme off-road scenarios.
- Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation.
- Reliable Braking: An automatic brake in the motor bracket ensures absolute control and prevents rollback under heavy loads.
- MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior synthetic rope protection.
- Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, a 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.
Contents
1 x Carbon Offroad CW-XD15-V3 Winch
1 x Synthetic Rope (11mm x 24m / 7/16" x 78.7ft)
1 x Carbon Offroad MegaPro Fairlead
1 x Control Box Complete with Cables
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Bolts Kit
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD15-V3 |
| Rated Line Pull | 6803kg (15000lbs) single-line |
| Motor | 12V DC 7.0 HP series wound |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 218:1 |
| Brake | Automatic brake in the motor bracket |
| Synthetic Rope | 11mm x 24m (7/16" x 78.7ft) |
| Fairlead | MegaPro CNC billet type 3 hard anodised |

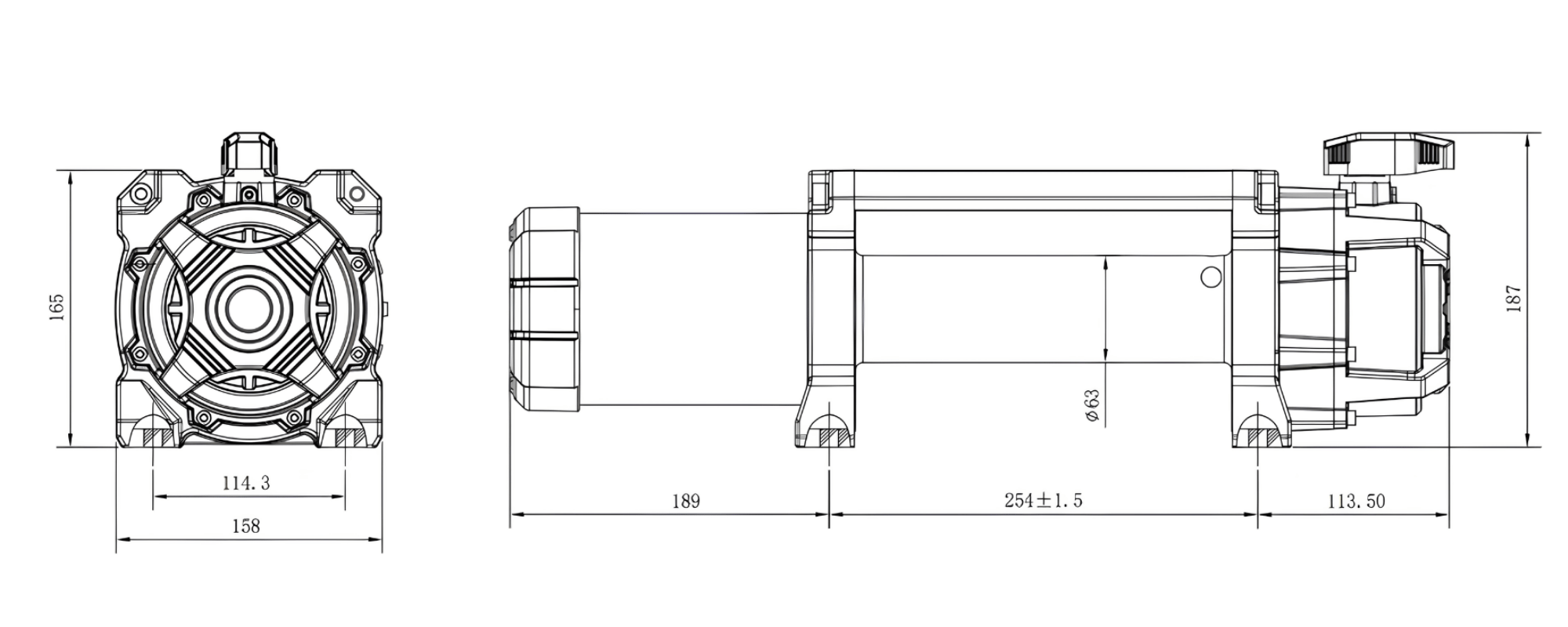

| Drum Dimensions | 63.5mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10.0" x 4.5") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7") |
| Installed Weight | 26.7kg (58.9 lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 27.9 (8.5) | 65 | 1 / 15000 (6810) |
| 2000 (910) | 11.8 (3.6) | 120 | 2 / 12700 (5765) |
| 6000 (2720) | 9.5 (2.9) | 160 | 3 / 10770 (4890) |
| 10000 (4540) | 6.6 (2.0) | 215 | 4 / 9130 (4145) |
| 13000 (5900) | 4.6 (1.4) | 265 | - |
| 15000 (6818) | 3.6 (1.1) | 380 | - |

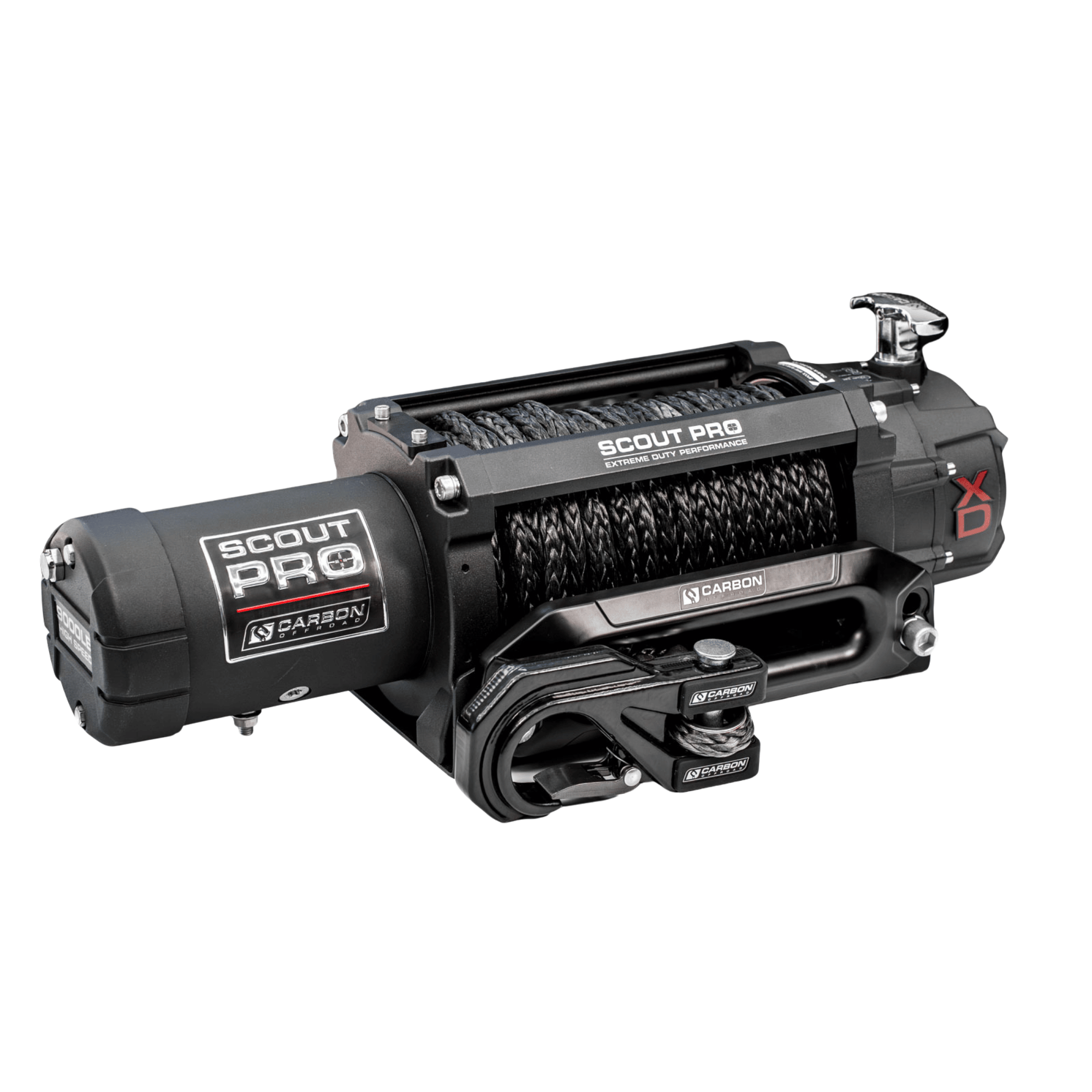

Carbon Scout Pro - 15000lb Winch V3
BLACK
$1,299.00
Heavy Duty Recovery Power
This setup is built for the heavy hitters running American utes like RAMs, Silverados, and F-Trucks. If you're hauling a massive GVM upgrade or a heavy trailer through a bottomless quagmire, this 15,000lb unit delivers the grunt needed to get you home.
Low Installed Weight
At just 26.7kg, this is incredibly light for a 15,000lb winch. You get massive pulling capacity without the heavy front-end penalty that usually ruins your suspension handling and fuel economy.
7.0HP Series Wound Motor
Powered by a 12V DC 7.0HP motor designed for reliable off-road recovery and high-capacity pulling power.
218:1 Three-Stage Planetary Geartrain
Utilises a 218:1 gear ratio and a rotating ring gear. Engineered for reliable performance and durability.

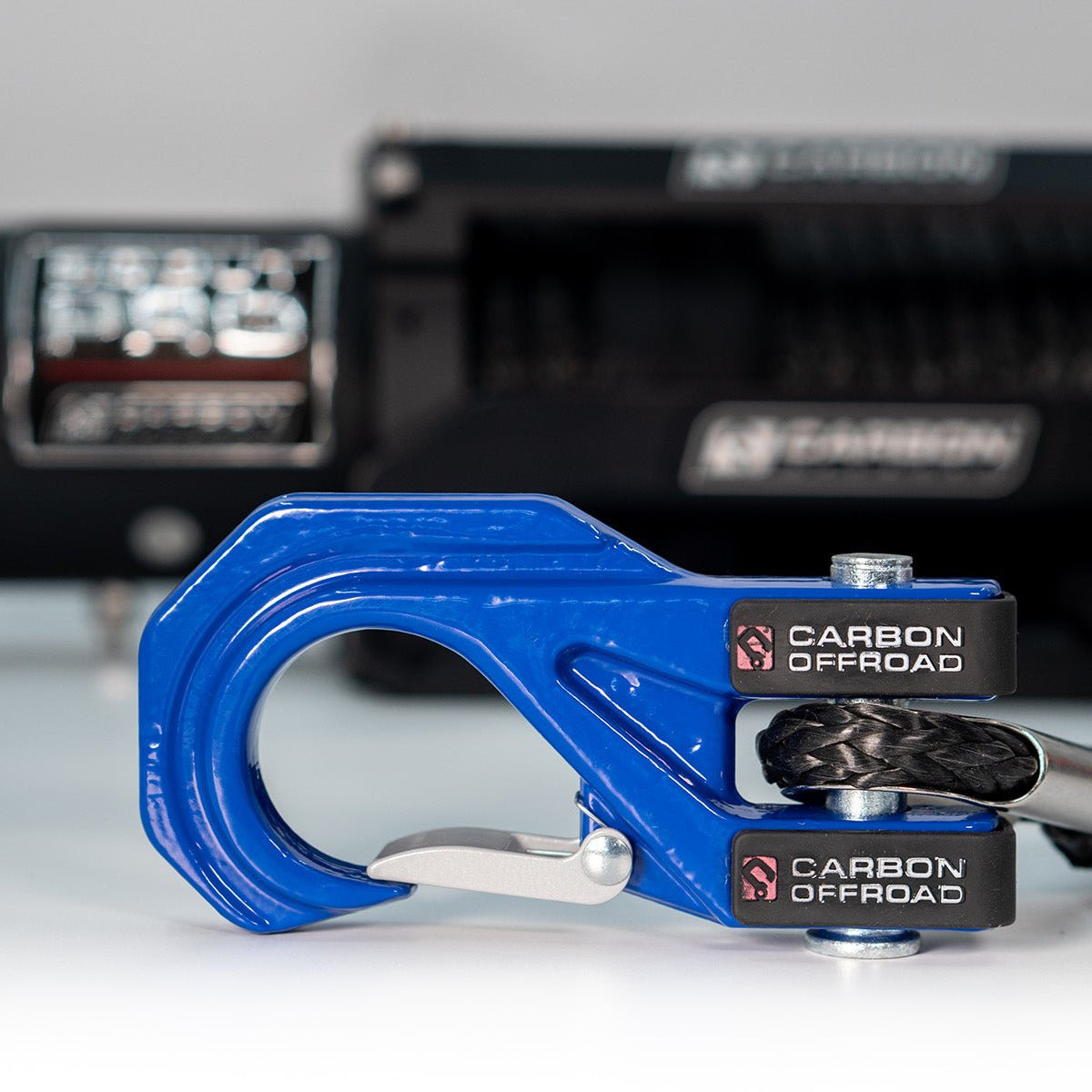

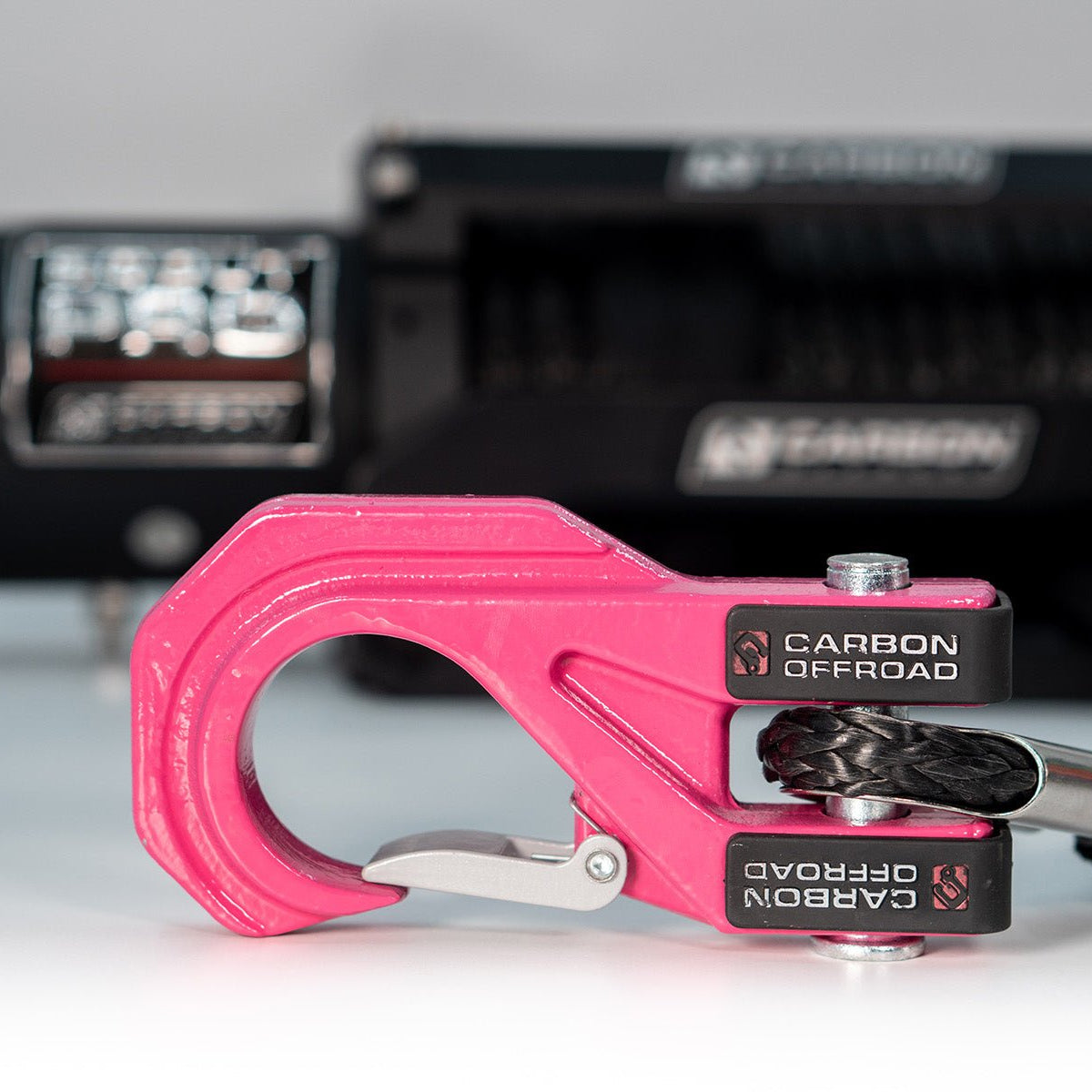

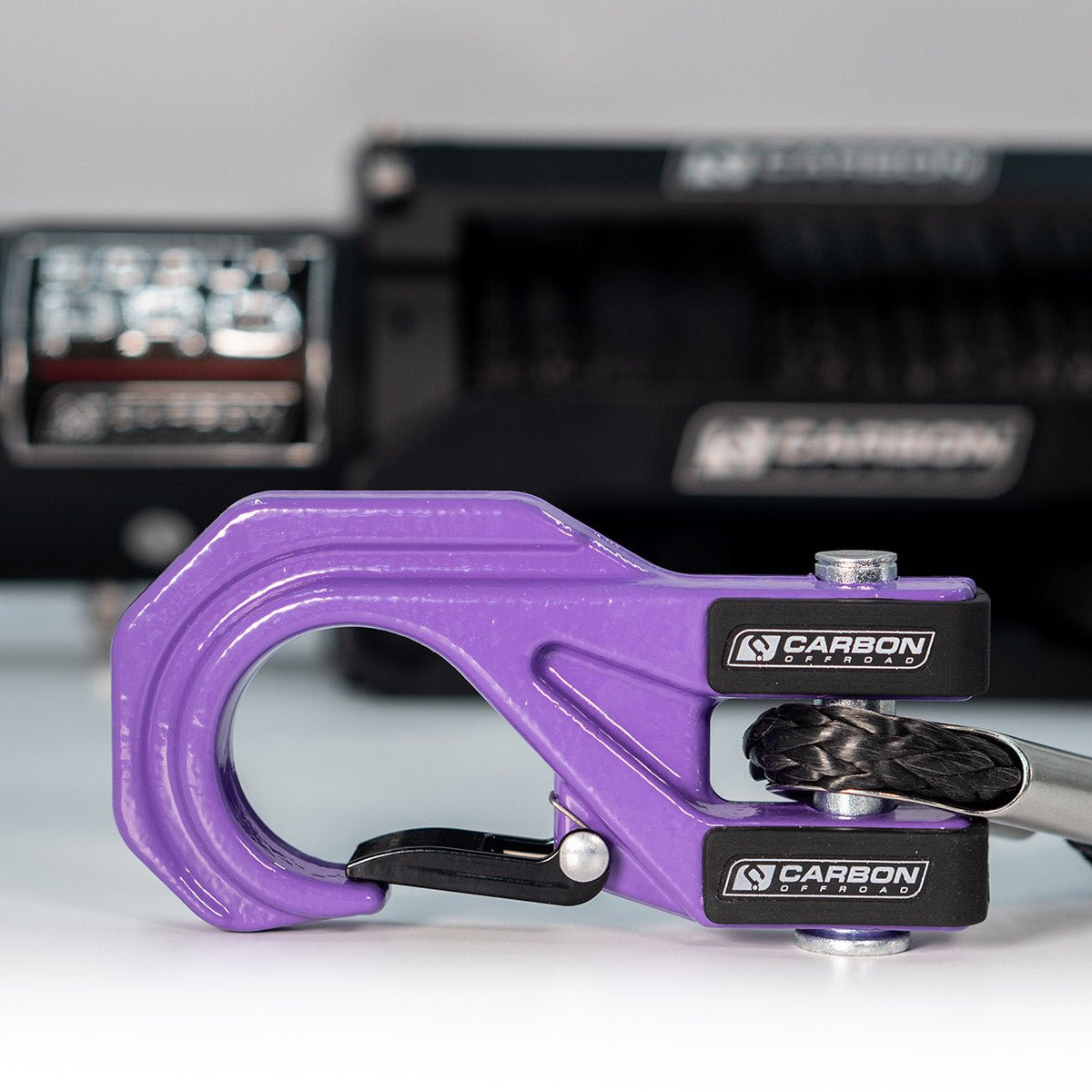

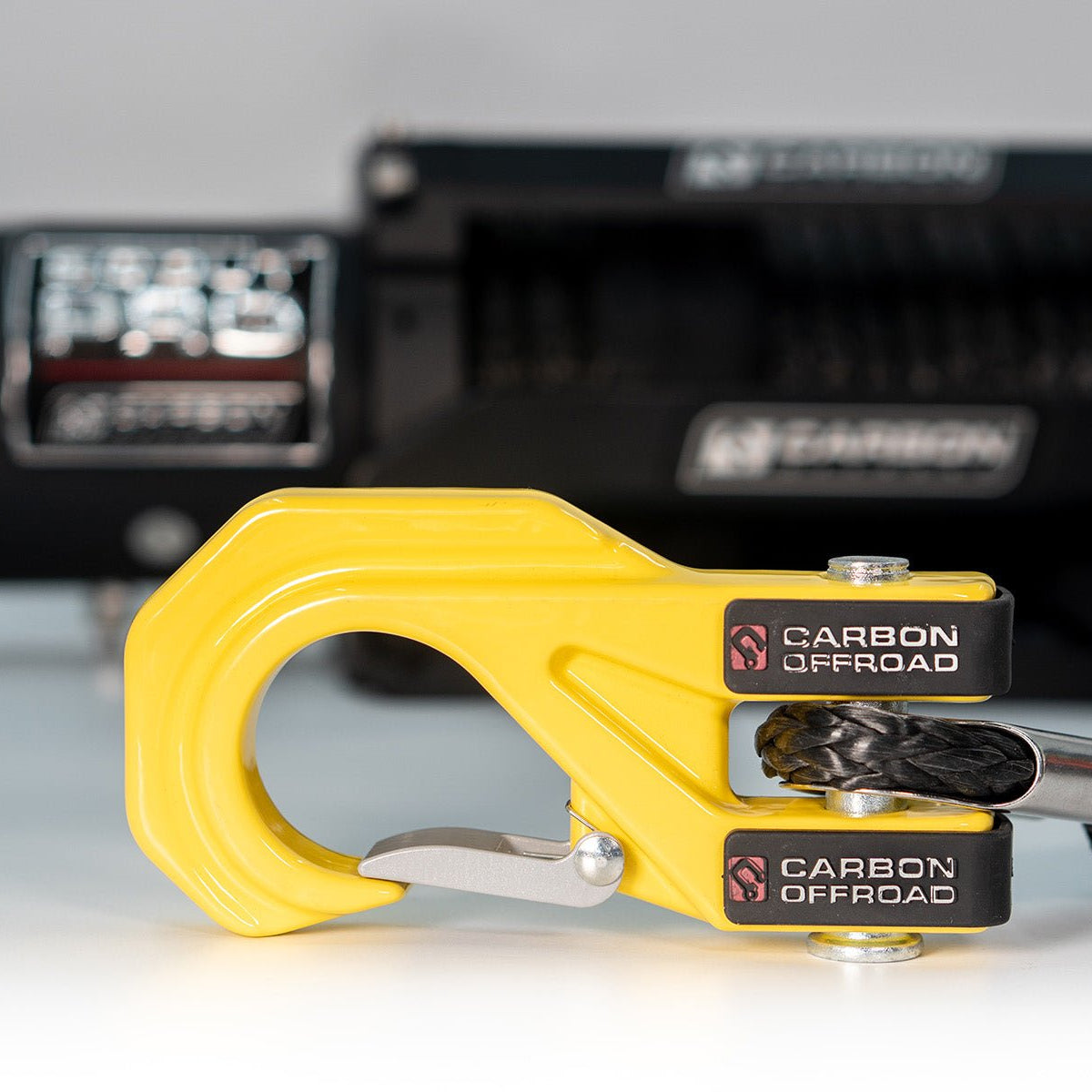

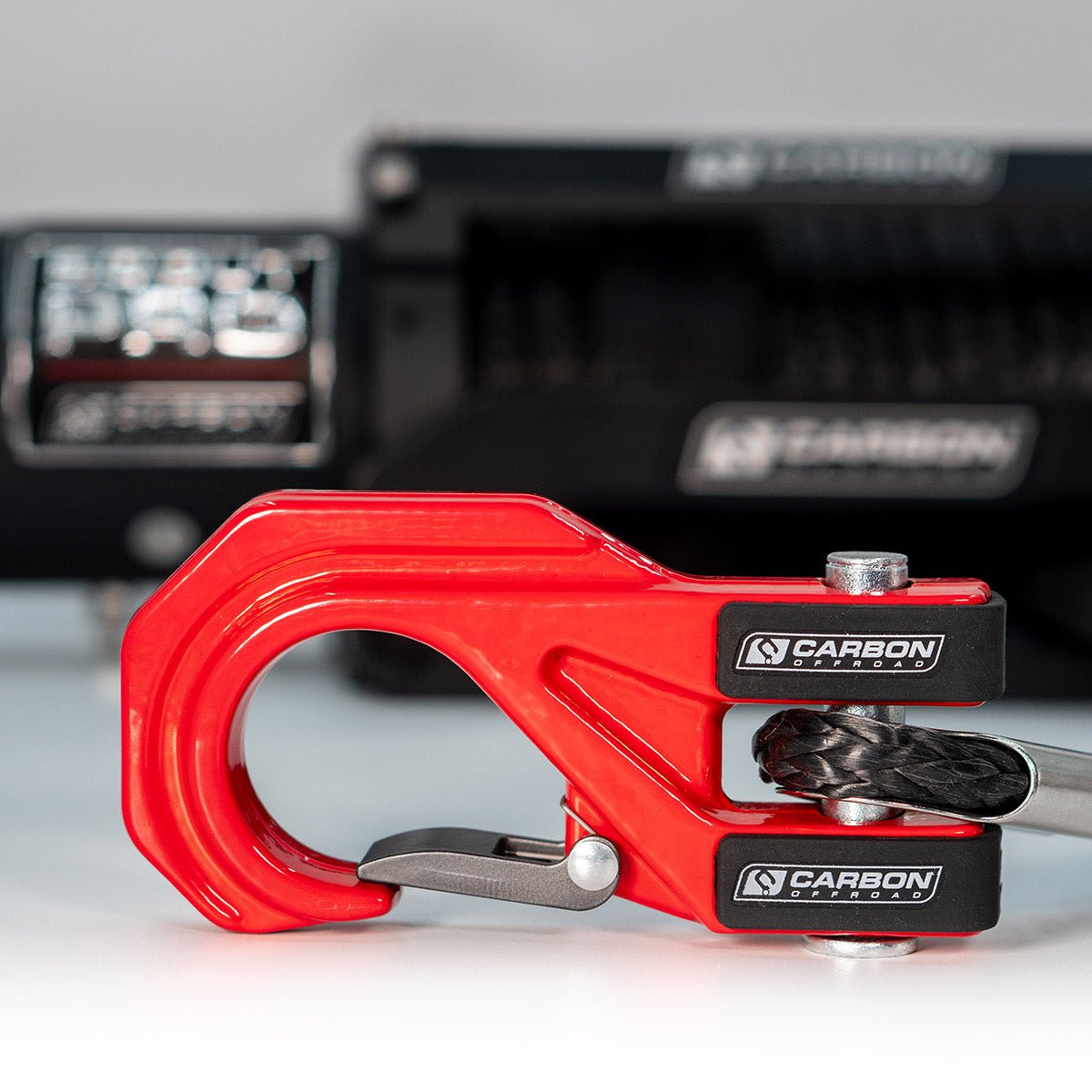

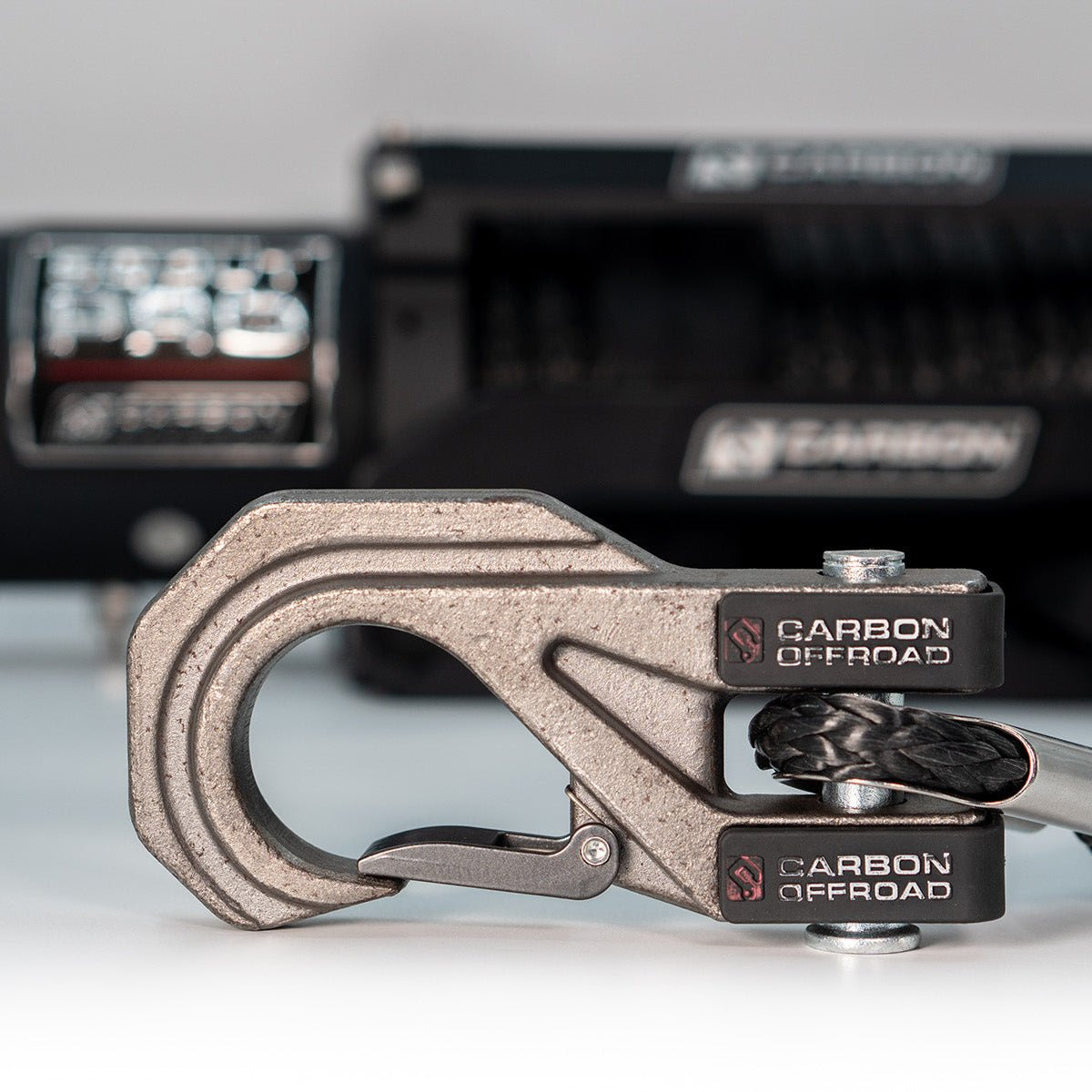

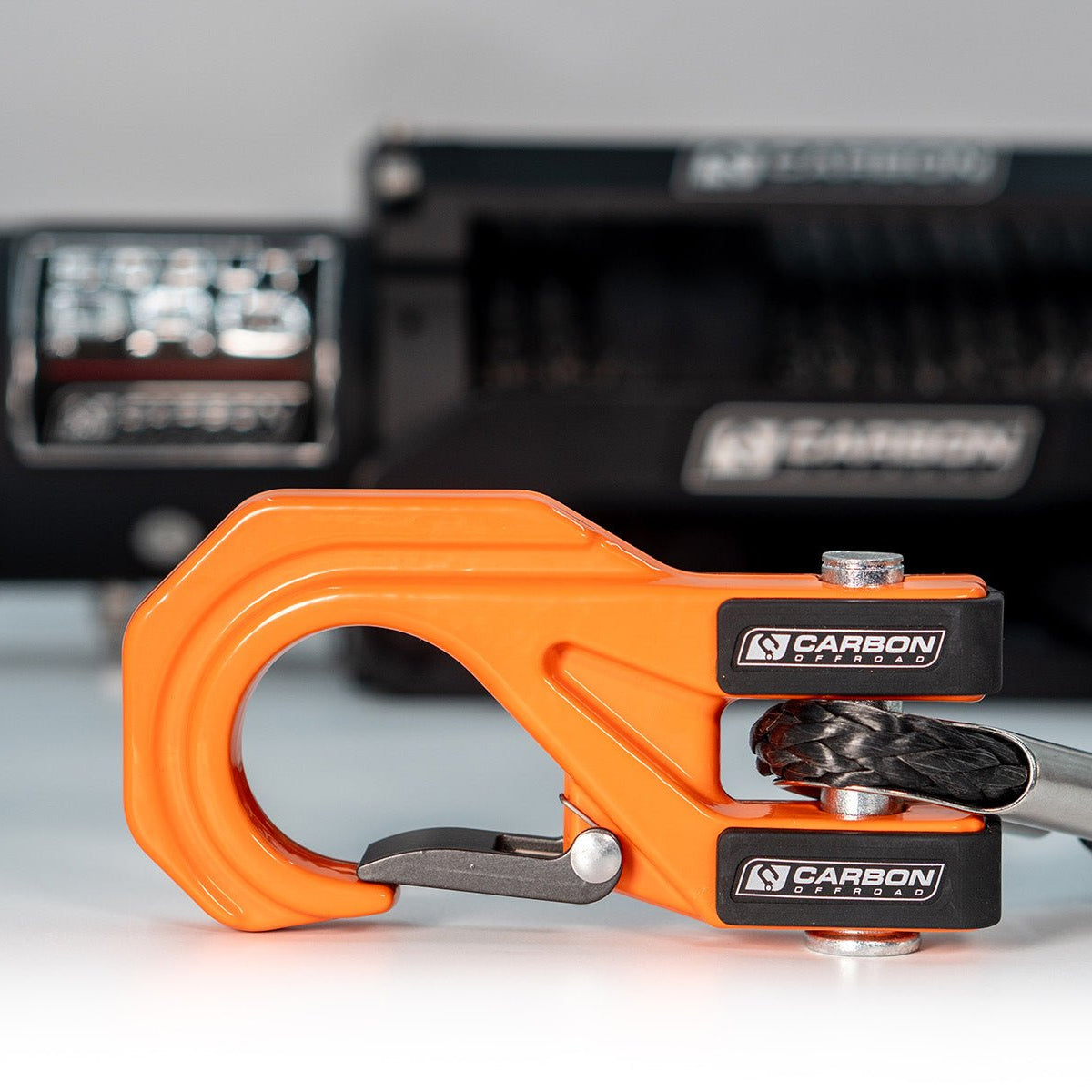

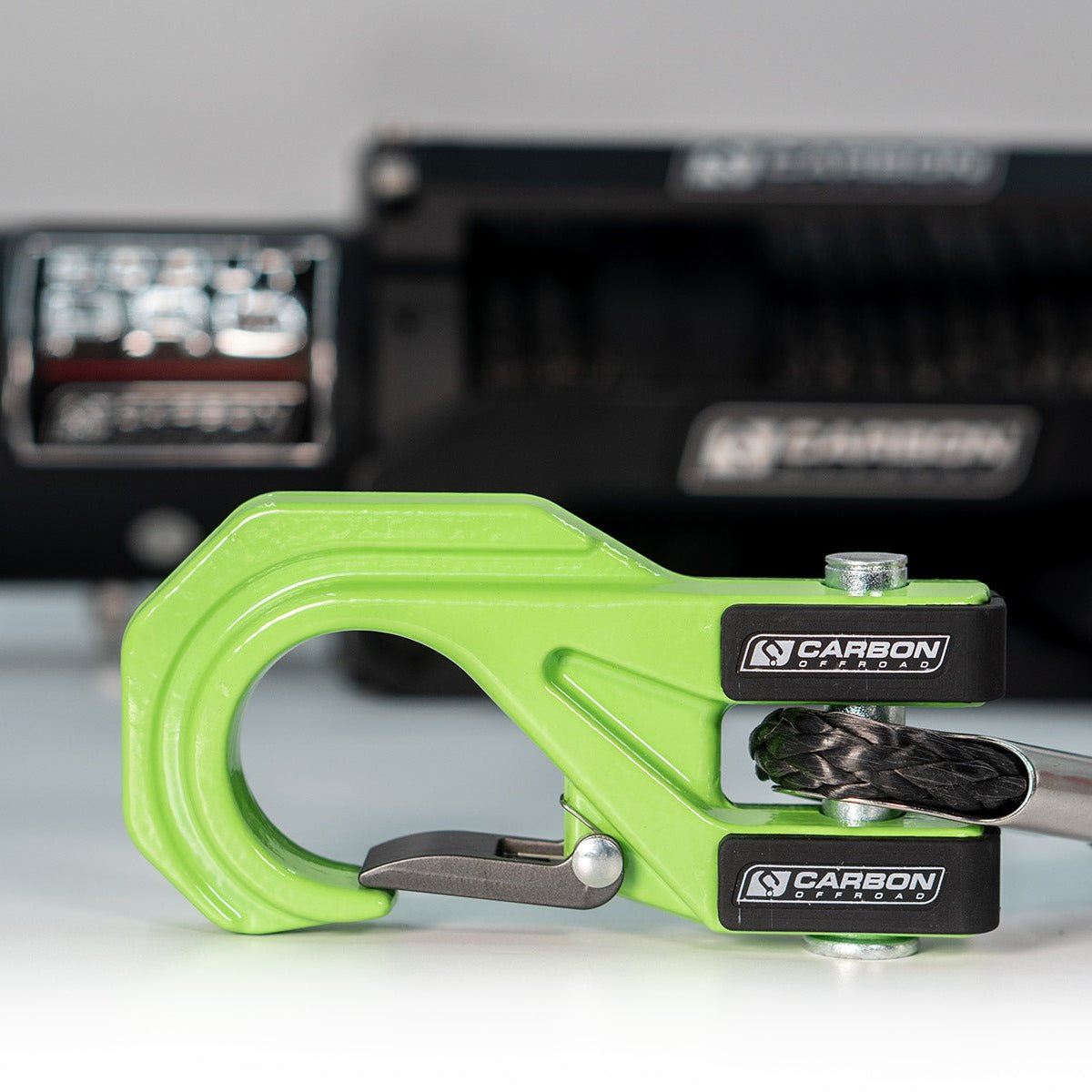

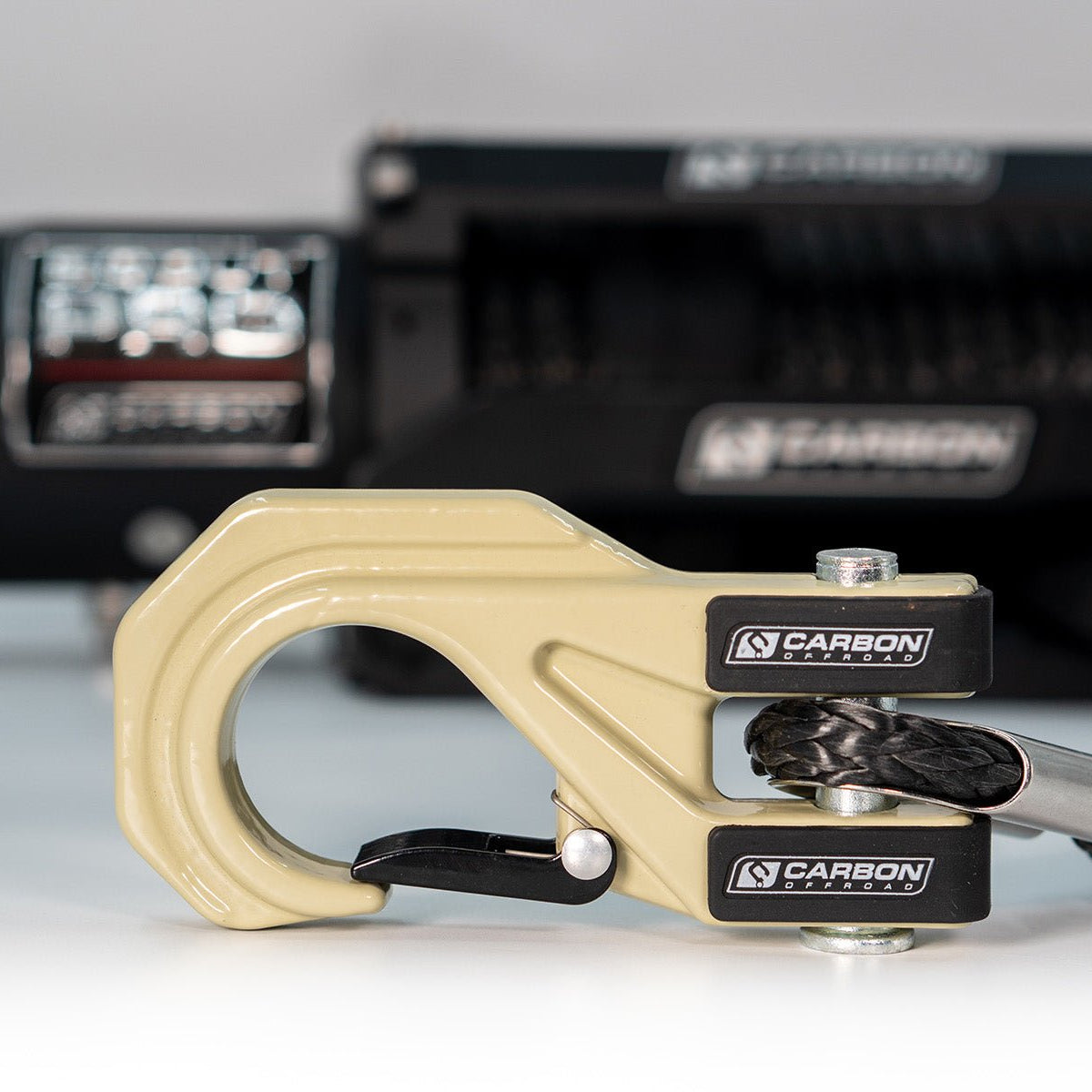

MegaPro CNC Fairlead and Hook
Includes our premium CNC billet type 3 hard anodised fairlead. It is designed to protect your synthetic rope from abrasion and heat-build-up, ensuring your line lasts longer under heavy tension
IP68 Waterproofing
Every winch in our lineup is IP68 waterproof. High-grade seals keep mud and water out of the motor and gearbox even during the deepest river crossings.
Wireless & Wired Control
This unit comes standard with both a wired remote featuring a 3.6m lead and a wireless remote. This gives you the flexibility to stand well clear of the recovery area while maintaining full control over the winch line.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 27.9 (8.5) | 65 | 1 / 15000 (6810) |
| 2000 (910) | 11.8 (3.6) | 120 | 2 / 12700 (5765) |
| 6000 (2720) | 9.5 (2.9) | 160 | 3 / 10770 (4890) |
| 10000 (4540) | 6.6 (2.0) | 215 | 4 / 9130 (4145) |
| 13000 (5900) | 4.6 (1.4) | 265 | |
| 15000 (6818) | 3.6 (1.1) | 380 |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
