Carbon Offroad 6000lb ATV/Small 4X4 Winch 24V

SKU: CW-XD6-24V

$599.00

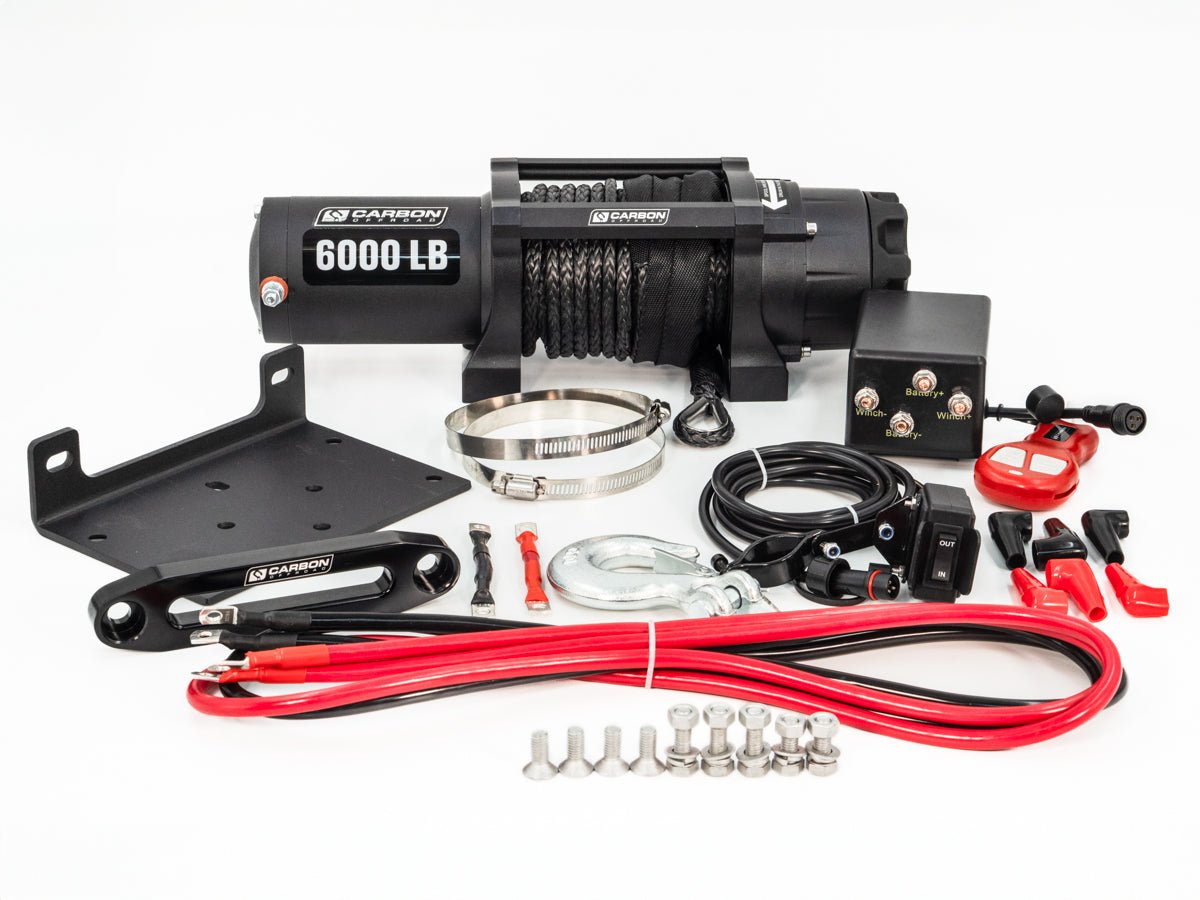

Carbon Offroad 6000 lb ATV Winch – Compact, versatile winch with sealed motor, wireless/wired remotes, and integrated mount. Perfect for ATVs, small 4WDs, trailers, boats, and tough jobs on the go.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Quality Assured by Carbon Staff

Your Order Packed With Care
Technical Features Dimensions Warranty
  • Part number: CW-XD6
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
  • Synthetic Rope: 16m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 122mm
  • Mounting Bolt Pattern: 164mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 385 x 115 x 119mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Part number: CW-XD6
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
  • Synthetic Rope: 16m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 122mm
  • Mounting Bolt Pattern: 164mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 385 x 115 x 119mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
Previous Product Next Product

Speed & Performance Breakdown

12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 13.8(4.2) 15 1/6000(2725)
2000(1814) 9.5(2.9) 125 2/5350(2430)
4000(3629) 7.2(2.2) 190 3/4780(2170)
6000(5443) 4.6(1.4) 240 4/4270(1940)

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

Download Guide
