CW-45
$499.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Carbon 4.5k 4500lb ATV - Trailer Winch
$499.00
Fits Where Big Winches Can't
You do not have much room on the front of a side-by-side or the deck of a car trailer. You need enough power to drag a broken car or a rolled buggy, but a full-size winch simply will not fit.
That is what the 4.5K is built for.
It gives you 2040kg of pull from a compact 1.9 HP motor. We include an integrated mounting plate in the box, so you can bolt it straight to your UTV or trailer pedestal without paying for custom fabrication.
It is a straightforward, reliable setup for loading vans, retrieving buggies, and hauling dead weights onto trailers.
Backed By Real Wheelers
When you need support, you are not talking to a call centre reading from a script. You are talking to local off-road experts who actually use this gear. We know what works because we run it on our own rigs.
13m Synthetic Rope Setup
Spooled with 13 metres of lightweight 6.35mm synthetic rope. It routes cleanly through our premium CNC billet alloy black anodised fairlead to reduce friction under heavy load.
Compact & Ready To Mount
Designed for tight spaces with a standard 76mm x 167mm bolt pattern. We include the integrated mounting plate in the kit so it drops straight onto a trailer pedestal or ATV mount with zero fuss.
Supported By 150+ Dealers
We are stocked by over 150 authorized dealers across Australia. When you run Carbon gear, you have local support, fast access to spare parts, and a massive network backing you up wherever you go.
Extended Carbon Warranty
Covered by our Limited Lifetime Mechanical Warranty and a 5-year Electrical Warranty. We build these to work hard so you get total peace of mind on the tracks or the job site.
Compact, Powerful, and Versatile Winch
Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, specifically designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.
Overview
This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting. Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring improved clutch handle operation for smoother control, enhanced sealing for wet and rugged conditions, and upgraded components for long-lasting performance.
It comes standard with an integrated mounting plate for quick and simple installation, easily securing to an existing pedestal or designated winch mount on your trailer, ATV, or buggy. It is ideal for loading heavy equipment into vans, retrieving stuck ATVs, pulling boats onto trailers, and even opening cattle gates on livestock trucks.
Features
- Reliable Pulling Power: Features a 4,500 lb single-line pull driven by a highly efficient, sealed 12V DC 1.9 HP permanent magnet motor.
- Maximum Convenience: Includes both a free wireless remote control for effortless operation and a handlebar mini-rocker switch for direct, hands-on control from your ATV.
- Heavy-Duty Geartrain: Equipped with a full metal 3-stage planetary gear train (176:1 ratio) for greater pulling force, reinforced by tie bars for ultimate stability.
- Power In & Out: Offers reliable power in and out operation supported by dynamic and mechanical load-holding braking.
- Premium Synthetic Setup: Spooled with high-strength, lightweight synthetic rope and paired with a sleek CNC billet alloy black anodised Hawse fairlead to reduce friction.
Contents
1 x Carbon CW-45 4500lb Winch
1 x Synthetic Rope (43 ft x 1/4" / 13m x 6.35mm)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Integrated Mounting Plate & Hardware Set
| Feature | Specification Metric (Imperial) |
|---|---|
| Model | CW-45 |
| Rated Line Pull | 4,500 lbs (2,040 kg) single-line |
| Motor | 12V DC, 1.9 HP permanent magnet motor |
| Geartrain | 3-Stage Planetary (176:1 ratio) |
| Brake System | Dynamic & Mechanical |
| Synthetic Rope | 13m x 6.35mm (43' x 1/4") |
| Fairlead | CNC billet alloy black anodised |

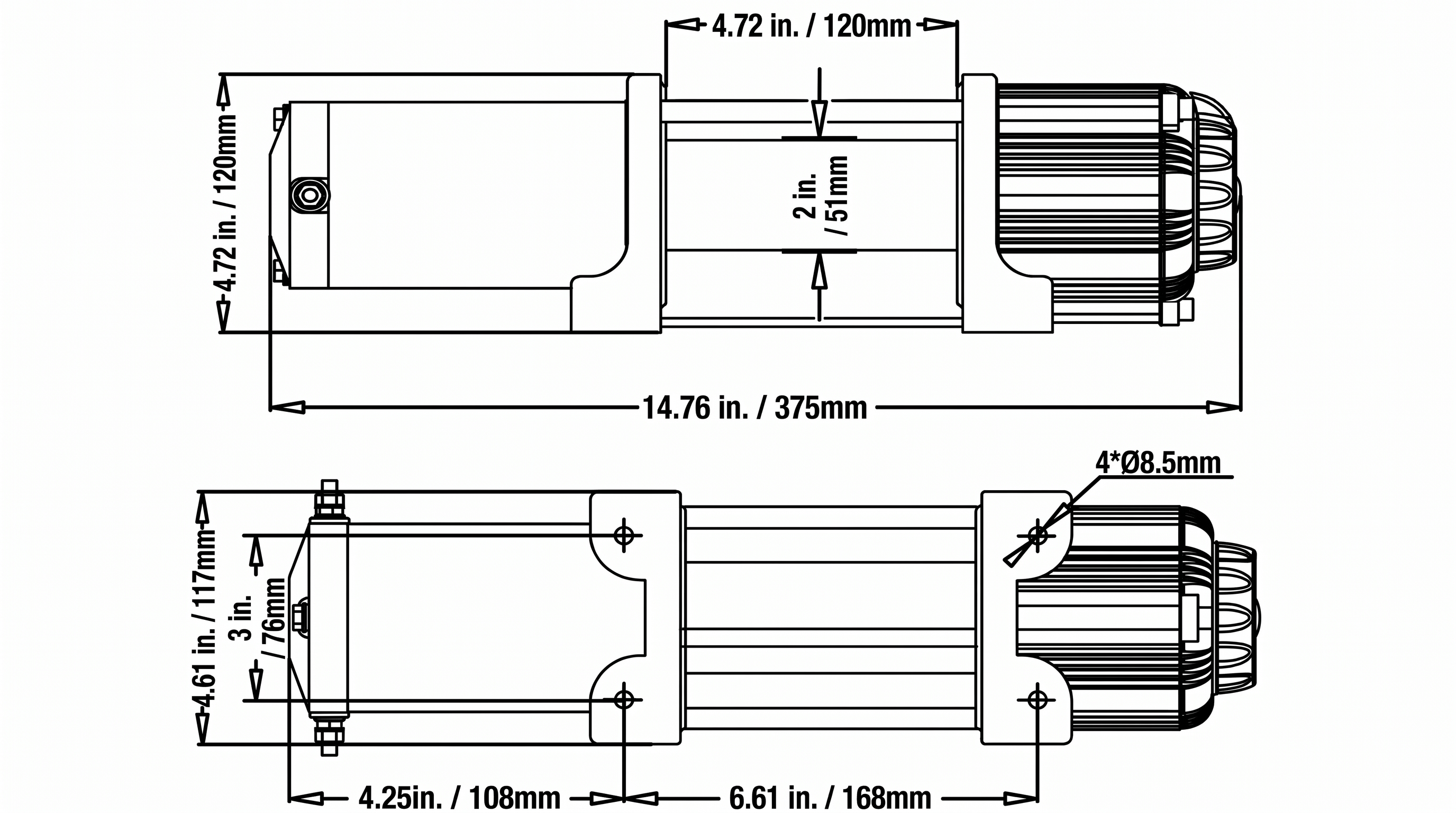

| Mounting Bolt Pattern | 76mm x 167mm (3.0" x 6.59") |
| Winch Dimensions (L x W x H) | 379mm x 120mm x 115mm (14.9" x 4.7" x 4.5") |
| Shipping Weight | 12.2 kg (26.9 lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 31 | 1 / 4500 (2040) |
| 1000 (454) | 14.2 (4.3) | 65 | 2 / 3750 (1700) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 3510 (1595) |
| 3000 (1360) | 7.7 (2.4) | 125 | 4 / 3300 (1500) |
| 4500 (2040) | 4.9 (1.5) | 175 | - |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 31 | 1 / 4500 (2040) |
| 1000 (454) | 14.2 (4.3) | 65 | 2 / 3750 (1700) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 3510 (1595) |
| 3000 (1360) | 7.7 (2.4) | 125 | 4 / 3300 (1500) |
| 4500 (2040) | 4.9 (1.5) | 175 |
