Raptor 120 LED 9″ Driving Light (Pair)

Name: Raptor 120 LED 9″ Driving Light (Pair)
Brand: Ultra Vision
SKU: 45771125031224
Price: 829.0 AUD
Availability: OutOfStock

$829.00

Raptor 120W LED Driving Lights – Australian-made driving lights with die-cast aluminium housing, polycarbonate lens, and combo beam for excellent distance and width. Comes with grey rim, protective lens cover, stainless-steel bracket, and wiring harness. Available in 4000K or 5700K, customizable with optional Rim Kits, IP68 waterproof, and backed by a 3-year warranty.

Fast Shipping + Order tracking

100% Australian Owned

Colour Temperature

4000k 5700k

Quality Assured by Carbon Staff

Your Order Packed With Care

Description

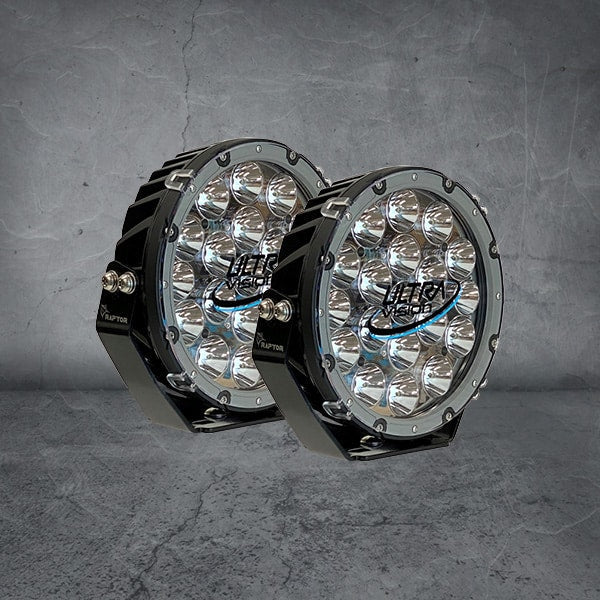

The RAPTOR LED driving lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type.

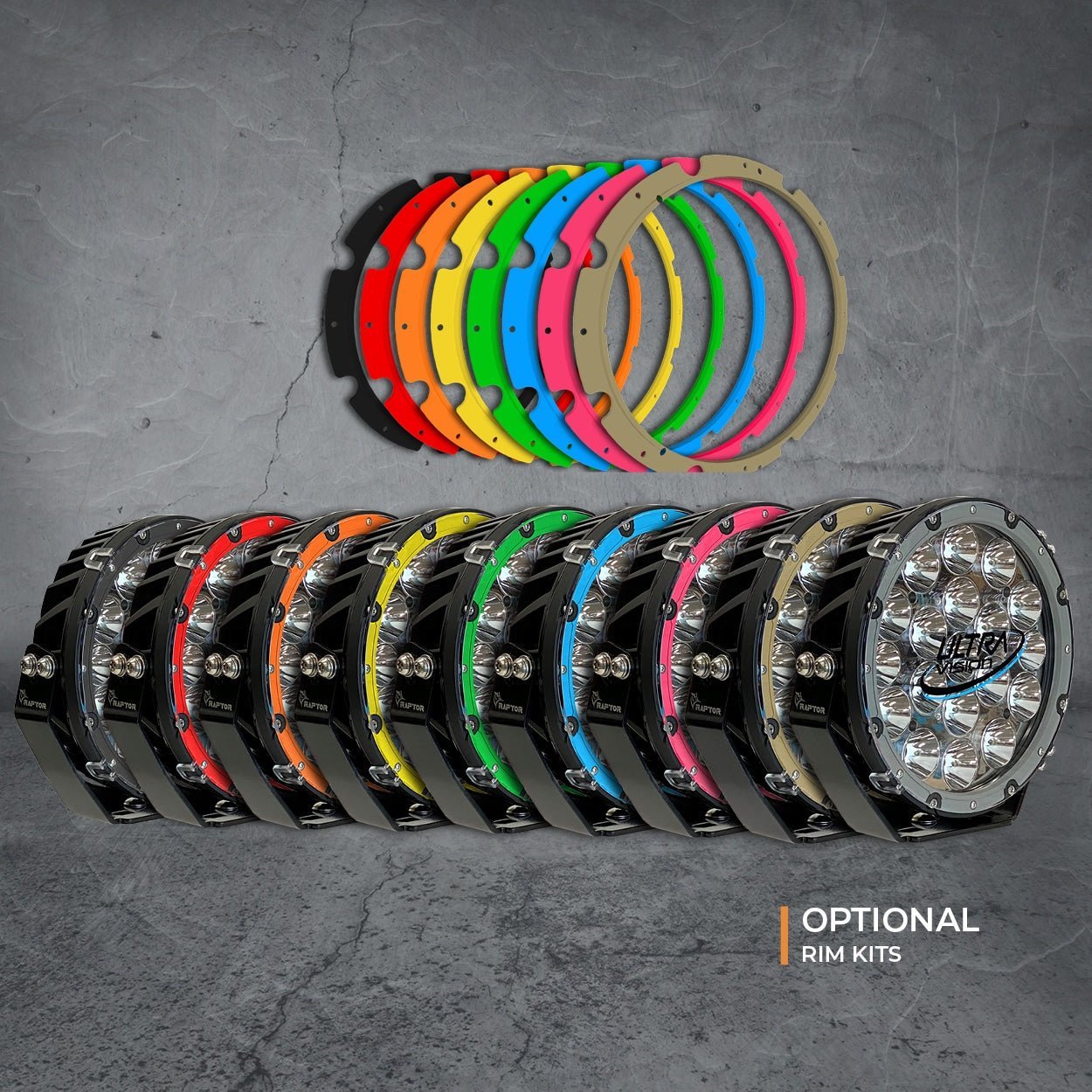

All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket wiring harness and stainless steel brackets. You also have the choice to find your colour and make your lights your own with our optional Raptor Rim Kits. Choose from 8 colours to match and enhance the colour of your vehicle, and get your own unique look.

To make sure you get the right option for your own driving comfort, the lamps are available with either 4000k or 5700k Colour Temperature.

All Raptor products are manufactured in Australia and covered by a 3-year warranty, adding total peace of mind.

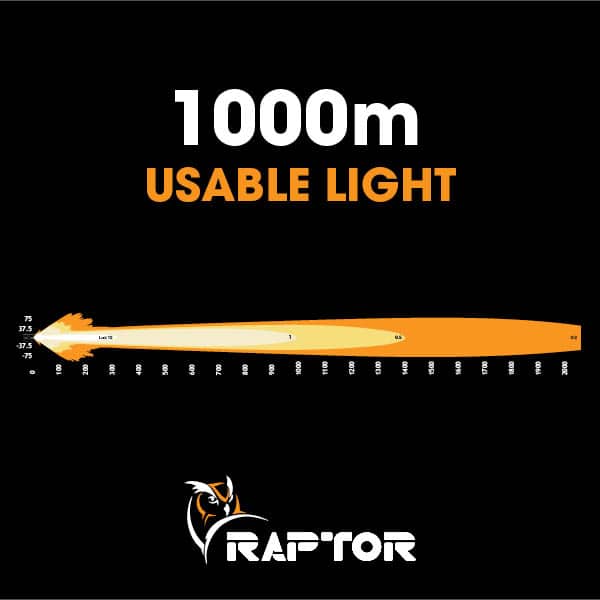

Beam Patterns

SPECIFICATIONS	Raptor 120W
Wattage	120W (per lamp)
Light Source	19 x 6W LED’s (per lamp)
Light Output – Raw	29,400 Lumens (per pair)
Light Output – Effective	24,818 Lumens (per pair)
Voltage	9-36V
Current Draw	17.6A @ 13.5V (per pair)
Operating Temperature	-40°C to +80°C
Waterproof rating	IP68
Connector Type	2 Pin Heavy Duty Deutsch
Housing	Die-Cast aluminium
Lens Construction	Polycarbonate
Bracket	Stainless Steel
Colour Temperature	4000K or 5700K
Lifespan	50,000 Hours

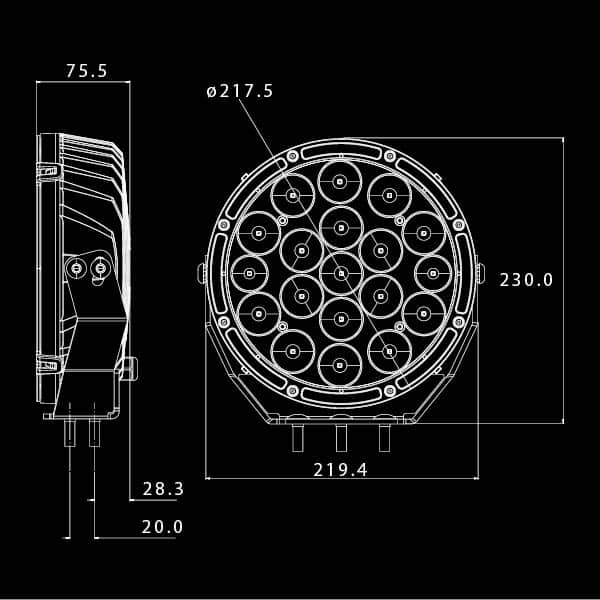

Diameter	220mm
Net Weight	2.7kg (per lamp)
Mounting Suitable	Stainless Steel Bracket
Beams Available	Combo
Warranty	3 Years
Wiring Harness included	Yes
PART NUMBERS
Raptor 120W 4000K	RAP120DL4V2/PR
Raptor 120W 5700K	RAP120DLV2/PR
