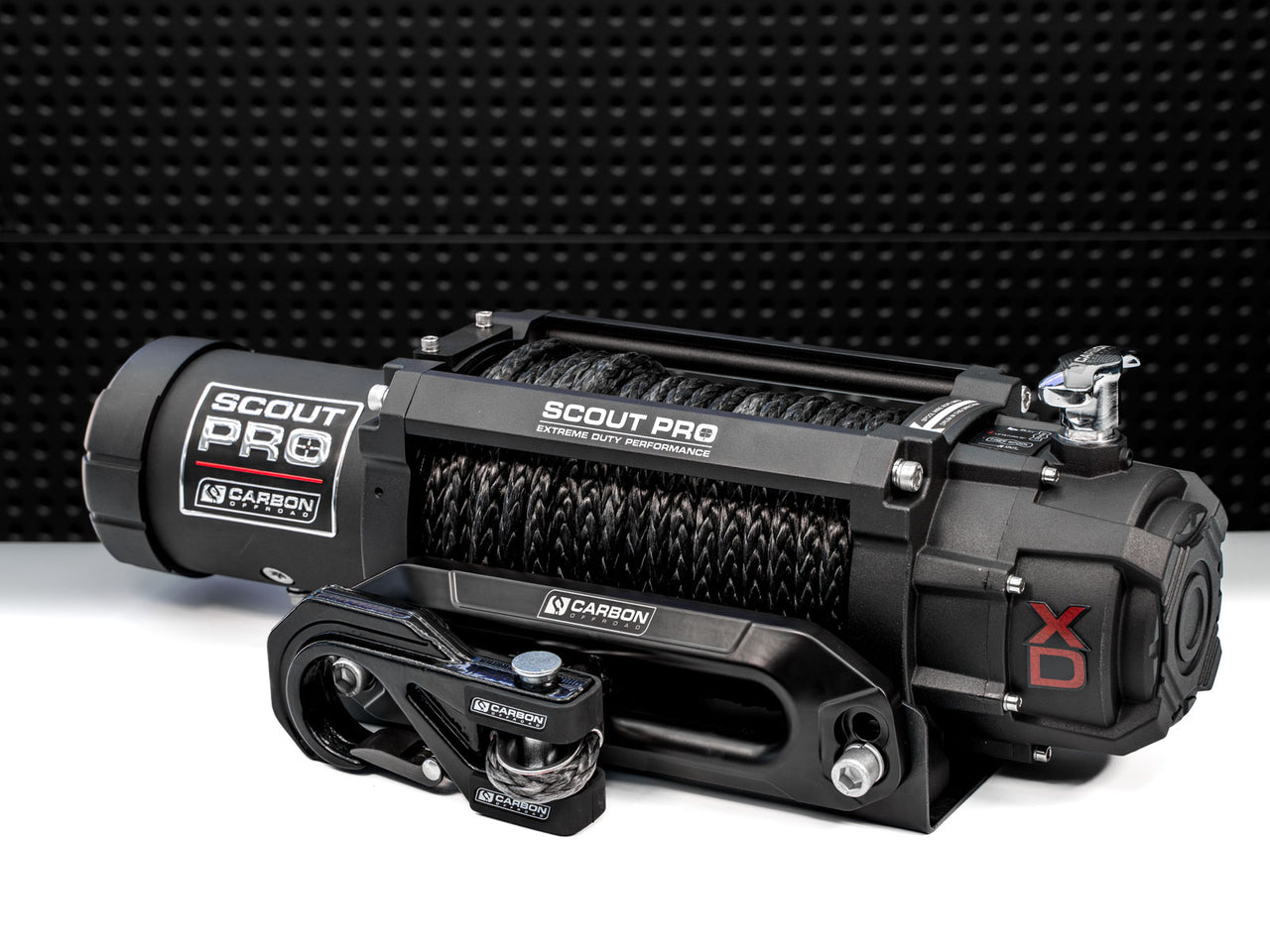

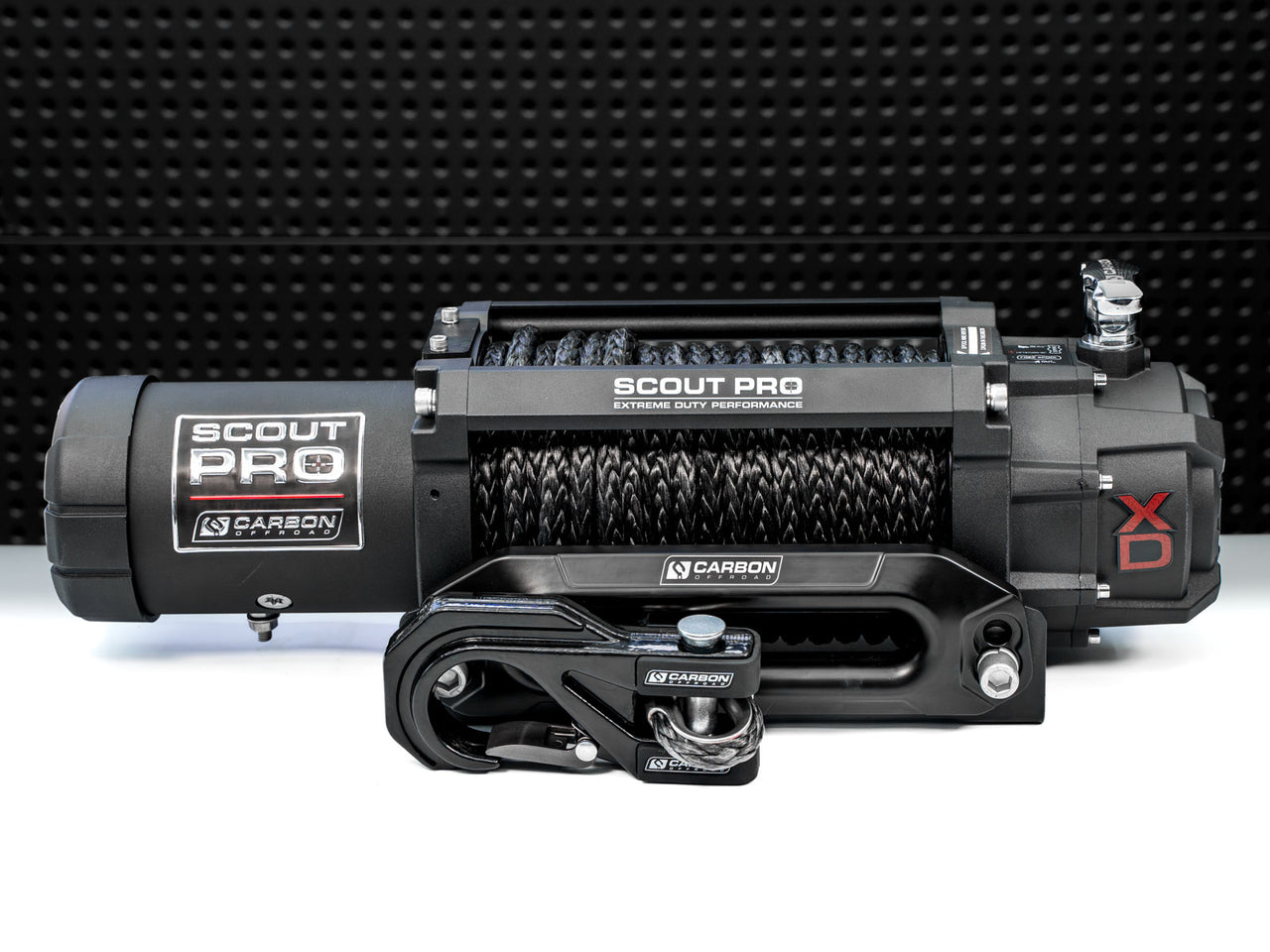

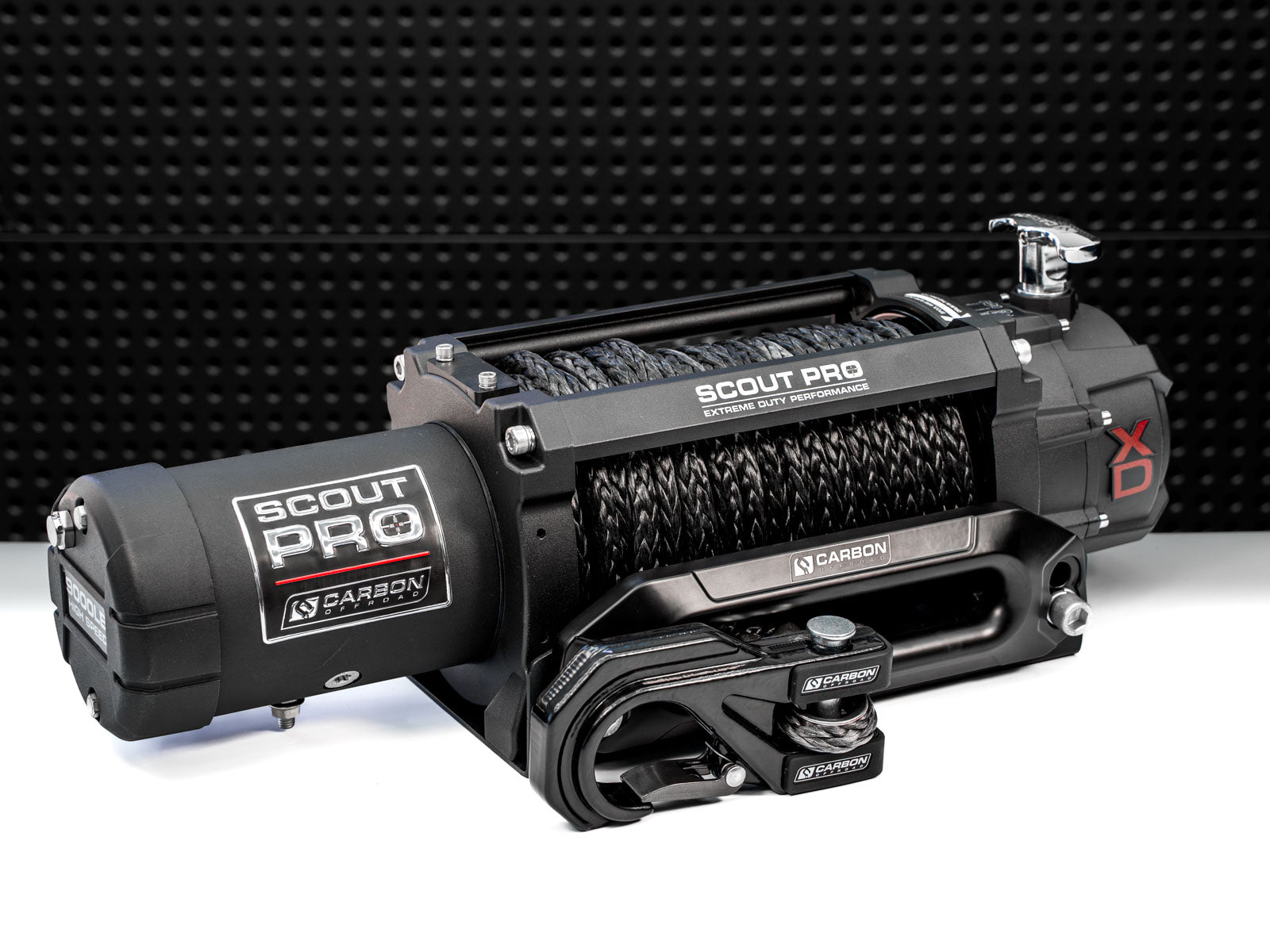

Carbon Scout Pro - 9000lb Winch V3

SKU: CW-XD9V3

$1,249.00

Carbon Offroad Scout Pro 9000lb Winch – Extreme Duty Performance Series – Built for heavy-duty offroad use, featuring a 7.0 HP motor, 104:1 performance gearbox, and 10 mm UHMWPE synthetic rope. Includes MegaPro premium fairlead, rope thimble, and high-capacity solenoid. Designed for larger 4×4 vehicles, offering reliable, high-performance winching straight out of the box.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Quality Assured by Carbon Staff

Your Order Packed With Care
Key Features Compatibility What You Get Warranty

Winch Specifications

  • Motor: 7.0HP High-Torque Motor
  • Gearbox: 104:1 Heavy Duty Performance Gearbox
  • Rope: 10mm UHMWPE Synthetic Rope (Pre-stretched)
  • Breaking Strain: Rated at 9000kg minimum
  • Chassis: Carbon Offroad 2023 V3 Winch Chassis (shared with proven 12K winch)
  • Solenoid: Heavy Duty Upgraded Solenoid (rated 100 amps higher than CW-12K)

Fits most large 4x4 utes and wagons.

Note: Due to the longer 7.0HP motor, check dimensions carefully.

Recommended for wide vehicles like:

  • RAM
  • F-Truck
  • Silverado

Also suitable for vehicles like:

  • Dual cab utes
  • 70/200 Series LandCruisers
  • Other 4WD wagons

Scout Pro 9000lb Winch

  • Rope: 10mm Premium Synthetic Winch Rope

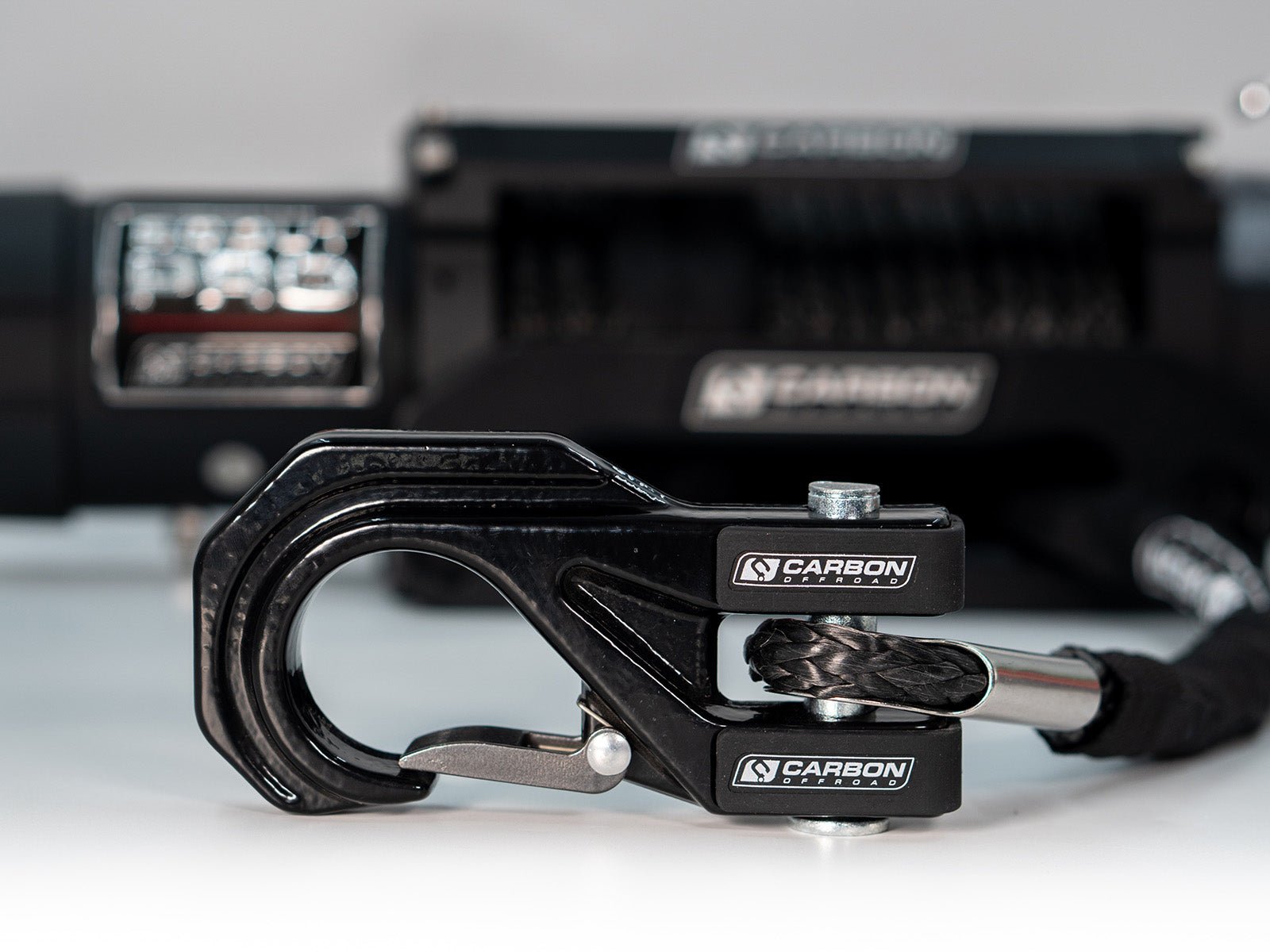

  • Thimble: HD Braced Winch Thimble
  • Fairlead: MEGAPRO CNC Billet Fairlead
  • Solenoid: Upgraded Solenoid Unit

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details

Winch Specifications

  • Motor: 7.0HP High-Torque Motor
  • Gearbox: 104:1 Heavy Duty Performance Gearbox
  • Rope: 10mm UHMWPE Synthetic Rope (Pre-stretched)
  • Breaking Strain: Rated at 9000kg minimum
  • Chassis: Carbon Offroad 2023 V3 Winch Chassis (shared with proven 12K winch)
  • Solenoid: Heavy Duty Upgraded Solenoid (rated 100 amps higher than CW-12K)
Previous Product Next Product

Speed & Performance Breakdown

12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 62.3 (19) 80 1 / 9000 (4090)
2000 (910) 17.4 (5.3) 150 2 / 7625 (3460)
4000 (1810) 15.1 (4.6) 220 3 / 6460 (2930
6000 (2720) 13.4 (4.1) 280 4 / 5480 (2490)
8000 (3630) 11.5 (3.5) 350 -
9000 (4090) 10.5 (3.2) 380 -

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

Download Guide

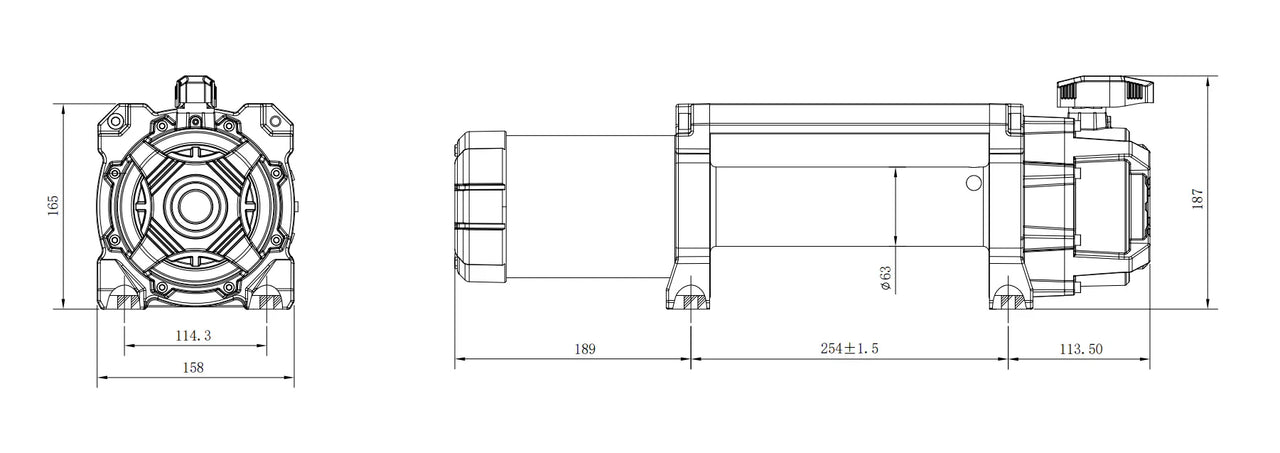

Dimension Comparison Chart

Click Here for a Winch Dimension Comparison Chart
