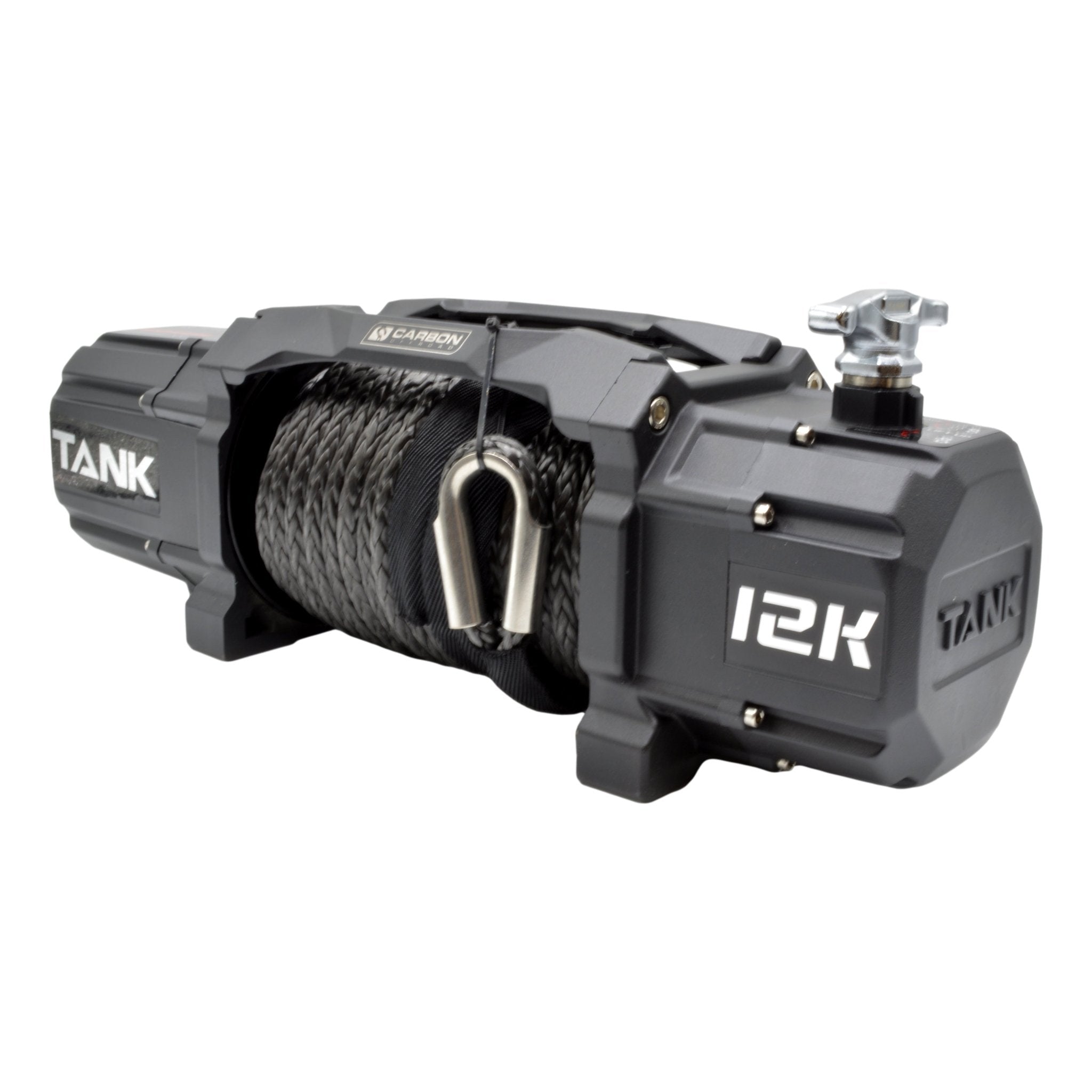

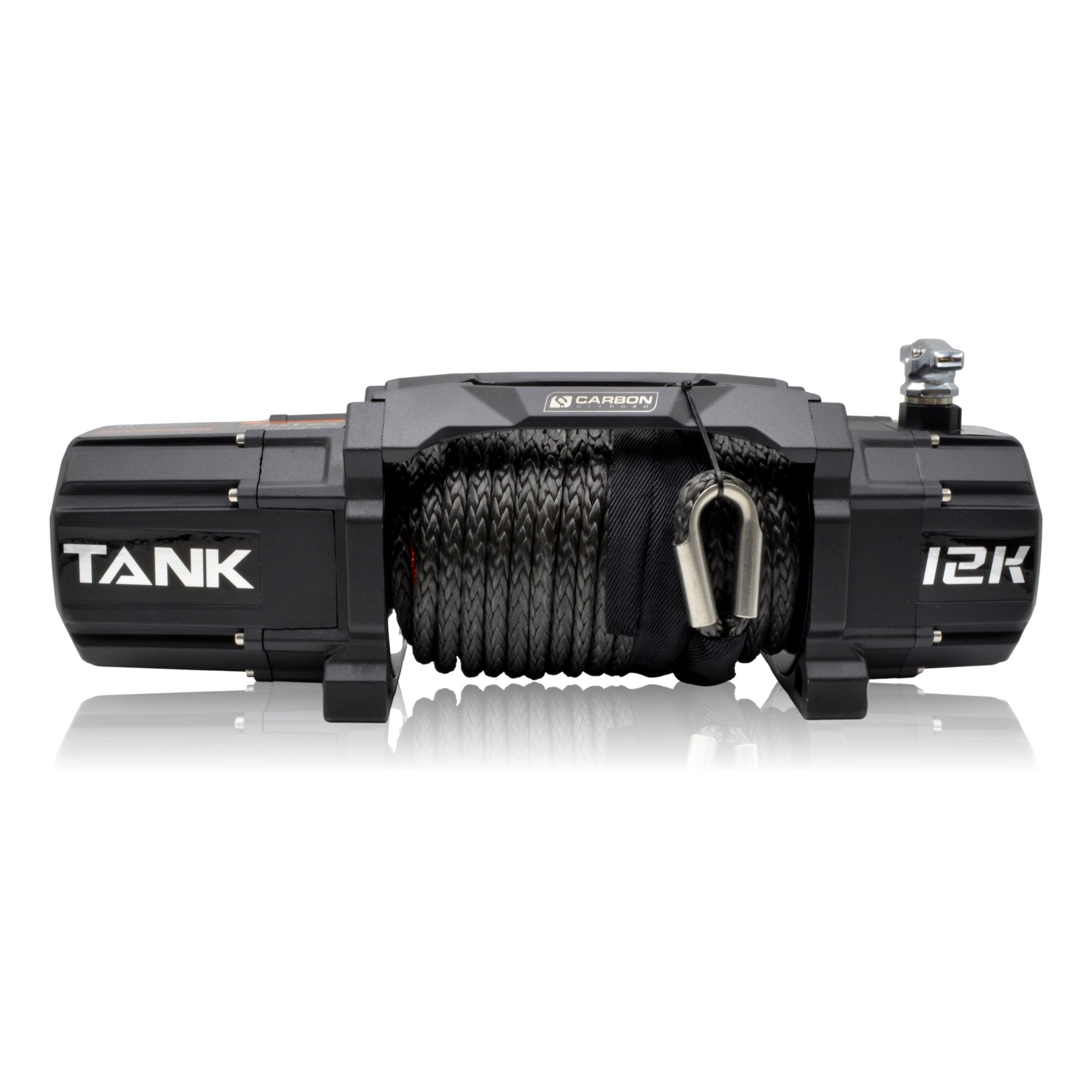

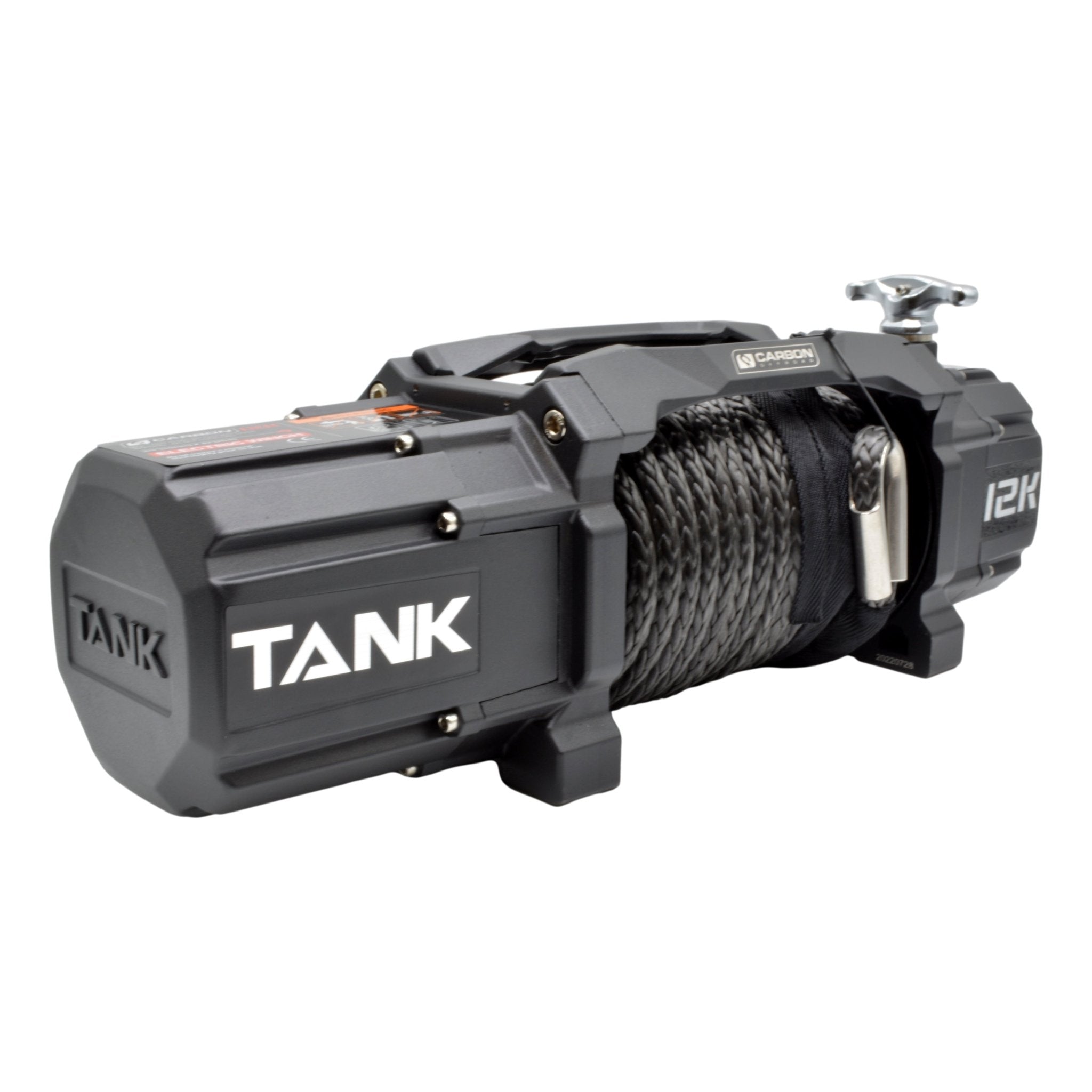

Carbon TANK - 12000lb Winch 12V

SKU: CW-TK12BLK

$1,399.00

Carbon Offroad TANK 12000lb Winch – ultra-strong, lightweight, and IP69K-sealed for extreme off-road recoveries. CNC-machined alloy construction, 7.0HP motor, 234:1 planetary gearbox, synthetic rope, wireless + wired remotes, and a marine-grade isolator deliver bulletproof performance without excess weight. Backed by a lifetime geartrain warranty and 5-year electrical/water ingress cover.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Carbon Offroad Mega Pro Winch Hook (Choose Your Colour)

Quality Assured by Carbon Staff

Your Order Packed With Care
Specifications What is in the box Warranty
  • Rated Pulling Power: 15,000 lb (6804 kg)
  • Power: 12V DC
  • Motor: 7.2 HP Series Wound intermittent duty cycle
  • Cabling: 25 mm² conduited cable with terminated lugs
  • Hand Control: 2-in-1 rechargeable wireless or plug-in wired loom (spare battery included)

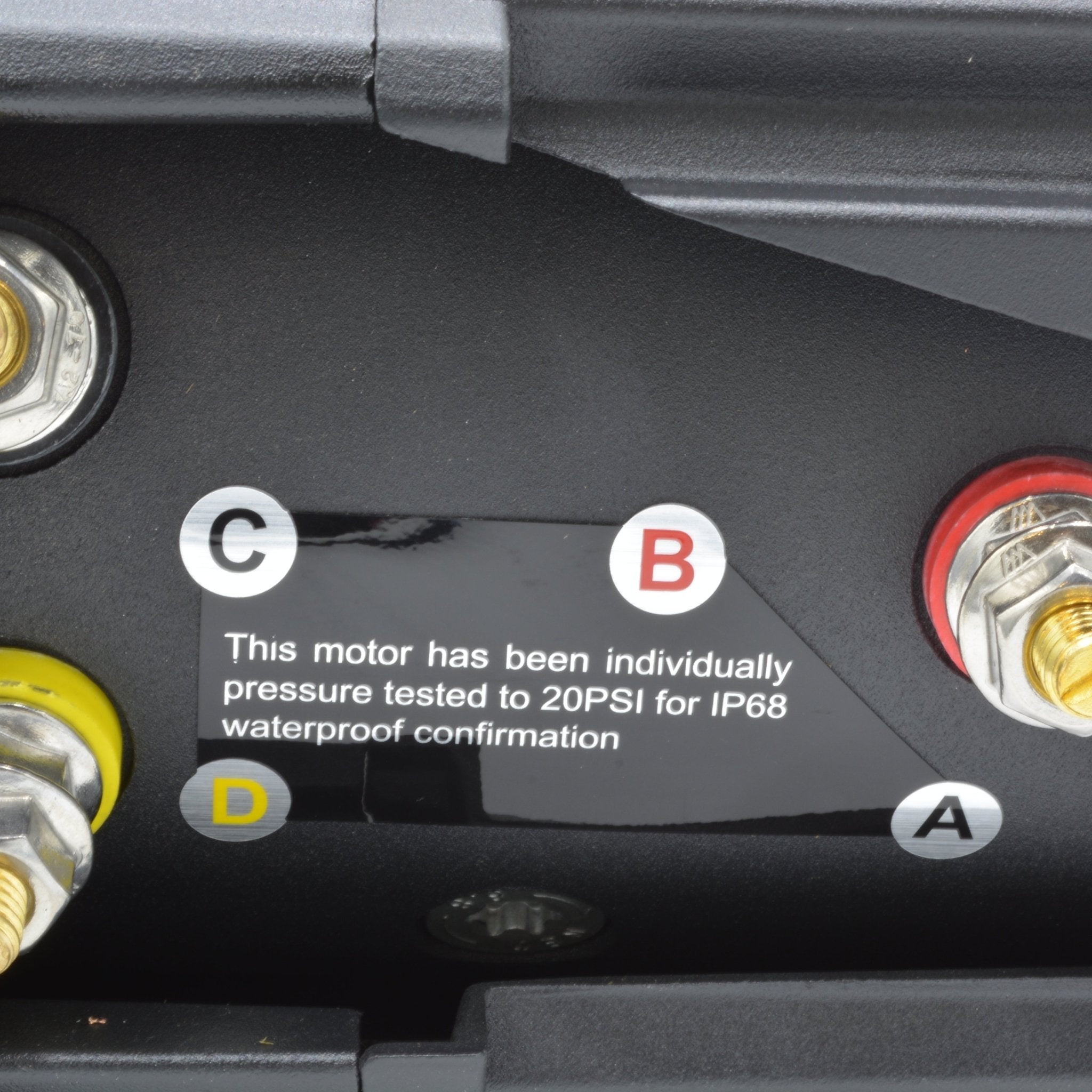

  • IP Rating: IP68 – Motor unit pressure tested to 20 psi
  • Hook: High strength forged alloy wide gate hook

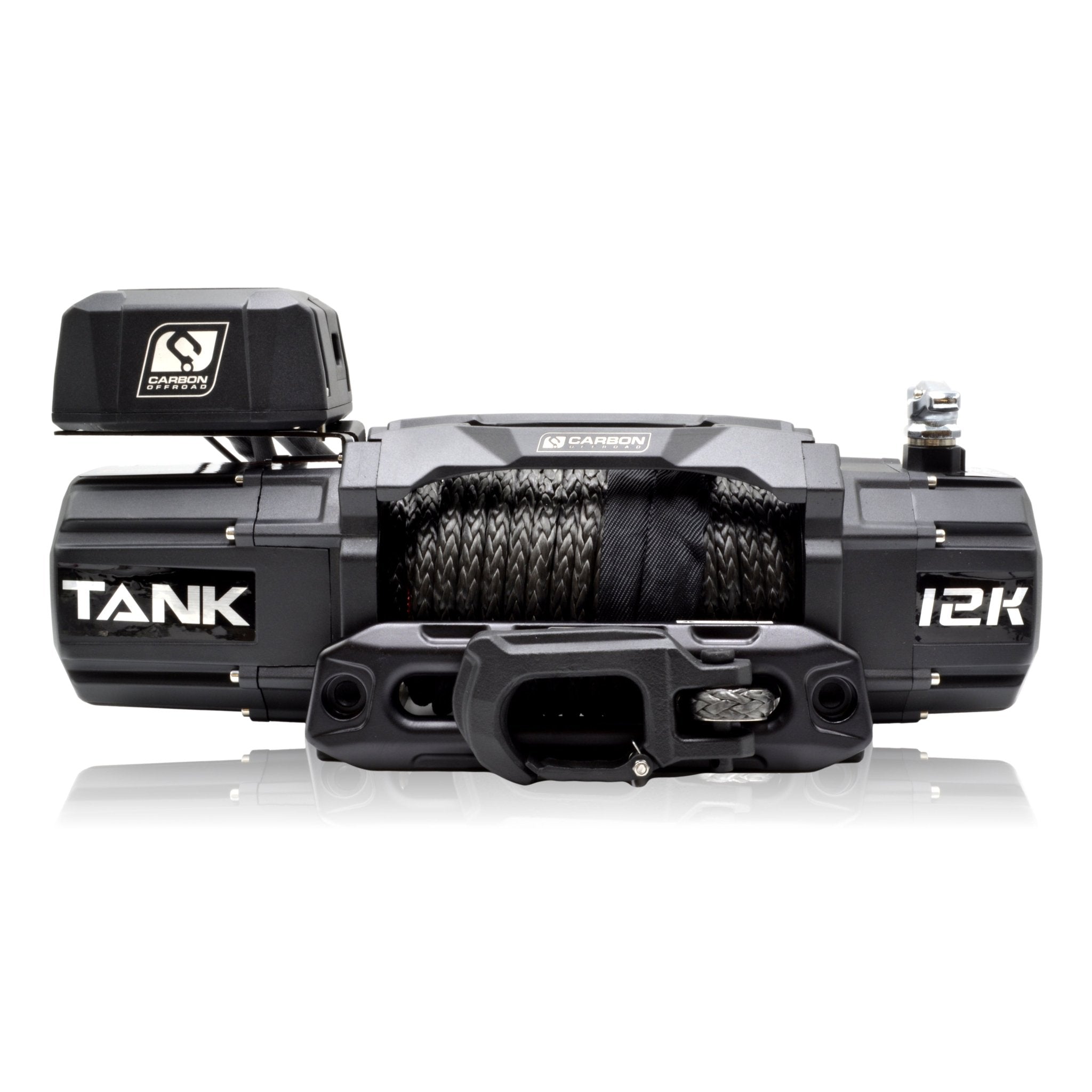

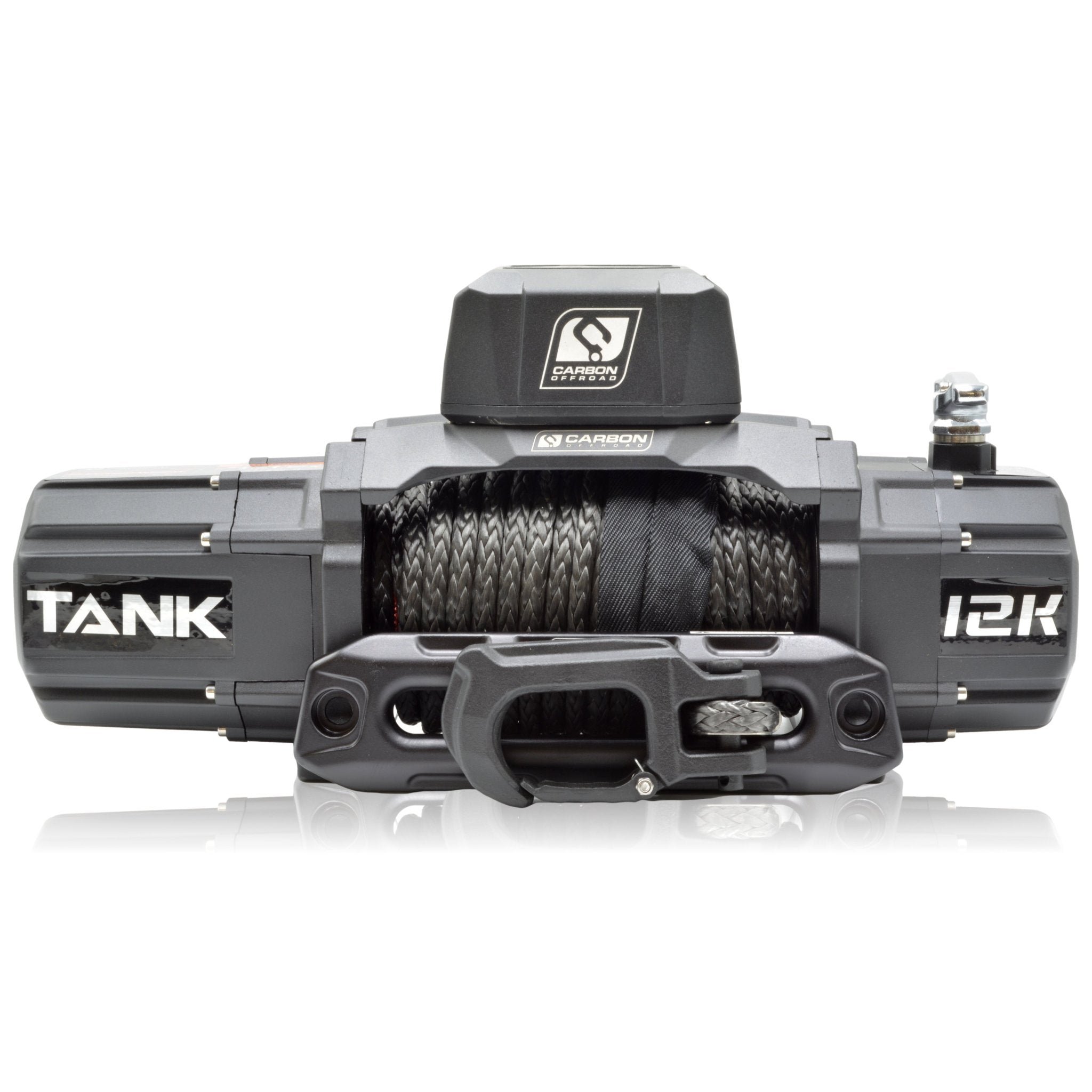

  • Control Box: Premium cast alloy compact design for over motor or over drum fitment with 600 amp solenoid and inbuilt wireless receiver
  • Isolator: Heavy duty marine rotary style isolator with mounting bracket
  • Winch Housing: Cast and precision machined alloy
  • Gear Train: 234:1 ratio 3-stage planetary gearset

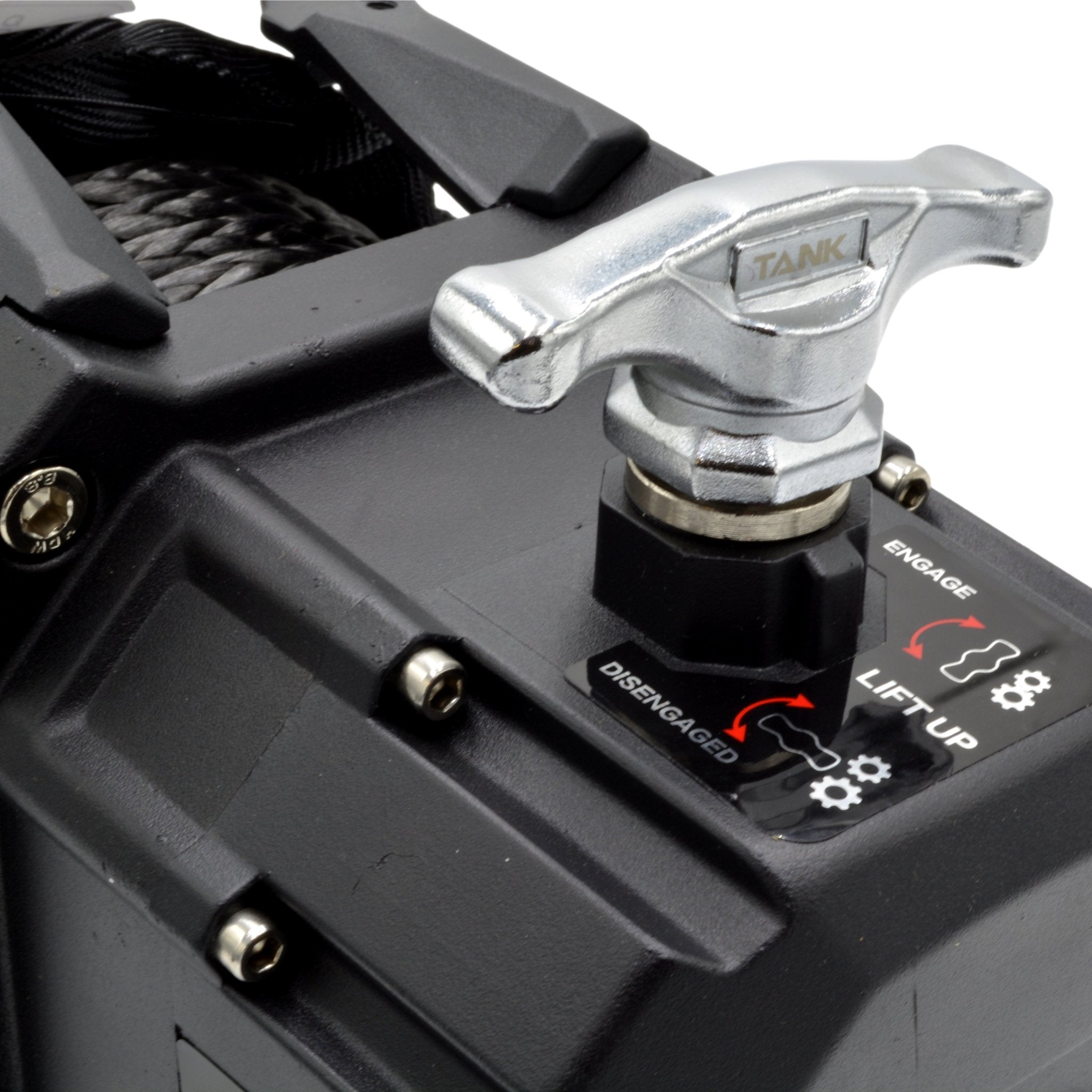

  • Clutch: Rotating ring gear clutch – easy engagement and disengagement
  • Synthetic Rope: 26 m of 10 mm diameter UHMWPE fibre

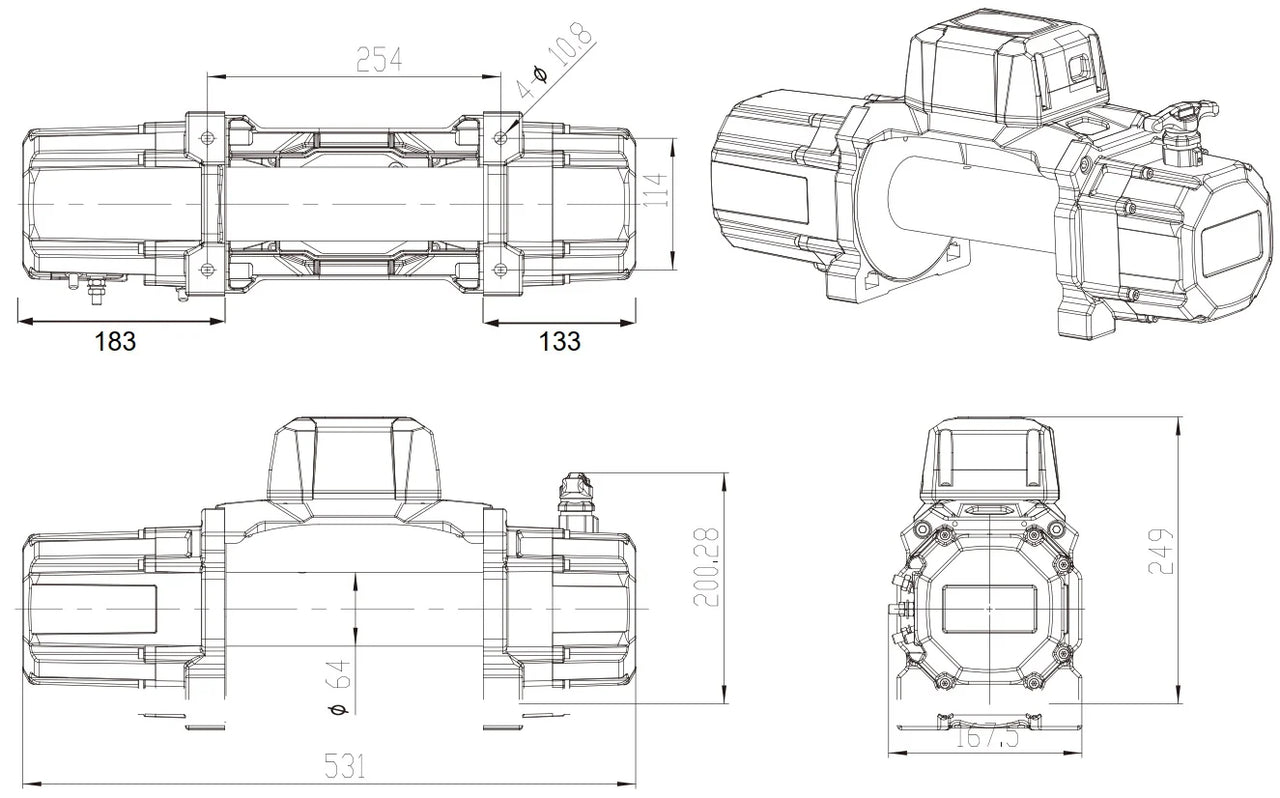

  • Mounting Bolt Pattern: Industry standard 254 mm × 114.3 mm (10 × 4.5 in)
  • Drum Diameter: 64 mm
  • Battery: 650 CCA minimum vehicle battery size for winching
  • Weight:
  • Shipping Carton Weight: 29.5 kg
  • As Fitted to Vehicle: 26.2 kg
  • 1 × Tank winch with synthetic rope
  • 1 × Control box kit complete with cables
  • 1 × Battery earth cable
  • 1 × 2-in-1 wireless remote control with plug-in cable backup

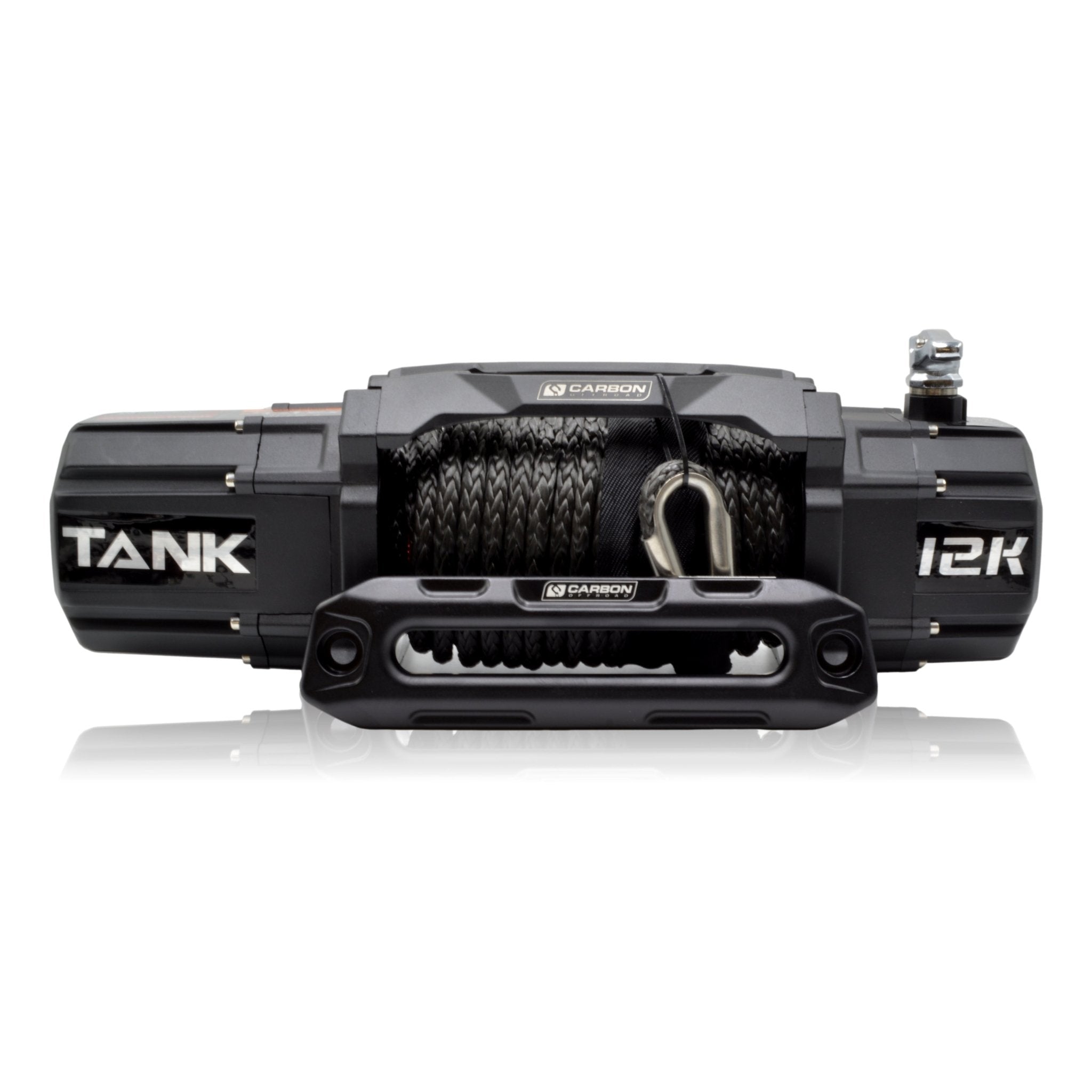

  • 1 × Alloy fairlead - standard offset
  • 1 × Forged alloy hook with mounting pin and split pin
  • 1 × Mounting bolt kit including separate fairlead mounting bolts
  • 1 × Control box "over motor" mounting bracket pair
  • 1 × Bolt kit for control box mounting
  • 1 × Rotary battery isolator switch
  • 1 × Battery isolator connecting cable (30 cm)
  • 1 × Battery isolator mounting bracket
  • 1 × Hook safety strap
  • 1 × Instruction manual

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Rated Pulling Power: 15,000 lb (6804 kg)
  • Power: 12V DC
  • Motor: 7.2 HP Series Wound intermittent duty cycle
  • Cabling: 25 mm² conduited cable with terminated lugs
  • Hand Control: 2-in-1 rechargeable wireless or plug-in wired loom (spare battery included)
  • IP Rating: IP68 – Motor unit pressure tested to 20 psi
  • Hook: High strength forged alloy wide gate hook
  • Control Box: Premium cast alloy compact design for over motor or over drum fitment with 600 amp solenoid and inbuilt wireless receiver
  • Isolator: Heavy duty marine rotary style isolator with mounting bracket
  • Winch Housing: Cast and precision machined alloy
  • Gear Train: 234:1 ratio 3-stage planetary gearset
  • Clutch: Rotating ring gear clutch – easy engagement and disengagement
  • Synthetic Rope: 26 m of 10 mm diameter UHMWPE fibre
  • Mounting Bolt Pattern: Industry standard 254 mm × 114.3 mm (10 × 4.5 in)
  • Drum Diameter: 64 mm
  • Battery: 650 CCA minimum vehicle battery size for winching
  • Weight:
  • Shipping Carton Weight: 29.5 kg
  • As Fitted to Vehicle: 26.2 kg
