CW-12KV3XSS
$1,049.00
Tax included.
Shipping calculated at checkout.
Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Quantity
Description

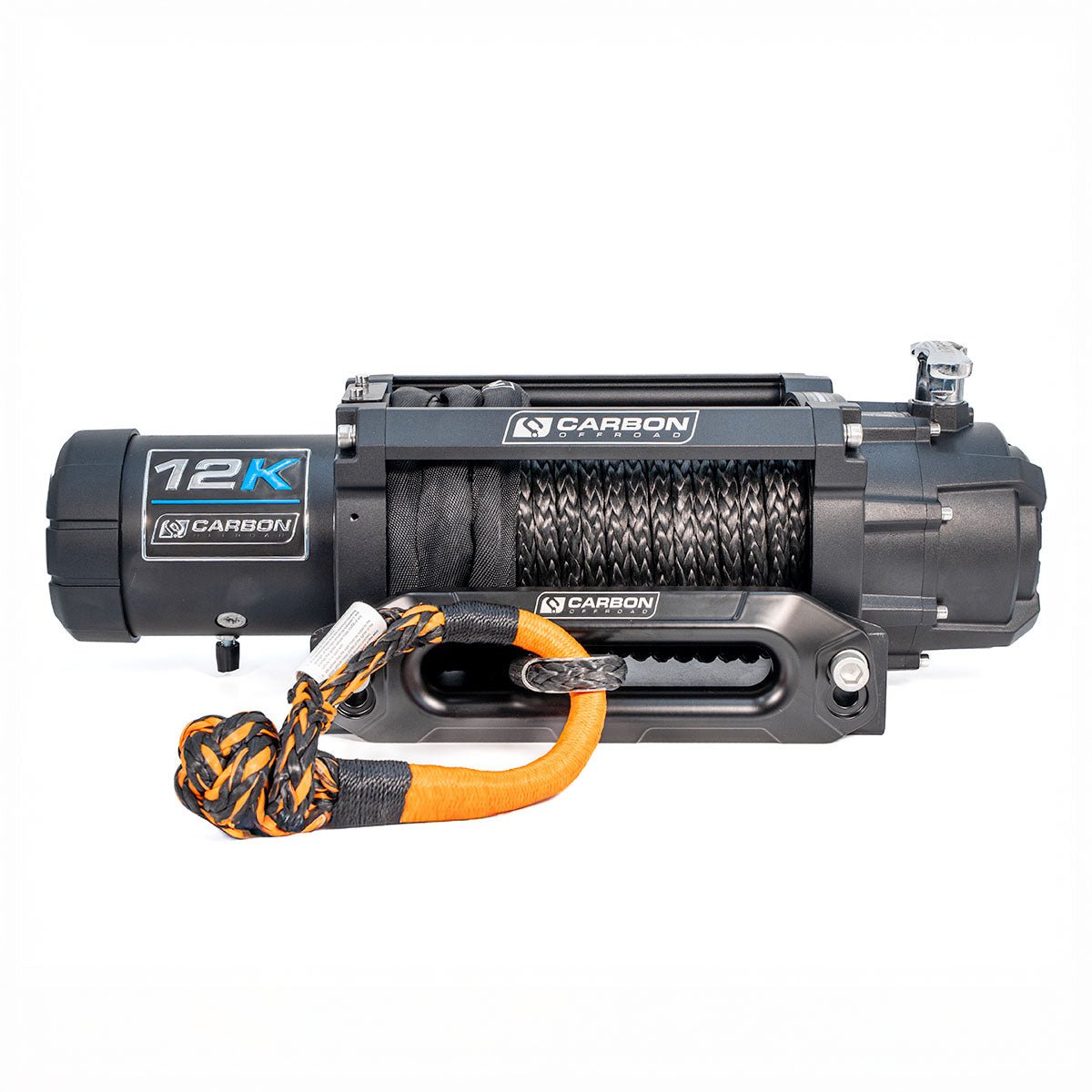

Lightweight High-Performance Winch with Soft Shackle
The Carbon 12K V3X is a lightweight, high-performance 12000lb electric winch designed to handle tough off-road conditions.
⚠️ PLEASE NOTE: NO HOOK INCLUDED
This listing is for the winch and a 15T Soft Shackle. No hook is included in this package. The winch comes with the winch accessory kit – perfect if you already have a hook or if you'd like to get rid of the heavy items in your kit.
Overview
Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable three-stage planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free; this winch features a breathable membrane-style motor breather for heat expansion and contraction.
Supplied as a complete kit (excluding hook) with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware - it’s ready for installation straight out of the box. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote from the safety and convenience of your driver's seat.
The Carbon 12K is a proven performer with countless recoveries across Australian environments. For peace of mind, it is backed here in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. It is designed to deliver the best value, reliability, and service life for a winch user.
Features
- Unmatched Pulling Power: Features a massive 12000lb single-line pull driven by a 12V DC 6HP series wound motor.
- 15T Soft Shackle Included: Replaces heavy steel components for a safer, lighter recovery setup.
- IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
- Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
- Complete Accessory Kit: Includes an ultra sexy CNC'd anodised alloy signature Carbon fairlead, an isolator switch with extra cabling, and dual remotes.
- Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Contents
1 x Carbon 12K Winch V3X
1 x 15T Soft Shackle
1 x Synthetic Rope (24m x 10mm diameter)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Wired Remote Control (12ft/3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch and Cabling
1 x Mounting Hardware Set
(Note: Hook is not included in this package.)
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-12KV3X |
| Rated Line Pull | 12000lbs single-line |
| Motor | 12V DC 6HP series wound motor |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 218:1 |
| Clutch (Free Spooling) | Rotating Ring Gear clutch with manual pull and twist handle |
| Brake | Full load automatic brake (installed in motor housing end plate) |
| Drum Diameter/Length | 63mm x 224mm |
| Mounting Bolt Pattern | 254mm x 114.3mm |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580 x 200 x 220mm (22.8" x 7.9" x 8.7") |
| Winch Weight (Version 3X) | 19.7kg (with synthetic rope attached) |
| Total Kit Weight | 26.65kg (including rope, control box, cables, bolts & fairlead) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60 | 1 / 12000 (5450) |
| 3000 (1360) | 15.4 (4.7) | 135 | 2 / 9800 (4450) |
| 6000 (2725) | 11.8 (3.6) | 220 | 3 / 8300 (3770) |
| 9000 (4090) | 8.5 (2.6) | 285 | 4 / 7200 (3270) |
| 12000 (5450) | 5.6 (1.7) | 340 |

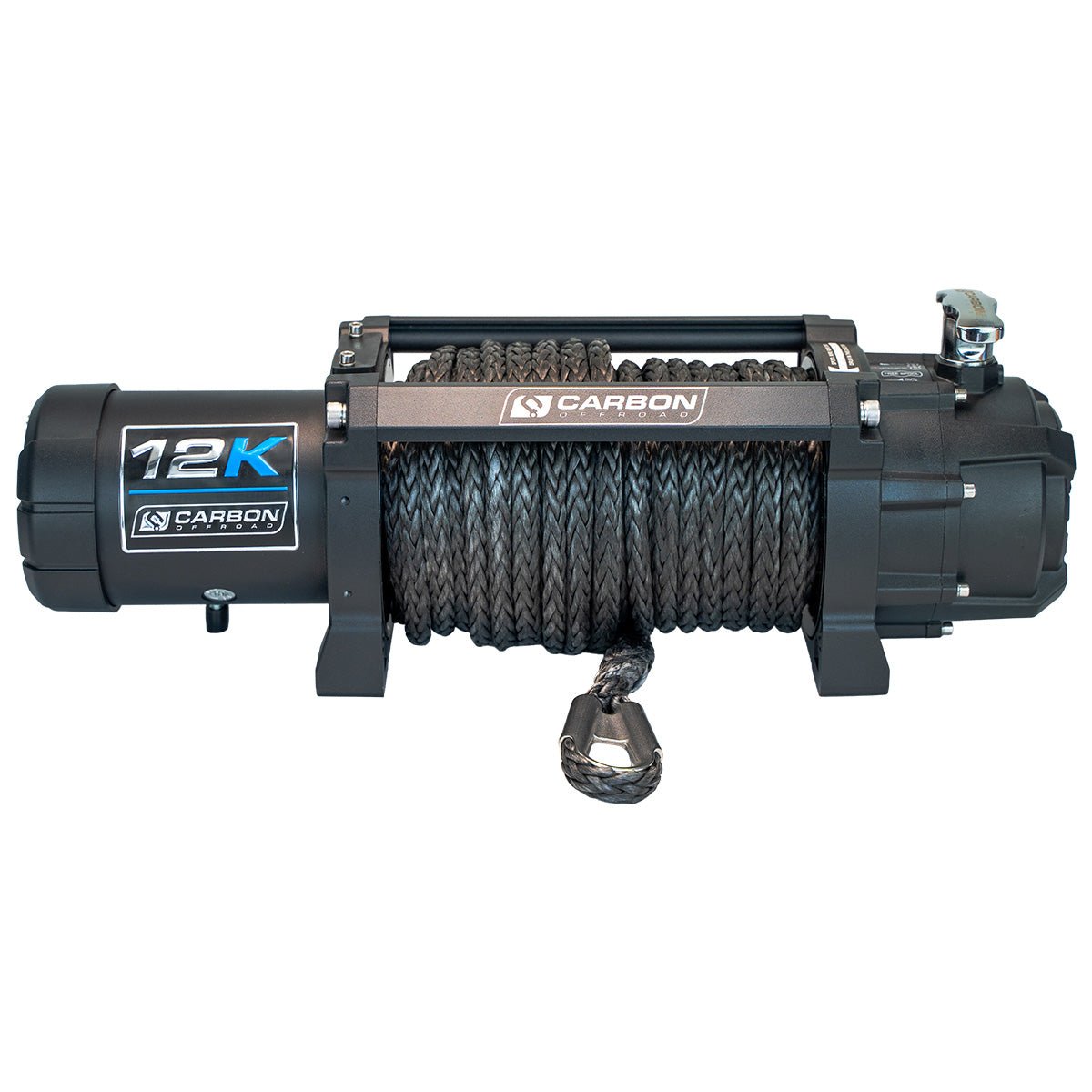

Carbon 12K - 12000lb Winch V3X With Soft Shackle
$1,049.00
The Carbon 12K V3X
The Carbon 12K V3X
The Carbon 12K V3X is our flagship 12,000lb (5450kg) winch, designed and tested in Australia and trusted by 4WDers worldwide. It is the ideal size and capacity to suit most modern dual-cab utes and SUVs, covering almost any recovery situation you will encounter out on the tracks.
What sets the V3X apart is its class-leading design. Weighing just 19.7kg with the 24-metre synthetic rope attached, it is one of the absolute best 12,000lb winches on the market, giving you maximum pulling power without bogging down your front suspension. It is exactly why we have a massive network of over 150 authorized dealers across Australia stocking and selling this unit - it is the trusted choice for adventurers who want reliable performance without the dead weight.
As a third-generation product, this winch is the result of years of continuous refinement and global real-world testing. Because it is engineered to survive complete submersion in deep river crossings, it is backed by an industry-leading 5-year water ingress and electrical warranty, alongside a lifetime geartrain warranty.
Extensive Carbon Warranty
We build our gear to survive the tracks and back it with our premium warranty. The V3X is covered by a Limited Lifetime Mechanical Warranty on the geartrain, brake, and drum, plus a 5-Year Electrical Warranty and 5-Year Water Ingress Protection on the motor and gearbox. You get total peace of mind backed directly by an Australian team that stands behind their product.
Complete Electrical Accessory Kit Included
The V3X includes a heavy-duty battery isolator switch and all the necessary extra cabling required to safely isolate power to the winch when it is not in use, protecting your vehicle's electrical system.
Wired and Wireless Remotes Included
The V3X comes standard with both a heavy-duty 3.7m wired remote for a foolproof physical connection, and a seamless wireless remote control for ultimate convenience when guiding a recovery.
15T Soft Shackle & Alloy Fairlead
This kit swaps out heavy steel components for a lightweight, high-safety recovery setup. It includes a massive 15-tonne rating soft shackle, completely eliminating the traditional steel hook from your line. It is the perfect configuration if you already have a preferred hook or are building a dedicated closed-loop recovery system.
Local Expert Support & 150+ Dealers
We are stocked by over 150 authorized dealers across Australia. Better yet, when you need support, you are talking to real wheelers who actually use this gear. You get local support from people who know exactly what they are talking about.
Installation & User Guide
Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60 | 1/12000 (5450) |
| 3000 (1360) | 15.4 (4.7) | 135 | 2/9800 (4450) |
| 6000 (2725) | 11.8 (3.6) | 220 | 3/8300 (3770) |
| 9000 (4090) | 8.5 (2.6) | 285 | 4/7200 (3270) |
| 12000 (4540) | 5.6 (1.7) | 340 |
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
