Raptor 120 LED 9″ Driving Light (Pair)

$829.00

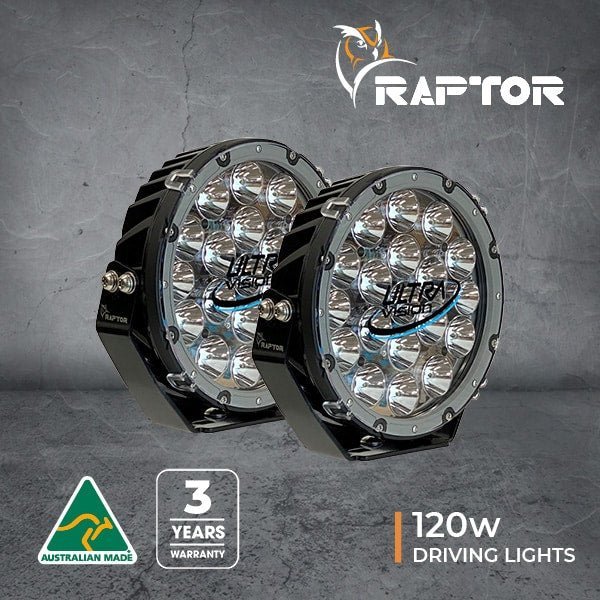

Raptor 120W LED Driving Lights – Australian-made driving lights with die-cast aluminium housing, polycarbonate lens, and combo beam for excellent distance and width. Comes with grey rim, protective lens cover, stainless-steel bracket, and wiring harness. Available in 4000K or 5700K, customizable with optional Rim Kits, IP68 waterproof, and backed by a 3-year warranty.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned

Colour Temperature

4000k 5700k

Quality Assured by Carbon Staff

Your Order Packed With Care
Overview Warranty

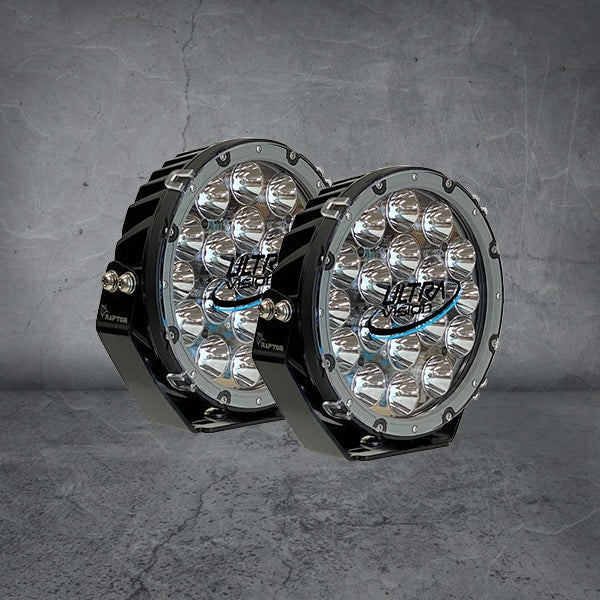

The RAPTOR LED Driving Lights feature a high-pressure die-cast aluminium housing and high-impact polycarbonate lens. The superior optic design gives a combination beam with both good distance and width from a single lamp type.

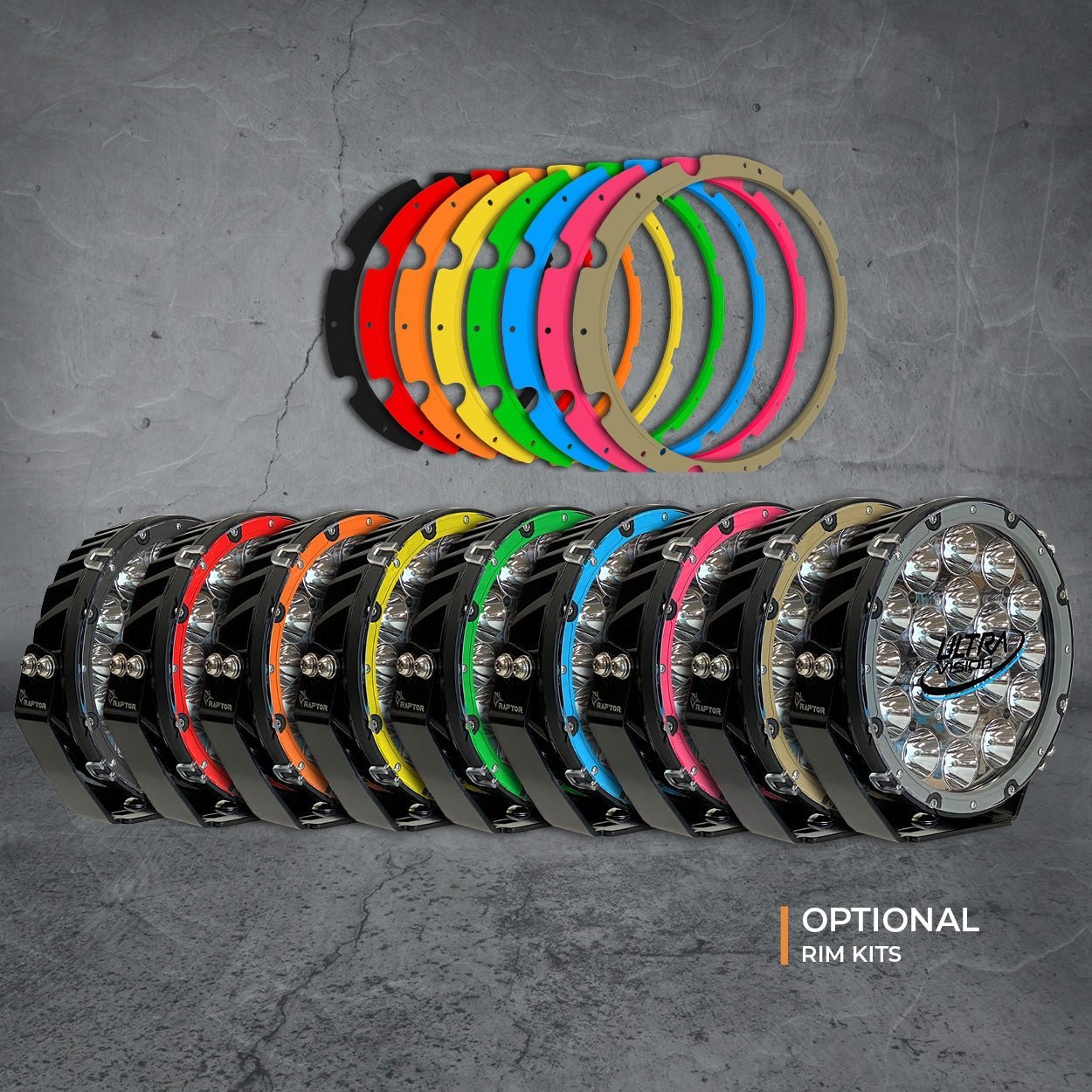

All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket, wiring harness, and stainless steel brackets. You can also personalise your lights with our optional Raptor Rim Kits. Choose from 8 colours to match or enhance your vehicle and get your own unique look.

The lamps are available in either 4000K or 5700K Colour Temperature for optimal driving comfort.

All Raptor products are manufactured in Australia and covered by a 3-year warranty, providing total peace of mind.

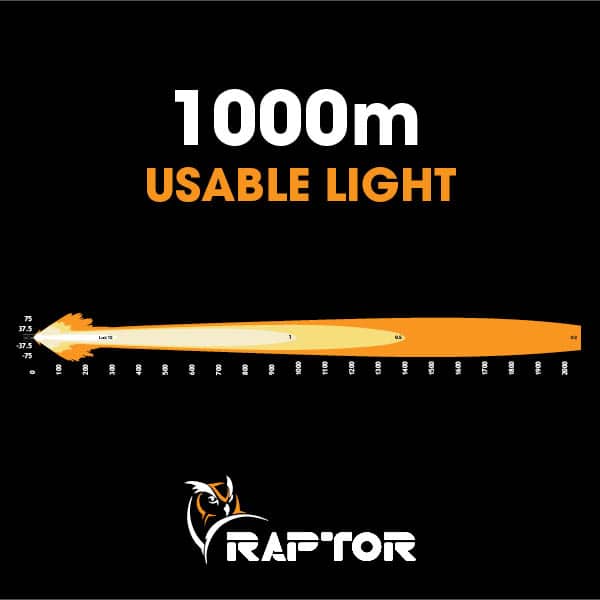

Beam Patterns

Raptor 120 Beam Pattern

SPECIFICATIONS Raptor 120W
Wattage 120W (per lamp)
Light Source 19 x 6W LEDs (per lamp)
Light Output – Raw 29,400 Lumens (per pair)
Light Output – Effective 24,818 Lumens (per pair)
Voltage 9-36V
Current Draw 17.6A @ 13.5V (per pair)
Operating Temperature -40°C to +80°C
Waterproof rating IP68
Connector Type 2 Pin Heavy Duty Deutsch
Housing Die-Cast Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

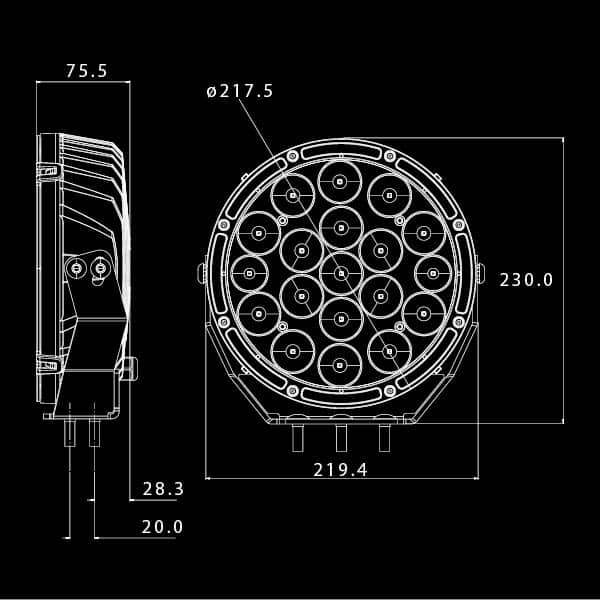

Diameter 220mm
Net Weight 2.7kg (per lamp)
Mounting Suitable Stainless Steel Bracket
Beams Available Combo
Warranty 3 Years
Wiring Harness Included Yes
PART NUMBERS
Raptor 120W 4000K RAP120DL4V2/PR
Raptor 120W 5700K RAP120DLV2/PR

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details

The RAPTOR LED Driving Lights feature a high-pressure die-cast aluminium housing and high-impact polycarbonate lens. The superior optic design gives a combination beam with both good distance and width from a single lamp type.

All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket, wiring harness, and stainless steel brackets. You can also personalise your lights with our optional Raptor Rim Kits. Choose from 8 colours to match or enhance your vehicle and get your own unique look.

The lamps are available in either 4000K or 5700K Colour Temperature for optimal driving comfort.

All Raptor products are manufactured in Australia and covered by a 3-year warranty, providing total peace of mind.

Beam Patterns

Raptor 120 Beam Pattern

SPECIFICATIONS Raptor 120W
Wattage 120W (per lamp)
Light Source 19 x 6W LEDs (per lamp)
Light Output – Raw 29,400 Lumens (per pair)
Light Output – Effective 24,818 Lumens (per pair)
Voltage 9-36V
Current Draw 17.6A @ 13.5V (per pair)
Operating Temperature -40°C to +80°C
Waterproof rating IP68
Connector Type 2 Pin Heavy Duty Deutsch
Housing Die-Cast Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours
Diameter 220mm
Net Weight 2.7kg (per lamp)
Mounting Suitable Stainless Steel Bracket
Beams Available Combo
Warranty 3 Years
Wiring Harness Included Yes
PART NUMBERS
Raptor 120W 4000K RAP120DL4V2/PR
Raptor 120W 5700K RAP120DLV2/PR
