Carbon 4.5k 4500lb ATV/Trailer Winch

$499.00
Thumbnail for Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 1 Carbon Offroad Thumbnail for Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 2 Carbon Offroad Thumbnail for Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 3 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 1 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 2 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 3 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 1 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 2 Carbon Offroad
Carbon 4.5k 4500lb ATV/Trailer Winch - CW - 45 3 Carbon Offroad

Carbon 4.5k 4500lb ATV/Trailer Winch

SKU: CW-45

$499.00

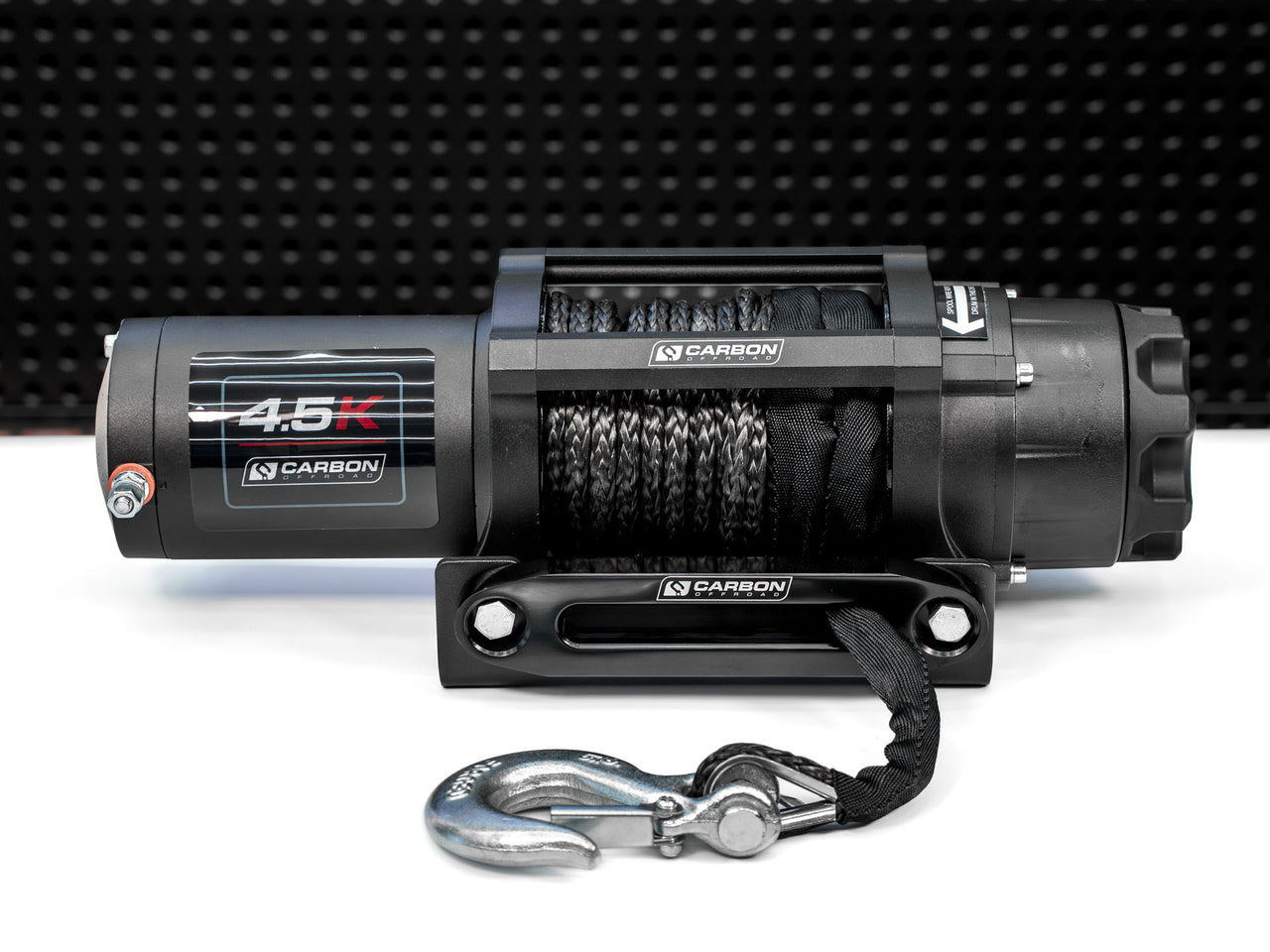

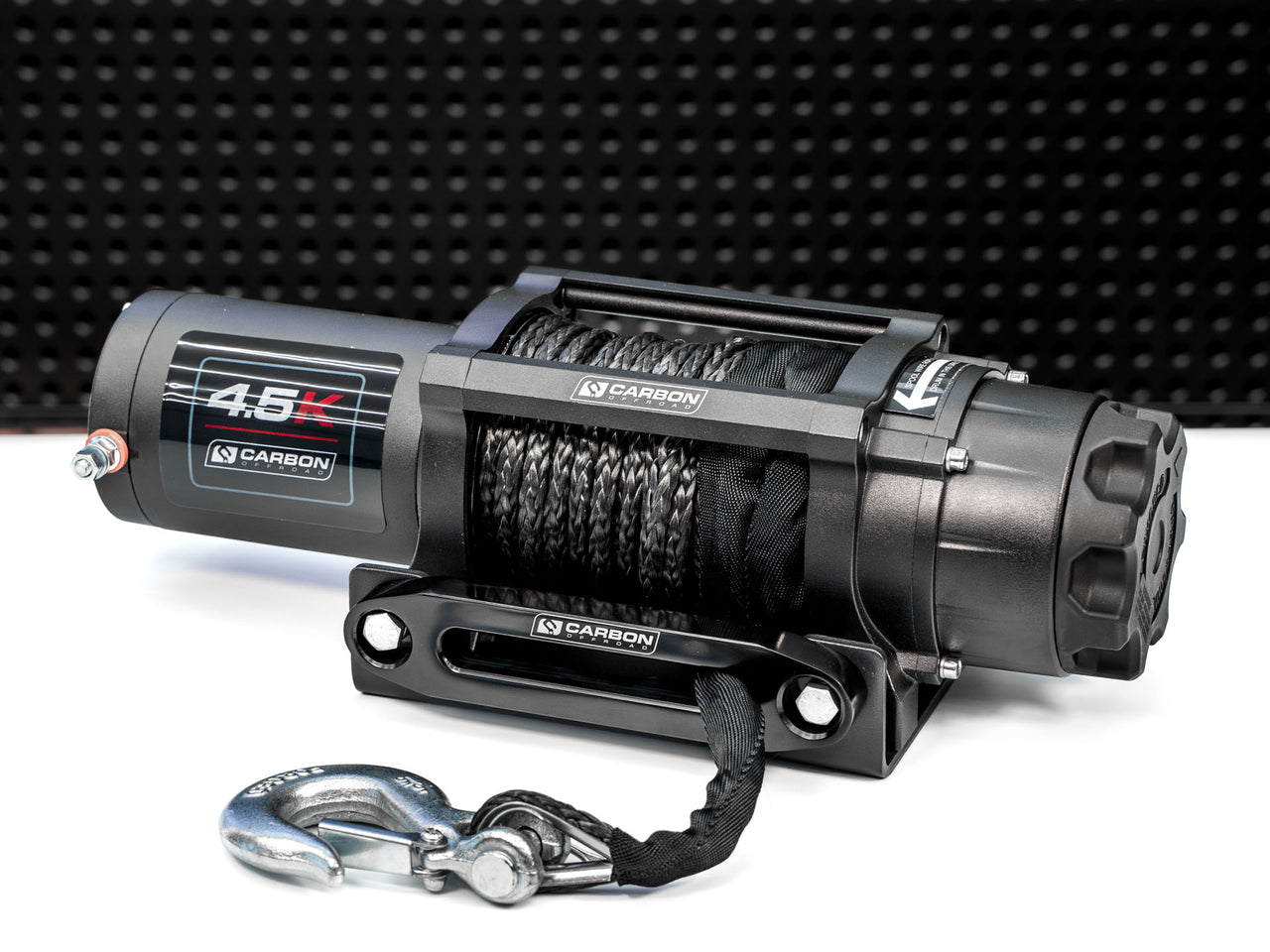

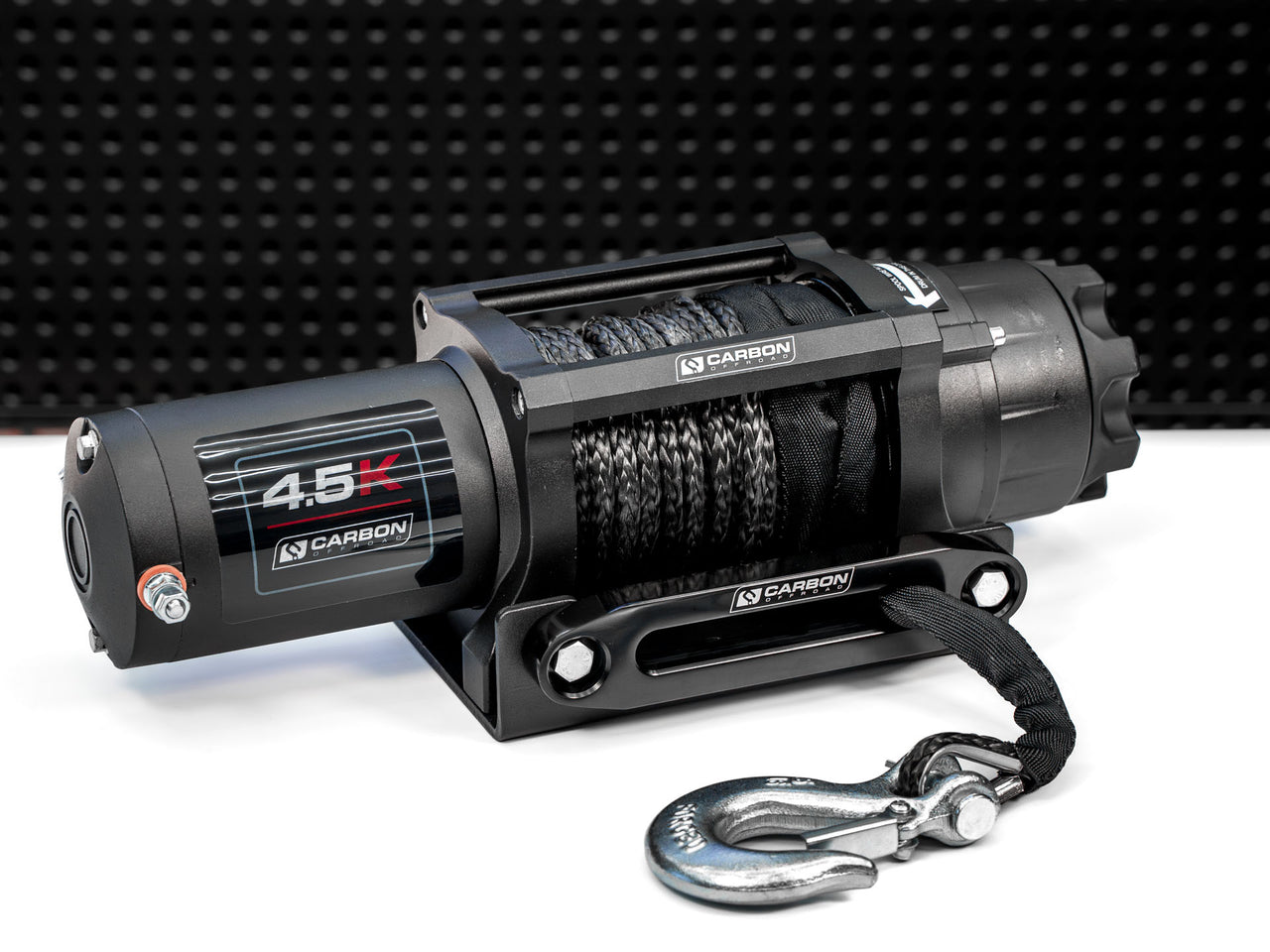

Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, high-performance 12V winch with 3-stage planetary gearbox, synthetic rope, aluminium hawse fairlead, and wireless/handlebar controls. Ideal for trailers, ATVs, UTVs, and heavy-duty recovery.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Quality Assured by Carbon Staff

Your Order Packed With Care
Main Features Dimensions Warranty
  • Rated Capacity: 3,000 lbs (1360 kg), single-line pull
  • Motor: 12V DC, 1.5 HP permanent magnet motor
  • Operation Modes: Wired remote with 12 ft (3.7 m) lead; Wireless remote included
  • Geartrain: Single-stage planetary
  • Gear Ratio: 153:1
  • Clutch: Split ring gear, free-spooling
  • Brake System: Self-locking gear train (rated load holding)
  • Durability Enhancements: Tie rods for stability
  • Rope Type: Synthetic rope, 43 ft × 3/16” (13 m × 4.8 mm)
  • Fairlead: Roller

Click here for an ATV Winch Dimension Comparison Chart



We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Rated Capacity: 3,000 lbs (1360 kg), single-line pull
  • Motor: 12V DC, 1.5 HP permanent magnet motor
  • Operation Modes: Wired remote with 12 ft (3.7 m) lead; Wireless remote included
  • Geartrain: Single-stage planetary
  • Gear Ratio: 153:1
  • Clutch: Split ring gear, free-spooling
  • Brake System: Self-locking gear train (rated load holding)
  • Durability Enhancements: Tie rods for stability
  • Rope Type: Synthetic rope, 43 ft × 3/16” (13 m × 4.8 mm)
  • Fairlead: Roller
Previous Product Next Product

Speed & Performance Breakdown

12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 20.4 (6.2) 31 1 / 4500 (2040)
1000 (454) 14.2 (4.3) 65 2 / 3750 (1700)
2000 (907) 10.9 (3.3) 96 3 / 3510 (1595)
3000 (1360) 7.7 (2.4) 125 4 / 3300 (1500)
4500 (2040) 4.9 (1.5) 175 -

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.
