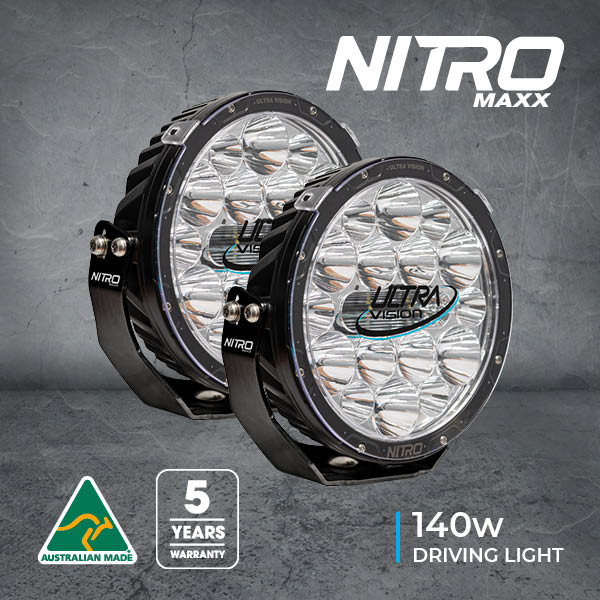

Nitro 140 Maxx 9″ LED Driving Light (Pair)
$1,439.00
Tax included. Shipping calculated at checkout.

Nitro 140 Maxx LED Driving Lights – Next-generation 140W LED lights delivering 22,520 effective lumens per pair with advanced Contrl® optics for exceptional width and distance. Slim, lightweight design with IP68 waterproofing, stainless steel brackets, polycarbonate lens covers, wiring harness, and anti-theft nuts included. Backed by a 5-year warranty for reliable performance in any conditions.

Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout
Beam
Colour Temperature
Rim Colour
Quantity
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Now with Improved Performance

The Nitro 140 Maxx is the latest generation of high-performance LED lighting. Utilising a sophisticated Contrl® optic, light output is optimised to deliver both width and distance from a single reflector.

The Widr® beam option further enhances width while still achieving more than 1 lux at 1.6km. Its slim body design allows fitment to most vehicles, while the reduced weight provides greater mounting flexibility.

Built with a proven stainless steel mounting bracket, the Nitro 140 Maxx ensures years of reliable performance. Each unit comes complete with clear polycarbonate lens covers, wiring harness, and anti-theft nuts.

By investing in Nitro 140 Maxx lights, you can be confident you’ve made the right choice.

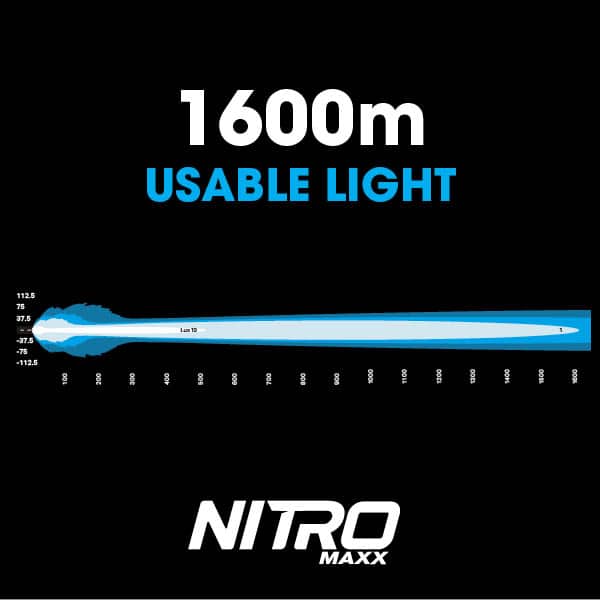

Beam Patterns

Nitro 140 Maxx Beam Pattern

Specifications

Specification Nitro 140 Maxx
Wattage 140W (per lamp)
Light Source 19 x High Power LEDs (per lamp)
Light Output – Raw 28,328 Lumens (per pair)
Light Output – Effective 22,520 Lumens (per pair)
Voltage 9V – 36V
Current Draw 20A @ 13.5V (per pair)
Operating Temperature -40°C to +80°C
Waterproof Rating IP68
Connector Type 2 Pin Standard Deutsch
Housing Die-Cast Alloy
Lens Polycarbonate
Brackets 4mm Stainless Steel
Colour Temperature 4500K or 5700K
Lifespan 50,000 Hours
Diameter 230mm
Weight 2.95kg (per lamp)
Mounting Suitable for all types
Beam Type Widr®
Warranty 5 Years
Included Harness & Anti-theft nuts
Part Numbers
Widr, 5700K, Black Rim PVM2314LEDW/PR
Widr, 4500K, Black Rim PVM2314LEDW4/PR
Widr, 5700K, Chrome Rim PVM2314LEDW-C/PR
Widr, 4500K, Chrome Rim PVM2314LEDW4-C/PR
